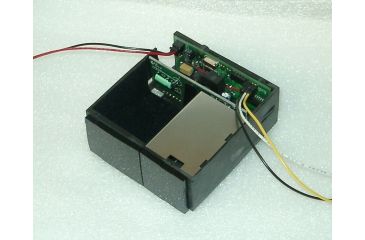

Opti-Logic RS100 Industrial Laser Range Finder w/ RS232 Serial Computer Data Interface Ports
Tap Tap to Zoom
Product No Longer Available
Unfortunately Opti-Logic RS100 Industrial Laser Rangefinder w/ RS232 Serial Data Interface Ports is not listed by Shoptics.You can also explore other items in the Optics, Rangefinders yourself to try and find the perfect replacement for you!
Product Info for Opti-Logic RS100 Industrial Laser Rangefinder w/ RS232 Serial Data Interface Ports
Opti-Logic RS100 Industrial Laser Rangefinder w/ RS232 Serial Data Interface Ports is part of our large selection of Opti-Logic Optics. Don't forget to look at complete variety of Rangefinders from Opti-Logic that we feature at everyday low prices. Browse our full product choice for the tools and merchandise you need to tackle the task at hand.
Specifications for Opti-Logic RS100 Industrial Laser Range-Finder:
| RS100 Range: | 100 Yards (Minimum 4 Yards) | |
| Communications: |
|
|
| Data Raw Counts: | ~200Hz | |
| Data Calibrated Range: | ~10Hz | |
| Data Rate: | ~200Hz raw counts for un-calibrated operation;~ 10Hz for calibrated operation | |
| Calibrated Range Units: | Feet, Meters, Yards | |
| Laser: | Class I (eye-safe), 905nm +/- 10nm | |
| Power: | 7-9VDC conditioned required, Current draw @ full power (~ 1.8W) | |
| Laser Wavelength: | RS100 905nm +/- 10nm | |
| Laser Divergence: | Vertical Axis -- 3.5mrad half-angle divergence; Horizontal Axis -- 1mrad half-angle divergence; (Approximate Beam "footprint" at 100m is 35cm x 5cm) | |
| Accuracy: | +/- 1m on 1x1m2 diffuse target with 50% reflectivity | |
| Resolution: | 0.2m | |
| Dimensions: | 32x78x84mm | |
| Weight: | < 8oz | |

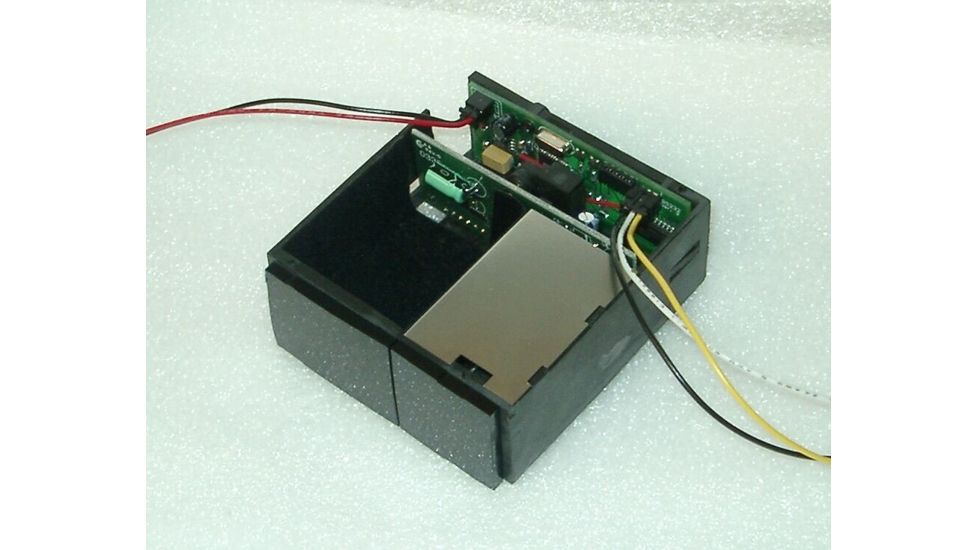

| Case: | Supplied as OEM modules consisting of open chassis containing optics and circuit boards. Custom Housings can be designed and built on request. | |
| Note: | Custom designs and modifications are available at additional cost, please contact manufacturer. | |
Features of Opti Logic Industrial Laser Range Finder RS100:
- Compact
- Light weight
Package Contents:
- Opti-Logic RS100 Industrial Laser Range Finder
