Thermal Eye Infrared Sensor 17-640 Series
1 of 5 images

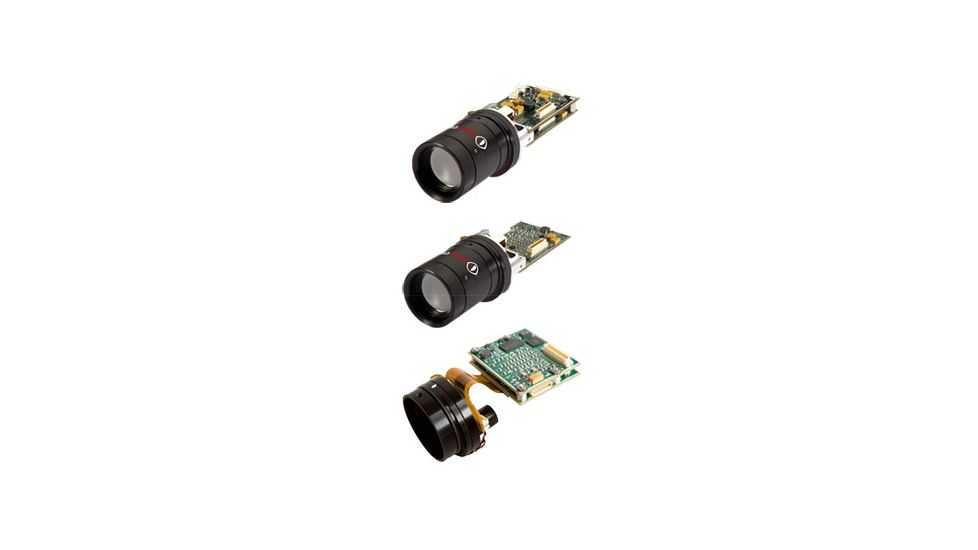

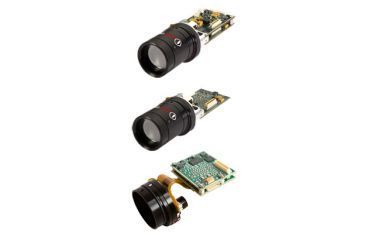

Thermal Eye 17-640 Analog 550 HFOV f/1.0 Athermalized Core Dual CCA
2 of 5 images

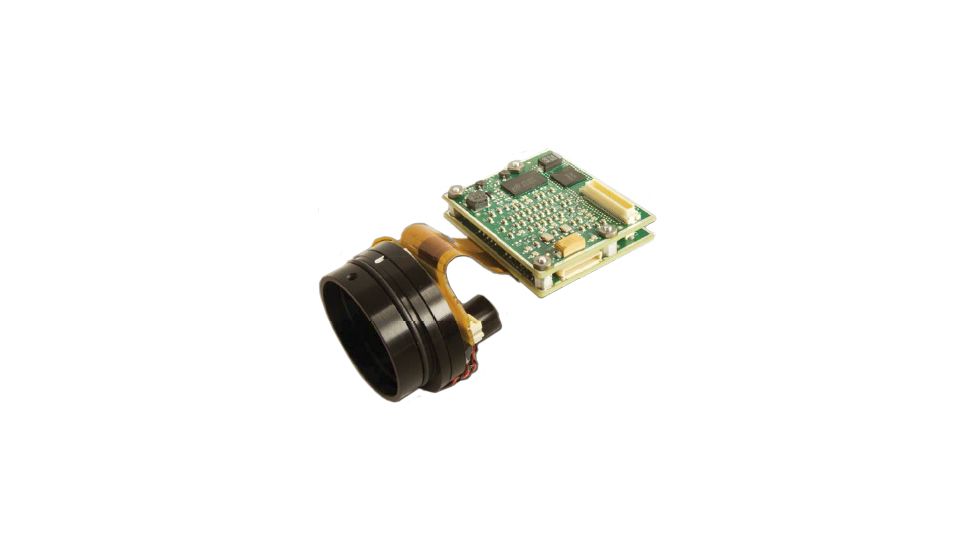

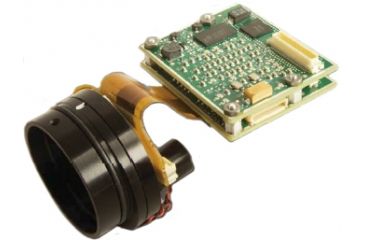

Thermal Eye 17-640 Thermal Core, No Lens
3 of 5 images

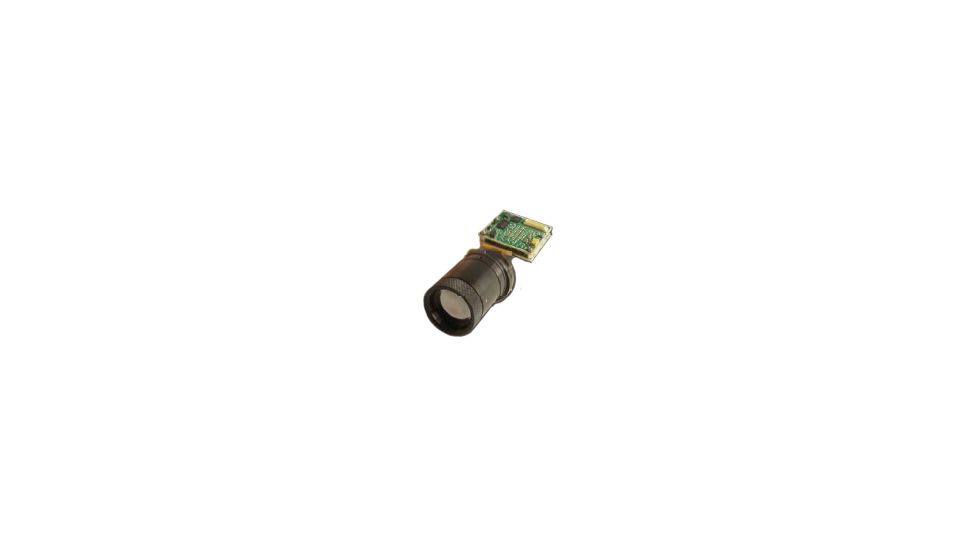

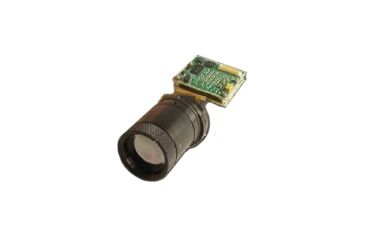

Thermal Eye 17-640 Thermal Module, Dual Mini 28 Degree Lens
4 of 5 images

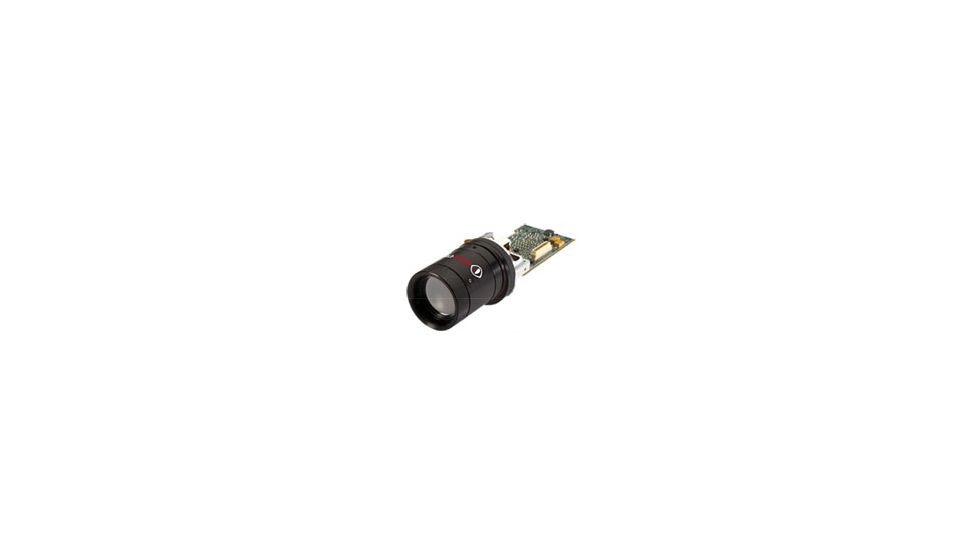

Thermal Eye 17-640 Thermal Module, Digital 28 Degree Lens
5 of 5 images

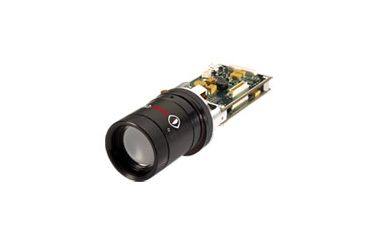

Thermal Eye 17-640 Thermal Module, Analog 28 Degree Lens
Tap Tap to Zoom
Product Discontinued by Manufacturer
Thermal Eye Infrared Sensor 17-640 Series has been discontinued by Thermal Eye and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Optics, Optics Accessories yourself to try and find the perfect replacement for you!
Product Info for Thermal Eye Infrared Sensor 17-640 Series
Thermal Eye Infrared Sensor 17-640 Series belongs to our big collection of Thermal Eye Optics. Remember to look into the full selection of Optics Accessories from Thermal Eye which we supply at everyday affordable prices. Browse our full product selection for the gear and merchandise you need to tackle the job at hand.
Specifications for Thermal Eye 17-640 Series Thermal Imaging Sensor:
| Focal Plane Array | ||
|---|---|---|
| Material, Structure & Format: | Uncooled Amorphous Silicon Microbolometer, 17 micron, 640 x 480 pixels | |
| Spectral Response: | LWIR (7.5 - 13.5μm) | |
| Thermal Sensitivity: | ≤50 mK | |
| Refresh Rate: | 30 Hz | |
| Interface/Controls | ||
| Camera Setup: | USB and RS-232 available | |
| Discrete Controls: | Programmable Electronic Zoom, Polarity and Touchup signals | |
| Thermal Imaging System Performance | ||
| Start-up Time: | ≤ 5 seconds | |
| Brightness/Contrast: | Advanced Image Processing Utilizing AGC and Histogram Equalization Modes | |
| Environmental Characteristics | ||
| Operating Temperature: | -40°C to 85°C | |
| Storage Temperature: | -45°C to 100°C | |
| Optics | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Focus Type: | HFOV | FL(mm) | HD Range | FOV | FL(mm) | HD Range | FOV | FL(mm) | HD Range | |||||||||
| Manual (Available): | 14°* | 46 | 1.3km | 28° | 22 | 670m | 55° | 10 | 350m | |||||||||
| Manual (Planned): | 20° | 31 | 930m | 40° | 15 | 500m | ||||||||||||
HD Range = Human Detection Range assuming a 0.75m x 0.75m target. 50% confidence. Calculated using NVTherm.
All lenses are f/1.0 athermalized unless otherwise specified. FOV & FL values are nominal.
*14° lens is f/1.2. Non-athermalized 14° f/1.0 lenses are available.
| Video | ||||
|---|---|---|---|---|
| : | Digital | Analog | ||
| Analog Output: | N/A | NTSC (monochrome) | ||
| Digital Output: | 8-bit digital, or 16-bit NUC, or raw data | N/A | ||
| Output Resolution: | 640 x 480 | 640 x 480 | ||
| Power | ||||
| Input Voltage: | 3.3V, 5V Regulated | 8-32V single supply | ||
| Power Dissipation @ 25°C Ambient: | <1.8 Watts RMS | <2.4 Watts (@12VDC) RMS | ||
| Dimensions (w/o Lens, LWH) | ||||
| : | Weight w/o Lens | Size CCA's (LWH) | ||
| Digital 4" x 1.7" x 1.7": | <71g | 1 circuit card 2.73" x 1.67" x 0.42" | ||
| Analog 4" x 1.7" x 1.7": | <92g | 2 circuit cards 2.73" x 1.67" x 0.67" | ||
| Dual Mini Digital 3.6" x 2.0" x 1.7": | <74g | 2 circuit cards 1.70" x 2.00" x 0.60" | ||
Features of ThermalEye Infrared Imager 17 640 Series:
- Extensive customization and control available through USB interface or serial communication interface
- Programmable E-Zoom Settings
- Real-time control of touch up parameters
- Digital data accessible through the expansion port
- Analog, digital, and dual mini formats available with or without a lens
- Sophisticated user interface for OEM customization
- Programmable electronic zoom sequence, expansion port for video processing and real-time control of touch up parameters
- 17μm 640 x 480 format assures better target resolution and longer stand-off range
- Compared to 25μm, 17μm allows ~30% reduction in lens length and diameter while maintaining range performance
- 17 micron detector − Wafer level packaging enables small detector size
- Size, weight and power − Compact design weighs less than 95g without lens
- Three configurations − Analog, digital, or dual mini digital cores are available with or without lens
- Sophisticated GUIs − Flexible OEM customization
- Open architecture − Expansion port provides access to digital data along video processing chain for advanced OEMs
- Integration Support − Efficient and knowledgeable technical support available
Package Contents:
- Thermal Eye 17-640 Infrared Sensor
