Opti-Logic RS800 Industrial Laser Rangefinder w/ serial RS232 PC interface port OEM
Tap Tap to Zoom
Product Temporarily Unavailable
OptiLogic RS800 Industrial Laser Rangefinder w/ serial RS232 PC interface port OEM is currently unavailable. We are working with our suppliers to secure additional supply as quickly as possible. If you are looking for a comparable replacement you can receive sooner, please consider the suggestions from our product experts belowor explore other items in the Optics, Rangefinders.
Product Info for OptiLogic RS800 Industrial Laser Rangefinder w/ serial RS232 PC interface port OEM
OptiLogic RS800 Industrial Laser Rangefinder w/ serial RS232 PC interface port OEM is part of our big selection of Opti-Logic Optics. Make sure to look at complete range of Rangefinders from Opti-Logic which we provide at everyday discount prices. Browse our full product selection for the tools and merchandise you want to tackle the task at hand.
Specifications for Opti-Logic RS800 Industrial Laser Range-Finder:
| RS800 Range: | 800 Yards (Minimum 4 Yards) | |
| Communications: |
|
|
| Data Raw Counts: | ~200Hz | |
| Data Calibrated Range: | ~10Hz | |
| Data Rate: | ~200Hz raw counts for un-calibrated operation;~ 10Hz for calibrated operation | |
| Calibrated Range Units: | Feet, Meters, Yards | |
| Laser: | Class I (eye-safe), 905nm +/- 10nm | |
| Power: | 7-9VDC conditioned required, Current draw @ full power (~ 1.8W) | |
| Laser Wavelength: | RS100 905nm +/- 10nm | |
| Laser Divergence: | Vertical Axis -- 3.5mrad half-angle divergence; Horizontal Axis -- 1mrad half-angle divergence; (Approximate Beam "footprint" at 100m is 35cm x 5cm) | |
| Accuracy: | +/- 1m on 1x1m2 diffuse target with 50% reflectivity | |
| Resolution: | 0.2m | |
| Dimensions: | 32x78x84mm | |
| Weight: | < 8oz | |

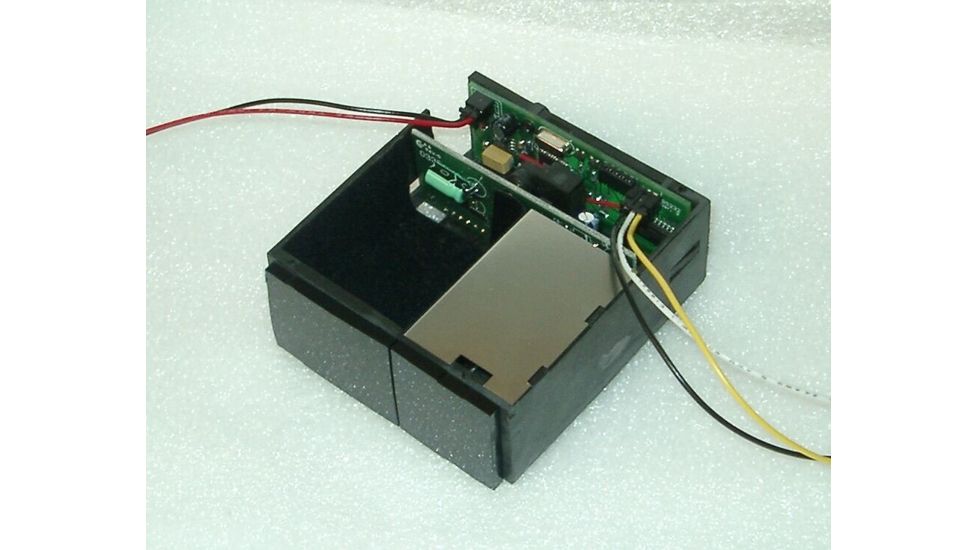

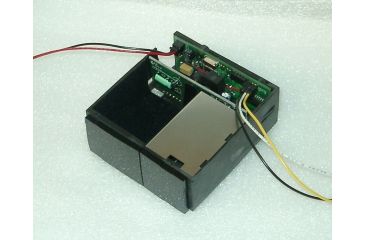

| Case: | Supplied as OEM modules consisting of open chassis containing optics and circuit boards. Custom Housings can be designed and built on request. | |
| Note: | Custom designs and modifications are available at additional cost, please contact manufacturer. | |
Features of Opti Logic Industrial Laser Range Finder RS800:
- Compact
- Light weight
Package Contents:
- Opti-Logic RS800 Industrial Laser Range Finder
