Elcan PhantomIR Infrared Thermal Vision Binocular TIBNPHAN1

not yet rated review & rate

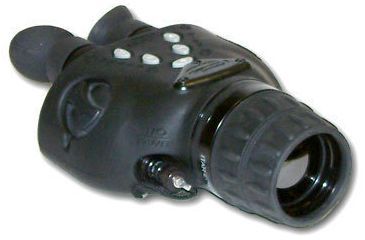

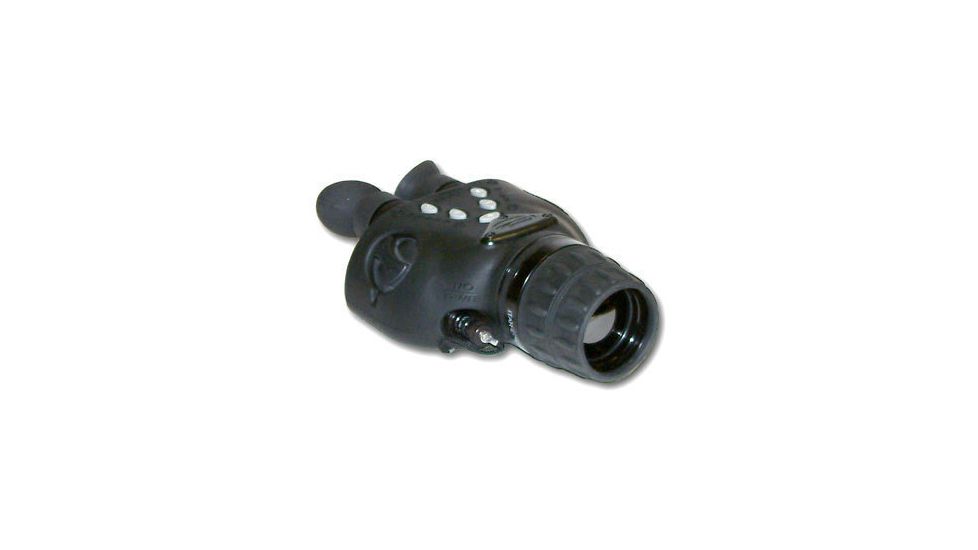

Elcan PhantomIR Infrared Thermal Vision Binocular TIBNPHAN1
Elcan PhantomIR Infrared Thermal Vision Binocular TIBNPHAN1
1 of 1 images
Elcan PhantomIR Infrared Thermal Vision Binocular TIBNPHAN1

Tap Tap to Zoom

Product No Longer Available

Unfortunately Elcan PhantomIR Infrared Thermal Vision Binocular TIBNPHAN1 is not listed by Shoptics.You can also explore other items in the Optics, Thermal Imaging Optics yourself to try and find the perfect replacement for you!

Product Info for Elcan PhantomIR Infrared Thermal Vision Binocular TIBNPHAN1

Elcan PhantomIR Infrared Thermal Vision Binocular TIBNPHAN1 belongs to our massive collection of . Be sure to check out the full line of Thermal Imaging Optics from Elcan which we feature at everyday affordable prices. Browse our full product choice for the equipment and products you need to tackle the job at hand.

Specifications for Phantom IR infrared Thermal Vision Binocular:

Optical Magnification:   1x - 2x nominal
Zoom:   2x (2x-4x nominal)
Wide Field of View:   18.6 (h) x 14.0 (v) degrees
Narrow Field of View:   9.3 (h) x 7.0 (v) degrees
NETD:   <0.07°C
Detection Range:   900+ meters
Operating temp. range:   -20°C to 49°C
Focus Range:   1m to infinity
Individual eye correction:   +/- 6 diopter adjustments
Angular resolution:   0.5 milliradian
Spectral Response:   8 to 12 microns
Polarity Control:   White hot / Black hot
Gain / level:   Automatic Control with enhanced image processing
Video out format:   SMPTE-170M (NTSC compatible) RCA jack
Continuous Operating Time:   >7 hours @ 25°C
Acoustic Signature:   non-detectable at 10m
Internal Power:   4 lithium AA batteries
External Power:   Optional 12v DC, 120/240v, AC
Initial start-up time:   <2 seconds
Tripod attachment:   1/4 - 20 UNC
Weight (w/Batteries):   <3.5lb (1.6 kg)
Size (inches):   11(L) x 7 (W) x 3 (H)
Size (mm):   380 (L) x 178 (W) x 76 (H)
Exterior:   Molded Santoprene rubber
Environmental:   Water resistant, abrasion resistant
Reticle:   Mil-Dot, crosshair with dot, or none.

Features of Phantom IR infrared Thermal Vision Binocular:

  • Range performance to 750(+) meters
  • Digital Compass (magnetic bearing)
  • Low Battery Indicator
  • Interpupilary Adjustment
  • Cross Hair & Mil-Dot Reticule Selection
  • Weight under 3.5 lbs
  • Latest 7 - 14mm Un-cooled Detector Technology
  • AA Battery & External Power;
  • Shock Protected Precision Optics

Package Contents:

  • Phantom IR infrared Thermal Vision Binocular
  • Hard Storage Case
  • Operator's Manual
  • Neck Strap
  • Rubber Lens Cap
