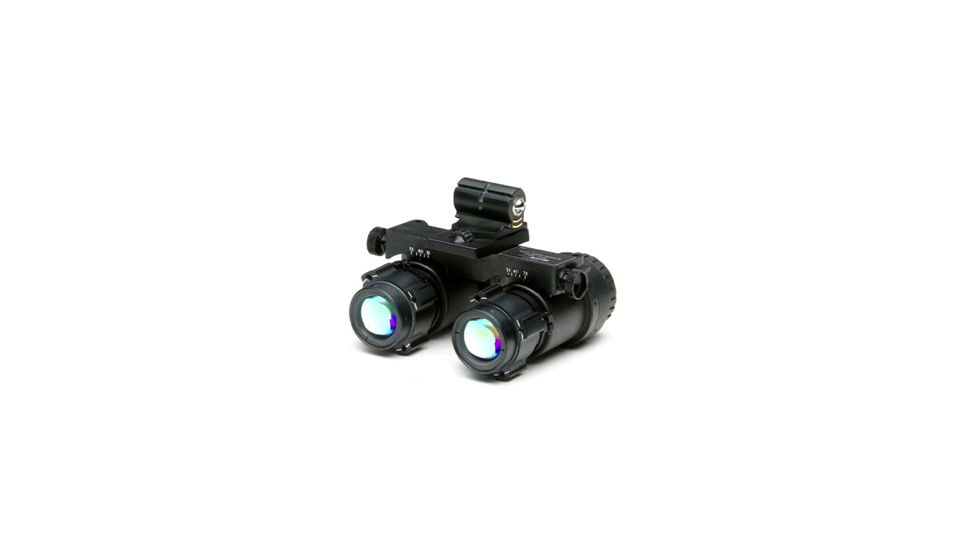

EOTech M-949 ANVIS-6/9 Type Aviator Goggles
Tap Tap to Zoom
Product Discontinued by Manufacturer
EOTech M-949 ANVIS-6/9 Aviator Night Vision Goggle, Class B has been discontinued by EOTech and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Optics, Night Vision Optics yourself to try and find the perfect replacement for you!
Product Info for EOTech M-949 ANVIS-6/9 Aviator Night Vision Goggle, Class B
EOTech M-949 ANVIS-6/9 Aviator Night Vision Goggle, Class B belongs to our big collection of EOTech Optics. You should check out the full collection of Night Vision Optics from EOTech which we have at everyday discounted prices. Browse our full product choice for the equipment and products you want to tackle the task at hand.
Specifications for EOTech M949 ANVIS Goggle:
| Optics | ||
|---|---|---|
| Magnification: | 1x | |
| Field of View (FOV): | 40.0° | |
| Objective Lens: | 27 mm (1.1 in) | |
| Interpupillary Adjustment: | 52-72 mm (2-2.8 in) | |
| Eye Relief: | 25 mm (1 in) | |
| Diopter Adjustment: | +2 to -6 | |
| Gen III Image Intensification Tube Options | ||
| Alpha: |
|
|
| Delta: |
|
|
| Omega: |
|
|
| Infinity: |
|
|
| Power | ||
| Power Sources: | Low Profile Power Pack (LPPP) with 4 AA batteries (2 AA primary, 2AA alternate)
Cable from Aircraft Power Converter into Low Profile Power Pack |
|
| Warning Indicator: | Red LED Activates on Mount at 2.3 volts DC or on Battery voltage of 2.0-3.0 Volts DC | |
| Physical Characteristics | ||
| Size: | 11.6 cm L x 13 cm W x 8.9 cm H (4.6 in L x 5.1 in W x 3.5 in H) | |
| Weight: | 590 g Max (1.3 lbs) | |
| Vertical Adjustment: | 25 mm Min (1 in) | |
| Fore/Aft Adjustment: | 27mm Min (1.1 in) | |
| Tilt Adjustment: | 10° Min | |
| Objective Adjustment: | 3/4 turn (338°) | |
| Automatic Breakaway: | 11-15g (0.02 - 0.03 lbs) | |
| Mounts: | Multiple Helmet Mount Adapters Available | |
| Warranty | ||
| Housing & Tube: | 1 Year | |
| Ordering Information | ||
| Alpha: | Model 245080-001 | |
| Delta: | Model 245080-003 | |
| Omega Tube: | Model 245080-004 | |
Benefits of EOTech Night-Vision M949 Pilots NV Goggles
- Provides improved situational awareness and enhanced ergonomics
- Binocular viewing for optimized depth perception and large 25mm eyepieces
- Ergonomically designed interface controls including inter-pupillary and vertical/fore-aft-tilt adjustments
- Generation III night vision
- U.S. manufactured image intensified tube
Features of EOTech Night Vision M 949 Goggles:
- Optional Class A and Class C ("Leaky Green") Filters
- Clip-On Power Supply (COPS) for pre-flight or dismounted operations
- Low Profile Power Pack with primary and alternate battery plus aircraft power port provide triple redundancy for complete system confidence
- Multiple Helmet Mounts
- Clip-On Power Supply (COPS)
- Dual AA Battery Operation
- One-Year Warranty Standard
- Improved 40° field of view
Package Contents:
- EOTech M949 ANVIS-6/9 Aviator Goggle - Class B
- Operation Manual
- Soft Carrying Case
- Low Profile Power Pack
- Clip-On Power Supply
- Lens Paper
- Neck Cord and Airworthiness Log
