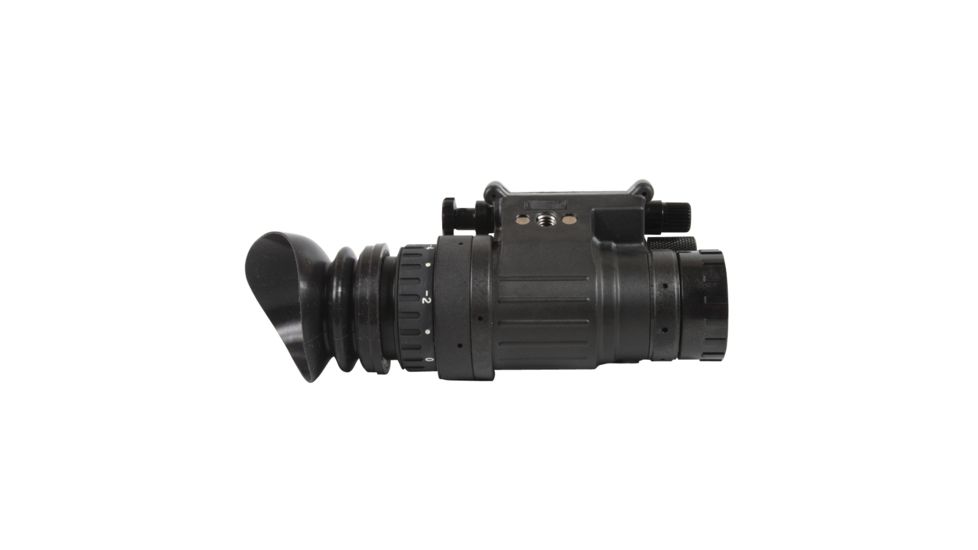

Sightmark PVS 14 Gen 3 64-72lp ITT Pinnacle NV Goggle SM14064
2 of 8 images

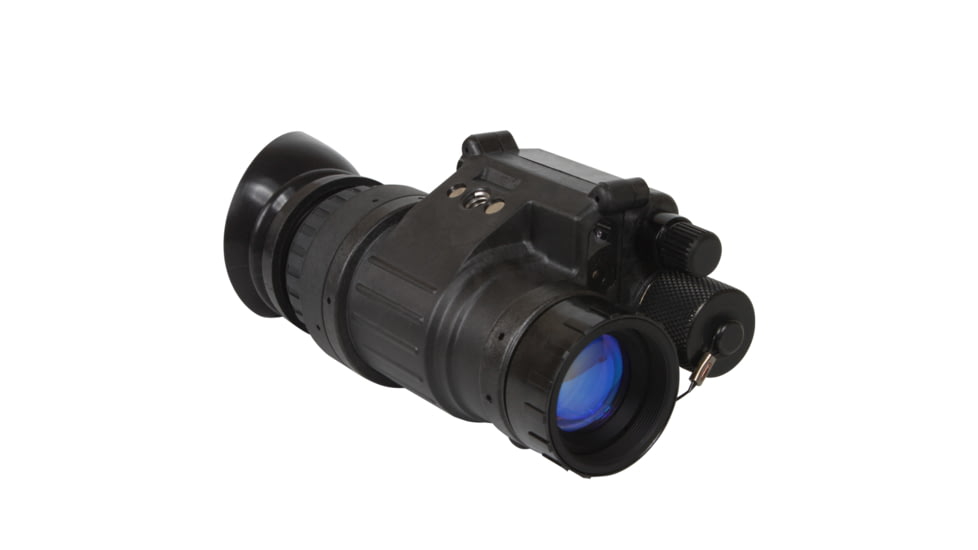

Sightmark PVS 14 Gen 3 64-72lp ITT Pinnacle NV Goggle SM14064
3 of 8 images

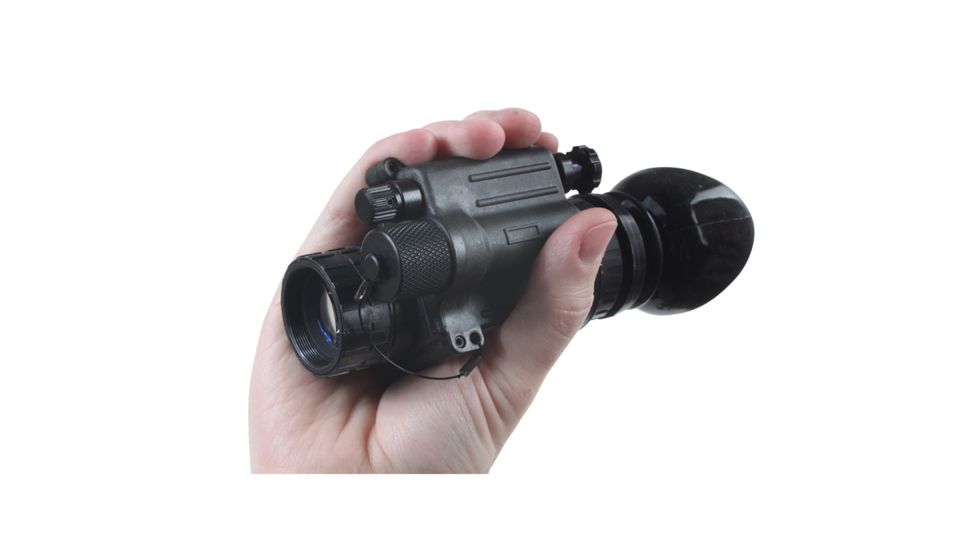

Sightmark PVS 14 Gen 3 64-72lp ITT Pinnacle NV Goggle SM14064
4 of 8 images

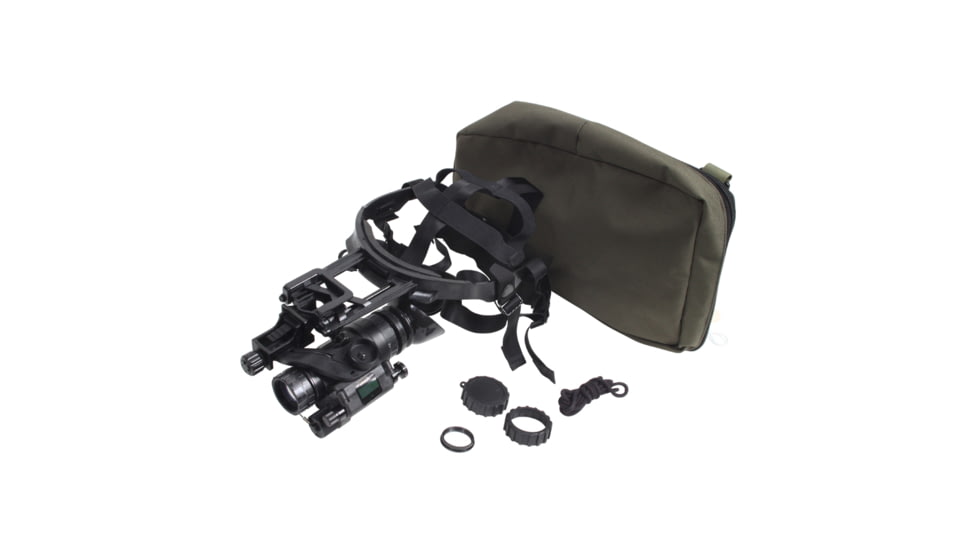

Sightmark PVS 14 Gen 3 64-72lp ITT Pinnacle NV Goggle SM14064
5 of 8 images

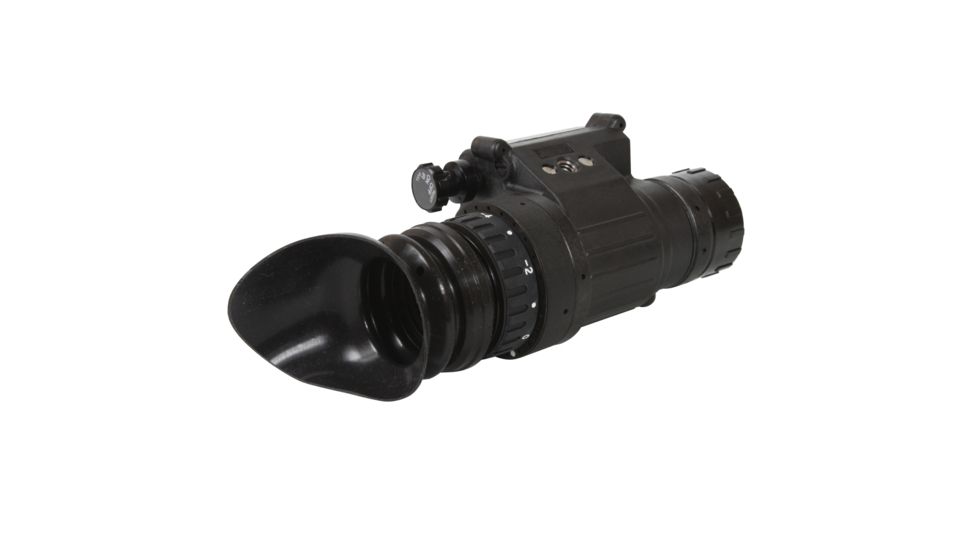

Sightmark PVS 14 Gen 3 64-72lp ITT Pinnacle NV Goggle SM14064
6 of 8 images

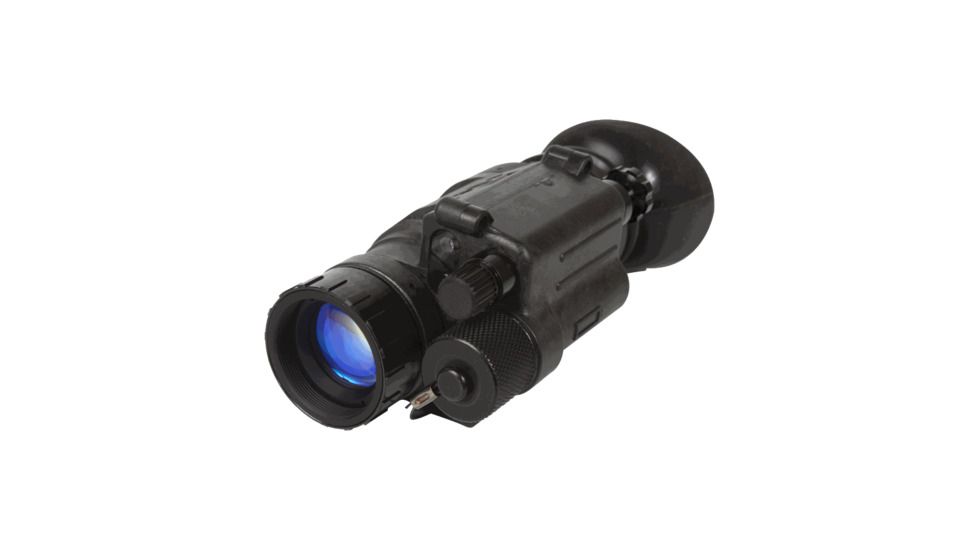

Sightmark PVS 14 Gen 3 64-72lp ITT Pinnacle NV Goggle SM14064
7 of 8 images

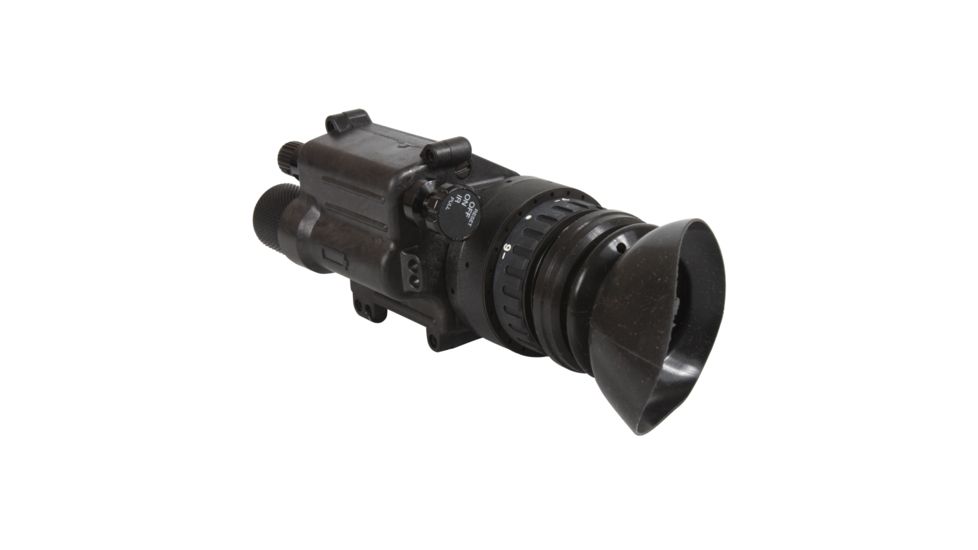

Sightmark PVS 14 Gen 3 64-72lp ITT Pinnacle NV Goggle SM14064
8 of 8 images

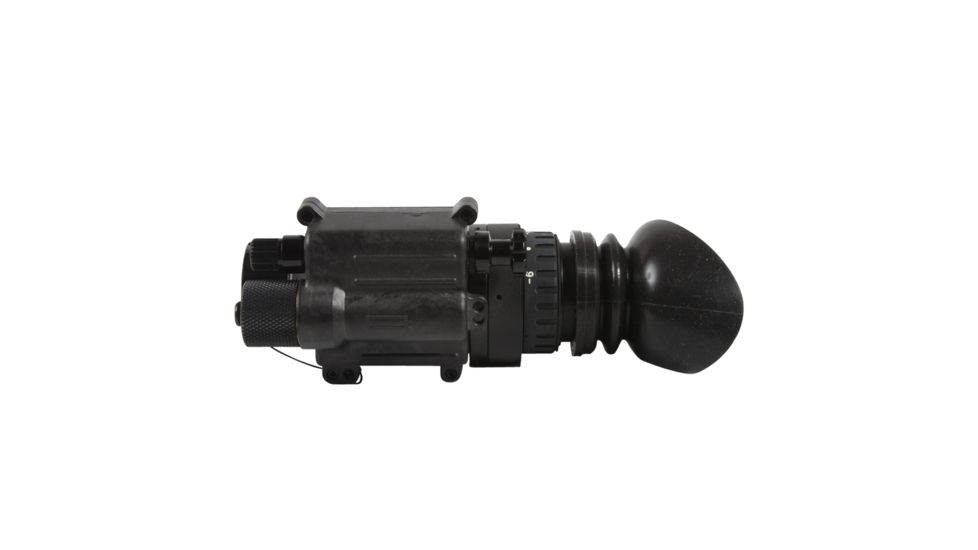

Sightmark PVS 14 Gen 3 64-72lp ITT Pinnacle NV Goggle SM14064
Tap Tap to Zoom
Product Discontinued by Manufacturer
Sightmark PVS 14 Gen 3 64-72lp NV Goggle has been discontinued by SightMark and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Optics, Night Vision Optics yourself to try and find the perfect replacement for you!
Product Info for Sightmark PVS 14 Gen 3 64-72lp NV Goggle
Sightmark PVS 14 Gen 3 64-72lp NV Goggle is part of our big selection of SightMark Optics. You should definitely browse the complete variety of Night Vision Optics from SightMark which we present at everyday affordable prices. Browse our full product choice for the equipment and merchandise you want to tackle the job at hand.
Specifications for Sightmark PVS 14 Gen 3 64-72lp NV Goggle w/ IR:
| Generation: | 3 |
| Tube Type: | ITT F9815SLG Pinnacle |
| Useful photocathode diameter, mm: | 18 |
| Photocathode type: | GaAs |
| Integral photocathode sensitivity, μÀ/lm, minimum value: | 1350 |
| Signal to noise ratio, value, not less than/ typical value: | 16.2/21 |
| Resolution, lines per mm: | 64 |
| Gate Type: | Auto-gated |
| Film Type: | Thin-filmed |
| FOM: | Determined by tube spec |
| Halo: | Determined by tube spec |
| Brightness gain, fL/fL: | 25 to more than 3,000 |
| Magnification, x: | 1 |
| Objective Lens diameter, mm: | 24 |
| F- number: | F/1.2 |
| Field of view,°: | 40 |
| Min. focusing distance, in: | 10 to Infinity | Min. focusing distance, m |
| Interpupillary adjustment, mm: | N/A |
| Diopter adjustment, dptr.: | +2, -6 |
| Power supply, V: | 1.5 |
| Battery life (without IR), hour: | 50 |
| Battery Type: | 1xAA |
| Lens Material: | Glass |
| Body Material: | Glass-filled Nylon Composite |
| Tripod Mount, inch: | 1/4 |
| Operating temp, °C: | -51 to 49 |
| Nitrogen purged: | No |
| Waterproof: | Yes |
| Dimensions, in: | 4.5x2.25x2 |
| Weight (with batteries), oz: | 12.4 |
Features of Sightmark PVS 14 Gen 3 64-72lp Waterproof NV Monocular:
- Auto-Gated, Thin film ITT Pinnacle tube
- Variable Gain Control
- Automatic Brightness Control
- Able to Withstand Heavy Recoil
- Extremely Versatile
- Single AA Battery Operation
- Integrated IR Illuminator
- Low Battery Indicator
- IR Illuminator on Indicator
- Lightweight and Waterproof
Package Contents:
- Sightmark PVS 14 Gen 3 64-72lp Night Vision Goggles
