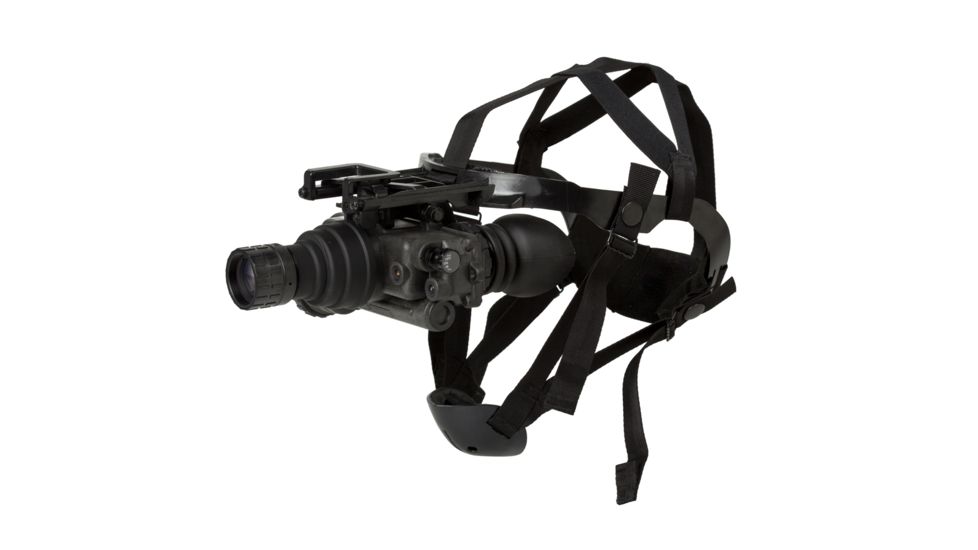

Sightmark PVS-7 64+DS NV Goggle SM15064
2 of 7 images
Sightmark PVS-7 64+DS NV Goggle SM15064
3 of 7 images

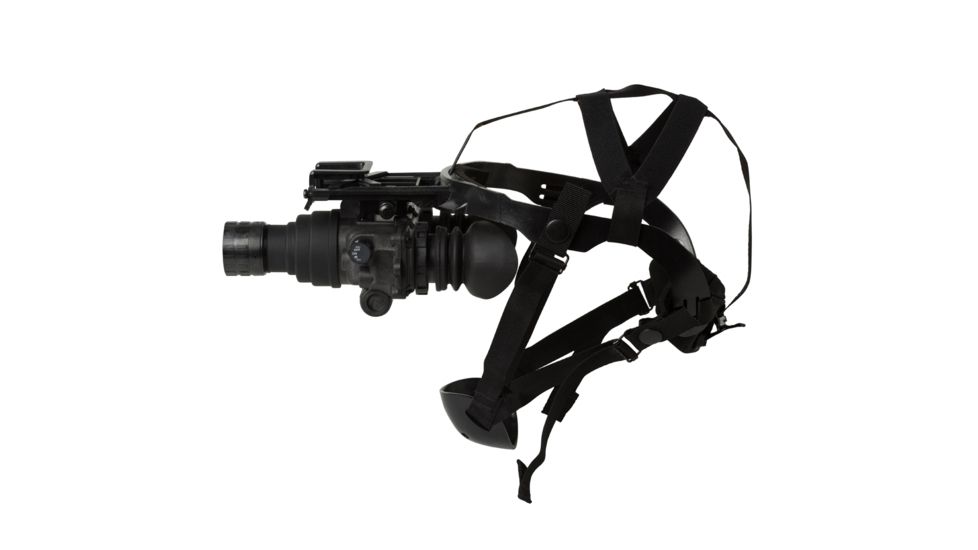

Sightmark PVS-7 64+DS NV Goggle SM15064
4 of 7 images

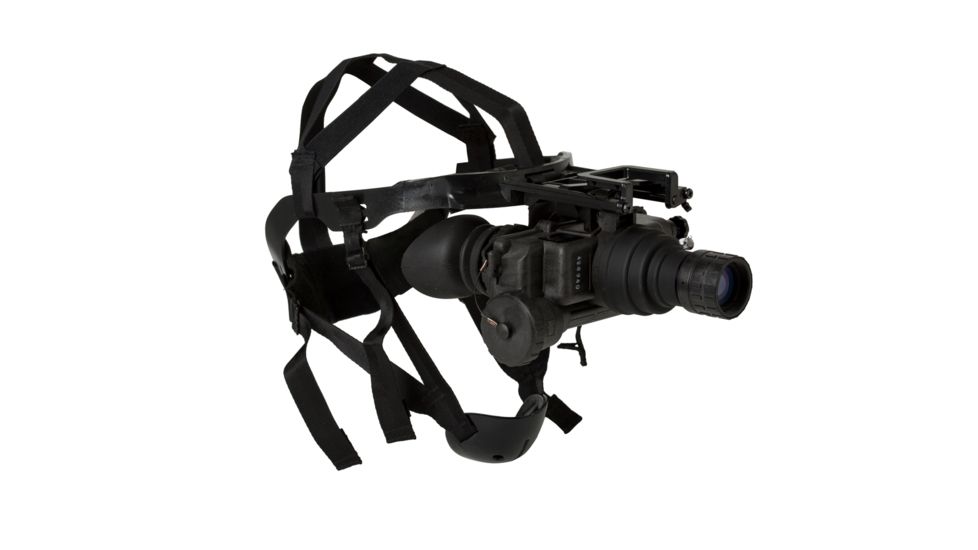

Sightmark PVS-7 64+DS NV Goggle SM15064
5 of 7 images

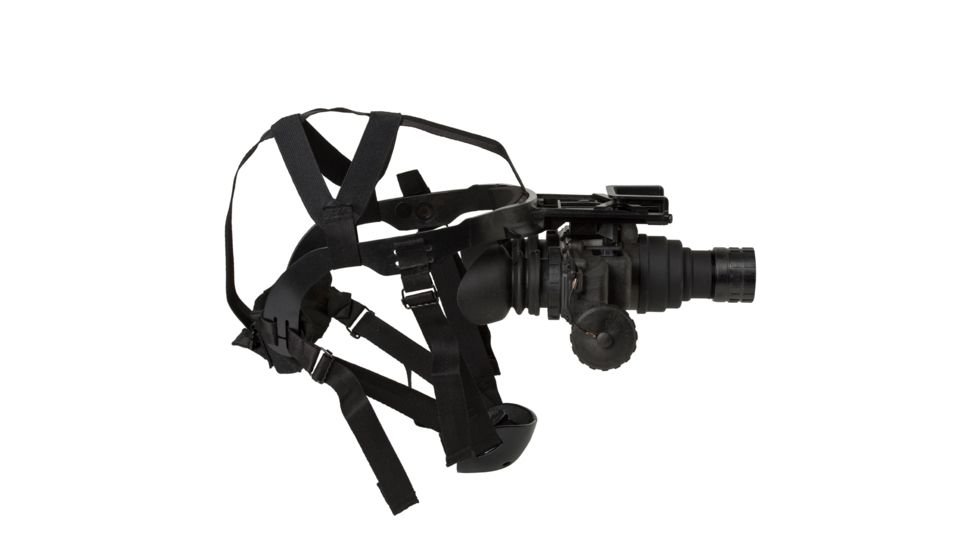

Sightmark PVS-7 64+DS NV Goggle SM15064
6 of 7 images

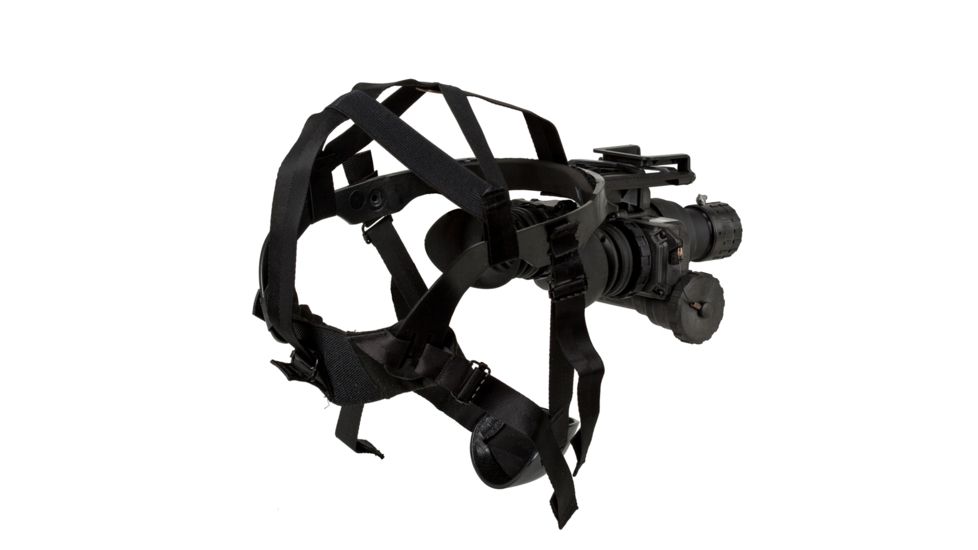

Sightmark PVS-7 64+DS NV Goggle SM15064
7 of 7 images

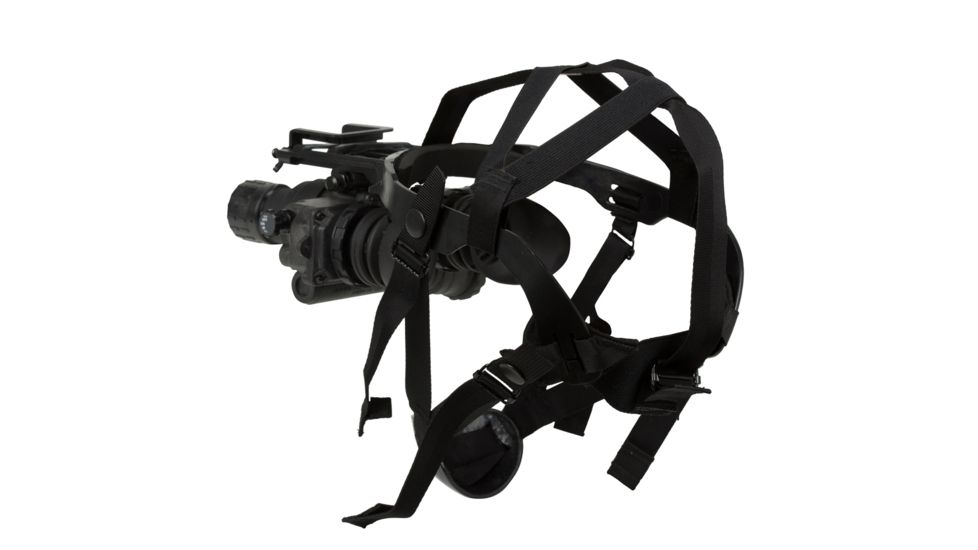

Sightmark PVS-7 64+DS NV Goggle SM15064
Tap Tap to Zoom
Product No Longer Available
Unfortunately Sightmark PVS-7 64+DS NV Goggle is not listed by Shoptics.You can also explore other items in the Optics, Optics Accessories yourself to try and find the perfect replacement for you!
Product Info for Sightmark PVS-7 64+DS NV Goggle
Sightmark PVS-7 64+DS NV Goggle belongs to our big selection of SightMark Optics. Don't forget to explore the entire collection of Optics Accessories from SightMark which we supply at everyday discounted prices. Browse our full product selection for the gear and merchandise you want to tackle the task at hand.
Specifications for Sightmark PVS-7 64+DS Waterproof NV Goggles:
| Generation: | 3 |
| Tube Type: | ITT F98105SLG Pinnacle |
| Useful photocathode diameter, mm: | 18 |
| Photocathode type: | GaAs |
| Integral photocathode sensitivity, μm/lm, minimum value: | 1350 |
| Signal to noise ratio, value, not less than/ typical value: | 16.2/21 |
| Resolution, lines per mm: | 64 |
| Gate Type: | Auto-gated |
| Film Type: | Thin-filmed |
| FOM: | Determined by tube spec |
| Halo: | Determined by tube spec |
| Magnification, x: | 1 |
| Objective Lens diameter, mm: | 24 |
| F- number: | F/1.2 |
| Field of view, °: | 40 |
| Min. focusing distance, in: | 8 to Infinity |
| Min. focusing distance, m: | .2 to Infinity |
| Interpupillary adjustment, mm: | 55 to 71 |
| Diopter adjustment, dptr.: | +2, -6 |
| Power supply, V: | 3 |
| Battery Type: | 2xAA |
| Battery life (without IR), hour: | 30 |
| ens Material: | Glass |
| Body Material: | Glass-filled Nylon Composite |
| Operating temp, °C: | -51 to 52 |
| Nitrogen purged: | No |
| Waterproof: | Yes |
| Dimensions, in: | 6.375x3x6 |
| Weight (with batteries), oz: | 24 |
Features of Sightmark PVS-7 64+DS NV Monocular w/ IR:
- Auto-Gated, Thin film ITT Pinnacle tube
- Variable Gain Control
- Automatic Brightness Control
- Able to Withstand Heavy Recoil
- Extremely Versatile
- Single AA Battery Operation
- Integrated IR Illuminator
- Low Battery Indicator
- IR Illuminator on Indicator
- Lightweight and Waterproof

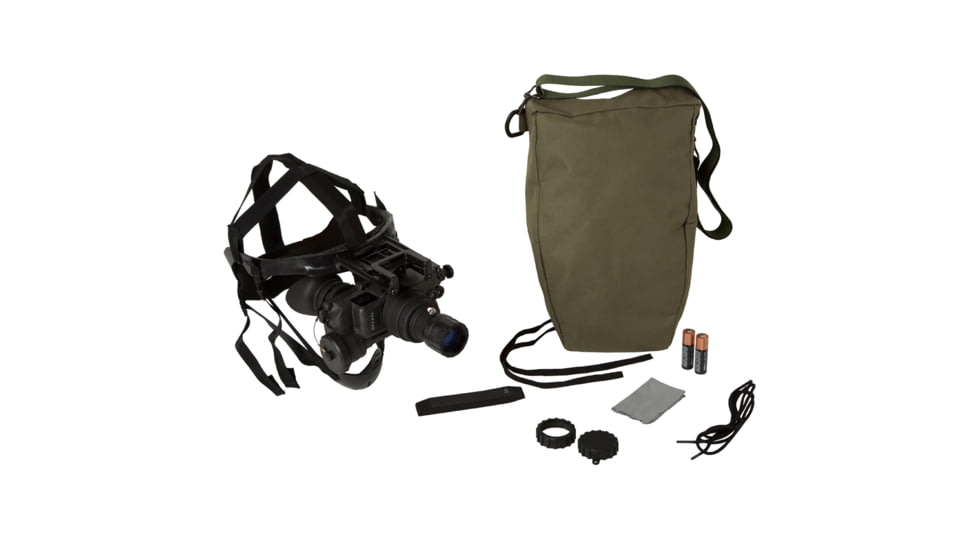

Package Contents:
- Sightmark PVS-7 64+DS NV Goggles
- Data Sheet
- Head Mount Assembly
- Brow Pad (small, medium, large)
- Eye Cup
- Soft Carrying Case w/ Shoulder Strap
- Lens Paper
- Day Light Filter
- Operator's Manual
- Batteries
- Demist Shield
