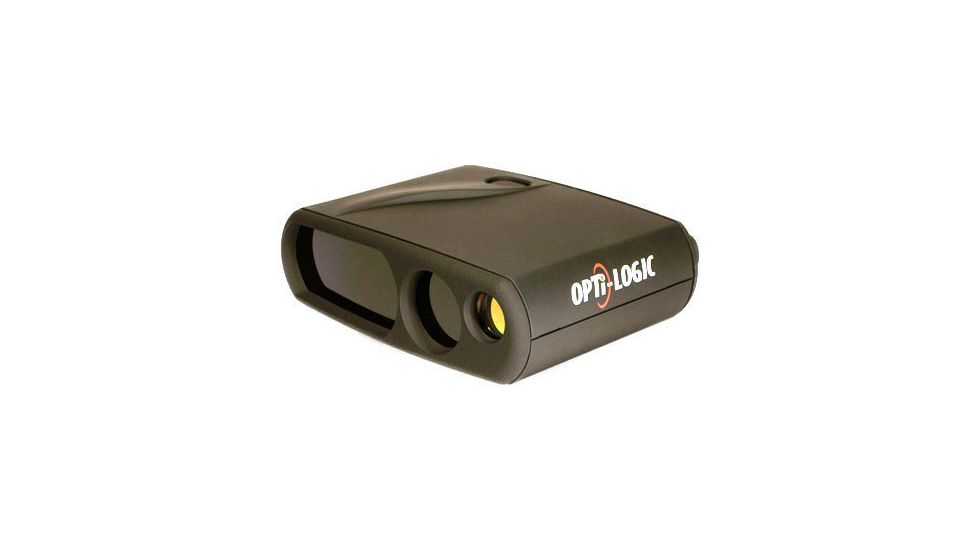

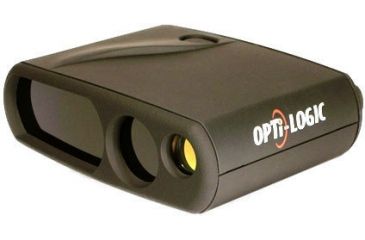

Opti-Logic InSight Range Finder 800LH
1 of 2 images

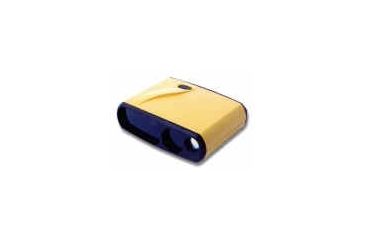

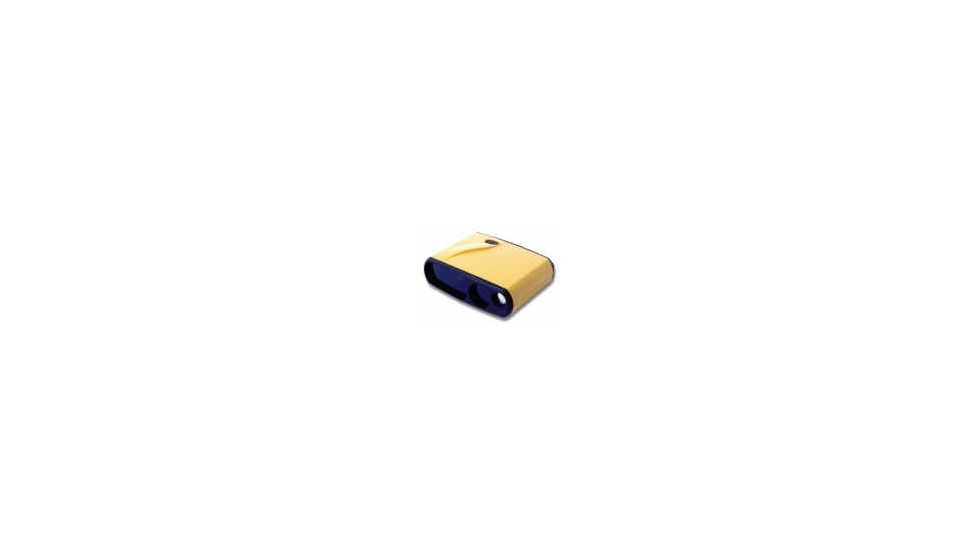

Opti-Logic InSight 800LH Range Finder - Yellow
2 of 2 images
Opti-Logic InSight Range Finder 800LH
Tap Tap to Zoom
Product No Longer Available
Unfortunately Opti-Logic InSight Range Finder 800LH is not listed by Shoptics.You can also explore other items in the Optics, Rangefinders yourself to try and find the perfect replacement for you!
Product Info for Opti-Logic InSight Range Finder 800LH
Opti-Logic InSight Range Finder 800LH belongs to our massive collection of Opti-Logic Optics. Make sure you explore the complete variety of Rangefinders from Opti-Logic which we have at everyday low prices. Browse our full product choice for the gear and merchandise you need to tackle the task at hand.
Specifications for Opti-Logic 800LH Laser Range Finder & Hypsometer:
| Operational Range of 800LH: | 4-800 yd(Passive); Up to 999 yd(Reflective) |
| Approx. Size: | 1.7" x 4" x 5.1" |
| Weight: | 11 oz |
| Range Accuracy: | +/- 1 yard (+/- 2 yards for very dark or very bright targets) |
| Height Accuracy: | +/- 18 inches (+/- 1 yards for very dark or very bright targets) |
| Range Resolution: | 1 foot / 0.5 yard / 0.1 meter |
| Angle Resolution: | 0.1 degrees |
| Readout: | Internal LED display and External LCD display |
| Units of Measure: | Selectable in either feet, meters, or yards |
| Viewfinder: | Monocular viewing port. Red LED aiming sight, +/- 0.1° |
| Battery: | Single 9 volt battery. Operates for approximately 1000 readings |
| Operational Temp: | 0° - 40°C, 32°-104°F. Relative Humidity 5-95% non-condensing |
| Laser Type: | Infrared Class 1, eye safe 905nm Laser |
Features of Opti Logic Laser Range-Finder / Hypsometer 800LH:
- Viewfinder: Look through the viewfinder window and aim the Red Dot at an object.
- Range Button: Press the "Range" button to take distance or height measurements, or to select modes.
- Display: The Opti-Logic Rangefinder/Hypsometer is User Programmable to read in either Feet, Meters, or Yards.
- Low Battery: Replace the battery when the Low Battery symbol is displayed constantly.
- Automatic Rain Mode: For range accuracy in light rain conditions.
- Automatic Timeout: To save batteries, the instrument will automatically "time out" after about 7 seconds.
Package Contents:
- Opti-Logic 800LH Yellow Laser Range Finder / Hypsometer
