Leupold 62840 RX-IV Laser Digital Rangefinder Boone & Crockett Edition Golden Sage

Specifications for LEUPOLD? RX-4 BOONE & CROCKETT EDITION DIGITAL LASER RANGEFINDER:

Item Number & Finish:		62840 (Black & Golden Sage)
Lens Coating:		Multicoated Lens System
Environmental Protection:		Waterproof
Eyecups:		Fold-Down Rubber
Actual Magnification:		8x
Linear Field of View (ft @ 1000 yd):		236.0
Linear Field of View (m @ 1000 m):		71.5
Angular Field of View (degrees):		4.5
Weight (ounces):		12.0
Weight (grams):		340.0
Length (in):		4.7
Length (mm):		119.0
Objective Aperture (mm):		28
Twilight Factor:		15.0
Exit Pupil (mm):		3.5
Eye Relief (mm):		16.0
Close Focus Distance (ft):		18.0
Close Focus Distance (m):		6.0
Maximum Range (yd):		1,500.0
Maximum Range (m):		1.371.6
Minimum Range (yd):		3.0
M inimum Range (m):		2.7

Features of Leupold RX4 Boone & Crockett Edition Laser Digital Rangefinder:

• All Leupold RX IV features, specs and ranging capability except thermometer, compass, match 13 reticle system, being replaced with only 3 reticles, more info to follow
• Quick Set Rotary Menu
• True Ballistic Range
• Inclinometer

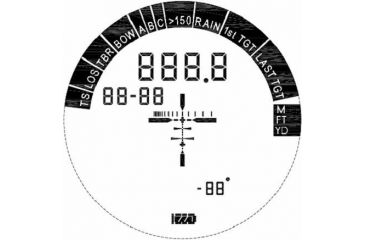

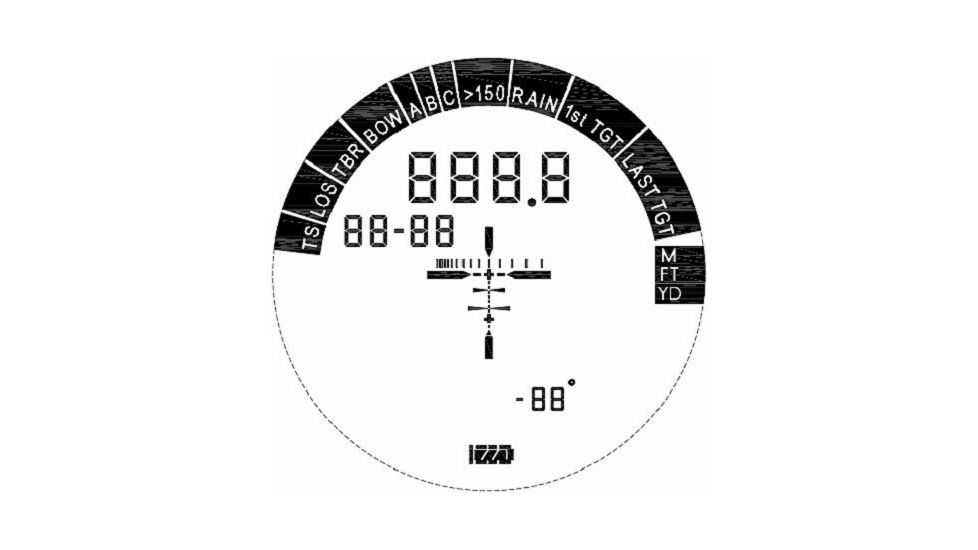

• Illuminated Display
• Clear Field Display Cleanup Mode
• Fast Eyepiece Focus with Precision s
• Long Range Mode, Rain Mode, 1st Target Mode, Last Target Mode
• Trophy Scale
• Game Measuring Scale that will judge the spread of antlers or the height of a target

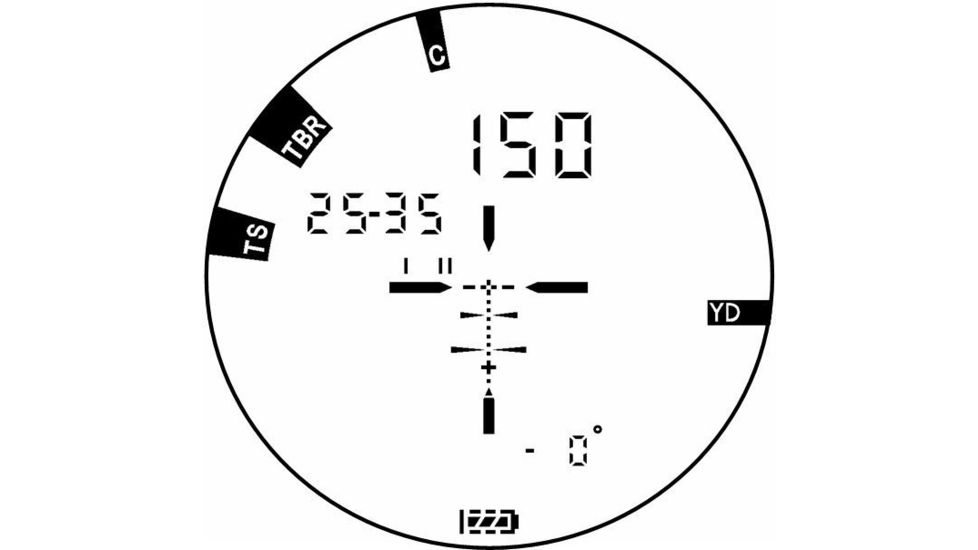

• Logarithmic Scale - A system of lines that will automatically adjust to the distance the rangefinder measures
• How it works
• A specific size is entered into the rangefinder, such as 30?, in the numeric display above the aiming point
• When ranging, three vertical lines will appear above the aiming reticle, and a 2 number range will appear above. The numbers will read something like 29-33. That is the range of the 2nd and 3rd lines over the aiming point
• Judging from the first vertical line, you can see if the antlers you are trying to measure fall short of 29?, between 29-33? or more than 33?
• 3 Reticles will be available in this model: Duplex, Plus Point and the Boone & Crockett Big Game Reticle
• Boone & Crockett Big Game
• Flashing Aiming Points show your hold over position that can be used in conjunction with the B&C reticle in your Rifle Scope.
• The flashing aiming point automatically aligns with the TBR distance ranged regardless of which TBR method you are using.
• There are aiming points in between the bowties, as well as the bowties that will flash
• This hunting rangefinder will be a complement for anyone owning a Boone & Crockett Rifle Scope.
• Any big game hunter that wants to avoid ?ground shrinkage? will appreciate the Trophy Scale.
• Moose hunters in Alaska often need to know if a moose meets the legal 50 inch minimum spread.

Package Contents:

• Leupold RX - IV Digital Rangefinder Boone & Crockett Edition Golden Sage 62840
• Soft case
• Lanyard
• Battery
