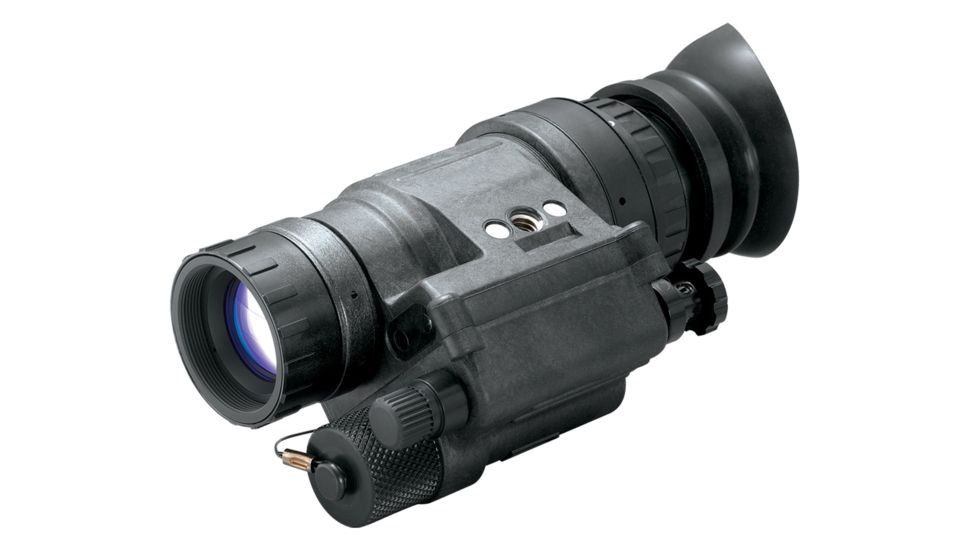

EOTech M914A/PVS-14 Night Vision Monocular,2000 FOM,AW 245620-024
2 of 2 images

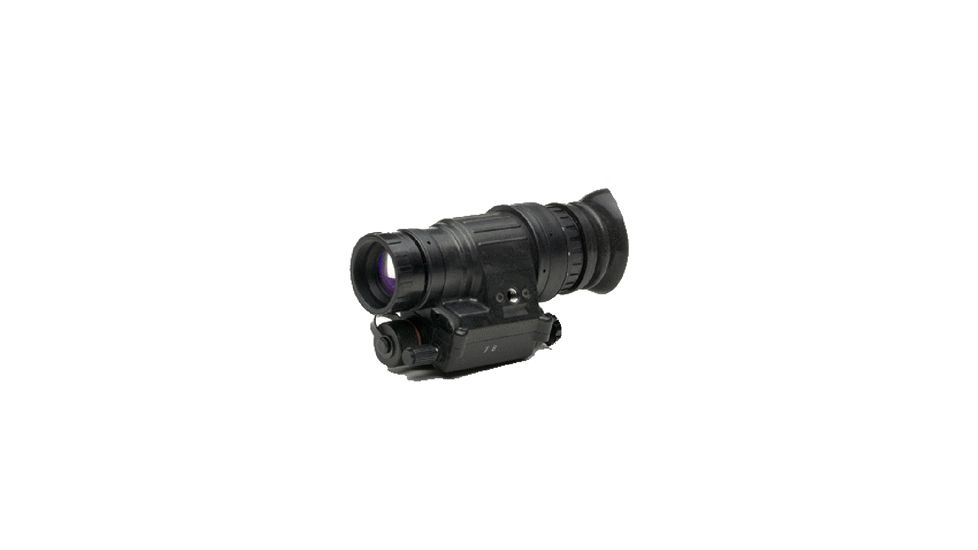

Eotech M914 PVS-14 Type NVG Monocular
Tap Tap to Zoom
Product Discontinued by Manufacturer
EOTech M914 PVS-14 Type NVG Monocular has been discontinued by EOTech and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Optics, Night Vision Optics yourself to try and find the perfect replacement for you!
Product Info for EOTech M914 PVS-14 Type NVG Monocular
EOTech M914 PVS-14 Type NVG Monocular is part of our big collection of EOTech Optics. Make sure you have a look at the complete selection of Night Vision Optics from EOTech that we have at everyday affordable prices. Browse our full product choice for the gear and merchandise you want to tackle the task at hand.
Specifications for EOTechM914A Night-Vision Monoculars:
| Optics | ||
|---|---|---|
| Magnification: | 1x | |
| Field of View (FOV): | 40.0° | |
| Objective Lens: | 27 mm (1.1 in.) | |
| Minimum Focus Distance: | 25 cm (9.8 in.) | |
| Eye Relief: | 25 mm (1 in.) | |
| Diopter Adjustment: | +2 to -6 | |
| Gen III Image Intensification Tube Options | ||
| Alpha;Resolution: | 45 lp/mm (min);Signal/Noise | |
| Delta;Resolution: | 64 lp/mm (min);Signal/Noise | |
| Omega;Resolution: | 64 lp/mm (min);Signal/Noise | |
| Power | ||
| Power Source: | 1 AA Battery | |
| Battery Life: | ~40 Hours at Room Temperature | |
| Physical Characteristics | ||
| Size: | 11.4 cm L x 5.1 cm W x 5.7 cm H (4.5 in L x 2 in W x 2.2 in H) | |
| Weight: | 290 g with battery (.6 lbs) | |
| Color: | Black | |
| Mounts: | Head and Helmet Mount Adapter
Weapon Mount Adapter for Picatinny Rail (MIL-STD-1914/STANAG 2324) |
|
| Warranty | ||
| Housing: | 1 year | |
| Tube: | 1 year | |
| Model Numbers | ||
| Alpha: | Model 245620-00 | |
| Delta: | Model 245620-003 | |
| Omega: | Model 245620-005 | |
Features of EOTech M-914 Night Vision M-914A:
- Hands-free or one-hand operation
- High light cut-off tube protection
- Mounts available for head, helmet or weapon interfaces
- Compact, lightweight and multi-purpose
- Generation III night vision
- U.S. manufactured image intensifier tube
- One of the most versatile night vision systems available
- Offers capabilities of a hand-held pocketscope, a right or left eye-mounted monocular and a weapon sight when mounted in conjunction with an infrared laser aimer night vision-compatible primary optic
- An Active projected infrared LED provides short range illumination allowing such activities as map reading
- Self-contained system operation on a single AA battery
- Low-battery indicator in eyepiece
- OptionaEOTechX and 5X Magnification
- Hands-Free or One-Hand Operation
- High Light Cut-Off Tube Protection
- Manual Gain Control
- One-Year Warranty Standard
Package Contents:
- EOTech M914 PVS-14 Type NVG Monocular
- G43 Magnifier
- Operator Manual
- Warranty Card
- Protective Case
