ATN OTS-60 640x480 17 micron Thermal Monocular

not yet rated review & rate

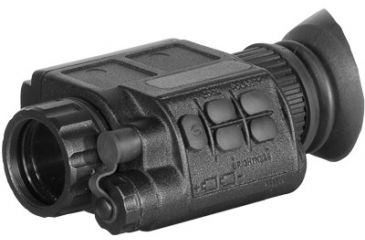

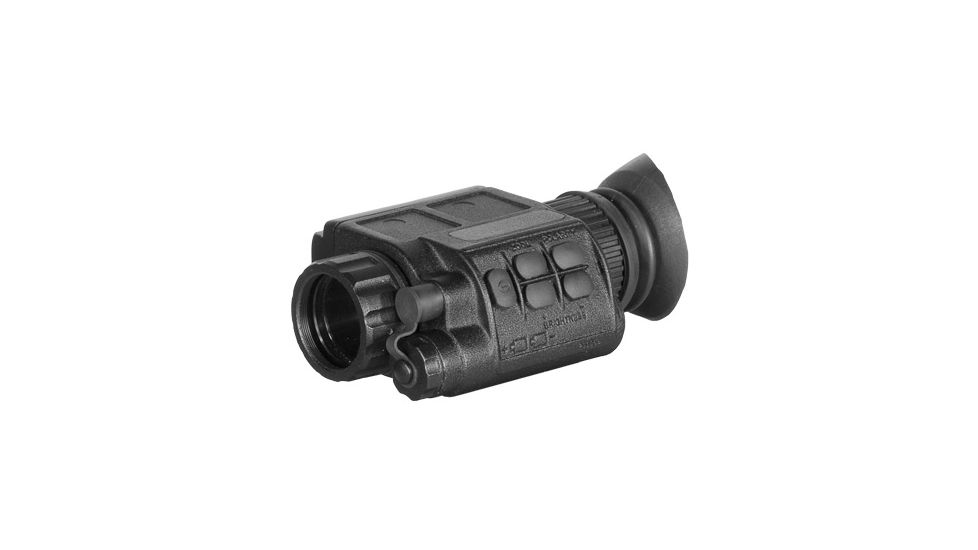

ATN OTS-60 640x480 Thermal Imaging Multi Purpose Monocular - 30 Hz TIMPOTIS60B
ATN OTS-60 640x480 Thermal Imaging Multi Purpose Monocular - 30 Hz TIMPOTIS60B
ATN OTS-60 640x480 Thermal Imaging Multi Purpose Monocular - 9 Hz TIMPOTIS60HZ9
ATN OTS-60 640x480 Thermal Imaging Multi Purpose Monocular - 30 Hz TIMPOTIS60B
1 of 3 images
ATN OTS-60 640x480 Thermal Imaging Multi Purpose Monocular - 30 Hz TIMPOTIS60B
ATN OTS-60 640x480 Thermal Imaging Multi Purpose Monocular - 30 Hz TIMPOTIS60B
2 of 3 images
ATN OTS-60 640x480 Thermal Imaging Multi Purpose Monocular - 30 Hz TIMPOTIS60B
ATN OTS-60 640x480 Thermal Imaging Multi Purpose Monocular - 9 Hz TIMPOTIS60HZ9
3 of 3 images
ATN OTS-60 640x480 Thermal Imaging Multi Purpose Monocular - 9 Hz TIMPOTIS60HZ9

Tap Tap to Zoom

Product Discontinued by Manufacturer

ATN OTS-60 640x480 17 micron Thermal Monocular has been discontinued by ATN and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Optics, Thermal Imaging Optics yourself to try and find the perfect replacement for you!

Product Info for ATN OTS-60 640x480 17 micron Thermal Monocular

ATN OTS-60 640x480 17 micron Thermal Monocular is part of our larger collection of ATN Optics. You should definitely explore the entire range of Thermal Imaging Optics from ATN which we provide at everyday discounted prices. Browse our full product selection for the equipment and products you want to tackle the task at hand.

Specifications for ATN OTS-60B Thermal Multi-Purpose Monocular:

Type: 30hz
Optical Magnification: 1X
Objective Focal Length: 19 mm
FOV: 11deg x 8deg
Focus Range: 3m to infinity
Exit Pupil: 14mm
Eye Relief: 28mm
Detector Type: Uncooled Microbolometer
Spectral Response: 7-14 μm
Sensor (microbolometer): 640x480
Pixel Size: 17 x 17 μm
Thermal Sensitivity: < 0,1degC
Human detection, m (w/o zoom): 500
Human recognition, m: 225
Human Identification, m: 135
Vehicle Detection, m: 1100
Vehicle Recognition, m: 495
Vehicle Identification, m: 300
Output Format: Analog PAL / NTSC
Display Color: OLED matrix
Image Size (output resolution): SVGA, 800 x 600 pxl
E-ZOOM: 2x, 4x
Brightness Adjustment: Manual
Contrast Adjustment: Automatic
Power Supply: 2 x 3 V CR123A type battery
Start-Up Time: < 5 sec
Operating Time w/one battery pack: 4+ hrs
Operating Temperature Range: from -30°C to +60°C
Waterproof: Yes
Dimensions: 118x81x52 mm
Weight (w/batteries): 0.34 kg
Warranty: 1 year

Features of ATN OTS-60B (30 Hz) Thermal Monocular:

  • Compact & lightweight design
  • Digital imaging
  • Fast Imaging (30hz)
  • Vanadium oxide (VOx) Microbolometer Uncooled
  • 800 x 600 OLED color display
  • Rugged design with mil. spec optics
  • Menu functions include reticle type & color selection; windage & elevation adjustment
  • Polarity single button modes: black on white, white on black, 5 different color settings
  • Digital brightness control
  • E-zoom
  • Video output with RCA cable
  • Diopter range: +2deg to -6deg
  • Eye relief: 28mm
  • Extended battery life using two (2)
  • CR123 lithium batteries (4-plus hours)
  • One-year warranty

Package Contents:

  • ATN OTS-60 640x480 17 micron Thermal Monocular
