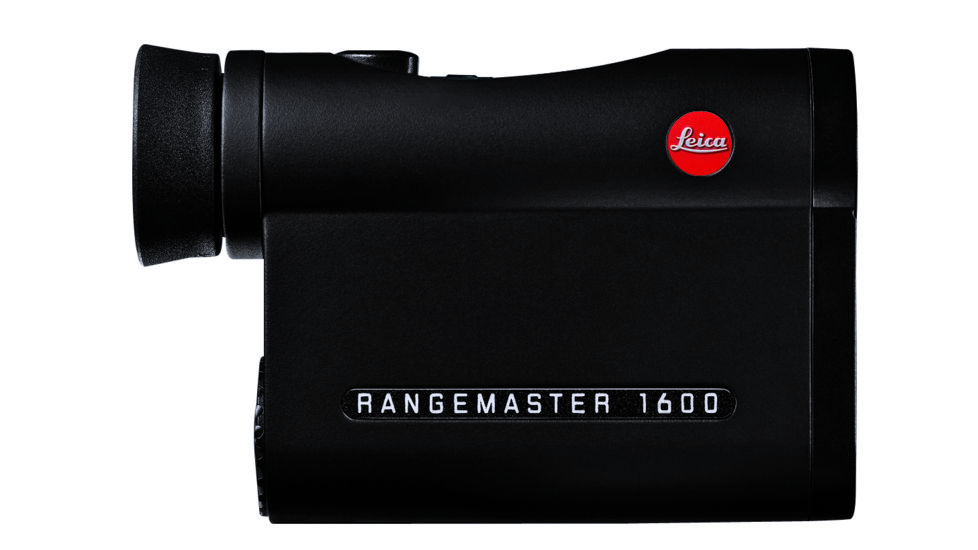

1 of 3 images
Leica Range Master Rangefinder with Ballistic Program 40528

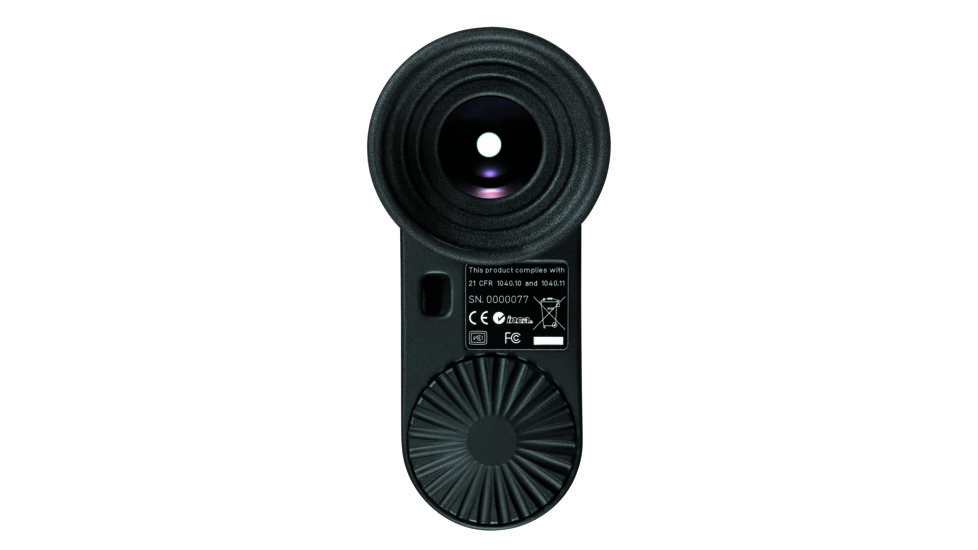

2 of 3 images
Leica Rangefinder w/ Integrated Intelligent Ballistic Program 40528

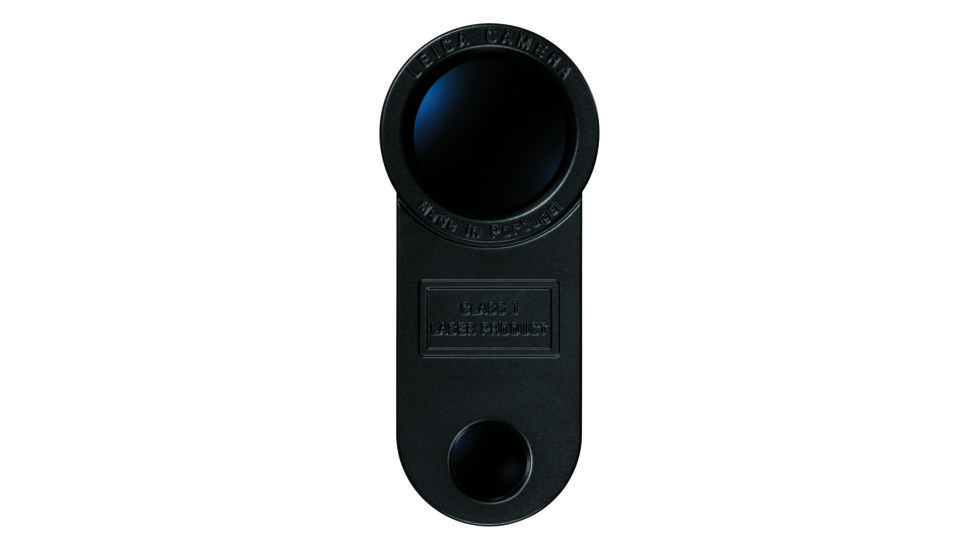

3 of 3 images
Leica 40528 Range Master w/ Integrated Intelligent Ballistic Program
Tap Tap to Zoom
Documents
Product Discontinued by Manufacturer
Leica Rangemaster CRF1600 Rangefinder w/ Intelligent Ballistic Program has been discontinued by Leica and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Optics, Rangefinders yourself to try and find the perfect replacement for you!
Product Info for Leica Rangemaster CRF1600 Rangefinder w/ Intelligent Ballistic Program
Leica Rangemaster CRF1600 Rangefinder w/ Intelligent Ballistic Program is part of our larger collection of Leica Optics. Make sure to take a look at the complete variety of Rangefinders from Leica which we offer at everyday low prices. Browse our full product choice for the gear and products you want to tackle the job at hand.
Specifications for Leica Rangefinder w/ Integrated Intelligent Ballistic Program 40528:
| Lens diameter: | 24 mm |
| Exit pupil: | 3.4 mm |
| Twilight factor: | 13 |
| Field of view at 1000 m: | 115 m |
| Eye-relief: | 15 mm |
| Suitability for eyeglass wearers: | 100% |
| Transmission: | approx. 80 % |
| Diopter compensation: | +/- 3.5 dpt. |
| Coating: | AquaDuraTM on exposed lens surfaces |
| Prism system: | roof prism with P40 coating for improved contrast |
| Weight without carrying strap, incl. battery: | approx. 200 g |
| Dimensions (W/D/H): | approx. 113 × 75 × 34 mm |
| Waterproofing: | to a depth of 1 m (3.2 ft) |
| Housing: | carbon-fiber reinforced plastic |
| Chassis: | die-cast aluminum |
| Range: | 10 m to approx. 1500 m (1600 yds) |
| Measuring modes: | single measurements, scanning mode |
| Measuring accuracy: | +/- 1 m to 366 m / +/- 2 m to 732 m / +/- 0.5% above 732 m |
| Ballistic function: | yes |
| Temperature display: | yes |
| Barometric pressure display: | yes |
| Declination display: | yes |
| Display: | LED display with 4 characters / ambient light-controlled / brightness level |
| Alternative meter-/yard setting: | yes |
| Power supply: | 1 x 3V / CR2 Lithium button cell |
| Battery life: | approx. 3000 measurements at 20℃ |
| Maximum measuring time: | approx. 0.3 s |
| Alternative meter-/yard setting: | yes |
| Laser: | eye-safe, invisible laser compliant with EN and FDA Class 1 |
Features of Leica Rangemaster Range Finder with Ballistics Program 40528:
- Bright LED display
- Display automatically to ambient lighting conditions
- Compact construction
Package Contents:
- Leica Range Master 1600 RangeFinder w/ Intelligent Ballistic Program 40528
