Unfortunately ATN Thermal Imaging OTS-X-F314 Monocular, 320x240, 14mm, 30Hz is not listed by Shoptics.You can also explore other items in the Optics, Thermal Imaging Optics yourself to try and find the perfect replacement for you!

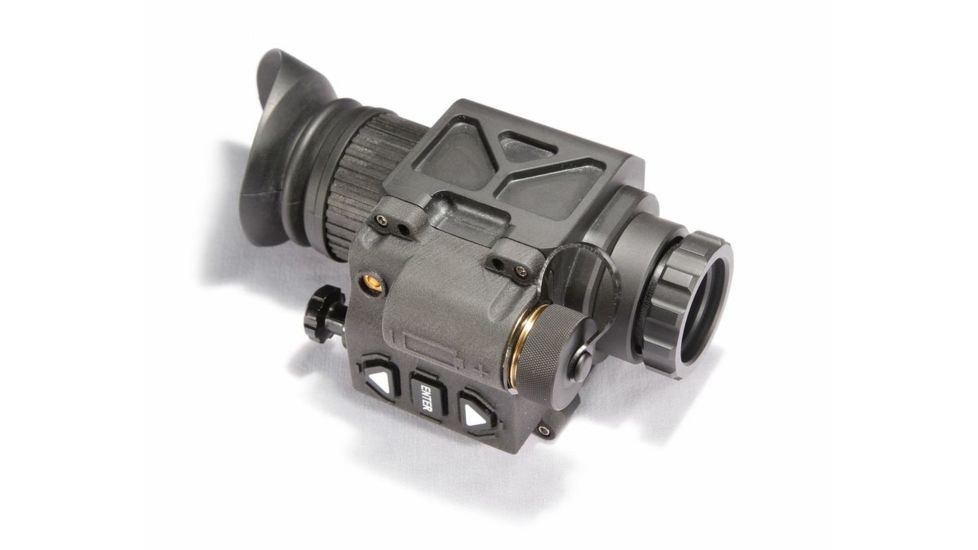

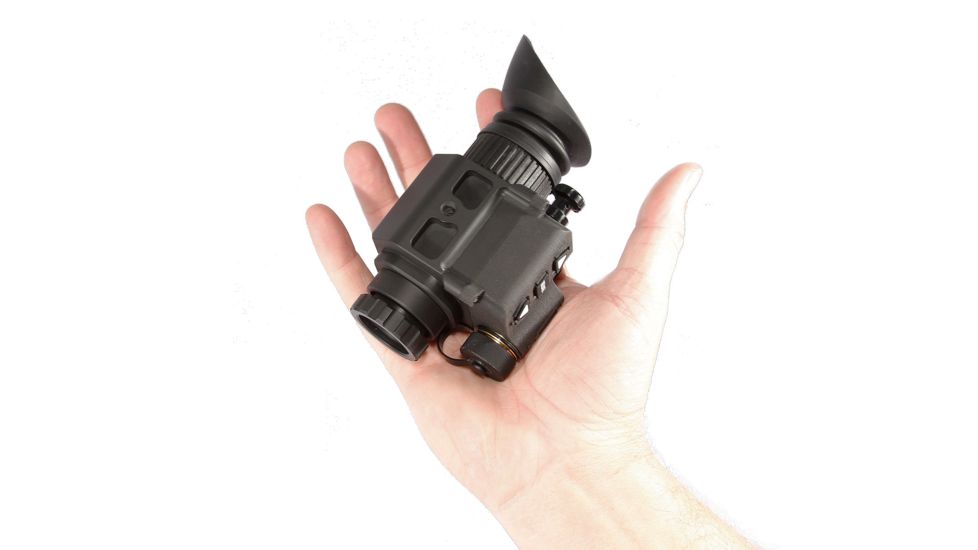

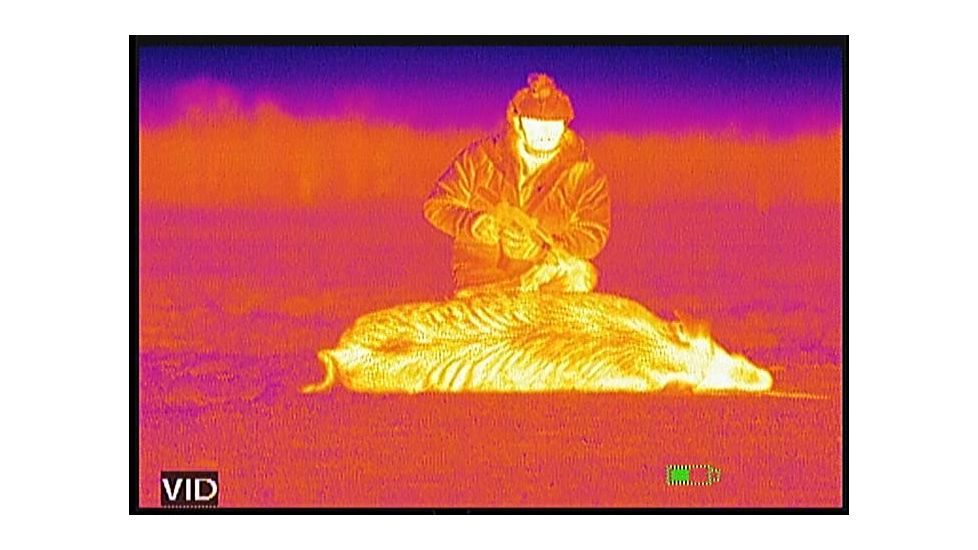

Product Info for ATN Thermal Imaging OTS-X-F314 Monocular, 320x240, 14mm, 30Hz
ATN Thermal Imaging OTS-X-F314 Monocular, 320x240, 14mm, 30Hz is part of our larger variety of ATN Optics. Be sure to explore the full line of Thermal Imaging Optics from ATN which we feature at everyday low prices. Browse our full product selection for the gear and merchandise you need to tackle the job at hand.
Specifications for ATN Thermal Imager OTS-X-F314 Monocular:
Sensor (microbolometer):
320 x 240
Type:
Uncooled
Material:
Vanadium oxide (VOx)
Image Size (output resolution):
800x600
Frame rate:
30 Hz
Video output:
Analog RS-170
Lens:
14 mm
Display:
Color OLED matrix, SVGA< 800x600
Thermal Sensitivity:
<50mK
Spectral Response:
7-14 um
Field of View:
25°
Eye Relief:
27 mm
Diopter Adjustment:
-1.5
Optical Magnification:
1X
E-Zoom:
2X, 4X
Human Detection:
500 m
Human Recognition:
225 m
Human Identification:
135 m
Vehicle Detection:
1100 m
Vehicle Recognition:
495 m
Vehicle Identification:
300 m

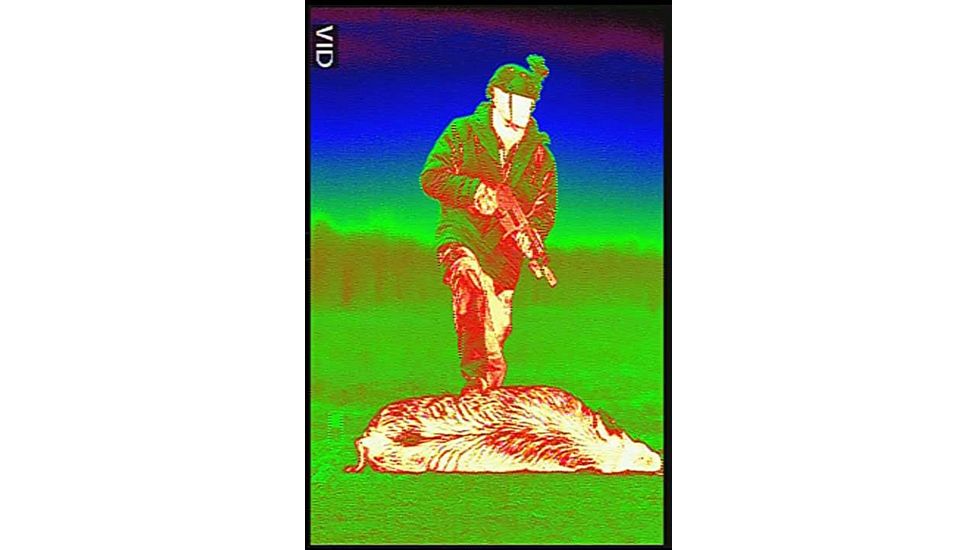

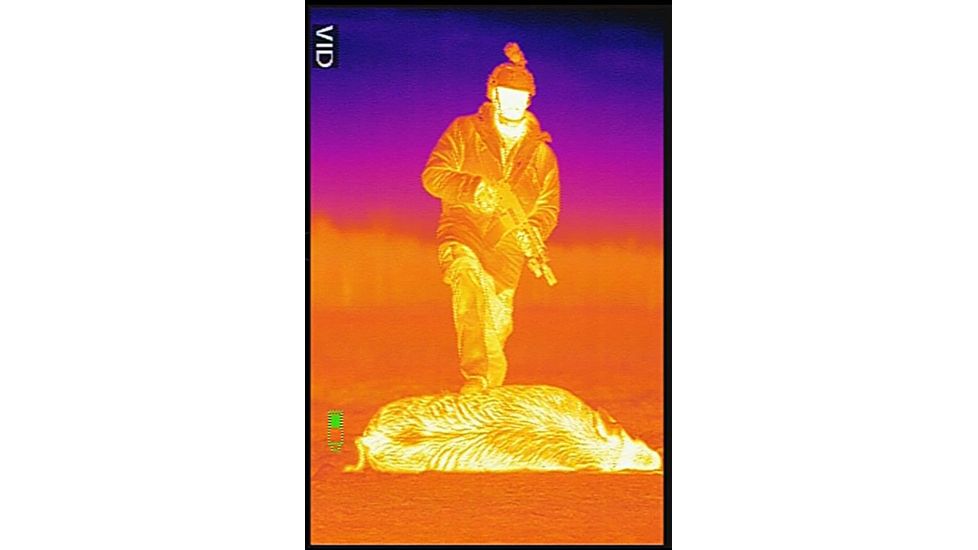

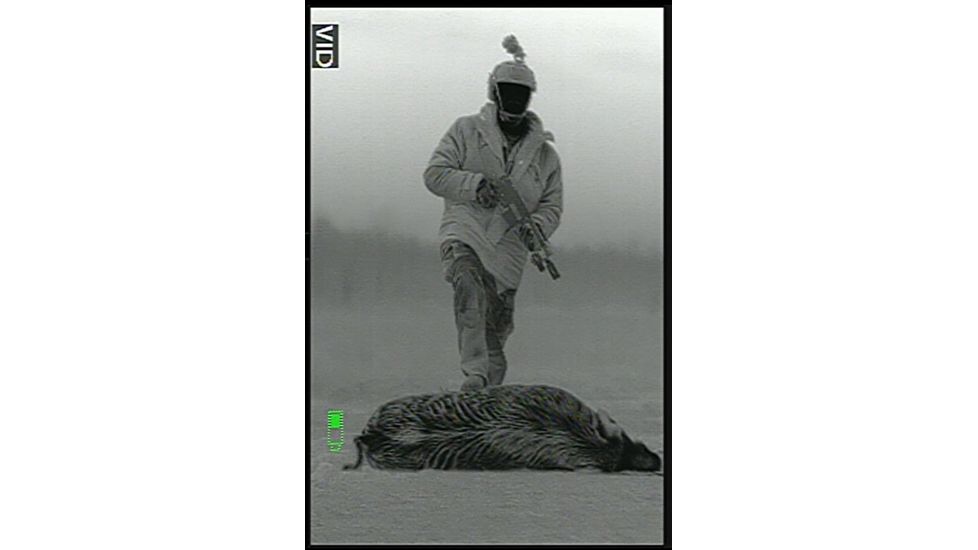

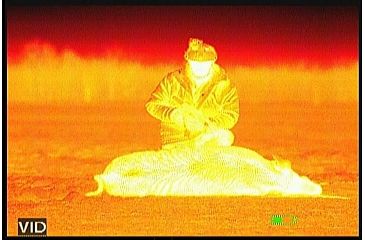

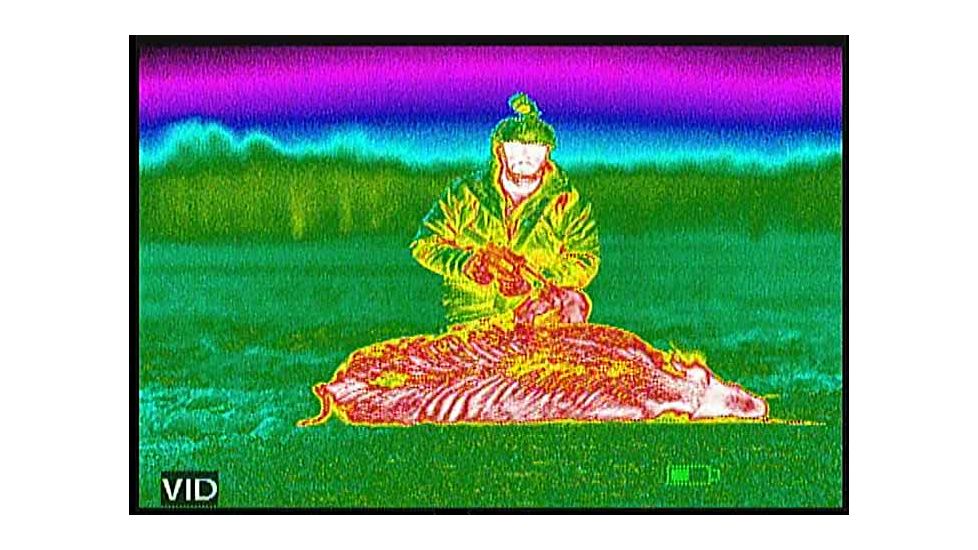

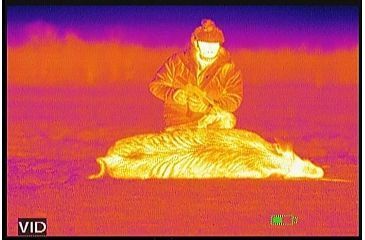

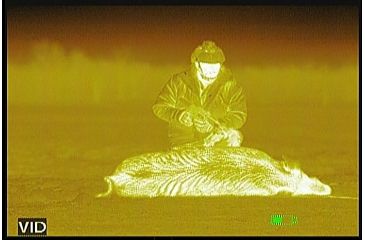

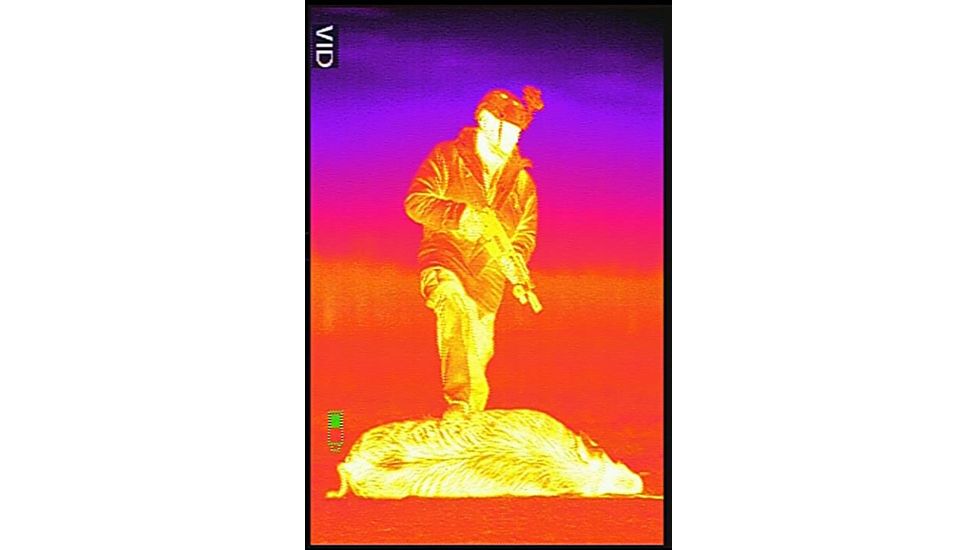

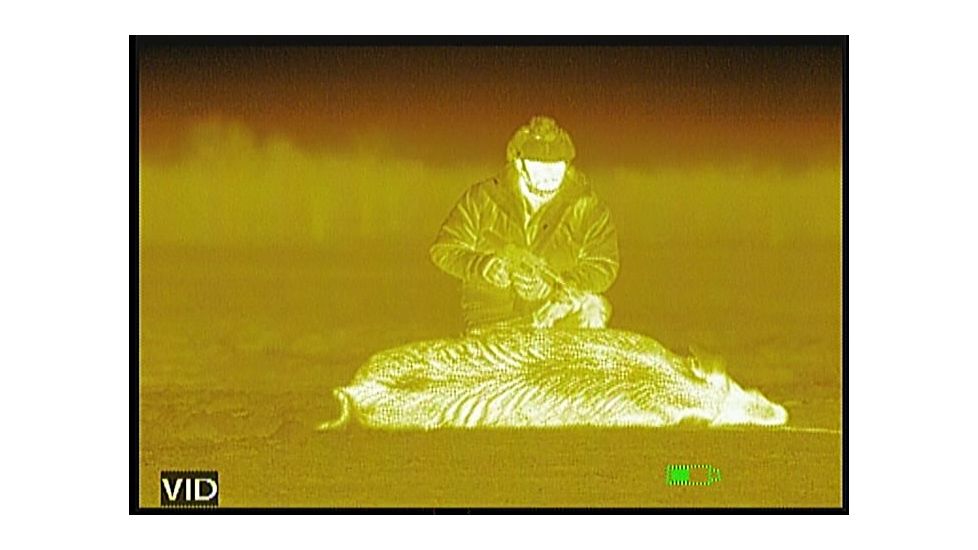

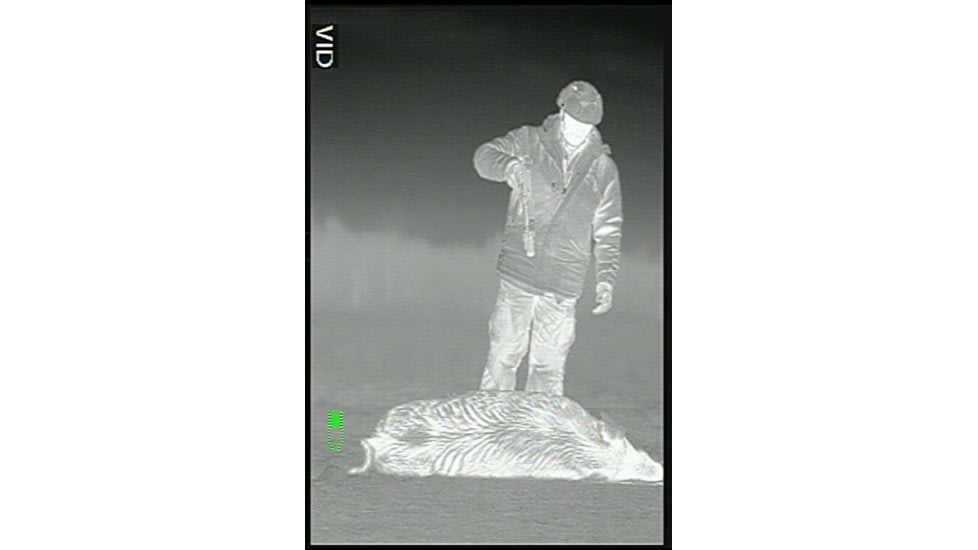

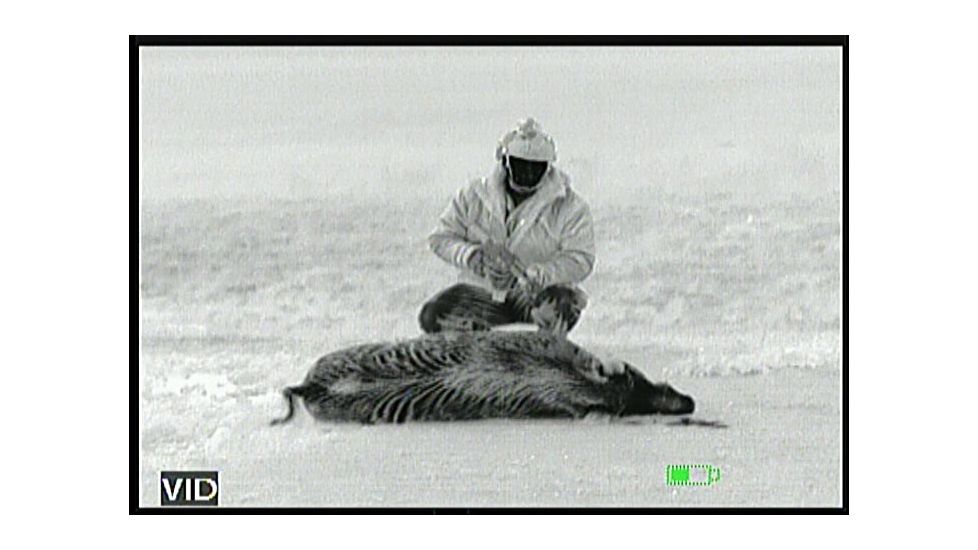

Polarity control:

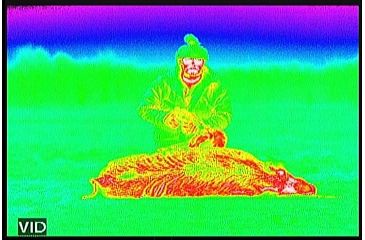

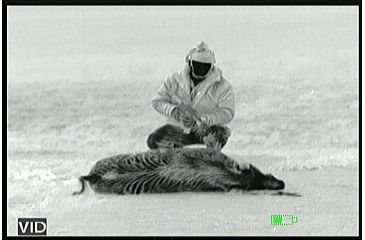

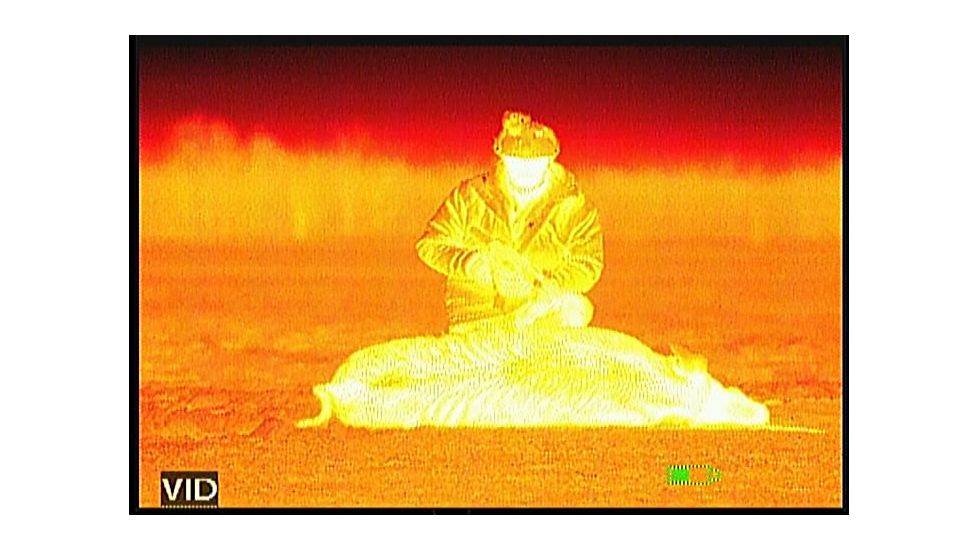

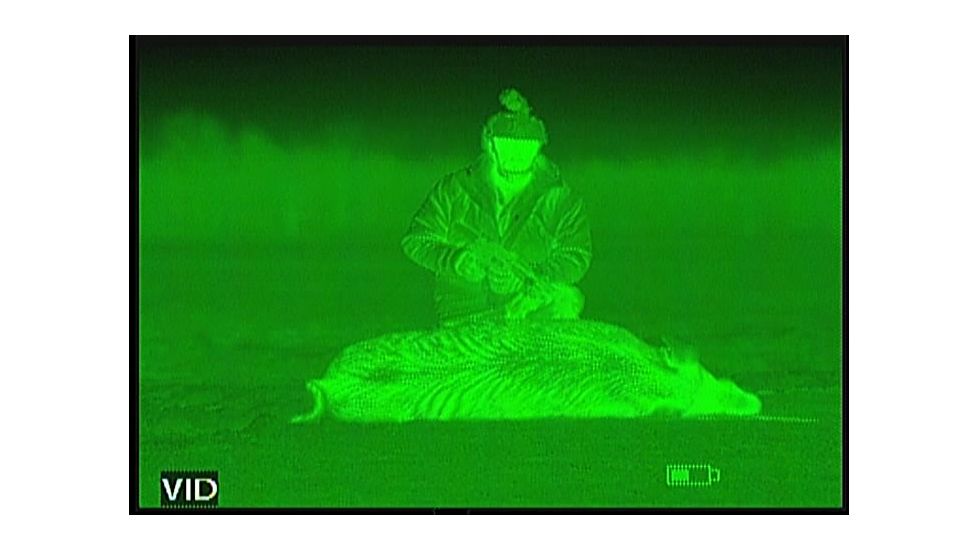

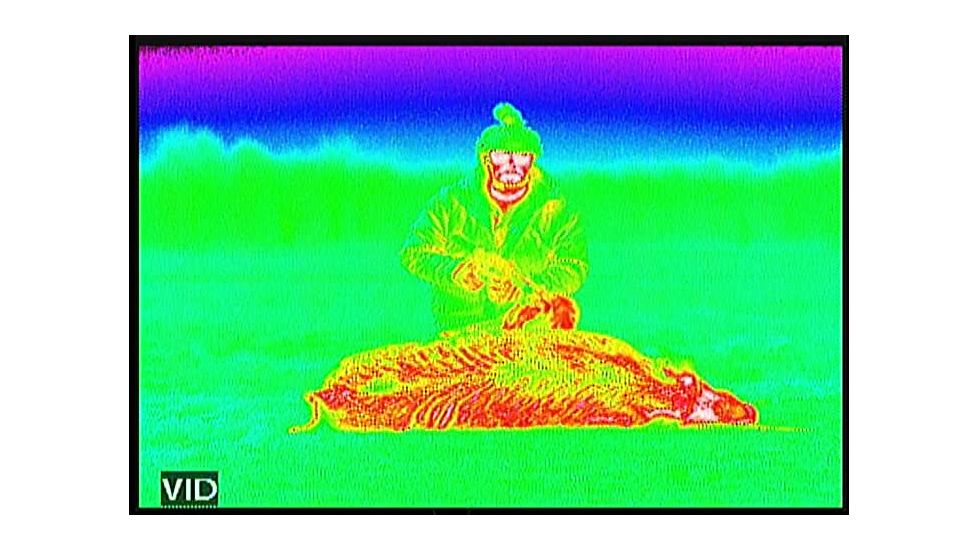

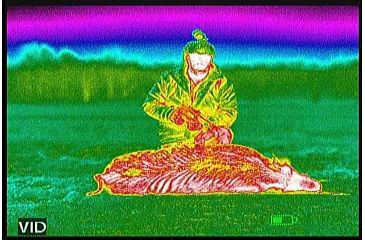

White hot / Black hot / Multiple Color Modes
Start up time:
<4 sec
Waterproof:
Yes

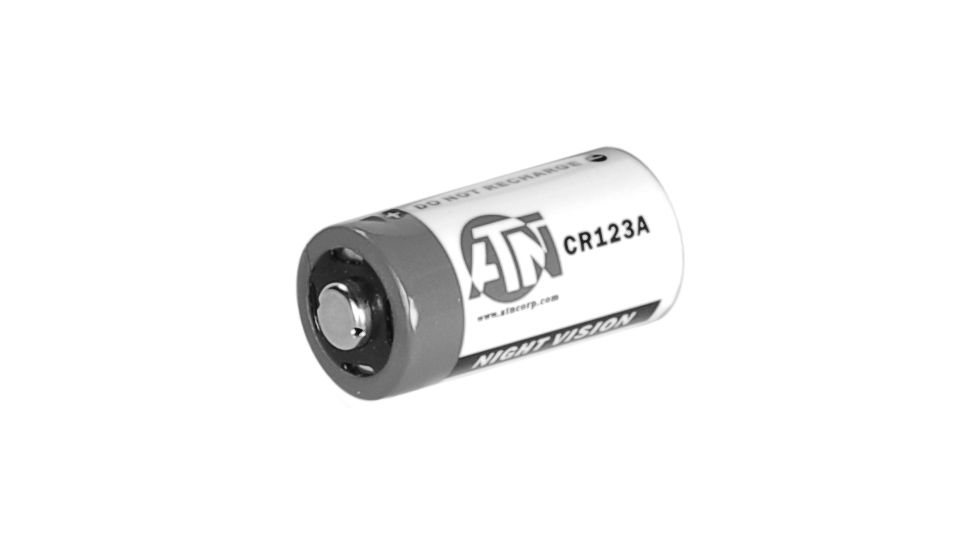

Battery type:
1 x CR123A battery type
Weight:
0.83 lb /375 grams
Battery Life:
2+ hrs
Dimensions:
100 x 61 x 83 mm /4x2.4x3.3"
Warranty:
1 year
Features of ATN OTX-X 14mm 30hz Thermal Imaging Monocular - F314:
