Product Discontinued by Manufacturer
ATN OTS-X-F670 Heat Seeking Monocular - 640x480, 70mm, 30Hz has been discontinued by ATN and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Optics, Thermal Imaging Optics yourself to try and find the perfect replacement for you!
Product Info for ATN OTS-X-F670 Heat Seeking Monocular - 640x480, 70mm, 30Hz
ATN OTS-X-F670 Heat Seeking Monocular - 640x480, 70mm, 30Hz is part of our large selection of ATN Optics. Remember to take a look at the complete collection of Thermal Imaging Optics from ATN that we offer at everyday discounted prices. Browse our full product selection for the gear and merchandise you want to tackle the job at hand.
Specifications for ATN OTS-X-F670 3.5X (30Hz) Thermal Imaging Viewer:
| Sensor (microbolometer): | 640 x 480 |
| Type: | Uncooled |
| Material: | Vanadium oxide (VOx) |
| Image Size (output resolution): | 800x600 |
| Frame rate: | 30 Hz |
| Video output: | Analog RS-170 |
| Lens: | 70 mm |
| Display: | Color OLED matrix, SVGA< 800x600 |
| Thermal Sensitivity: | <50mK |
| Spectral Response: | 7-14 um |
| Field of View: | 9° |
| Eye Relief: | 27 mm |
| Diopter Adjustment: | -1.5 |
| Optical Magnification: | 3.5X |
| E-Zoom: | 7x, 14x, 28x |
| Human Detection: | 1800 |
| Human Recognition: | 700 |
| Human Identification: | 460 |
| Vehicle Detection: | 3800 |
| Vehicle Recognition: | 1400 |
| Vehicle Identification: | 1000 |

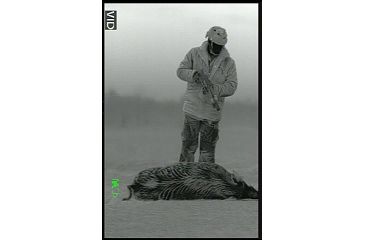

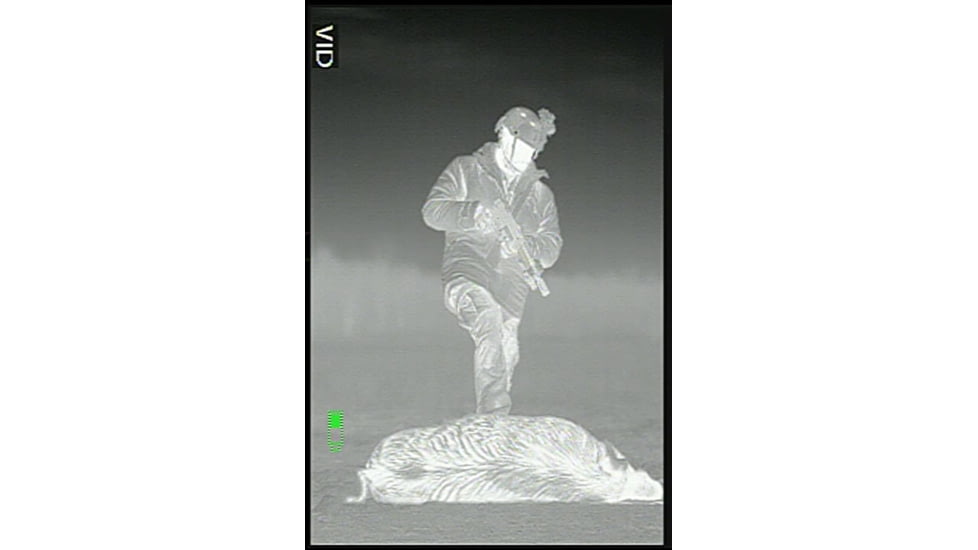

| Polarity control: | White hot / Black hot / Multiple Color Modes |
| Start up time: | <4 sec |
| Waterproof: | Yes |

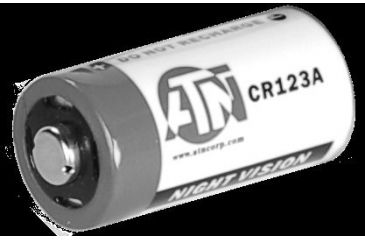

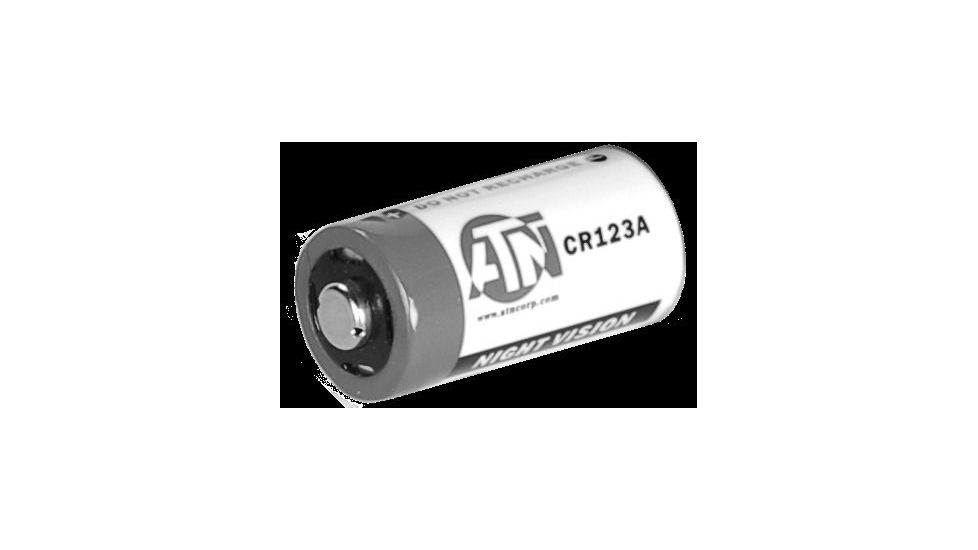

| Battery type: | 1 x CR123A battery type |
| Battery Life: | 2+ hrs |
| Weight: | 1.75 lb /800 gr |
| Dimensions: | 177 x 76 x 83 mm /7x3x3.3" |
| Warranty: | 1 year |
Features of ATN Thermal Image OTS X F670 Scope:
- Resolution 640x480
- Ergonomic Design
- Fast Imaging (30hz)
- Compact Rugged Construction
- Interchangable Optics
- Variable Geometry Display
- E-Zoom
- Digital Brightness Control
- Icon Based Menu System

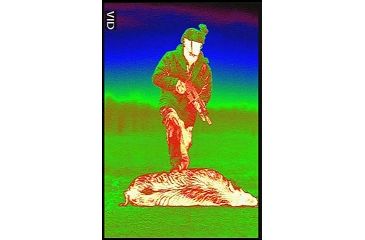

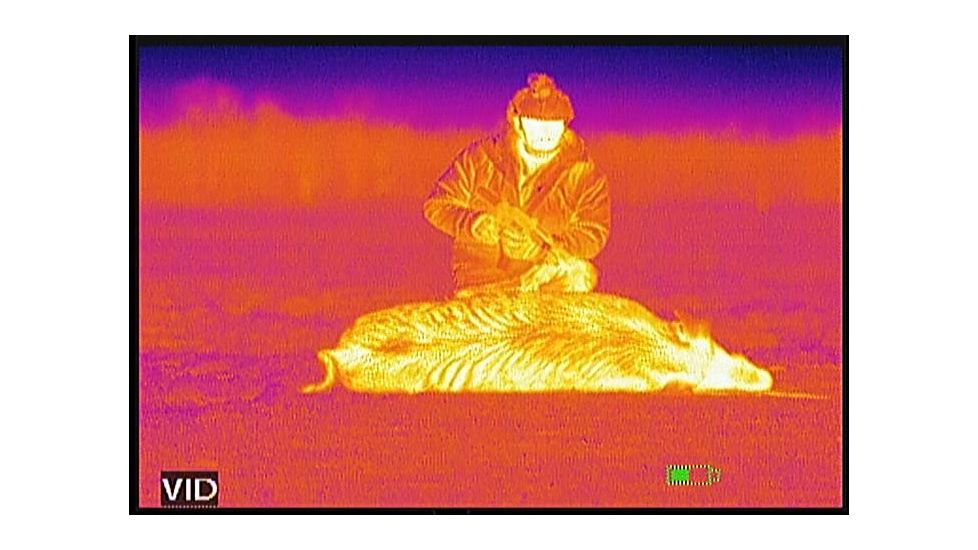

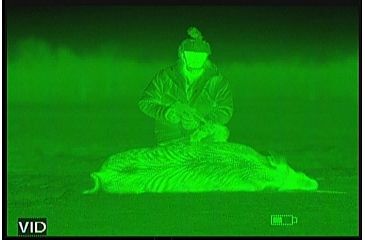

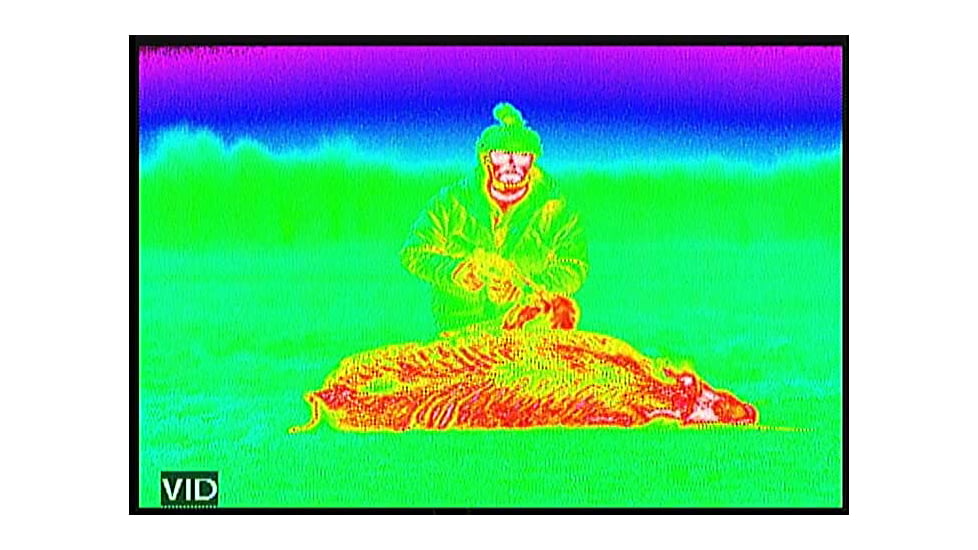

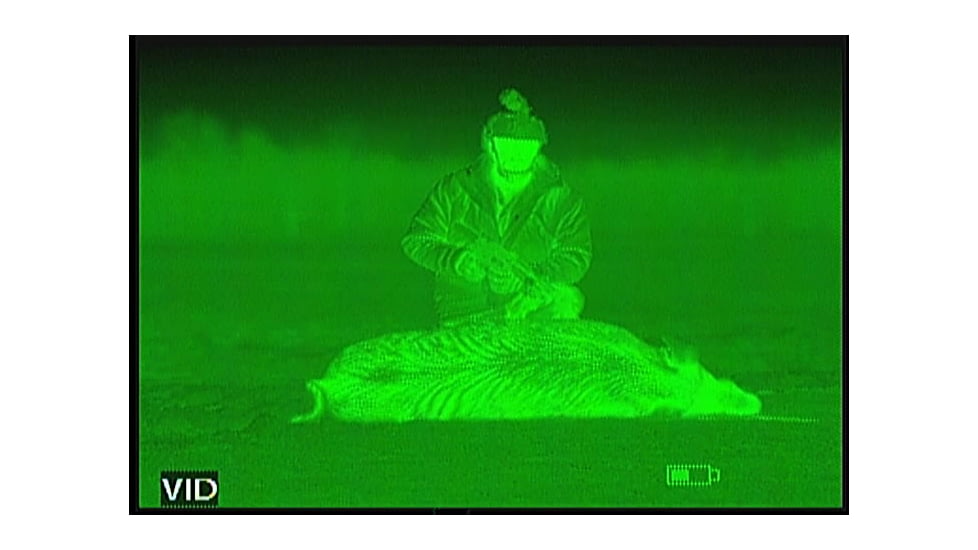

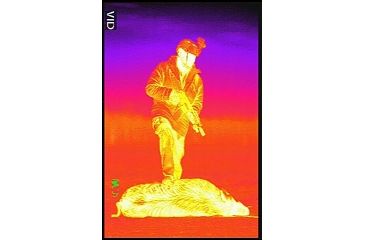

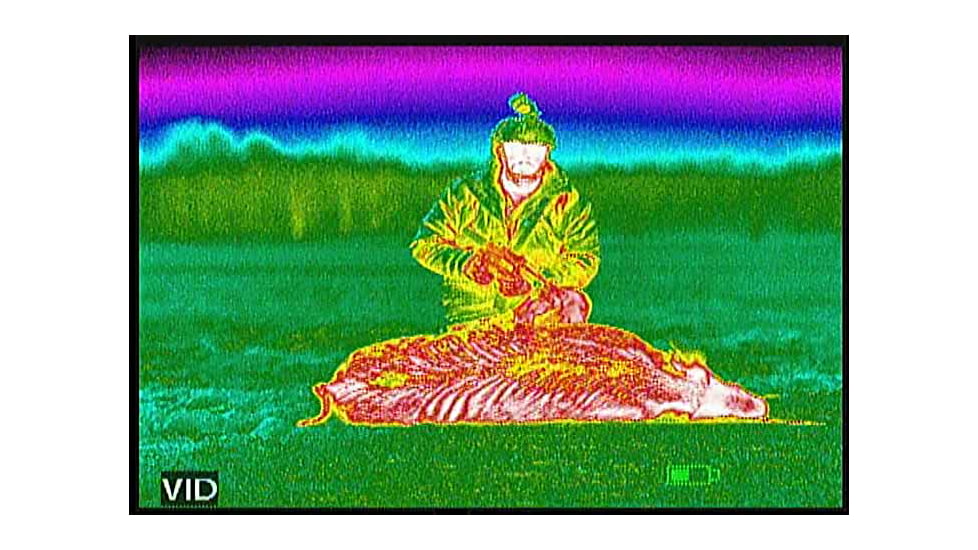

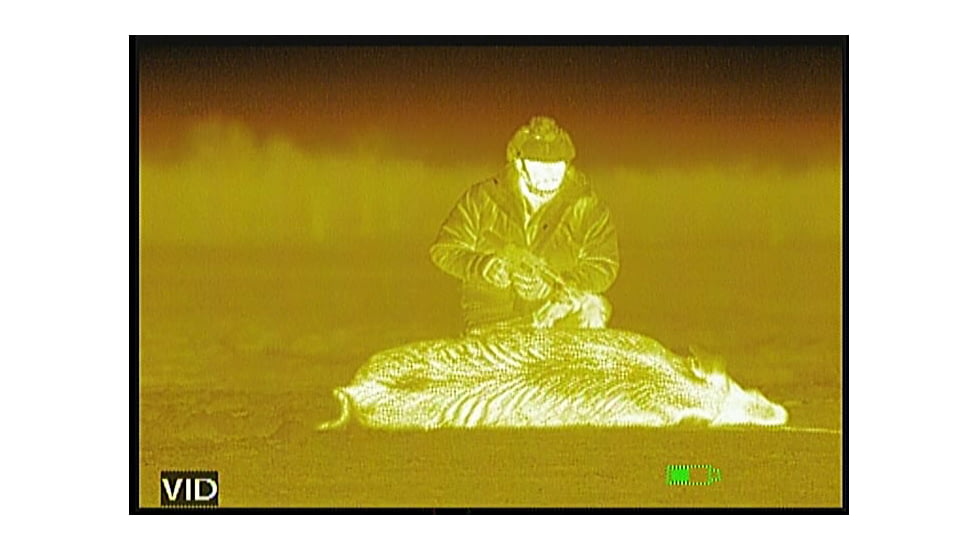

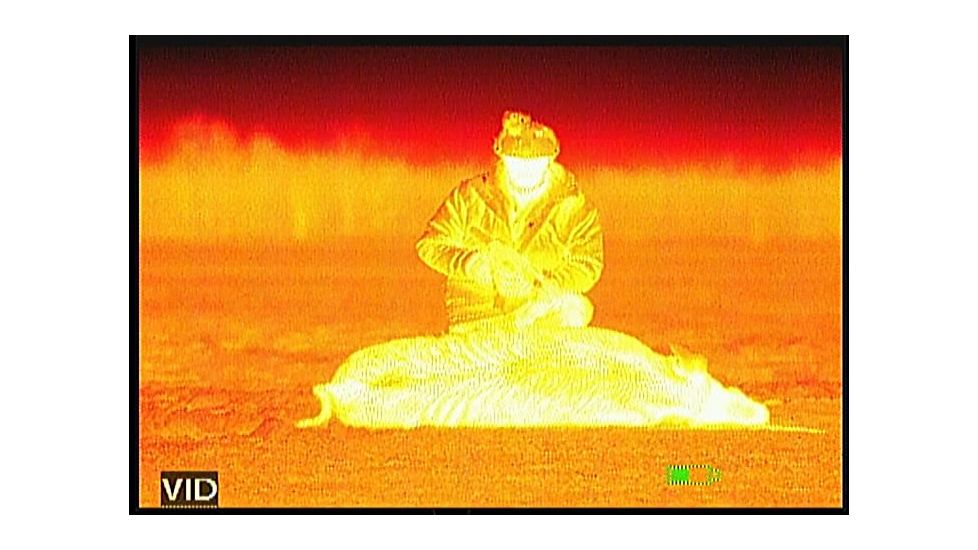

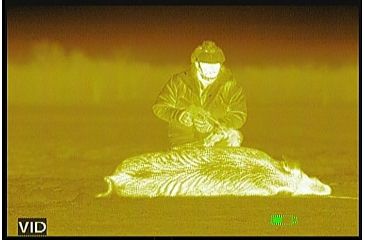

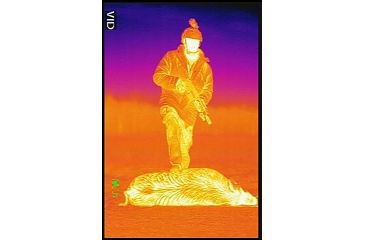

- Color Modes

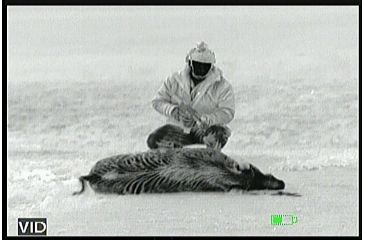

- Black/White Polarity
- VOx Vanadium Oxide Detector
- 800x600 Display
- Video Output
- 1 Year Warranty
Package Contents:
- ATN OTS-X F670 3.5x 30Hz Thermal Imager TIMNOTSXF670
