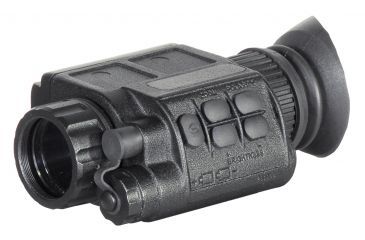

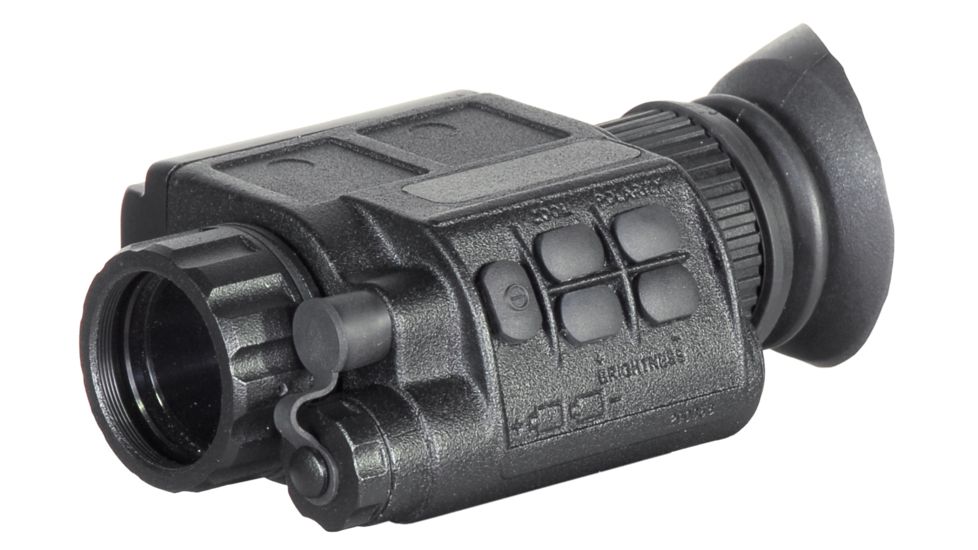

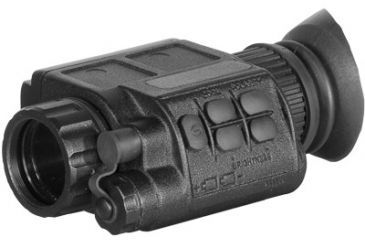

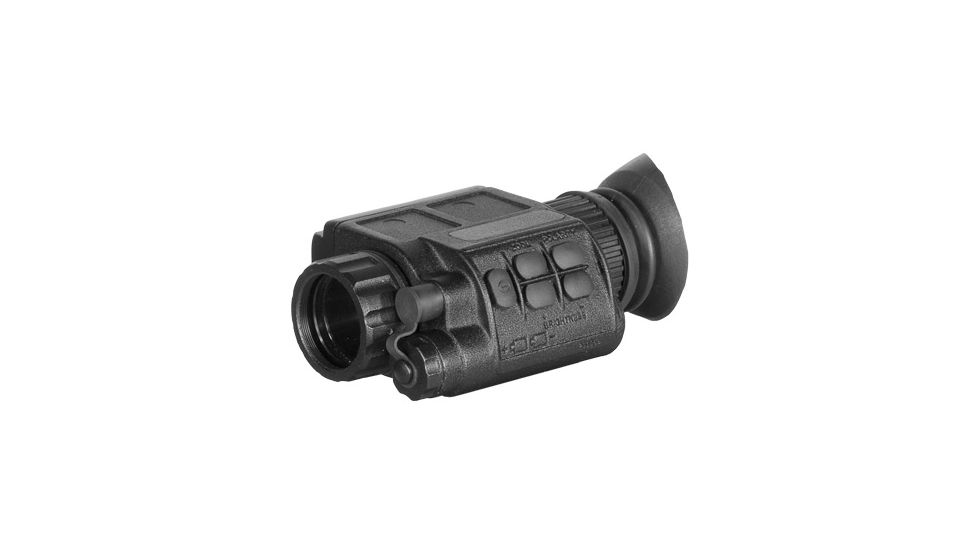

ATN OTS-30 Thermal Digital Imaging Multi Purpose Monocular
ATN OTS-30 Thermal Digital Imaging Multi Purpose Monocular has been discontinued by ATN and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Optics, Thermal Imaging Optics yourself to try and find the perfect replacement for you!
Product Info for ATN OTS-30 Thermal Digital Imaging Multi Purpose Monocular
ATN OTS-30 Thermal Digital Imaging Multi Purpose Monocular belongs to our big collection of ATN Optics. Remember to have a look at the entire collection of Thermal Imaging Optics from ATN that we supply at everyday affordable prices. Browse our full product selection for the equipment and merchandise you want to tackle the task at hand.
Specifications for ATN OTS-30 Thermal Digital Imaging Multi Purpose Monoculars w/ OLED Color Display:
Video Frame Rate:
Varies by model - 9Hz, 30Hz, or 60Hz
Magnification:
1X
Objective Focal Length:
19 mm
FOV:
11° x 8°
Focus Range:
3m to infinity
Exit Pupil:
14mm
Eye Relief:
28mm
Detector Type:
Uncooled Microbolometer
Spectral Response:
7-14 μm
Resolution:
320x240
Pixel Size:
25 x 25 μm
Thermal Sensitivity:
< 0,1°C
Range to Detect a Human:
475 m
Output Format:
Analog PAL / NTSC
Display:
Color OLED matrix
Display Format:
SVGA, 800 x 600 pxl
E-ZOOM:
Yes
Brightness Adjustment:
Manual
Contrast Adjustment:
Automatic
Power Supply:
2 x 3 V CR123A type battery
Start-Up Time:
< 5 sec
Operating Time w/ one battery pack:
4+ hrs
Operating Temperature Range:
from -30°C to +60°C
Waterproof:
Yes
Dimensions:
118x81x52 mm
Weight (w/batteries):
0.34 kg
Warranty:
1 year
Features of ATN OTS-30 Thermal Digital Imaging Monoculars:
Compact & lightweight design
Digital imaging
Enhanced Imaging (60hz)
Vanadium oxide (VOx) Microbolometer Uncooled
Rugged design with mil. spec optics
Menu functions include reticle type & color selection; windage & elevation adjustment
Digital brightness control
Polarity single button modes: black on white, white on black, 5 different color settings
E-zoom
Video output with RCA cable
Diopter range: +2° to -6°
Eye relief: 28mm
Extended battery life using two (2)
CR123 lithium batteries (4-plus hours)
4 different reticles with choice of reticle color: black, red, green, or white
MIL-STD-1913 (Picatinny Rail) Quick Release Mount
Head/helmet mountable for hands-free use
Weapon mountable
One-year warranty
Package Contents:
ATN OTS-30 Thermal Digital Imaging Multi Purpose Monocular
