Armasight Prometheus 640 3-24x75mm Thermal Imaging Monocular w/FLIR Tau 2 TAT163MN7PROM31

not yet rated review & rate

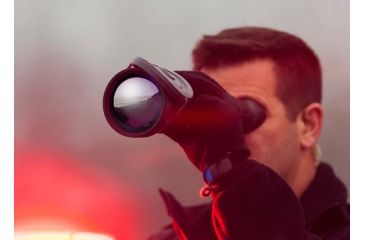

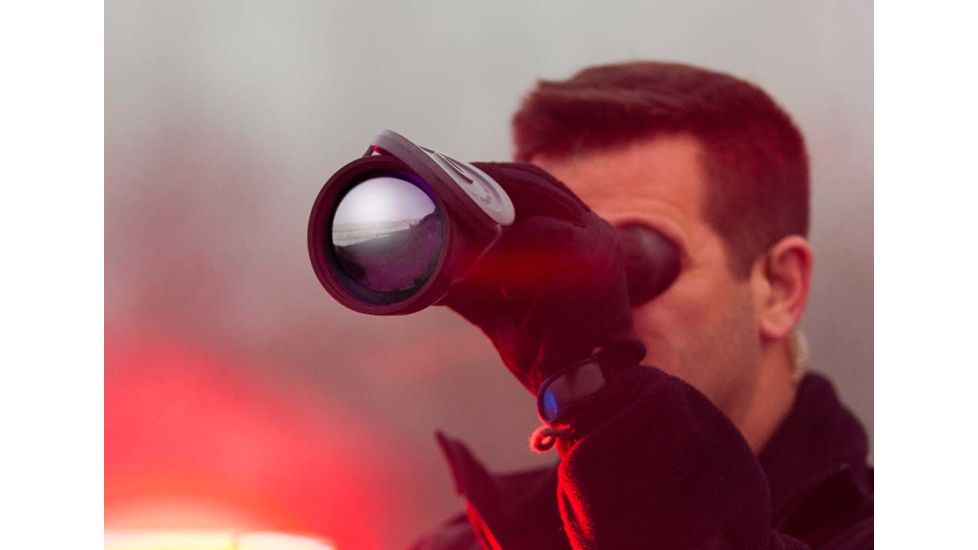

Armasight Prometheus 3 Thermal Imaging Monocular, FLIR Tau 2 - 640x512, 30Hz Core, 75mm Lens TAT163MN7PROM31
Armasight Prometheus 3 Thermal Imaging Monocular, FLIR Tau 2 - 640x512, 30Hz Core, 75mm Lens TAT163MN7PROM31
Armasight Prometheus 3 Thermal Imaging Monocular, FLIR Tau 2 - 640x512, 30Hz Core, 75mm Lens TAT163MN7PROM31
1 of 2 images
Armasight Prometheus 3 Thermal Imaging Monocular, FLIR Tau 2 - 640x512, 30Hz Core, 75mm Lens TAT163MN7PROM31
Armasight Prometheus 3 Thermal Imaging Monocular, FLIR Tau 2 - 640x512, 30Hz Core, 75mm Lens TAT163MN7PROM31
2 of 2 images
Armasight Prometheus 3 Thermal Imaging Monocular, FLIR Tau 2 - 640x512, 30Hz Core, 75mm Lens TAT163MN7PROM31

Tap Tap to Zoom

Product Discontinued by Manufacturer

Armasight Prometheus 640 3-24x75mm Thermal Imaging Monocular w/FLIR Tau 2 has been discontinued by Armasight and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Optics, Thermal Imaging Optics yourself to try and find the perfect replacement for you!

Product Info for Armasight Prometheus 640 3-24x75mm Thermal Imaging Monocular w/FLIR Tau 2

Armasight Prometheus 640 3-24x75mm Thermal Imaging Monocular w/FLIR Tau 2 is part of our larger collection of Armasight Optics. You should definitely check out the entire line of Thermal Imaging Optics from Armasight that we present at everyday discount prices. Browse our full product choice for the gear and products you want to tackle the task at hand.

Specifications for Armasight Prometheus 3 640x512 Waterproof Thermal Monocular w/ FLIR Tau 3:

Magnification (NTSC/PAL): 2.7x / 3.2x
Objective Lens Type: Germanium
Type of Focal Plane Array: FLIR Tau 2
Pixel Array Format: 640x512
Pixel Size: 17 μm
Color: White Hot/ Black Hot/ Rainbow/ Various Color modes
Resolution: 0.23 mrad
Display Type: AMOLED SVGA 060
Controls: Direct
Field of View - ang. (X / Y): 4.3 / 3.3
Objective Focal Length: 75 mm
Objective F-number: 1:1.3
Exit Pupil Diameter: 10 mm
Eye Relief: 45 mm
Focusing Range: 10 to infinity
Power Supply: 2x CR123A (3V)
Environmental Rating: Waterproof
Operating Temperature: -40 to +50°C (-40 to +122°F)
Battery Life at 20°C (68°F): 4 Hrs
Storage Temperature: -50 to +70°C (-58 to +158°F)
Dimensions: 275x70x75 / 10.9x2.7x2.9 (mm/in)
Weight: 0.65 / 1.4 (kg/lbs)
Warranty: 3 Years on the System, 10 Years on the FLIR Detector

Features of Armasight Prometheus 3 640x512 Thermal Imaging Monocular:

  • Easy and Intuitive Drop-down user interface
  • Digital E-Zoom: 1x, 2x, 4x and 8x
  • Color Modes: White Hot/ Black Hot/ Rainbow/ Various Color modes
  • Extended operation time with optional external battery power supply
  • Recording: video output /optional Video Recorder with onboard replay
  • Waterproof, CNC machined aircraft-aluminum alloy construction
  • Rapid start-up

Package Contents:

  • Armasight Prometheus 3 640x512 Thermal Imaging Monocular
  • Objective Lens Cap
  • Eyecup
  • Battery Cassette
  • CR123 Lithium Battery
  • Operation and Maintenance Manual
  • Advanced Wireless remote control (AWREC)
  • Picatinny Adapter for Advanced Wireless Remote Control
  • Carrying Case
