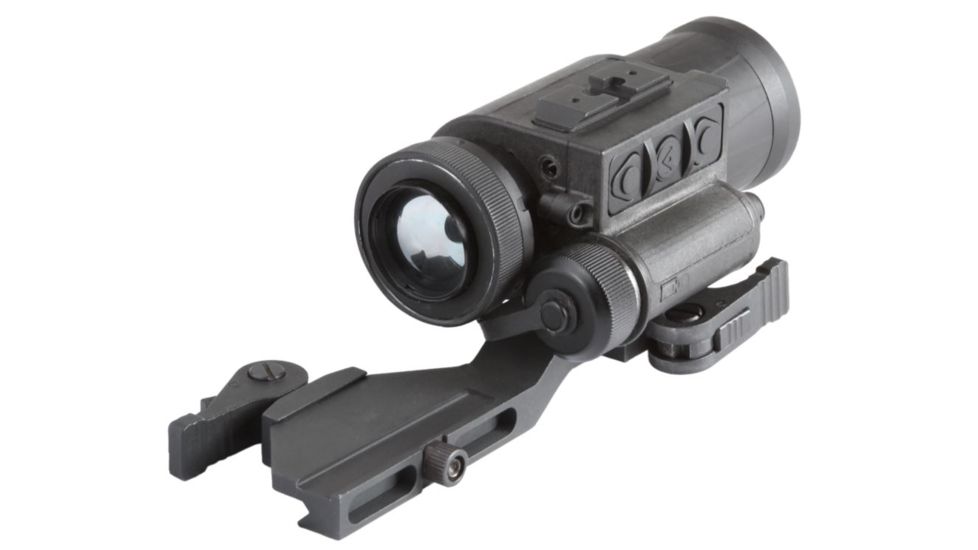

Name: Armasight Apollo Mini 640 Thermal Imaging Clip-On Sight
Brand: Armasight
SKU: 0A-HS-AAM640T
Availability: Discontinued

Product Info for Armasight Apollo Mini 640 Thermal Imaging Clip-On Sight

Armasight Apollo Mini 640 Thermal Imaging Clip-On Sight is part of our massive variety of Armasight Optics. Make sure you look into the complete collection of Thermal Imaging Optics from Armasight that we present at everyday affordable prices. Browse our full product choice for the gear and products you need to tackle the job at hand.

Specifications for Armasight Apollo Mini 640x512 Thermal Imaging Clip On Sight:

Refresh Rate:	60 Hz
Magnification (NTSC/PAL):	Unity (1x)
Objective Lens Type:	Germanium
Type of Focal Plane Array:	FLIR Quark 2
Pixel Array Format:	640×512
Pixel Size:	17 um
Resolution:	0,49 mRad
Display Type:	AMOLED SVGA 060
Pixel Display Format:	800×600
Display Brightness:	Discretely Adjustable to 8 Levels
Turn-on Time, max:	3 sec
Digital Zoom:	1x, 2x, 4x and 8x
Digital Compass:	Yes
Digital Inclinometer:	Yes
Battery Status Indicator:	Yes

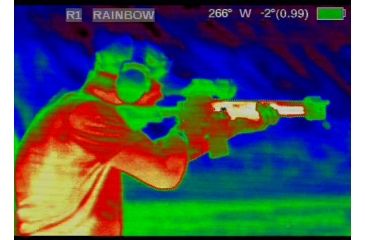

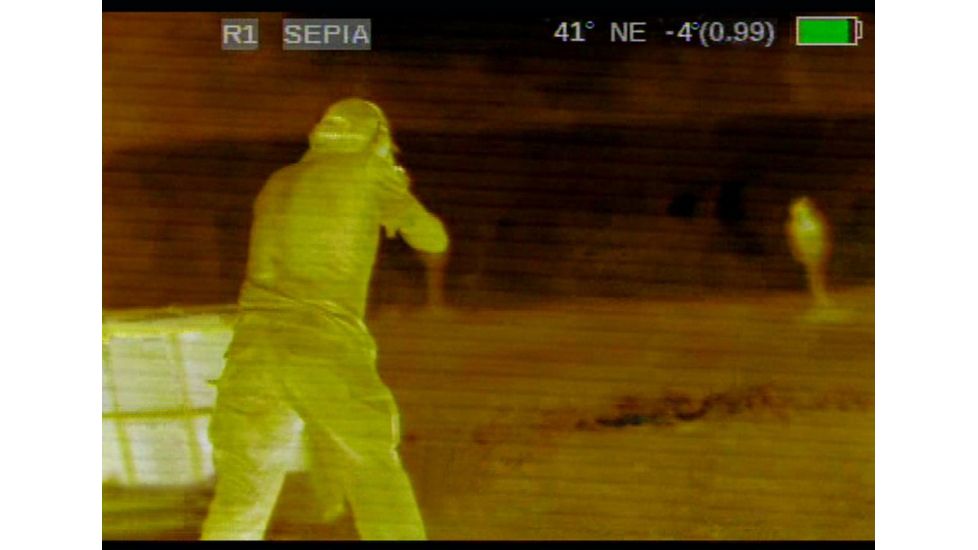

Image Palettes:	White Hot, Black Hot, Sepia, Fusion, Rainbow, and Rain
Analog Input and Output Format (resolution):	NTSC (640×480 pixels) / PAL (768×574 pixels)
Video Recording:	Optional Digital Video Recorder with SD card slot
Remote Control:	Wireless 5-button
Objective Focal Length:	35 mm
Objective F-number:	1
Field of View (ang.):	17.8 degrees x 14.2 degrees
Exit Pupil Diameter:	27 mm
Focus Method:	Manual
Focusing Range:	5m to inf.

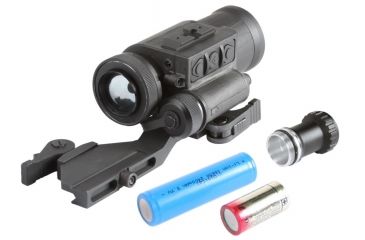

Battery:	One CR123A 3V Lithium battery, CR123 rechargeable battery, or 16650 rechargeable battery with voltage from 3.0V to 3.6V
Battery Life at 68 degrees F - CR123A:	up to 1.5 hr
Battery Life at 68 degrees F - CR123 Rechargeable (650mAh):	up to 1 hr
Battery Life at 68 degrees F - 16650 Rechargeable (2000mAh):	up to 2.6 hr
Extended Battery Pack (optional):	Two 18650 rechargeable batteries (3.7V), four CR123 rechargeable batteries with voltage 3.7V max, or four standard CR123A 3V Lithium batteries (operational time up to 8 hr)
External Power Supply:	6V-12V DC / 600 mА
Operating Temperature:	-40 degrees to +122 degrees F
Storage Temperature:	-58 degrees to +158 degrees F
Recoil Resistance:	700 g
Environmental Rating:	Waterproof
MIL-STD-810 Compatibility:	Yes

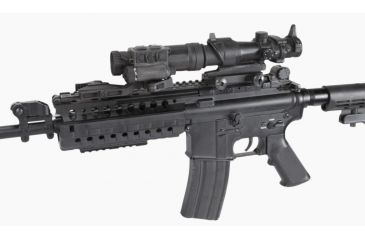

Weapon Mount Type:	Picatinny, MIL-STD-1913, and Weaver Rails
Height of the Scope Axis above Rail:	1.5 in
Dimensions (w/o Mount):	4.4 × 2.4 × 2.0 in
Weight (w/o Mount and Batteries):	0.56 lbs
Warranty:	3 year
Warranty on FLIR Detector:	10 years

Features of Armasight Apollo Mini 640 1-8x Thermal Imager System:

24/7 Operation in presence of environmental obscurants (smoke, dust, haze, fog)
MIL-810G rugged, waterproof glass fiber reinforced construction
FLIR Quark 2 17μm Pitch Thermal Sensor
Reliable quick-release locking weapon mount
Objective Germanium Lens
SVGA 800x600 OLED Display
Digital Compass
Digital Inclinometer

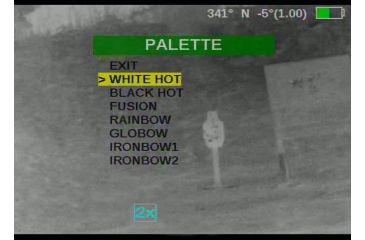

Drop-down menu and icon based menu
Simple, intuitive 3-button control

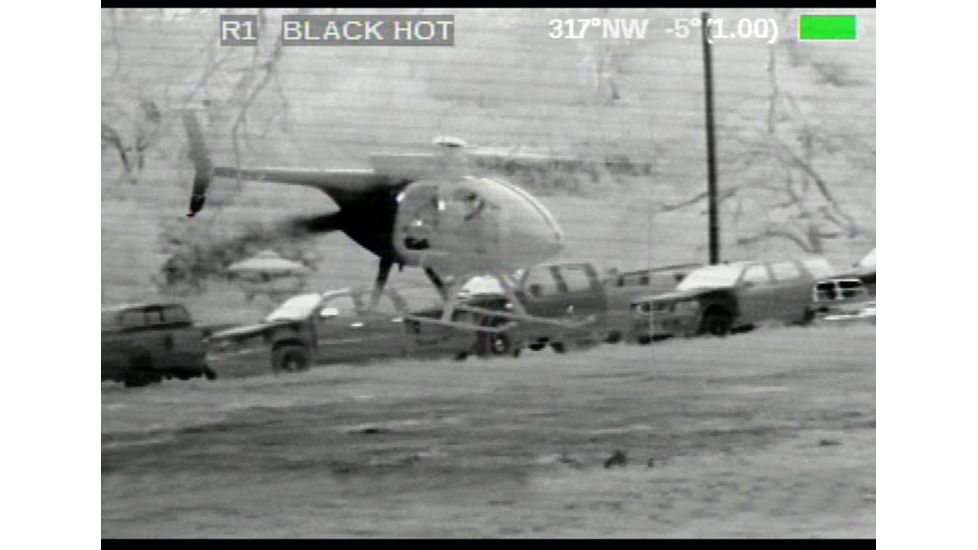

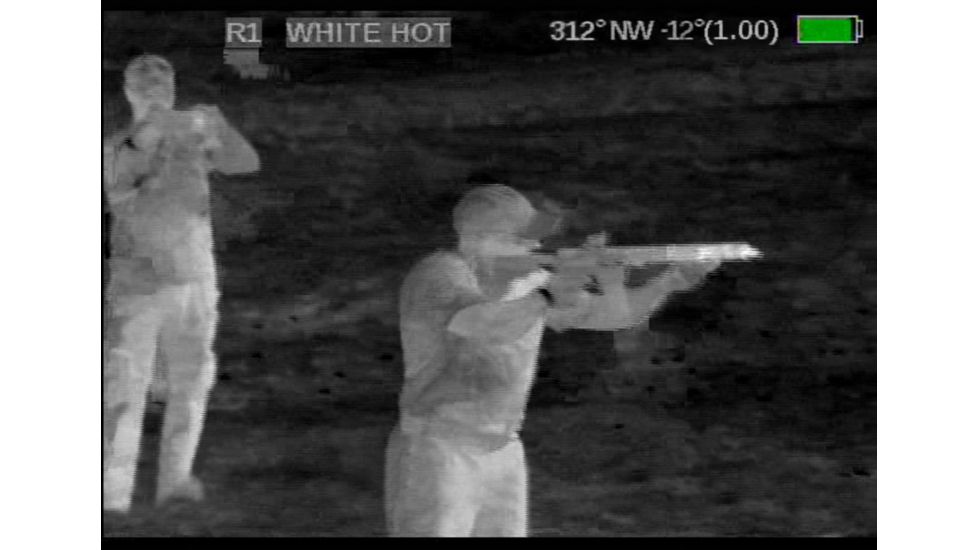

Polarity Control (black hot/white hot)
Bluetooth features

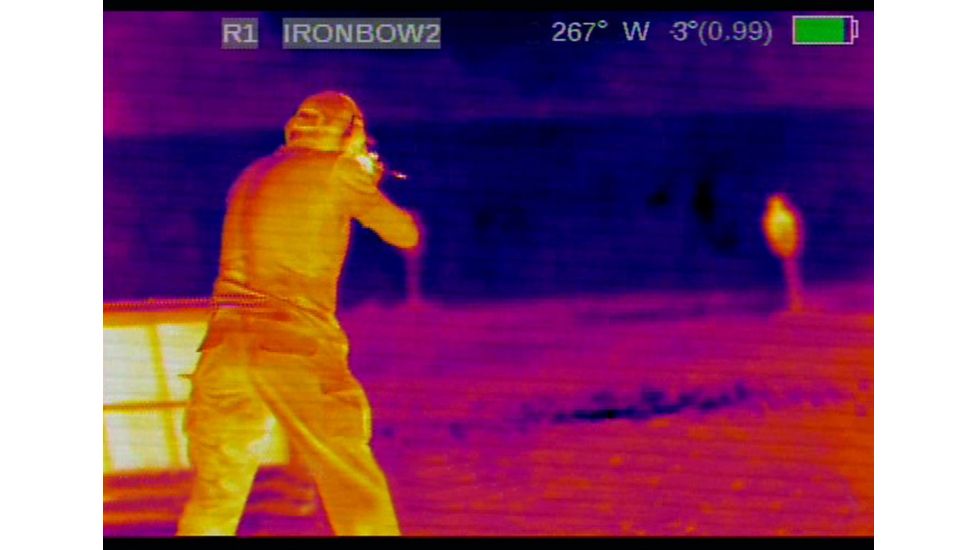

Selectable Palettes: White Hot/ Black Hot/ Sepia/ OEM Custom/ Other Color Variants
Special User-Adjustable Imaging Tools: Active Contrast Enhancement (ACE) - CONTRAST, Second Generation Digital Detail Enhancement (DDE) - SHARPNESS, Smart Scene Optimization (SSO) - SMART SCENE, Automatic Gain Control - AGC, Information-Based Histogram Equalization (IBHEQ) - SKY/SEA, User-Controlled Manual Non-Uniformity Correction/ Flat-Field Correction (UCMNUC/ FFC), Silent Shutterless NUC (SSN)
One 123A battery operation
Battery Status Indicator
Wireless 5-button Remote
Still Picture and Video Recording Capability (DVR Option)
