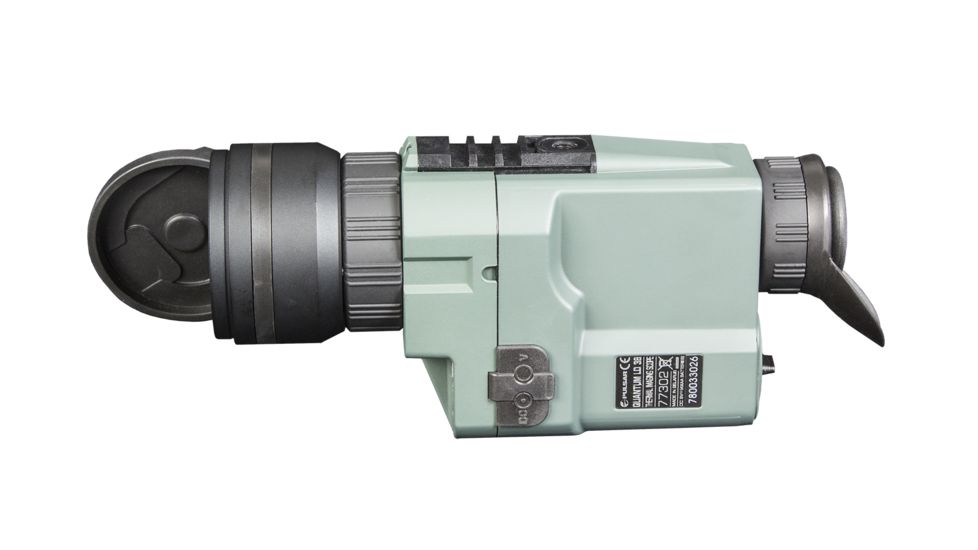

Pulsar Quantum HD38 Thermal Imaging Monocular
1 of 14 images
Pulsar Thermal Imaging Scope Quantum 2x LD 38 - 9hz 384x253 PL77302
2 of 14 images
Pulsar Thermal Imaging Scope Quantum 2x HD 38 - 30hz 384x253 PL77301
3 of 14 images
Pulsar Thermal Imaging Scope Quantum 2x LD 38 - 9hz 384x253 PL77302
4 of 14 images
Pulsar Thermal Imaging Scope Quantum 2x LD 38 - 9hz 384x253 PL77302
5 of 14 images
Pulsar Thermal Imaging Scope Quantum 2x LD 38 - 9hz 384x253 PL77302
6 of 14 images
Pulsar Thermal Imaging Scope Quantum 2x LD 38 - 9hz 384x253 PL77302
7 of 14 images
Pulsar Thermal Imaging Scope Quantum 2x LD 38 - 9hz 384x253 PL77302
8 of 14 images
Pulsar Thermal Imaging Scope Quantum 2x LD 38 - 9hz 384x253 PL77302
9 of 14 images
Pulsar Thermal Imaging Scope Quantum 2x HD 38 - 30hz 384x253 PL77301
10 of 14 images
Pulsar Thermal Imaging Scope Quantum 2x HD 38 - 30hz 384x253 PL77301
11 of 14 images
Pulsar Thermal Imaging Scope Quantum 2x HD 38 - 30hz 384x253 PL77301
12 of 14 images
Pulsar Thermal Imaging Scope Quantum 2x HD 38 - 30hz 384x253 PL77301
13 of 14 images
Pulsar Thermal Imaging Scope Quantum 2x HD 38 - 30hz 384x253 PL77301
14 of 14 images
Pulsar Thermal Imaging Scope Quantum 2x HD 38 - 30hz 384x253 PL77301
Tap Tap to Zoom
Documents
Product Discontinued by Manufacturer
Pulsar Quantum HD38 Thermal Imaging Monocular has been discontinued by Pulsar and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Optics, Thermal Imaging Optics yourself to try and find the perfect replacement for you!
Product Info for Pulsar Quantum HD38 Thermal Imaging Monocular
Pulsar Quantum HD38 Thermal Imaging Monocular is part of our large collection of Pulsar Optics. You should definitely browse the full collection of Thermal Imaging Optics from Pulsar which we present at everyday affordable prices. Browse our full product selection for the gear and merchandise you want to tackle the task at hand.
Specifications for Pulsar Quantum HD38 Thermal Imager:
| Detector type: | UL 03 16 2 (a-Si) |
| Refresh rate, Hz: | 30 |
| Magnification, x: | 2.1 |
| Digital zoom, x: | 2 |
| Resolution, pixels: | 384x288 |
| OLED Display size, in: | 0.31 |
| Close-up range, m: | 2 |
| Exit pupil, mm: | 8 |
| Spectral range, μm: | 7.7-13.2 |
| Field of view, HxV, degree: | 14.4x10.8 |
| Diopter adjustment, D: | ±5 |
| Max. detection range, m/yd: | 900/985 |
| Start-up time, sec: | 10 |
| Power supply: | 4÷6V |
| Battery type: | 4xAA |
| External power supply: | 8.4-15V |
| Operating time on battery EPS3/EPS5: | 9/20 |
| IP code: | IPX4 |
| Video output: | PAL/NTSC |
| Operating temp., °C: | -20 to +50 |
| Dimensions, mm: | 200 x 86 x 59 |
| Weight, oz: | 19.7 |
Features of Pulsar 2.1x Quantum HD38 Thermal Imaging Scope:
- Detector size 384x288 pixels
- Quality OLED display (640x480 pixels)
- 2.1x magnification
- 2x digital zoom
- High-aperture lens
- Wide field of view
- External power supply
- Video output enabling recording
- Modes "White Hot" and "Black Hot"
- Two 1/4" tripod mounts
Package Contents:
- Pulsar 2.1x Quantum HD38 Thermal Imaging Monocular
- Carrying case
- User manual
- Video cable
- Hand strap
- Car adapter
- Spare battery container
- Cleaning cloth
- Warranty card
