Product No Longer Available

Unfortunately Mitutoyo America .03in Dial Test Indicatorset 504-513-412T is not listed by Shoptics.You can also explore other items in the Tools yourself to try and find the perfect replacement for you!

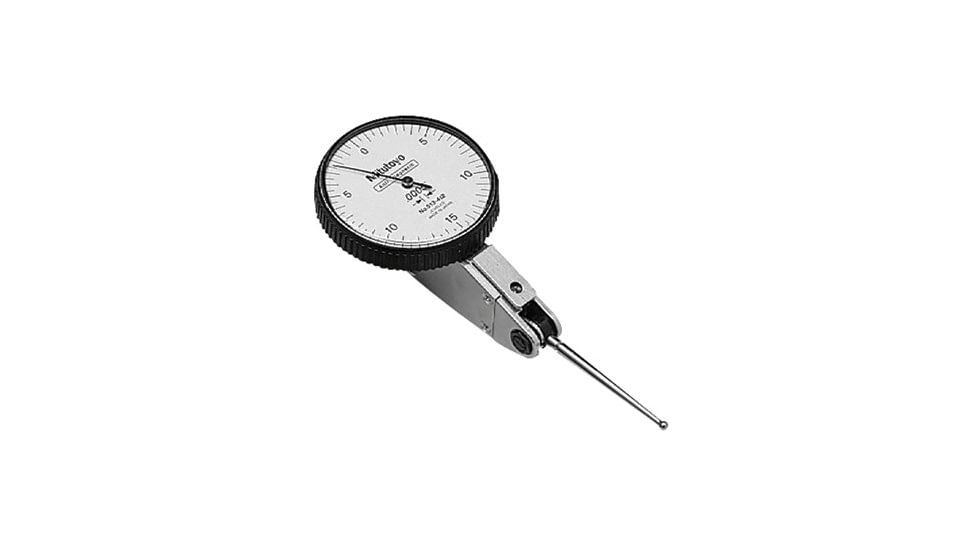

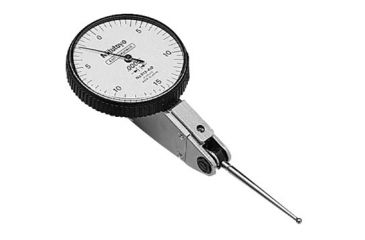

Product Info for Mitutoyo America .03in Dial Test Indicatorset 504-513-412T

Mitutoyo America .03in Dial Test Indicatorset 504-513-412T belongs to our large collection of Mitutoyo America Tools. You should definitely browse the full selection of Tools from Mitutoyo America which we feature at everyday low prices. Browse our full product selection for the equipment and merchandise you need to tackle the task at hand.

Specifications for Mitutoyo America .03in Dial Test Indicatorset 504-513-412T:

Catalog number:  300053-038
Type:  Horizontal
Tip Diameter:  0.039 in, 0.079 in, 0.118 in
Stem Diameter:  5/32 in, 3/8 in
Resistance:  Water, Dust
Graduations:  .0005 in
Range:  0.030 in Max
Weight:  0.60 lb
Mounting:  Dovetail, Stem
Dial Reading:  0-15-0
Display Color:  White
Measuring Force:  0.200 N Max
Supplier No.:  504-513-412T
Accuracy:  ±0.0005 in
Description:  300009-353
Display Type:  Balanced Dial
Includes:  -
Measuring System:  Inch
Tip Material:  Carbide

Package Contents:

  • Mitutoyo America .03in Dial Test Indicatorset 504-513-412T / 300053-038
