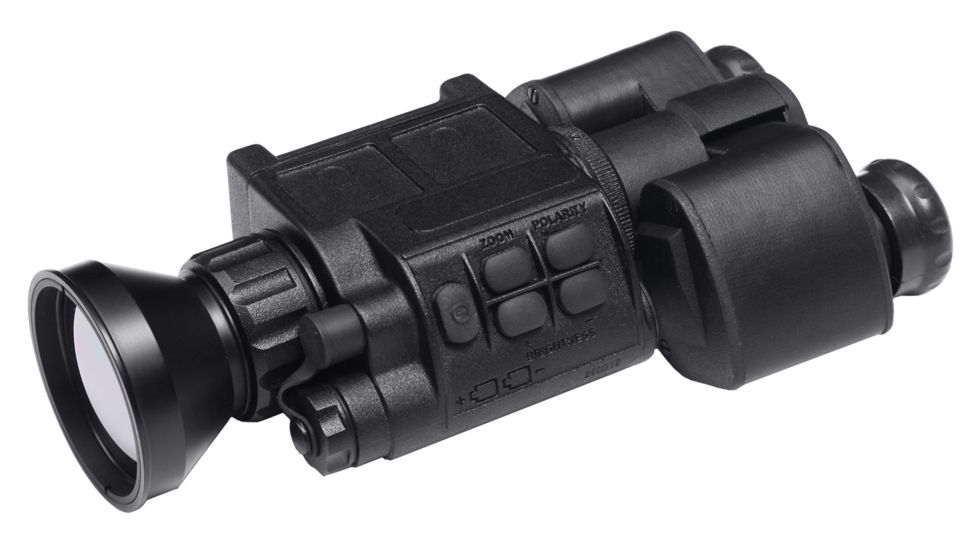

ATN OTS15 Front Left Angular View

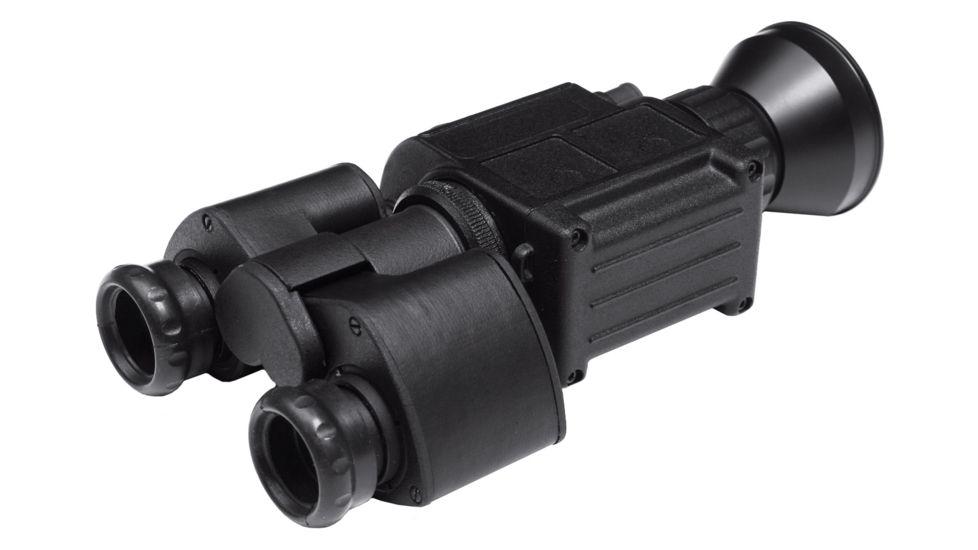

ATN OTS15 Back Right Angular View
ATN Otis-15 B/W Thermal Handheld Scope TIMPOTIS15
ATN OTS15 Front Left Angular View
1 of 3 images
ATN OTS15 Front Left Angular View
ATN OTS15 Back Right Angular View
2 of 3 images
ATN OTS15 Back Right Angular View
ATN Otis-15 B/W Thermal Handheld Scope TIMPOTIS15
3 of 3 images
ATN Otis-15 B/W Thermal Handheld Scope TIMPOTIS15

Tap Tap to Zoom

Product Discontinued by Manufacturer

ATN Otis-15 B/W Thermal Handheld Scope TIMPOTIS15 has been discontinued by ATN and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Optics, Thermal Imaging Optics yourself to try and find the perfect replacement for you!

Product Info for ATN Otis-15 B/W Thermal Handheld Scope TIMPOTIS15

ATN Otis-15 B/W Thermal Handheld Scope TIMPOTIS15 belongs to our larger collection of ATN Optics. You should definitely have a look at the complete collection of Thermal Imaging Optics from ATN which we offer at everyday low prices. Browse our full product selection for the gear and products you need to tackle the job at hand.

Specifications for ATN Otis-15 Thermal Handheld Scope TIMPOTIS15:

Magnification: 6x (12x digital)
Objective Focal Length: 50 mm
FOV: 5.5° x 4.1°
Focus Range: from 5 m to infinity
Focus Adjustment: Manual
Focus Adjustment: Manual
Exit Pupil: 5 mm
Eye Relief: 16 mm
Detector Type: Uncooled Microbolomete
Spectral Response: 7-14 µm
Pixels: 160 x 120
Pixel Size: 30 x 30 µm
Angular Resolution: 0.2 mrad
Thermal Sensitivity: < 0.1°C
Range to Detect a Human: 750 m
Output Format: Analog PAL / NTSC
Display Color: OLED matrix
Display Format: SVGA, 852 x 600 pxl
Digital ZOOM: Fixed 2x (optional 5x)
Brightness Adjustment: Manual
Contrast Adjustment: Automatic
Power Supply: 2 x 3 V CR123A type battery
Start-Up Time: < 3 sec
Operating Time w/one battery pack: 4 hrs
External Power Supply: DC 6V, 500 mA
Operating Temperature Range: from -20°C to +50°C
Waterproof: Yes, up to 10 m submersion
Dimensions: 139х110х58 мм
Weight (w/batteries): 0.39 kg / 0.85 lbs

Features of ATN Otis15 Thermal Hand Held Scope TIMPOTIS15:

  • High resolution digital thermal imaging
  • Compact, lightweight and durable housing
  • Dual eye viewing system for long viewing sessions
  • High Quality optics
  • Video output
  • Video/Image polarity selection
  • Digital zoom
  • Power input capability
  • Waterproof
  • One-Year Warranty

Package Contents:

  • ATN OTS-15 B&W Thermal Camera Ground Systems
