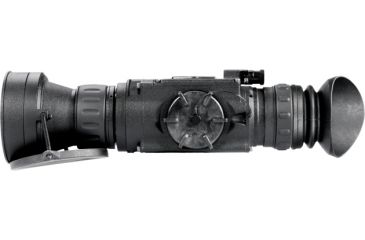

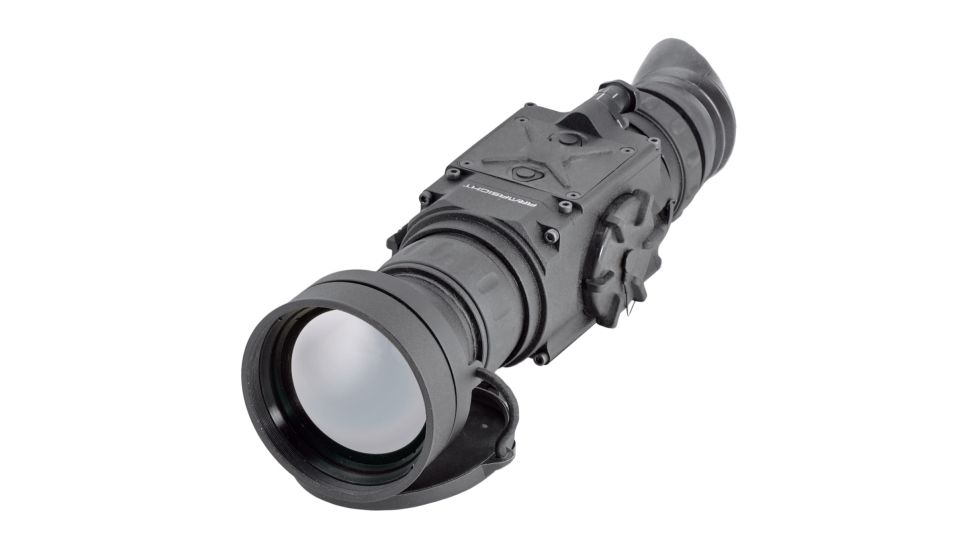

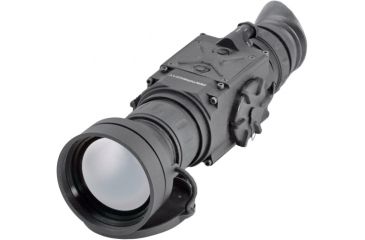

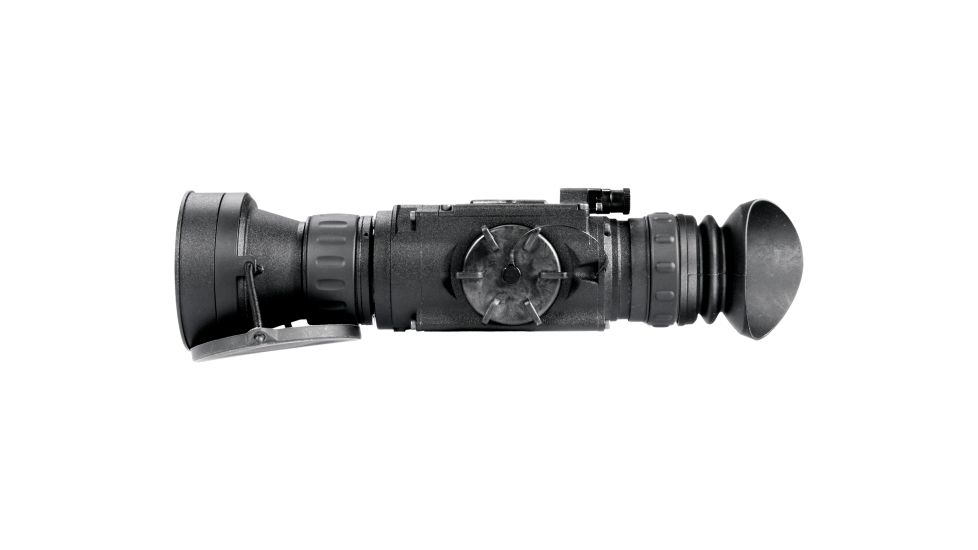

Armasight Prometheus 336 5-20x75 Thermal Imaging Monocular, FLIR Tau 2 336x256 (17 micron) Core, 75mm Lens has been discontinued by Armasight and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Optics, Thermal Imaging Optics yourself to try and find the perfect replacement for you!
Magnification (NTSC/PAL): | 5.0x / 6.0x |
Objective Lens Type: | Germanium |
Type of Focal Plane Array: | FLIR Tau 2 |
Pixel Array Format: | 336x256 |
Pixel Size: | 17 μm |

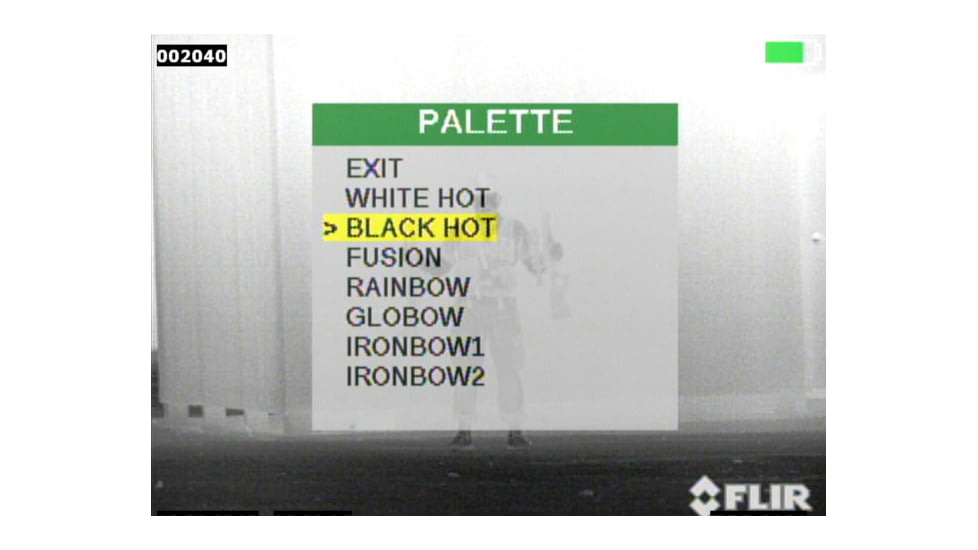

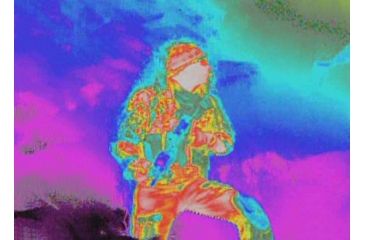

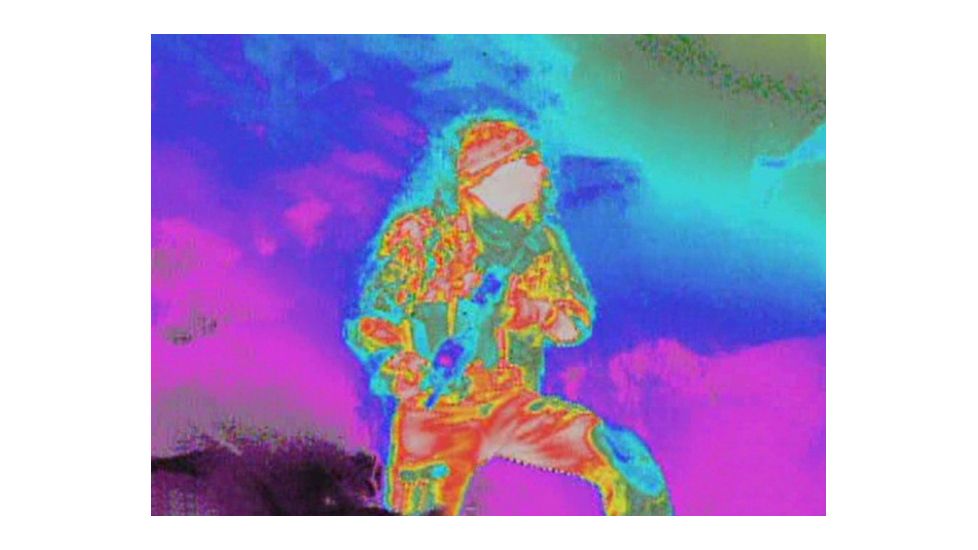

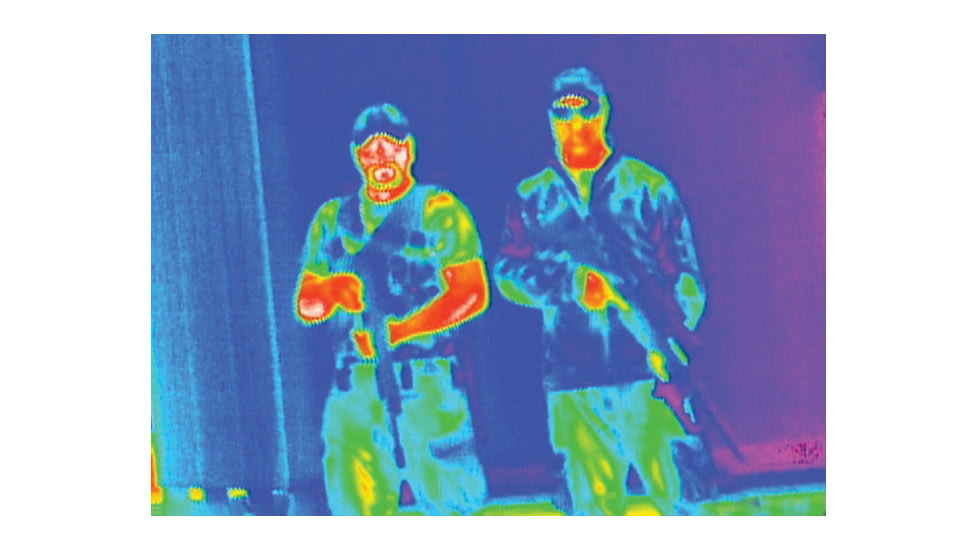

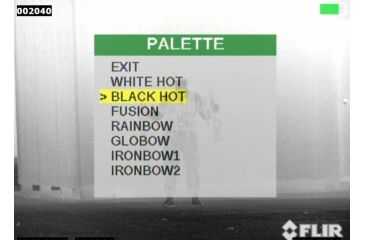

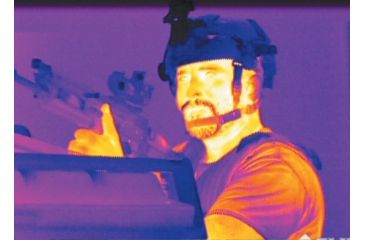

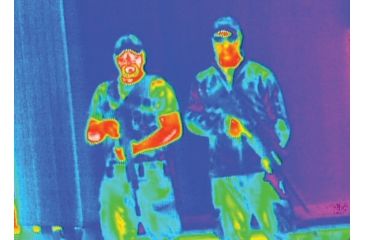

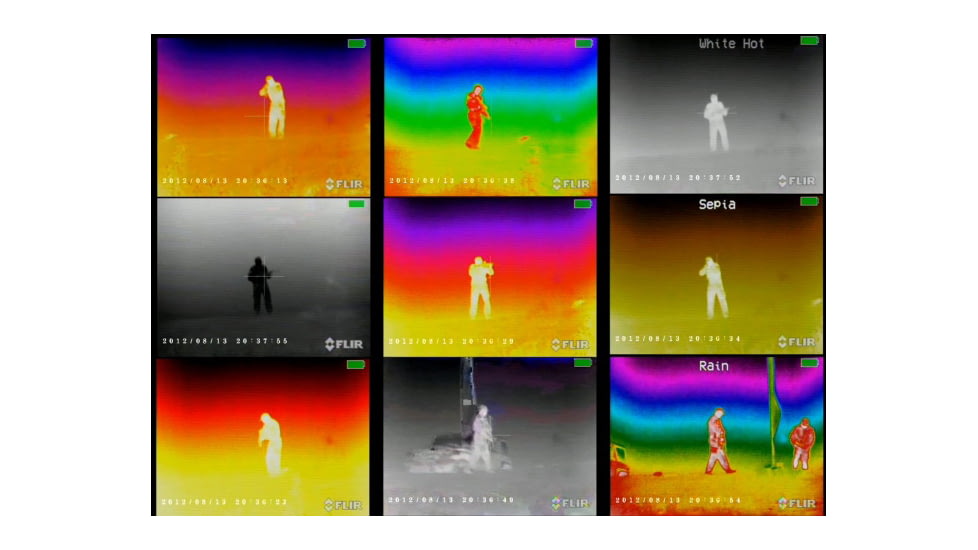

Color: | White Hot/ Black Hot/ Rainbow/ Various Color modes |
Resolution: | 0.23 mrad |
Display Type: | AMOLED SVGA 060 |
Focal Length of the Lens: | 75 mm |
Controls: | Direct |
Field of View - ang. (X / Y): | 4.3 / 3.3 |
Objective Focal Length: | 75mm |
Objective F-number: | 1:1.3 |
Exit Pupil Diameter: | 10 mm |
Eye Relief: | 45 mm |
Focusing Range: | 10m to infinity |
Power Supply: | 2x CR123A (3V) |
Environmental Rating: | Waterproof |
Operating Temperature: | -40° to +50° C (-40° to +122°F) |
Battery Life at 20°C (68°F): | 4 Hrs |
Storage Temperature: | -50° to +70°C (-58° to +158°F) |
Dimensions: | 275x70x75 /10.9x2.7x2.9 (mm/in) |
Weight: | 0.65 / 1.4 (kg/lbs) |
Warranty: | 3 Years on the System, 10 Years on the FLIR Detector |
