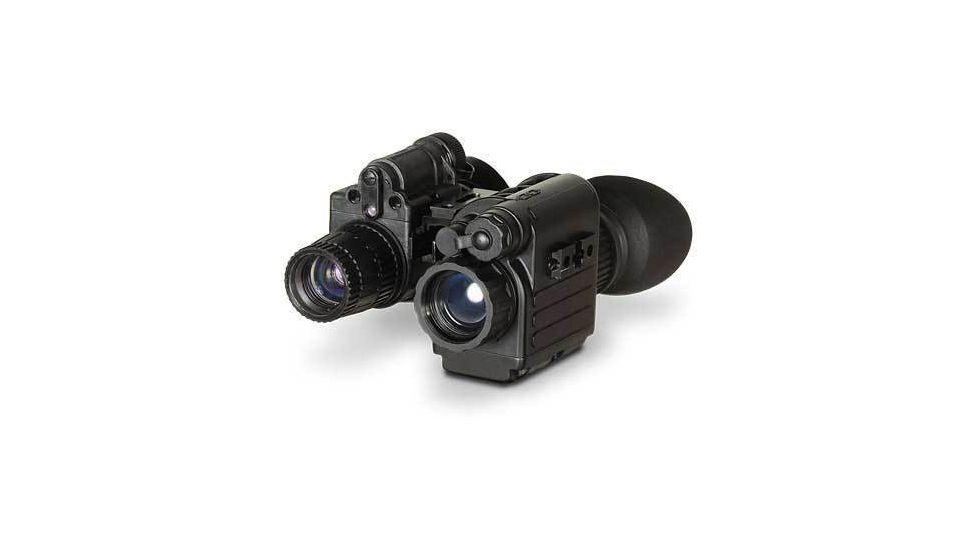

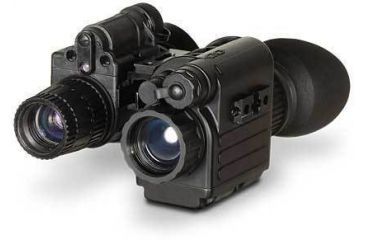

ATN Fusion Image Intensification Thermal System FIITS14
1 of 17 images
ATN Fusion Image Intensification Thermal System FIITS14
2 of 17 images

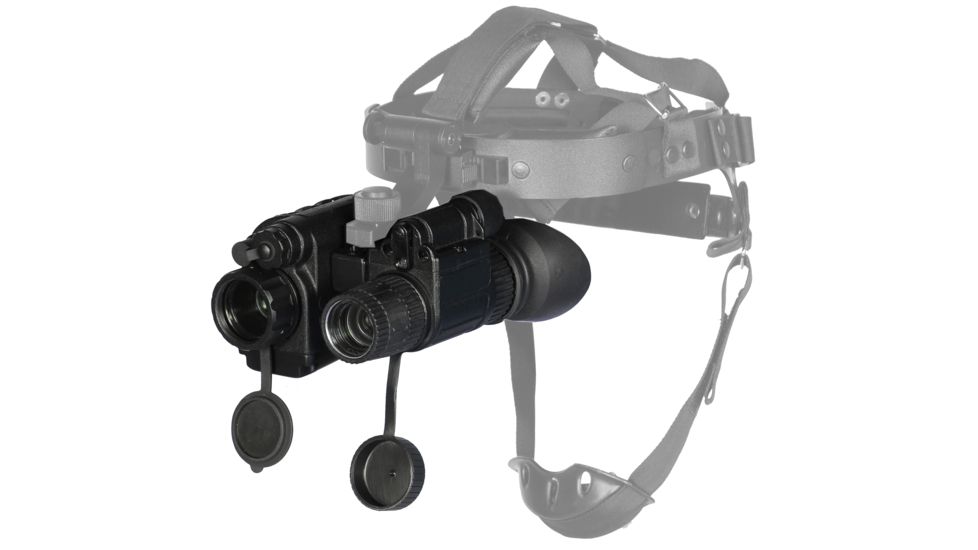

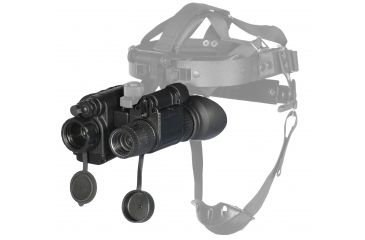

ATN FIITS14 with Head Mount
3 of 17 images

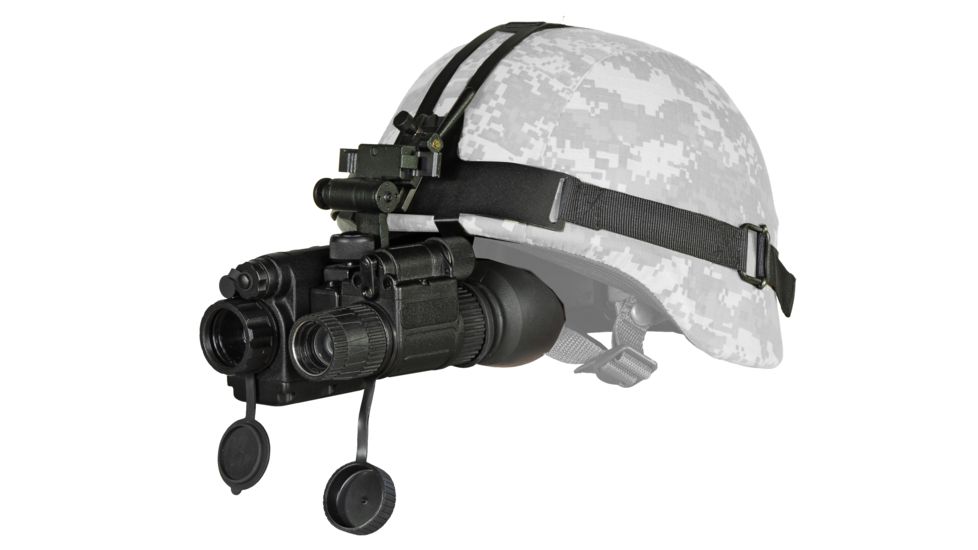

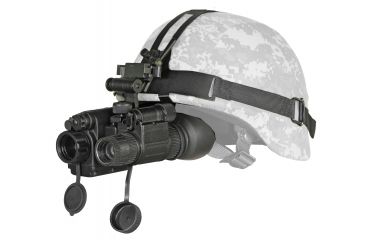

ATN FIITS14 with Helmet Mount
4 of 17 images
ATN Fusion Image Intensification Thermal System FIITS14, 3rd Gen TIFSFI1430
5 of 17 images

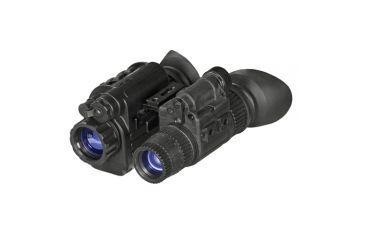

ATN Fusion Image Intensification Thermal System FIITS14, 3rd Gen A Grade TIFSFI143A
6 of 17 images

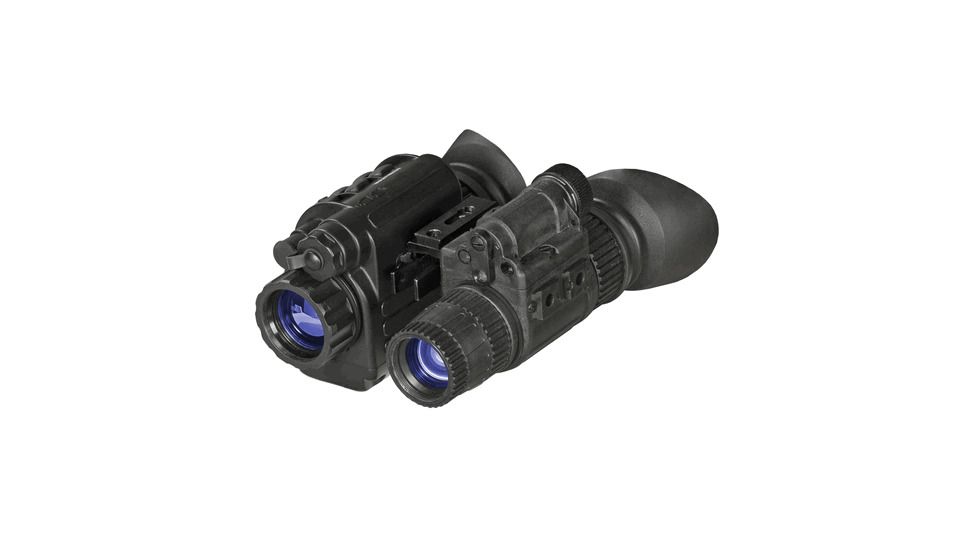

ATN Fusion Image Intensification Thermal System FIITS14, 3rd Gen Pinnacle IIT TIFSFI143P
7 of 17 images

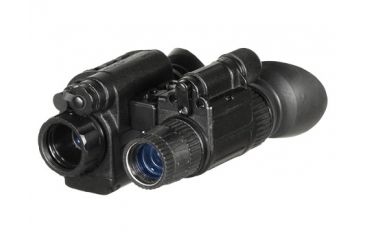

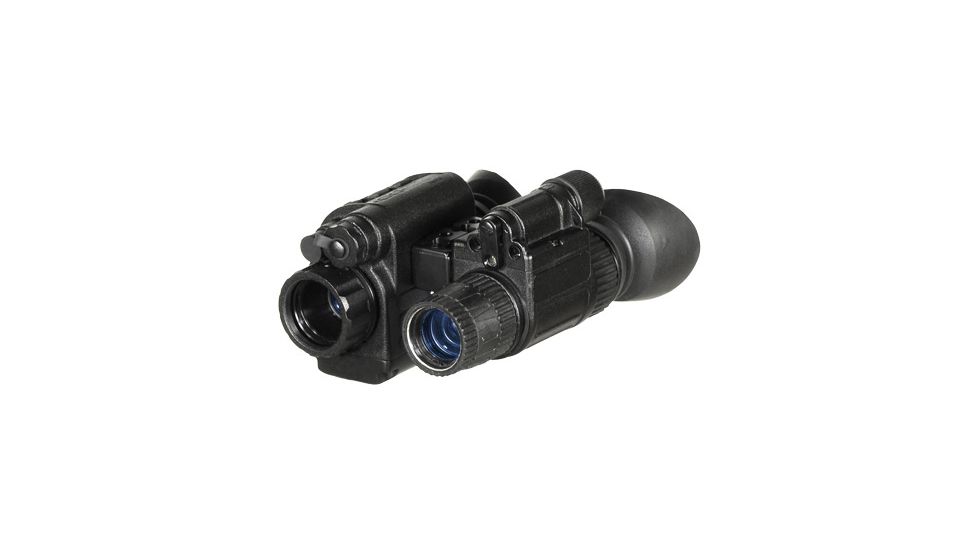

ATN Fusion Image Intensification Thermal System FIITS14, 4th Gen ITT TIFSFI1440
8 of 17 images

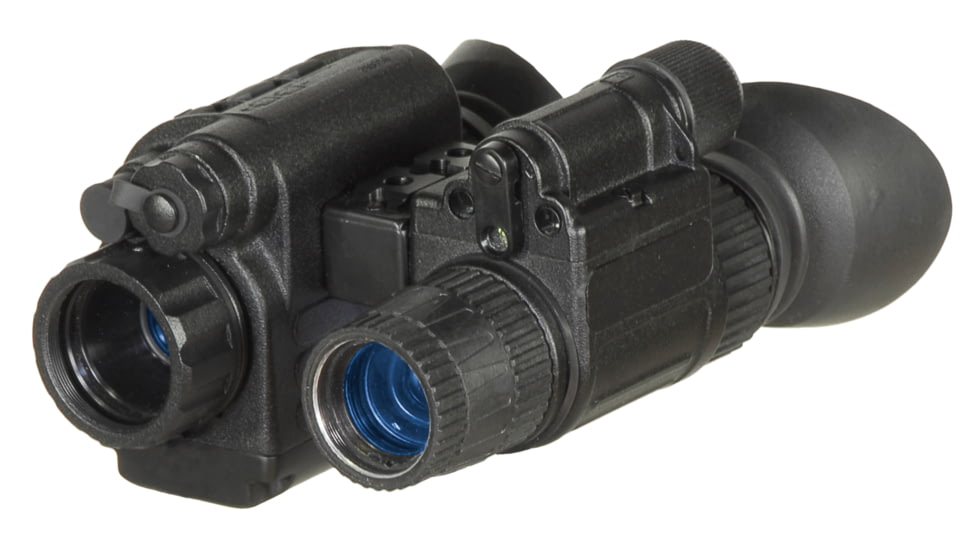

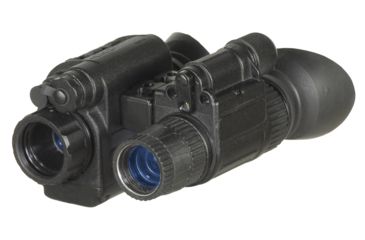

ATN FIITS14 Back Right Angular View
9 of 17 images

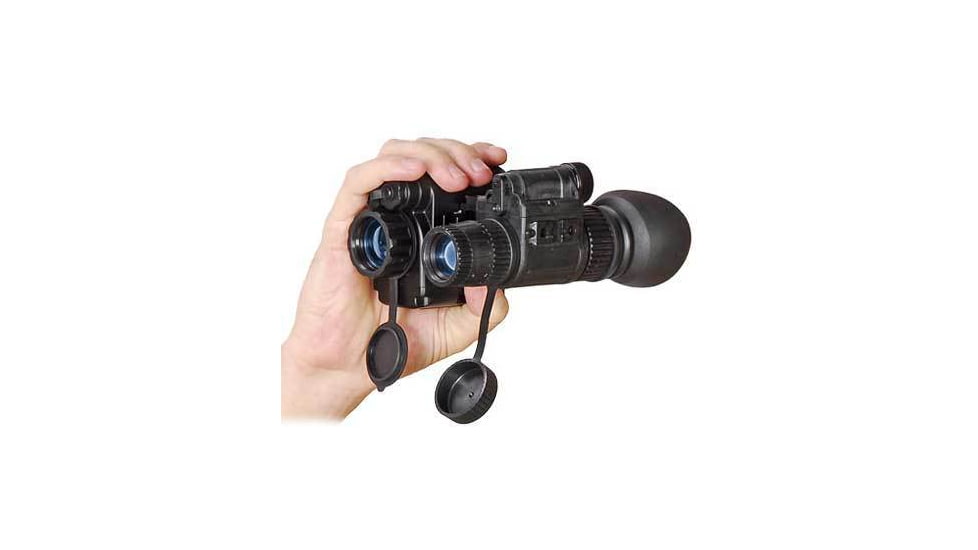

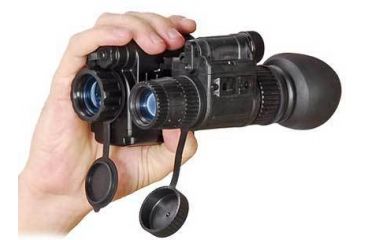

ATN FIITS14 Thermal System
10 of 17 images
ATN Fusion Image Intensification Thermal System FIITS14, HPT ITT TIFSFI14H0
11 of 17 images
ATN Fusion Image Intensification Thermal System FIITS14, 3rd Gen TIFSFI1430
12 of 17 images
ATN Fusion Image Intensification Thermal System FIITS14, 3rd Gen A Grade TIFSFI143A
13 of 17 images
ATN Fusion Image Intensification Thermal System FIITS14, 3rd Gen Pinnacle IIT TIFSFI143P
14 of 17 images
ATN Fusion Image Intensification Thermal System FIITS14, 4th Gen ITT TIFSFI1440
15 of 17 images
ATN FIITS14 Professional Use
16 of 17 images

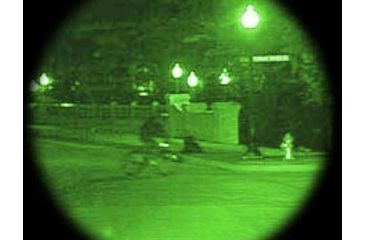

ATN FIITS14 Image Thermal System
17 of 17 images

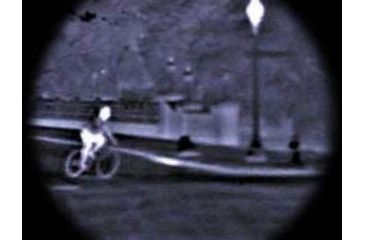

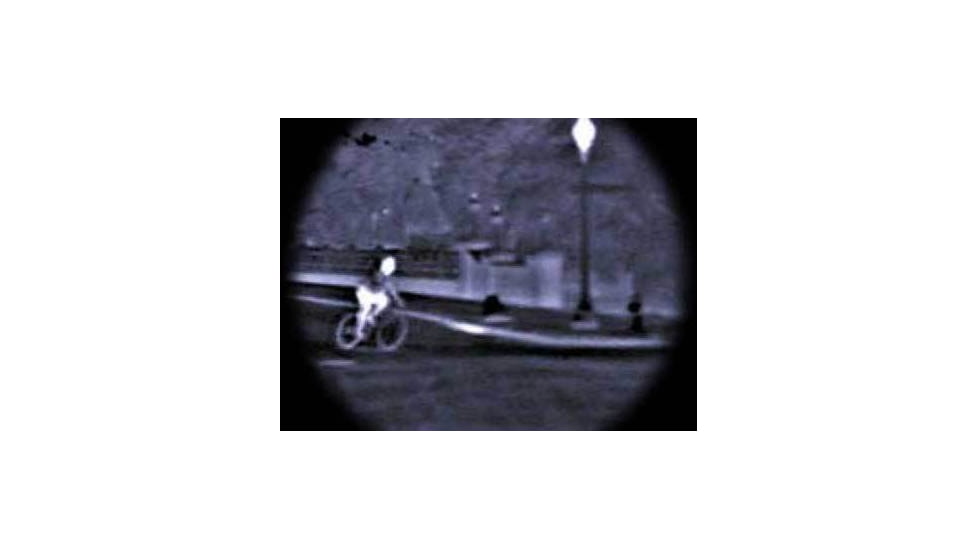

ATN FIITS-14 Thermal System, image
Tap Tap to Zoom
Product Discontinued by Manufacturer
ATN Fusion Image Intensification Thermal System FIITS14 has been discontinued by ATN and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Optics, Night Vision Optics yourself to try and find the perfect replacement for you!
Product Info for ATN Fusion Image Intensification Thermal System FIITS14
ATN Fusion Image Intensification Thermal System FIITS14 is part of our massive collection of ATN Optics. You should definitely have a look at the complete range of Night Vision Optics from ATN which we provide at everyday discount prices. Browse our full product selection for the gear and merchandise you need to tackle the job at hand.
Specifications for ATN FIITS14 Fusion Image Intensification Thermal System:
| Thermal Channel: | ||
| Magnification: | 1X | |
| Objective Focal Length: | 16 mm | |
| FOV: | 11 x 8 | |
| Focus Range: | 1m to infinity | |
| Focus Adjustment: | Manual | |
| Exit Pupil: | 14mm | |
| Eye Relief: | 25mm | |
| Detector Type: | Uncooled Microbolometer | |
| Spectral Response: | 7-14 µm | |
| Pixels: | 160 x 120 | |
| Pixel Size: | 30 x 30 µm | |
| Angular Resolution, mrad: | 1,2 | |
| Thermal Sensitivity: | < 0,1C | |
| Range to Detect a Human: | 475 m | |
| Output Format: | Analog PAL / NTSC | |
| Display: | OLED matrix | |
| Display: | Format SVGA, 852 x 600 pxl | |
| Color: | Monochrome | |
| Digital ZOOM: | Fixed 2x (optional 5x) | |
| Brightness Adjustment: | Manual | |
| Contrast Adjustment: | Automatic | |
| Available User Interfaces: | From outside PC through USB interface | |
| Power Supply: | 2 x 3V, 123A type | |
| Start-Up Time: | < 3 sec | |
| Battery Life with One battery pack: | 4 hrs | |
| Battery Life with External Power Supply: | DC 6V, 500 mA | |
| Operation Temperature: | from -20 C to +50 C | |
| Waterproof: | Yes, up to 10m submersion | |
| Dimensions: | 118 x 78 x 54 mm | |
| Weight (w/batteries): | 0,34 kg | |
| Night Vision Channel: | ||
| Magnification: | 1X | |
| Focus Range: | 0.25 m to Infinity | |
| Eye Relief: | 25 mm | |
| Exit Pupil: | 14 mm | |
| Dioptre Adjustment: | +- 4 | |
| Operation Temperature: | -40 To +50C | |
| Storage Temperature: | -50 To +70C | |
| Waterproof: | Yes, 20 m for 1 h | |
| Power Supply: | one 3V, 123Atype | |
| Battery Life: | 25 hours (AA, 1.5 V); 50 hours (Lithium, 123a, 3v) | |
| Dimensions: | 125 X 49 X 69 mm | |
| Weight (With Battery): | 0.32 kg | |
Features of ATN Fusion Image Intensification Thermal System FIITS 14:
- Hand held or head/helmet mountable
- Images from NV or TI channels can be used separately or dichoptically fused
- TI channel "video-out" feature can be used with optional USB adapter and software which allows to display thermal images on computer or use them for further transmission
- High Quality optics
- FIITS14 can be attached to the optional head gear/helmet mount for "hands free" operations
- Video/Image polarity selection, white-hot or black-hot for thermal image
- Waterproof
- One Year Warranty
Package Contents:
- ATN Fusion Image Intensification Thermal System FIITS-14
- Warranty card
- Soft carrying Case
- Packing box
- Instruction Manual and CD guide
