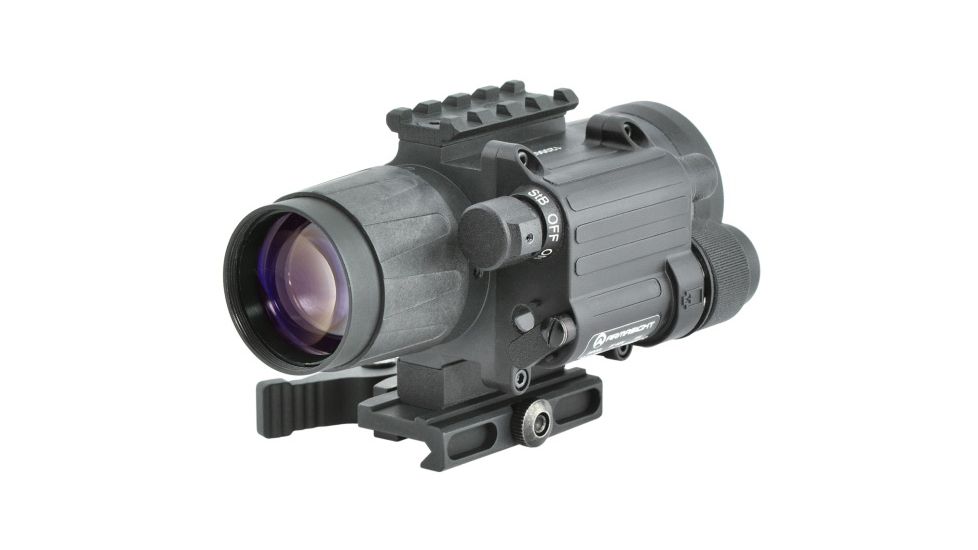

Armasight Clip On Mini Night Vision Unit, Gen2 NSCCOMINI1Q9DI1

Specifications for Armasight Clip On Mini Night Vision Unit - Gen2:

Features of Armasight Clip On Mini Night Vision Unit, Gen2:

• FEATURES

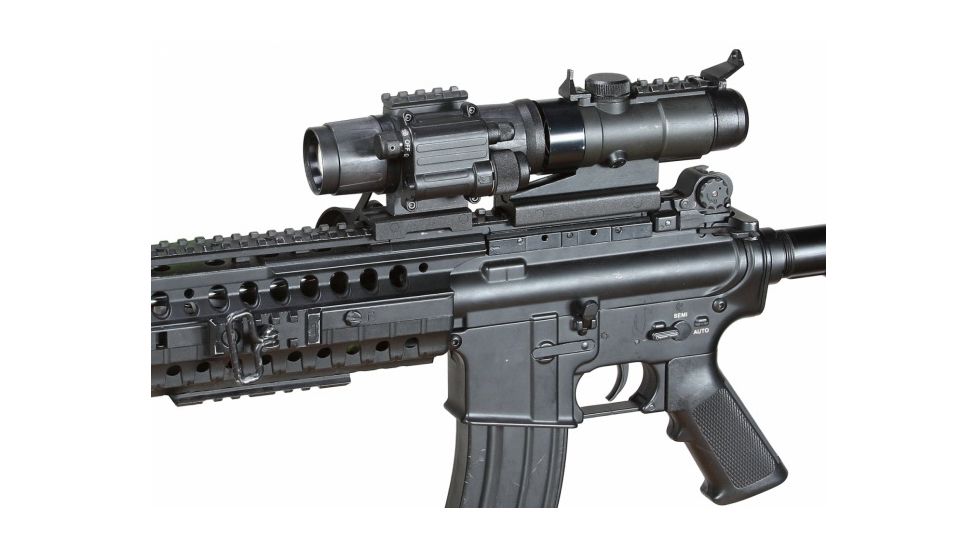

• Converts your day scope
• sight
• or binoculars into night vision-capable devices
• Mounts in front of any day scope with no re-zeroing required
• Wireless remote control
• Fixed-focus objective lens effective at distances further than 20m
• Automatic or manual (CO-MINI MG only) gain control
• Powered by a single AA or CR123A battery
• Bright light cut-off system
• Low battery indicators
• Water and Fog-Resistant / Waterproof (optional)
• Filled with dry nitrogen to prevent internal fogging
• Mounts on Picatinny/ Weaver rail with a quick-release mount
• Mounts on the lenses of specified day scopes with the optional adapters
• Long-range XLR-IR850 infrared illuminator
• MIL-Standard compliant
• Limited two-year warranty
• SPECIFICATIONS
• Overview:
• Image Intensifier Tube QS MG Gen 2+; Quick Silver White Phosphor with Manual Gain
• Resolution 47-54 lp/mm
• Magnification Unity (1X)
• Lens System 38mm
• F/1.25
• FOV 22
• Focus Range 20m to Infinity
• Exit Pupil 27.5 mm
• User Interface:
• Operation Switch On/ Off/ Standby Mode
• Brightness Adjustment Knob Variable Gain Control
• Remote Control Button Activates/ Deactivates the Clip-On in Standby Mode
• Battery Indicator Battery Status Indication in the FOV
• System Specifications:
• Boresight Characteristics:
• Accuracy Factory aligned to 2 MOA or better
• Retention Permanent to within 4 MOA or better
• Repeatability within 2 MOA
• Manual Gain Control Yes
• Bright Light Cut-Off Yes
• Automatic Shut-Off System Yes
• Low Battery Indicator Yes
• Infra-Red Illuminator IR850-XLR Detachable Extra Long-Range IR Illuminator
• Remote Control Wireless
• Power:
• Battery Type
• CR123 Lithium 3V (1)
• or AA Alkaline 1.5V (1)
• or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.2V (1)
• Battery Life (Operating) Up to 60 hrs
• Environmental:
• Operating Temperature Range -40C to +50C (-40F to +122F)
• Storage Temperature Range -50C to +50C (-58F to +122F)
• Physical:
• Weight (without Mount) 0.43 kg (0.95 lbs)
• Weight (with Mount and Light Suppressor) 0.48 kg (1.06 lbs)
• Size (without Mount) 1256855 mm (4.9x2.7x2.2 in)
• Weapon Mount Type Picatinny
• MIL-STD 1913
• or Weaver Rails
• Height of the Scope Axis above Rail 42 mm (1.65 in)
• Color (housing) Black

Package Contents:

• Armasight Clip On Mini Night Vision Unit, Gen2
• Night Vision Clip-On System
• CR123A Battery
• Light Suppressor
• Special Wrench
• IR850-XLR Long-Range IR Illuminator
• Wireless Remote Control with Picatinny Adapter
• Quick Start Guide
• Soft Carrying Case
