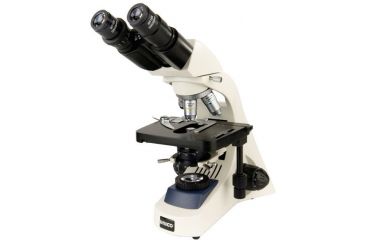

Product Info for UNICO Medical / Research Microscopes IP730 and IP750 Series

UNICO Medical / Research Microscopes IP730 and IP750 Series belongs to our larger collection of UNICO Microscopes. Remember to look at full collection of Microscopes from UNICO that we have at everyday discount prices. Browse our full product selection for the equipment and merchandise you need to tackle the job at hand.

Features of UNICO Medical / Research Microscopes IP730 and IP750 Series:

  • HEADS: Binocular or Trinocular(80/20 beam splitter) heads . Featuring 55 - 75 mm interpupillary distance adjustment. Both heads rotate 360., one eye tube with diopter adjustment
  • EYEPIECES: 10X, 20mm FN High Eyepoint Widefield (IP730) or 10X, 22mm FN High Eyepoint Widefield (IP750)
  • STAGE: Graduated Mechanical Stage with low-position coaxial X-Y controls. Ball bearing movement allows for smooth, precise adjustments. Stage size is 180 mm x 150 mm and the range of X-Y stage movement is 80 mm x 50 mm
  • OBJECTIVES: All models are equipped with either achromatic or plan Infinity 4X, 10X, 40XR and 100XR (Oil) objectives. The Phase Contrast model has 4X Plan, 10X, 40X, and 100X Plan Phase objectives
  • CONDENSER: Focusable and centerable N.A. 1.25 Abbe condenser with graduated iris diaphragm and filter holder. Phase contrast microscopes have a phase condenser
  • ILLUMINATION: Koehler illumination with field iris diaphragm featuring a 6 Volt / 20 Watt Halogen light source. Variable intensity rheostat wheel is located on the left side of the base
  • ELECTRICAL: 110V- 60 Hz to 240V- 50 Hz
  • Five Year Limited Warranty, One Year on electrical system; excludes bulbs and fuses

Package Contents:

  • UNICO Medical / Research Microscopes IP730 or IP750
  • Dust cover
  • Blue filter
  • 2 extra fuses
  • Manual
