Unico Phase Contrast Microscopes with Quintuple Nosepiece Up to 44% Off Plus Clearance w/ Free S&H — 2 models

not yet rated review & rate

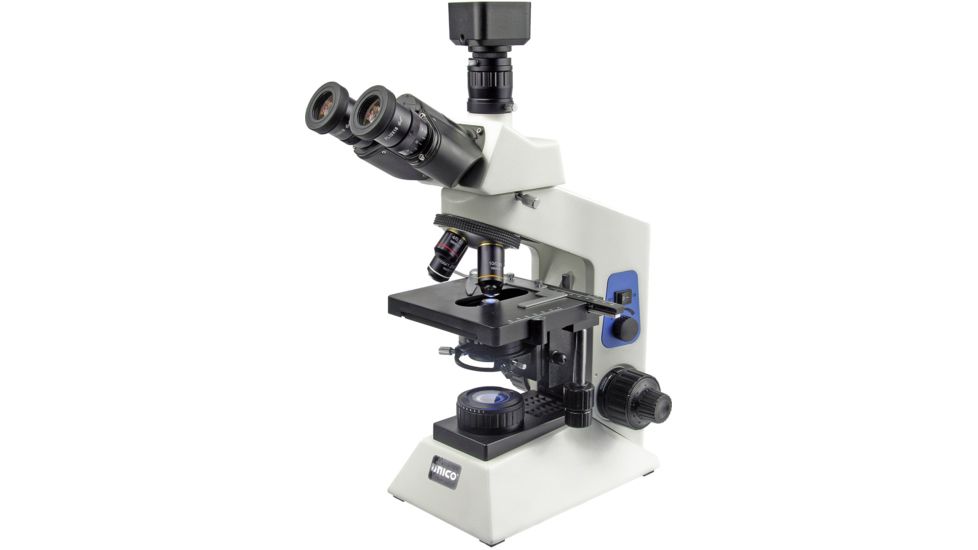

UNICO G505 Phase Contrast Trinocular Microscope w/ 10x-20x-40x-100x Plan Phase Objectives & 10x/40x Phase Annulus & 20x/100x Phase Annulus G505T

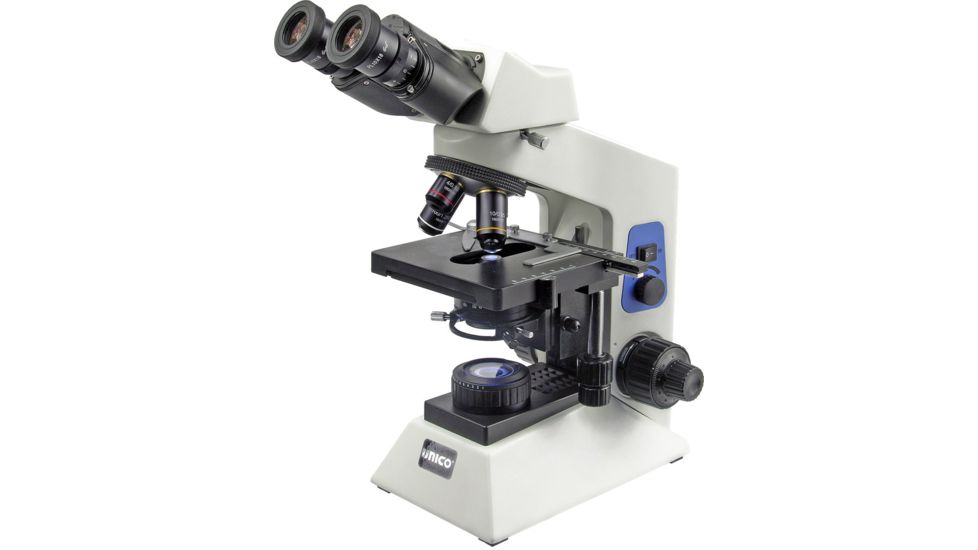

UNICO G505 Phase Contrast Binocular Microscope w/ 10x-20x-40x-100x Plan Phase Objectives & 10x/40x Phase Annulus & 20x/100x Phase Annulus G505
UNICO G505 Phase Contrast Trinocular Microscope w/ 10x-20x-40x-100x Plan Phase Objectives & 10x/40x Phase Annulus & 20x/100x Phase Annulus G505T
1 of 2 images
UNICO G505 Phase Contrast Trinocular Microscope w/ 10x-20x-40x-100x Plan Phase Objectives & 10x/40x Phase Annulus & 20x/100x Phase Annulus G505T

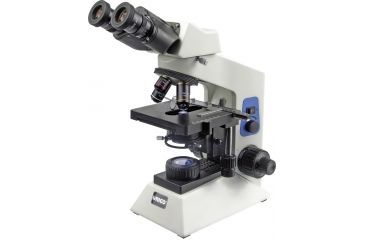

UNICO G505 Phase Contrast Binocular Microscope w/ 10x-20x-40x-100x Plan Phase Objectives & 10x/40x Phase Annulus & 20x/100x Phase Annulus G505
2 of 2 images
UNICO G505 Phase Contrast Binocular Microscope w/ 10x-20x-40x-100x Plan Phase Objectives & 10x/40x Phase Annulus & 20x/100x Phase Annulus G505

Tap Tap to Zoom

Show In Stock Only
2 Models Available
Head
All
Search

Product Info for Unico Phase Contrast Microscopes with Quintuple Nosepiece

Unico Phase Contrast Microscopes with Quintuple Nosepiece is part of our big variety of UNICO Microscopes. You should browse the full selection of Microscopes from UNICO which we supply at everyday discount prices. Browse our full product choice for the equipment and products you want to tackle the job at hand.

Specifications for UNICO G505 LED Microscope 4x-100x:

Head: Binocular
Eyepiece: WFX10
Objective: Plan Phase 10x, 20x, 40x, 100x (oil)
Stage: Mechanical Integrated 150x140
Condenser: Phase Condenser
Illuminator: LED

Features of Unico G505 Series Binocular LED Microscope:

  • Seidentopf Head
  • Paired 10x Eyepiece
  • Plan Phase Objectives
  • 5 Position nose piece
  • WF10X/FN 18 High point eyepieces
  • A pointer or reticule can be added
  • Objectives are parfocal, parecentered and color-coded
  • The low position coaxial coarse and fine focusing system designed to lessen user fatigue
  • The coarse focus tension control allows to increase or decrease the focusing tension
  • The safety stop prevents damage to objectives and specimens
  • The fine focusing is graduated at 0.002 mm
  • Ruggedly constructed all metal stand and broad low profile base
  • Heavy duty, built-in mechanical stage uses ball bearings and a dovetail mechanism
  • Low coaxial controls
  • Built-in LED illuminator with field diaphragm provides Koehler type illumination for sharp images
  • The brightness intensity control is conveniently located and provides steady even illumination at all levels
  • 10x/20x/40x/100x Plan Phase Objectives
  • 10x/40x Phase Annulus
  • 20x/100x Phase Annulus

Package Contents:

  • Unico G505 Binocular Phase Contrast 10x-100x Microscope G505
