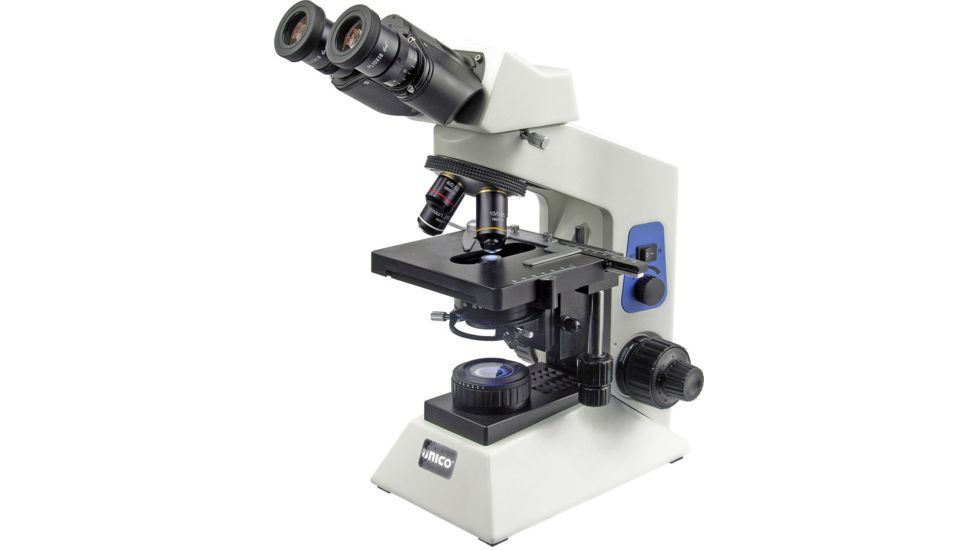

UNICO G502 LED Illuminated Binocular Microscope w/ Seidentopf Head, Paired 10x Eyepiece, Achromatic Objectives 4x-10x-40x-100x, Mech. Stage, 90V-240V G502

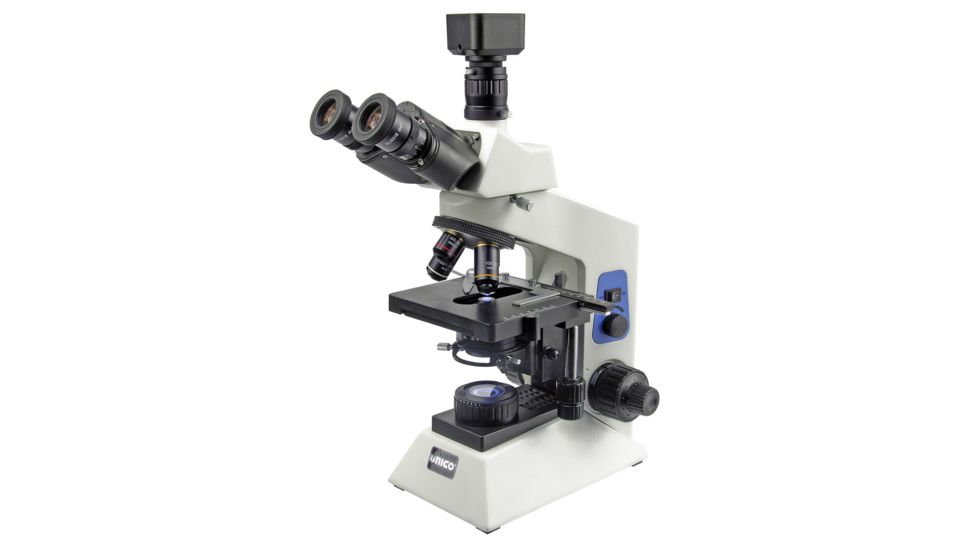

Unico Led Illuminated Trinocular Microscope W Seidentpf Trinocular Head G502t
2 of 4 images
Unico Led Illuminated Trinocular Microscope W Seidentpf Trinocular Head G502t

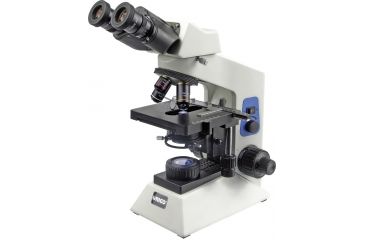

UNICO G504 LED Illuminated Binocular Microscope w/ Seidentopf Binocular Head, Paired 10x Eyepiece Plan Objectives 4x-10x-40x-100x, Mech. Stage 90V-240V G504
3 of 4 images
UNICO G504 LED Illuminated Binocular Microscope w/ Seidentopf Binocular Head, Paired 10x Eyepiece Plan Objectives 4x-10x-40x-100x, Mech. Stage 90V-240V G504

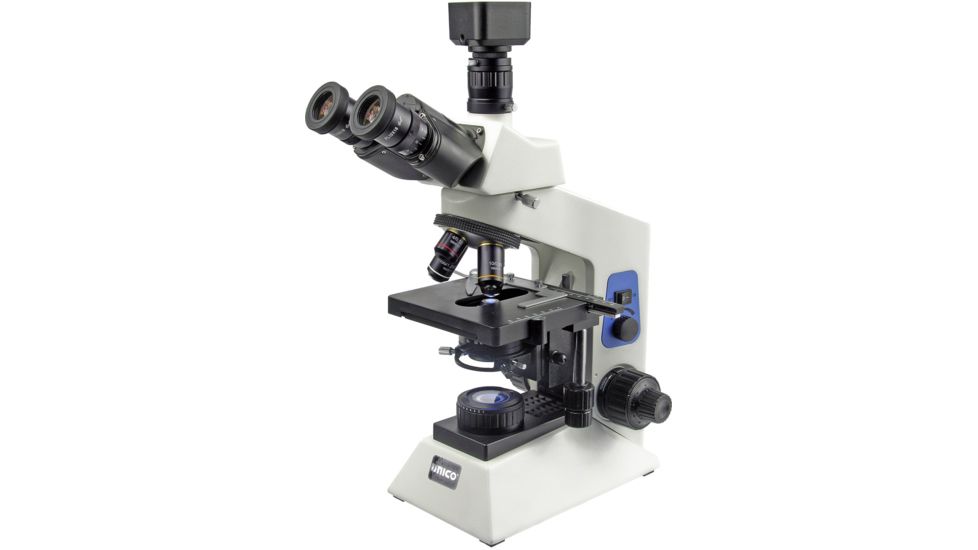

UNICO G504T LED Illuminated Trinocular Microscope w/ Seidentopf Trinocular Head, Paired 10x Eyepiece, Plan Objectives 4x-10x-40x-100x, Mech. Stage 90V-240V G504T
4 of 4 images
UNICO G504T LED Illuminated Trinocular Microscope w/ Seidentopf Trinocular Head, Paired 10x Eyepiece, Plan Objectives 4x-10x-40x-100x, Mech. Stage 90V-240V G504T

Tap Tap to Zoom

4 Models Available
Additional Features
All
Head
All
Search

Product Info for Unico Brightfield Microscopes with Quintuple Nosepiece

Unico Brightfield Microscopes with Quintuple Nosepiece is part of our larger collection of UNICO Microscopes. Don't forget to look into the entire collection of Microscopes from UNICO that we feature at everyday affordable prices. Browse our full product choice for the equipment and merchandise you need to tackle the task at hand.

Specifications for UNICO G502 LED Microscope - 4x, 10x, 40x, 100x:

Head: Binocular
Eyepiece: WFX10
Objective: Achromatic 4x, 10x, 40x, 100x (oil)
Stage: Mechanical Integrated 150x140
Condenser: Abbe NA 1.25
Illuminator: LED

Features of Unico G502 Series Binocular LED Microscope:

  • Seidentopf Head
  • Paired 10x Eyepiece
  • Achromatic Objectives
  • 5 Position nose piece
  • WF10X/FN 18 High point eyepieces
  • A pointer or reticule can be added
  • Objectives are parfocal, parecentered and color-coded
  • The low position coaxial coarse and fine focusing system designed to lessen user fatigue
  • The coarse focus tension control allows to increase or decrease the focusing tension
  • The safety stop prevents damage to objectives and specimens
  • The fine focusing is graduated at 0.002 mm
  • Ruggedly constructed all metal stand and broad low profile base
  • Heavy duty, built-in mechanical stage uses ball bearings and a dovetail mechanism
  • Low coaxial controls
  • Abbe condenser NA 1.25 with graduated iris diaphragm
  • Built-in LED illuminator with field diaphragm provides Koehler type illumination for sharp images
  • The brightness intensity control is conveniently located and provides steady even illumination at all levels

Package Contents:

  • Unico G502 LED Illuminated 4x-100x Binocular Microscope G502
