Unico 2802E SpectroQuest Spectrophotometer, standalone, 1.8nm Bandpass, 230V SQ2802E 22% Off w/ Free Shipping
1 of 1 images

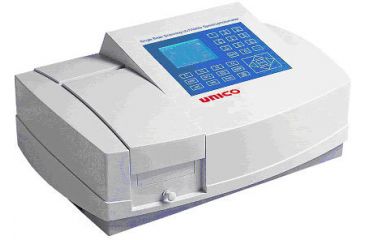

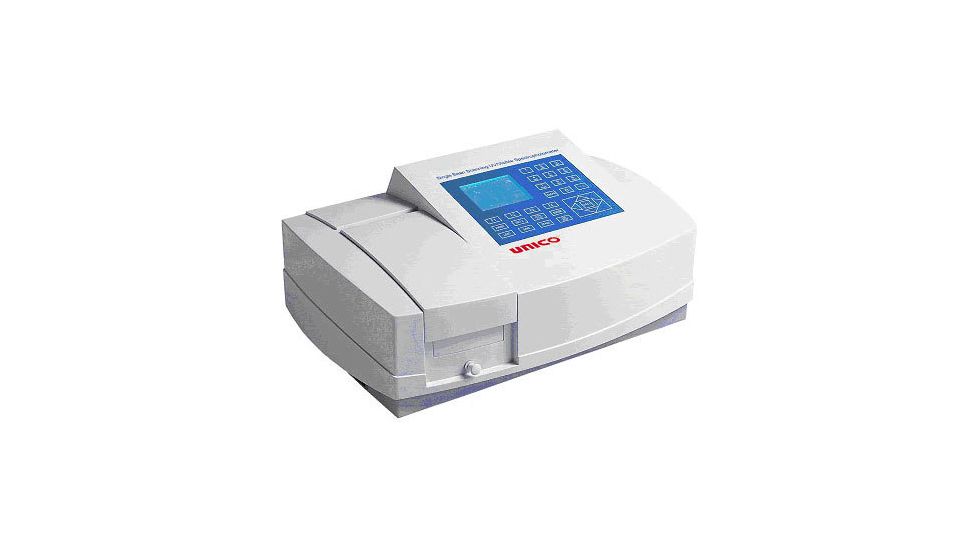

Unico SQ2802 Scanning Spectrophotometer, 220V SQ2802E
Tap Tap to Zoom
Code: UI-SE-SQ2802E
MPN: SQ2802E
List: $7,761.00Save 22%
$6,019.00
Receive $120.38 SP Bucks
Product Info for Unico 2802E SpectroQuest Spectrophotometer, standalone, 1.8nm Bandpass, 230V
Unico 2802E SpectroQuest Spectrophotometer, standalone, 1.8nm Bandpass, 230V is part of our big selection of UNICO Lab Equipment & Other. Remember to check out the entire variety of Lab Equipment & Other from UNICO that we have at everyday discounted prices. Browse our full product selection for the gear and products you want to tackle the task at hand.
Specifications for UNICO SQ2802 E Spectro-Quest Single Beam Scanning Spectrophotometer:
| Wavelength Range: | 190 - 1100 nm |
| Spectral Bandwidth: | 1.8 nm / 0.5, 1, 2, 5 nm |
| Monochromator: | Single beam Littrow type, grating 1200 lines/mm |
| Wavelength Accuracy: | ±0.3 nm |
| Wavelength Repeatability: | ±0.2 nm |
| Wavelength Calibration: | automatic at start |
| Light Source: | Tungsten Halogen/Deuterium Lamp |
| Detector: | Solid Silicon Photodiode |
| Photometric Readout: | 1/4 VGA 320X240 pixels backlit LCD |
| Photometric Range: | 0 - 200%T -0.3 - 3.0A 0 - 9999C |
| Photometric Accuracy: | ±0.3%T |
| Zero Drift: | < 0.002A per hour after warm-up |
| Baseline Flatness: | ±0.004A |
| Stability: | 0.002A/h at 500 nm |
| Stray Light: | < 0.15%T |
| Scanning Speed: | Hi, Med., Low. Max. 1000 nm/min |
| Standard Sample Holder: | 4-position Cell Holder |
| Analogue/Digital Output: | Digital, RS232 Serial, Centronics Parallel |
| Dimensions: | 620(L) x 400(W) x 280(H) mm |
| Weight: | 22 kg / 48 lbs |
| Shipping Dimensions: | 720(L) x 525(W) x 370(H) mm |
| Shipping Weight: | 26 kg / 57 lbs |
| Power Requirements: | 115V/60Hz or 230V/50Hz, switchable |
| Humidity Range: | less than 85% |
| Safety Certificate: | CE |
|  Model SQ2802A: | ||
| Wavelength Range:Â | Â 190 - 1100 nm | |
| Spectral Bandwidth:Â | Â 1.8 nm / 0.5, 1, 2, 5 nm | |
| Monochromator:Â | Â Single beam Littrow type, grating 1200 lines/mm | |
| Wavelength Accuracy: |  ±0.3 nm | |
| Wavelength Repeatability: |  ±0.2 nm | |
| Wavelength Calibration:Â | Â automatic at start | |
| Light Source:Â | Â Tungsten Halogen/Deuterium Lamp | |
| Detector:Â | Â Solid Silicon Photodiode | |
| Photometric Readout:Â | Â 1/4 VGA 320X240 pixels backlit LCD | |
| Photometric Range:Â | Â 0 - 200%T -0.3 - 3.0A 0 - 9999C | |
| Photometric Accuracy: |  ±0.3%T | |
| Zero Drift:Â | Â < 0.002A per hour after warm-up | |
| Baseline Flatness: |  ±0.004A | |
| Stability:Â | Â 0.002A/h at 500 nm | |
| Stray Light:Â | Â < 0.15%T | |
| Scanning Speed:Â | Â Hi, Med., Low. Max. 1000 nm/min | |
| Standard Sample Holder:Â | Â 8-position Cell Holder | |
| Analogue/Digital Output:Â | Â Digital, RS232 Serial, Centronics Parallel | |
| Dimensions:Â | Â 620(L) x 400(W) x 280(H) mm | |
| Weight:Â | Â 22 kg / 48 lbs | |
| Shipping Dimensions:Â | Â 720(L) x 525(W) x 370(H) mm | |
| Shipping Weight:Â | Â 26 kg / 57 lbs | |
| Power Requirements:Â | Â 115V/60Hz or 230V/50Hz, switchable | |
| Humidity Range:Â | Â less than 85% | |
| Safety Certificate:Â | Â CE | |
Features of UNICO SQ2802-E Scanning Spectrophotometer-single Beam,1.8nm Bandpass:
- Single beam design
- Stand-alone unit
- Highly versatile to meet laboratory and clinical needs
Package Contents:
- UNICO SQ2802 Scanning Spectrophotometer-single Beam,1.8nm Bandpass w/ Lcd Screen,220V SQ2802E
