Thermal Eye 3600 Series Infrared Thermal Imaging Camera Core 3000087-9 Last Chance: Yes, 79% Off, Blazin' Deal w/ Free Shipping

not yet rated review & rate

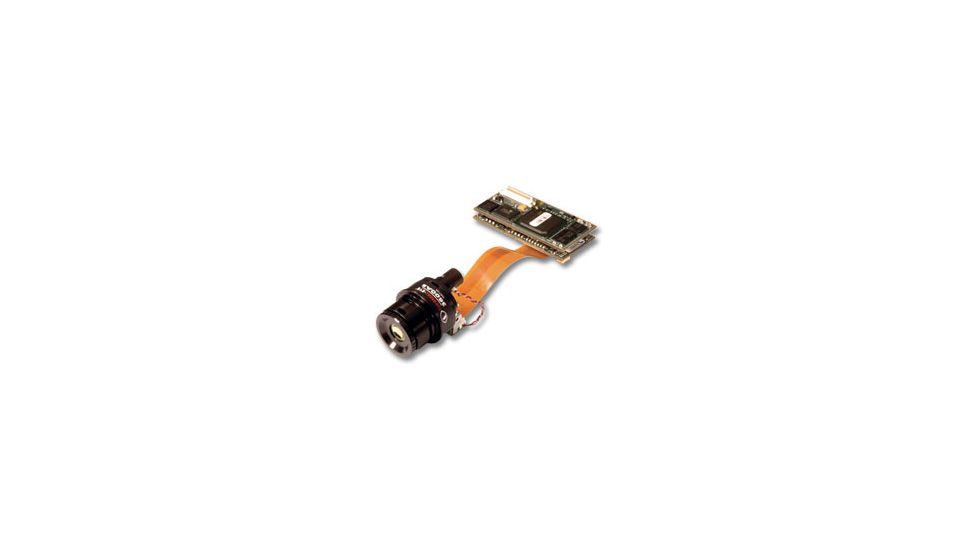

Thermal Eye 3600 Thermal Module
Thermal Eye 3600 Thermal Module
1 of 1 images

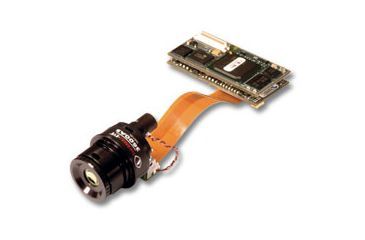

Thermal Eye 3600 Thermal Module

Tap Tap to Zoom

Government Export Restriction Government Export Restriction

We've got an AWESOME deal for you!

See more Blazin' Deal items
Blazin' Deal
Prices have been cut drastically on this product as part of a special offer. These prices are so low that there's no double-dipping with coupons or any additional discounts, but you'll still get the best deal out there. This offer won't last long, so don't miss out!

Code: EY-TIA-3600-3000087-0009

MPN: 3000087-9

Blazin' Deal
List: $2,439.00Save 79%
$516.49

Product Info for Thermal Eye 3600 Series Infrared Thermal Imaging Camera Core

Thermal Eye 3600 Series Infrared Thermal Imaging Camera Core belongs to our big selection of Thermal Eye Optics. You should take a look at the entire range of Optics Accessories from Thermal Eye that we provide at everyday discount prices. Browse our full product choice for the gear and merchandise you need to tackle the task at hand.

Specifications for Thermal-Eye 3600 Series Camera Core:

Focal Plane Array:
Material, Structure & Format: Amorphous Silicon Microbolometer (160 x 120 pixel array)
Spectral Response: 7-14um (filter bandwidth)
Thermal Sensitivity: <50mK
Refresh Rate: Available with Real-time 30Hz or 9 Hz
Thermal Imaging System Performance:
Start-Up Time: 2.4 seconds A±10% (@25°C)
Contrast/Brightness: Automatic/Advanced Image Processing
Saturation Temperature: 1100°F (600°+/-10% with automatic electronic iris
Range to Detect Human Activity (3600AS): Up to 330ft (100m)
Range to Detect Human Activity (3260AS):
11° FOV: Up to 1500ft (475m)
17° FOV: Up to 1000ft (305m)
32° FOV: up to 550ft (170m)
Range to Detect Human Activity (3640AS): Up to 700ft (215m)
Optics:
Focal Length (3600AS): 5.8mm
Focal Length (3620AS): 25mm; 16mm; 8.5mm
Focal Length (3640AS): 11mm
FOV (3600AS): ~50° x 37°
FOV (3620AS): ~11° x 8°; ~17° x 12°; ~32° x 24°
FOV (3640AS): ~25° x 18°
Focus Method (3600AS): Manual/Temperature stabilized
Focus Method (3620AS): Manual
Focus Method (3640AS): Manual
Video:
Analog Output: NTSC (color); Real-time 30Hz Frame Rate - PAL (color; Real-time 25Hz Frame Rate
Digital Output (optional): Full-resolution, 16-bits (corrected or uncorrected) or 24-bits (RGB color), plus control signals; 30Hz Frame Rate (NTSC) or 25Hz Frame Rate (PAL)
Output Resolution: NTSC
PAL: 768 x 574 pixels for higher clarity thermal images & symbology overlay
Absolute Color: 3 OEM selectable color points are mapped to absolute temperatures
Power:
Input Voltage: 2 to 3.2VDC & 8to 16VDC
Input Power: ~1.2W @ 25°C ambient, 3VDC
Interface & Controls:
Camera Setup: USB (compatible with the USB 2.0 specifications)
Physical Characteristics:
Weight: 2.38oz. (67.5g)
Environmental Characteristics:
Operating Temperature: -4°F to 185°F (-20°C to 85°C)
Storage Temperature: -40°F to 221°F (-40° C to 105° C)

Features of Thermal Eye Infrared Camera Core 3600, 3620, 3640:

  • Seal-ready optics housing and optics assemblies for easy OEM integration
  • Smaller CCA size (compared with 3500AS) for improved packaging flexibility & best-in-class <1.2W consumption
  • Provides real-time 30Hz frame rate plus state-of-the-art thermal sensitivity and dynamic range, also available in 9 Hz models
  • Sophisticated histogram-based image processing and 640 x 480 video output resolution for best-in-class image quality at all times
  • Patent pending non-linear colorization allows OEMs to define multiple color set points for quick, intuitive temperature recognition
  • Selectable real-time NTSC or full-format PAL video output
  • Flexible OEM customization
  • Expansion port provides access to data along video processing chain for advanced OEMs
  • Efficient and knowledgeable integration support available

Package Contents:

  • Thermal Eye 3600 Series Infrared Camera Core
