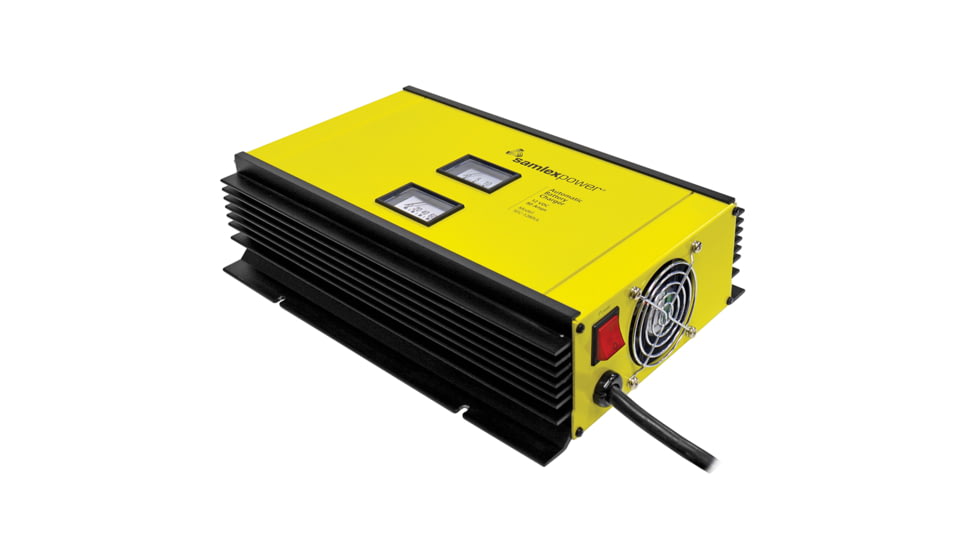

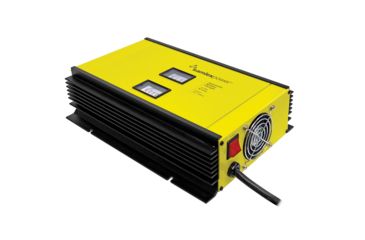

Samlex America 80A Battery Charger - 12V - 2-Bank - 3-Stage w/Dip Switch & Lugs - Includes Temp Sensor 67190
Tap Tap to Zoom
- Color:
- Black
- Voltage:
- 12 volts
- Amperage:
- 80 amps
Code: 743-B90-CWR3755-SEC-1280UL
MPN: SEC-1280UL
UPC: 622988083044
List: $1,007.00Save 20%
$805.60
SP Bucks$16.11
Product Info for Samlex America 80A Battery Charger
Samlex America 80A Battery Charger belongs to our massive collection of Samlex America Batteries & Accessories. Don't forget to explore the full collection of Batteries & Accessories from Samlex America that we feature at everyday discount prices. Browse our full product choice for the equipment and products you need to tackle the task at hand.
Specifications for Samlex America 80A Battery Charger:
| Manufacturer: | Samlex America |
| Color: | Black |
| Voltage: | 12 volts |
| Amperage: | 80 amps |
Features of Samlex America 80A Battery Charger
- Switch mode technology for high efficiency lightweight and quiet operation
- Automatic operation for ALL Lead Acid Batteries Flooded AGM or Gel Cell
- Can charge 2 banks of batteries simultaneously no isolator necessary
- Can be used as a power supply or DC UPS when used in conjunction with a battery
- User Configurable AC Input voltage 120 or 230 VAC 50 / 60 Hz
- User Selectable ( by DIP Switch) for 2 or 3 stage rapid and safe charging of standalone and loaded Lead Acid Batteries
- Half Power Mode reduces maximum charging current to half the rated capacity allows for safe charging of lower capacity batteries
- Voltmeter and Ammeter for monitoring
- Fan cooled based on output current
- Protections: Short circuit overload reverse battery connection and over temperature
- Includes temperature sensor to prevent under/overcharging of battery if temperature varies extensively
- Input: 120 VAC 60 Hz or 230 VAC 50 Hz
- Output: 12 VDC
- Amps: 80
- Remote Control: 900-RC
- Weight: 9 (lbs)
- Weight: 4.1 (kg)
- Dimensions: 15 x 9.61 x 3.82 (in)
- Dimensions: 381 x 244 x 97 (mm)
- Safety: Listed to UL Standard UL-1564 EMI Compliant to FCC Part 15(B) Class B
- Warranty: 2 Year Limited
- Applications:Automotive
- Recreational vehicles
- Marine
- Communications sites
- Battery back-up systems
Package Contents:
- Samlex America 80A Battery Charger
