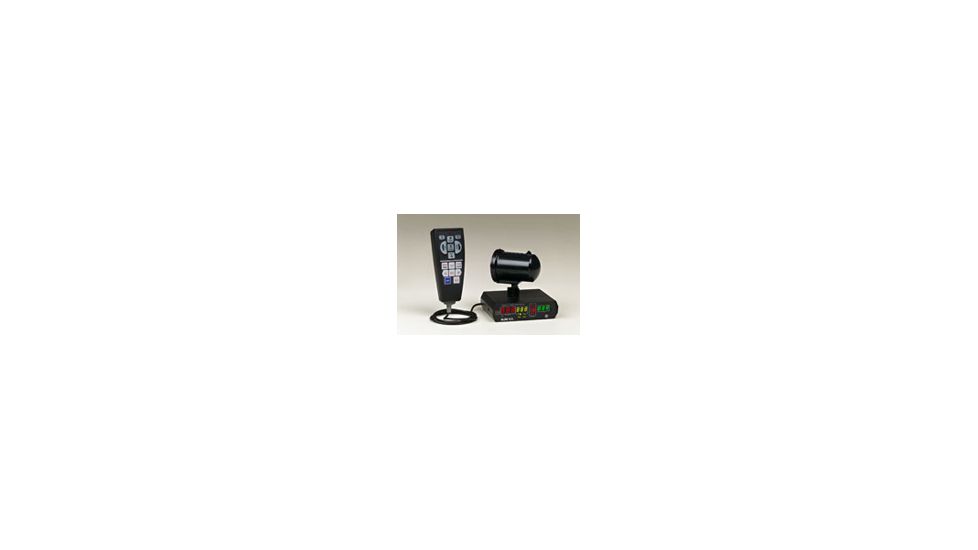

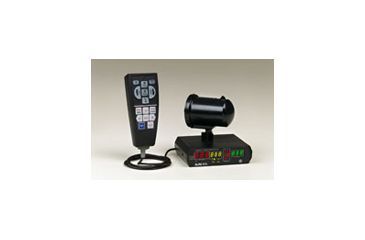

Name: MPH Industries Enforcer KA-band Radar System
Brand: MPH Industries
SKU: MPH-RG-ENDG29
Availability: Discontinued

Product Info for MPH Industries Enforcer KA-band Radar System

MPH Industries Enforcer KA-band Radar System is part of our massive selection of MPH Industries Sports Equipment. Be sure to take a look at the full collection of Radar Guns from MPH Industries which we offer at everyday low prices. Browse our full product selection for the tools and merchandise you want to tackle the task at hand.

Specifications for MPH Industries Enforcer Speed Gun:

Speed Range
Power:	10.8 to 16.5 Volts DC, 0.9 Amps @ 13.6 V nominal. Fused power cable. Reverse polarity protection.

Stationary:	target; 15 to 200 MPH Industries
Opposite direction moving:	Patrol, 12 to 90 MPH Industries (up to 80 MPH Industries in City mode) Target, 15 MPH Industries to 200 MPH Industries closing speed
Same direction moving:	Patrol, 20 to 90 MPH Industries (up to 80 MPH Industries in City mode) Target, + 70% of patrol speed (will not measure speeds within 3 MPH Industries of patrol speed)
:
Target Distance:	One mile range typical for an average size vehicle. Range varies with vehicle size, terrain, weather, and traffic conditions. (Range is lower in same direction mode.)
Speed Display:	Three LED windows simultaneously display patrol, target, and locked or fastest target speeds. Display brightness automatically adjusts to the ambient light level.
Display Unit Size:	1 1/2 in. high, 5 in. wide, 2 3/4 in. deep.
Antenna

Frequency:	33.8GHz + 100 MHz (Ka-band)
Type:	Circularly polarized, with seamless conical horn and Rexolite microwave lens.
Enclosure:	All-aluminum housing with a waterproof polycarbonate radome cover incorporating O-ring seals
Source:	Solid state Gunn-effect diode transmitter with a nominal output power level of 12 to 30 mW
Power Density:	Radiated power is less than 2 mW/cm2 at 5 cm. distance from the antenna.
Mixer Diode:	Schottky barrier type related for 100 mW burnout.
