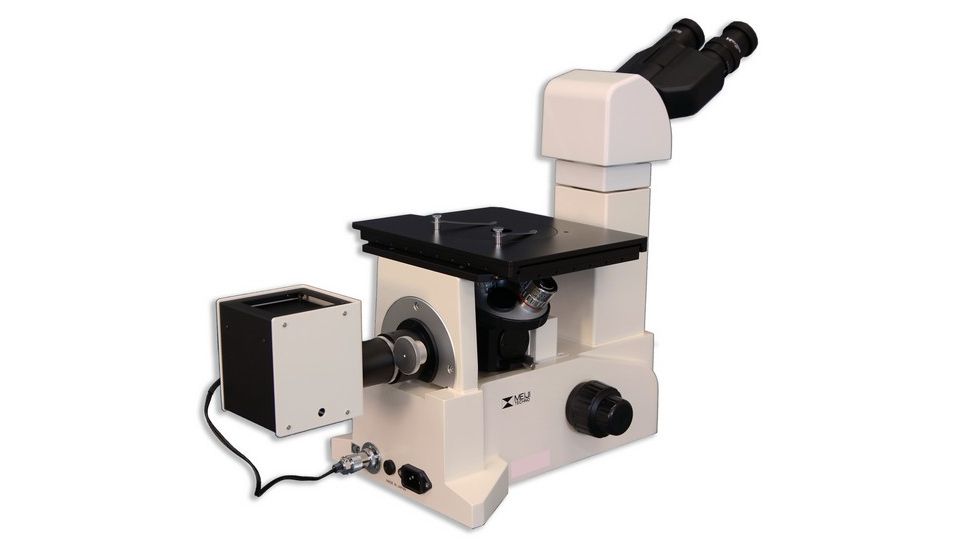

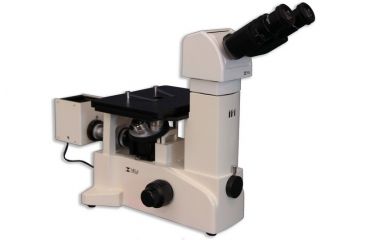

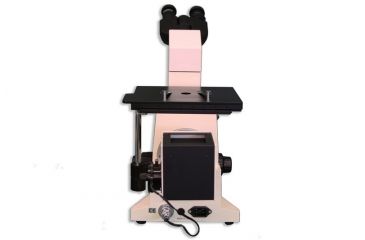

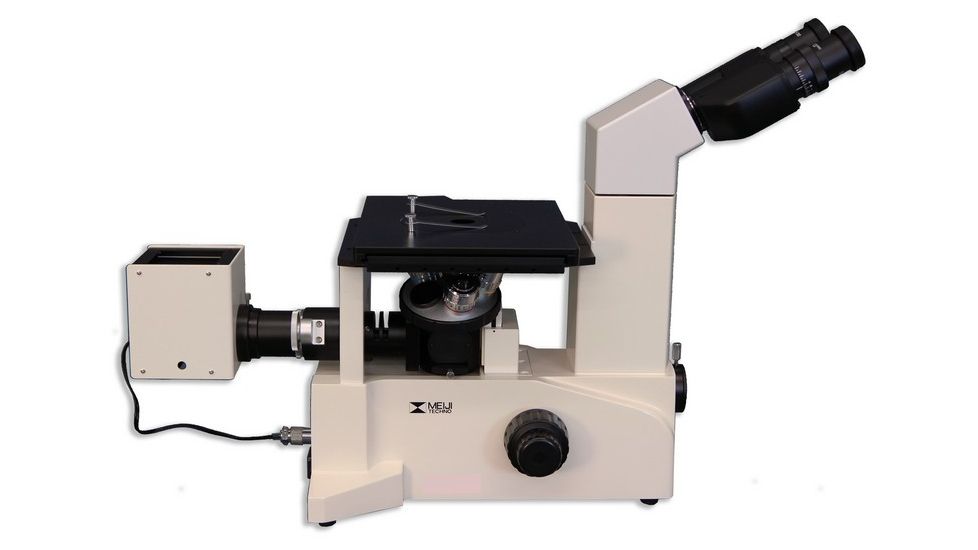

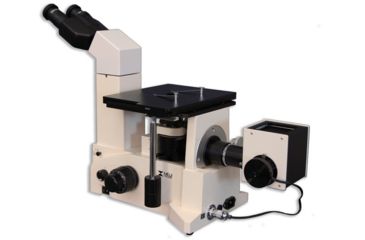

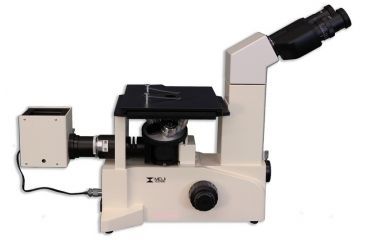

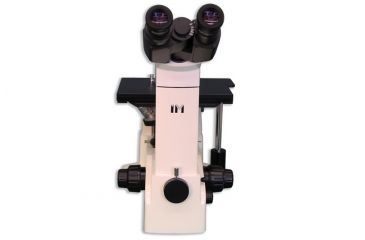

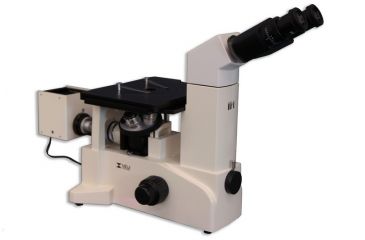

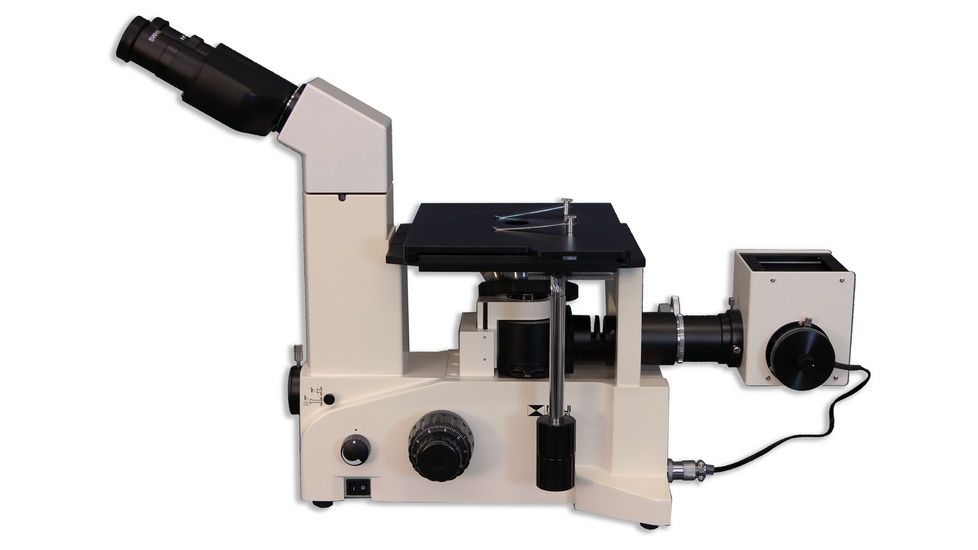

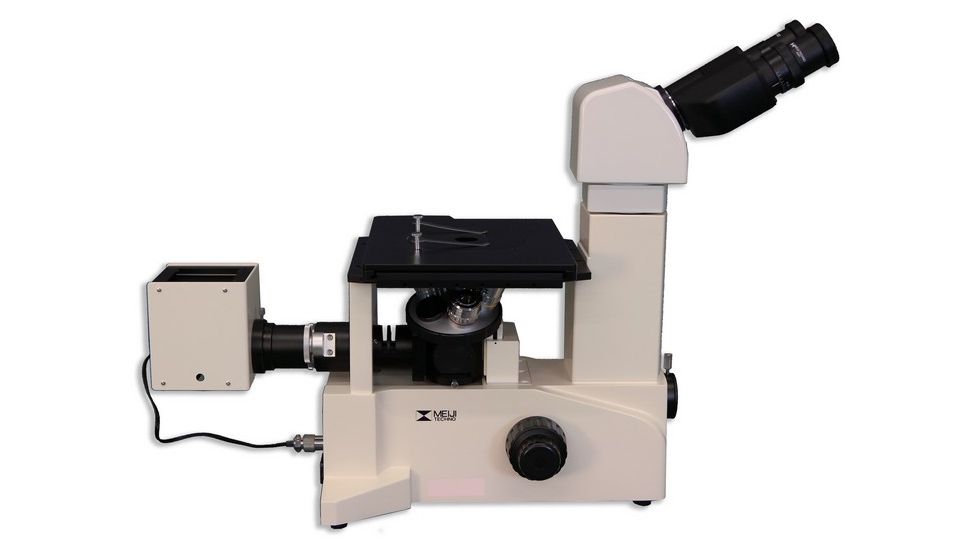

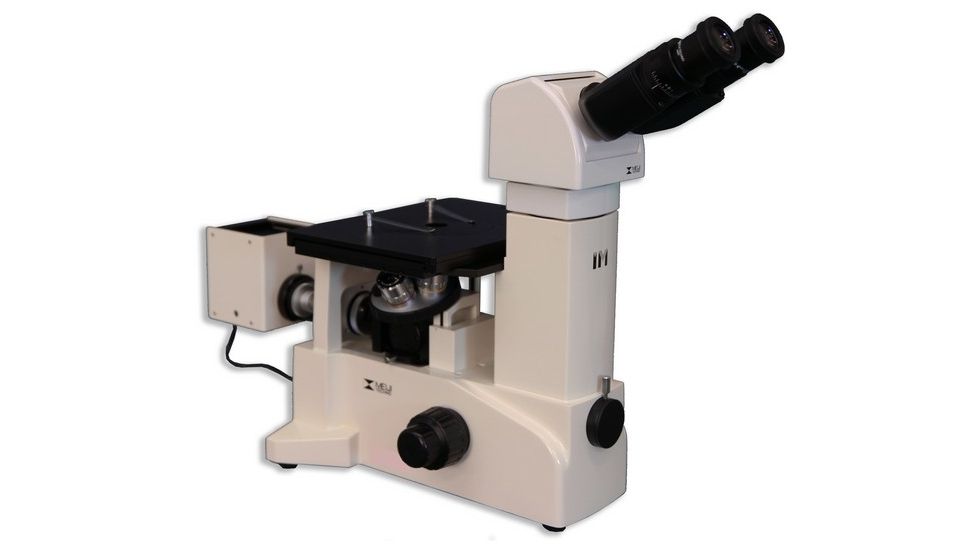

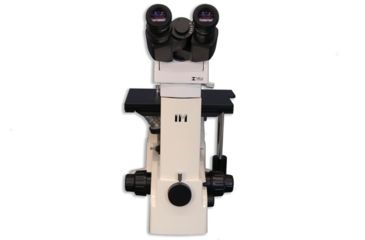

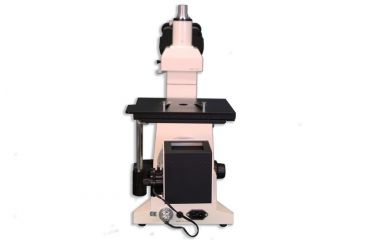

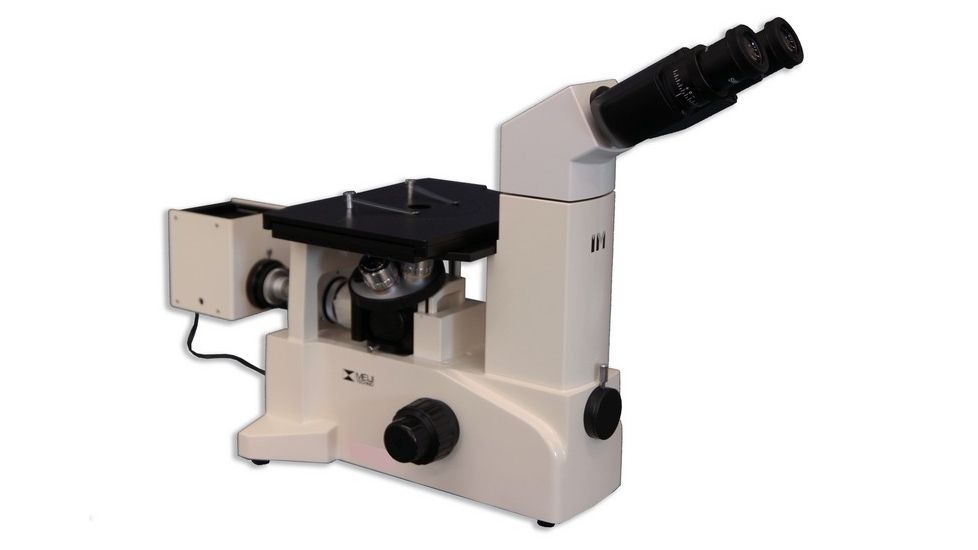

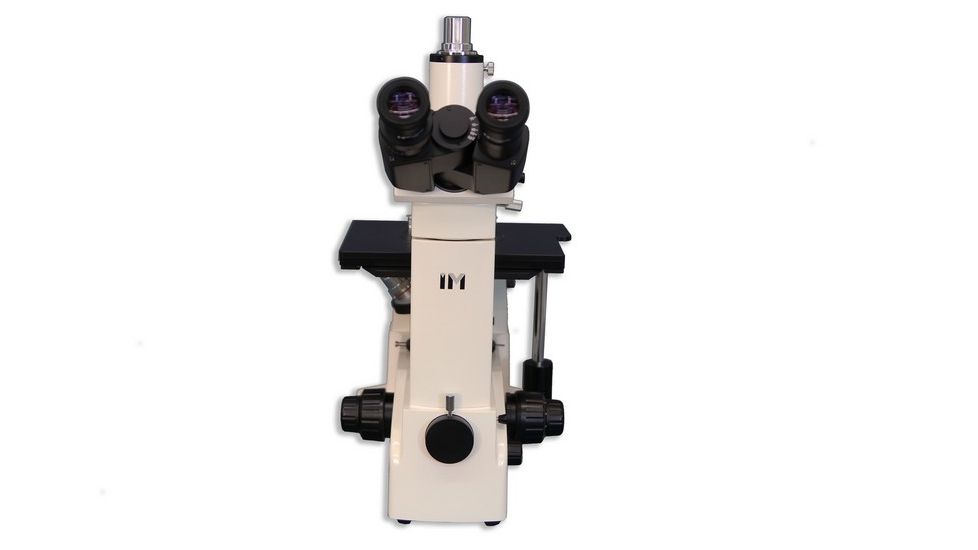

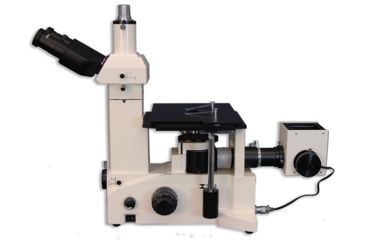

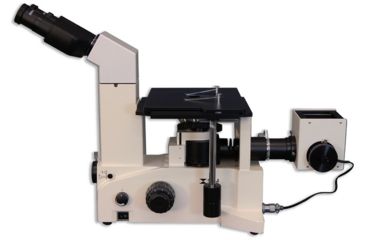

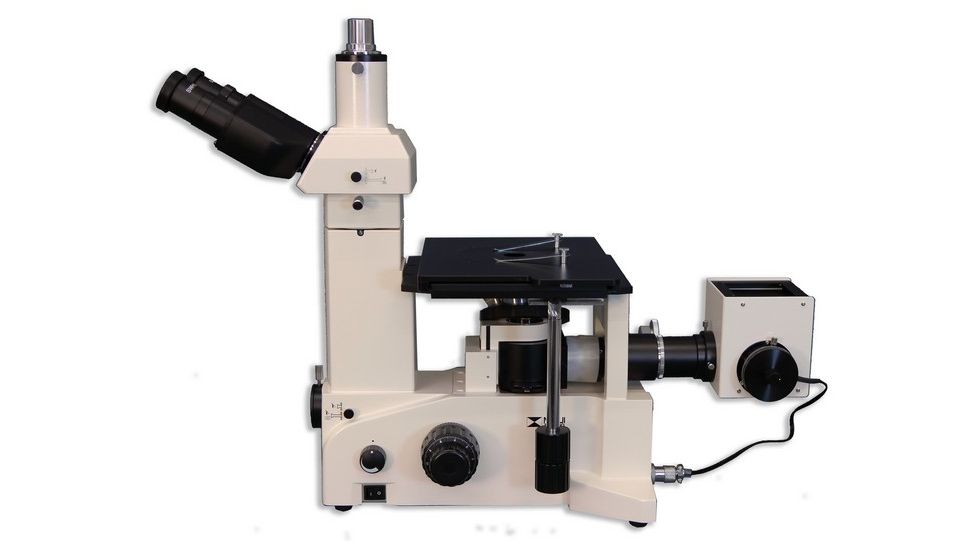

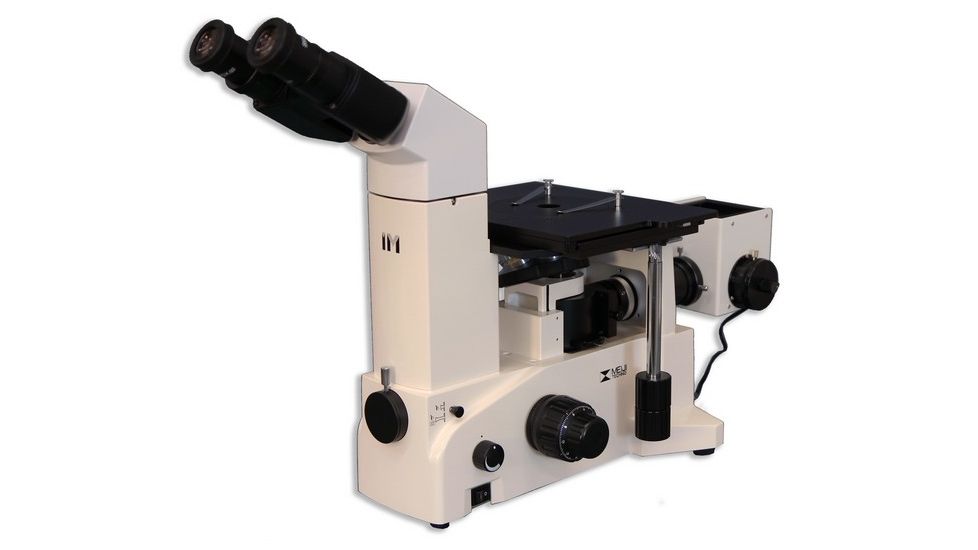

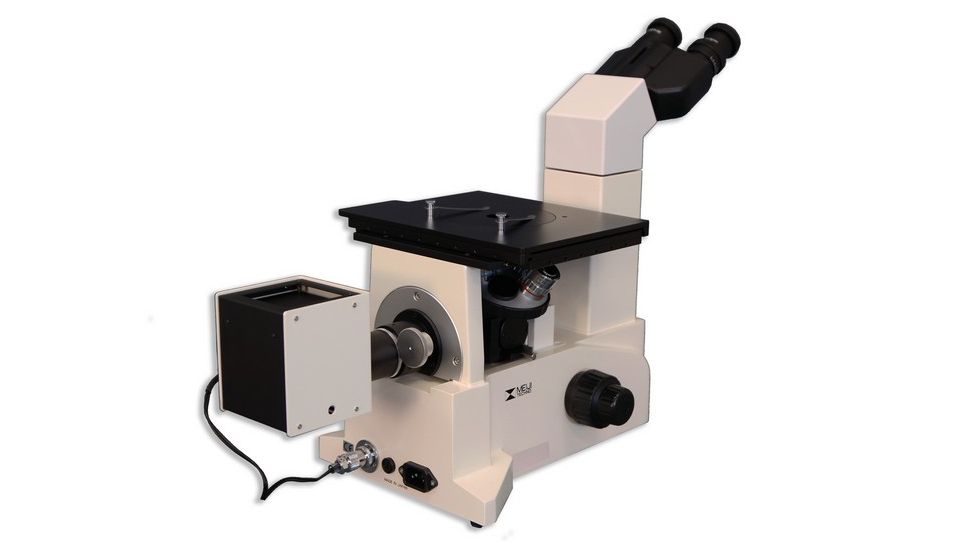

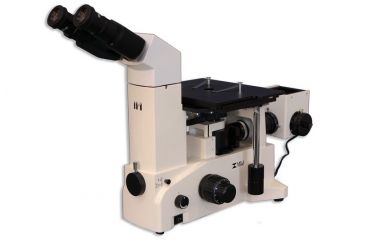

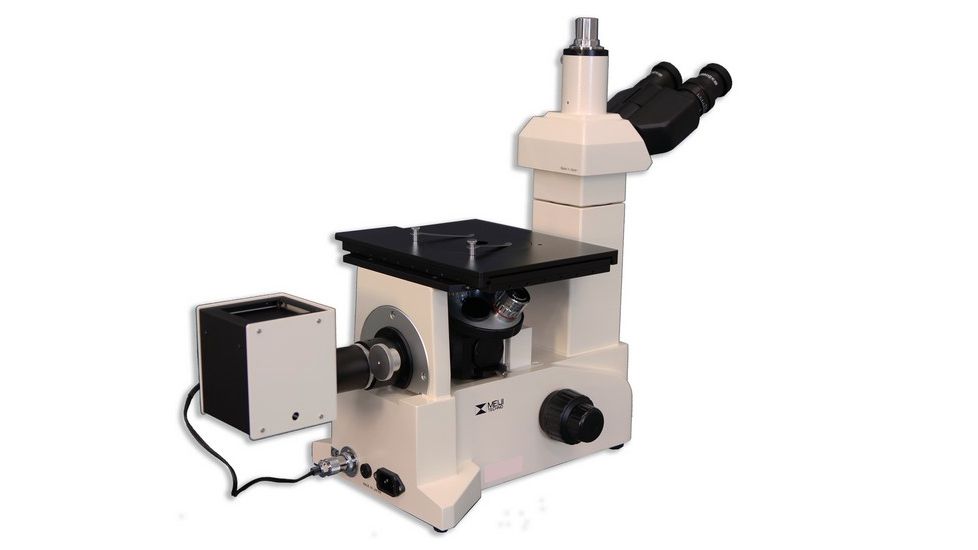

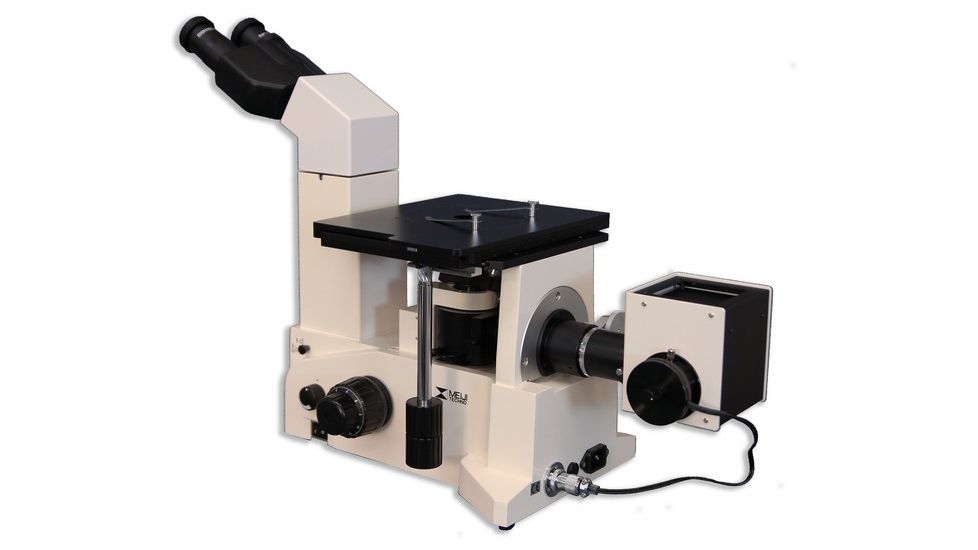

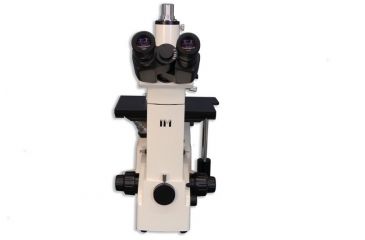

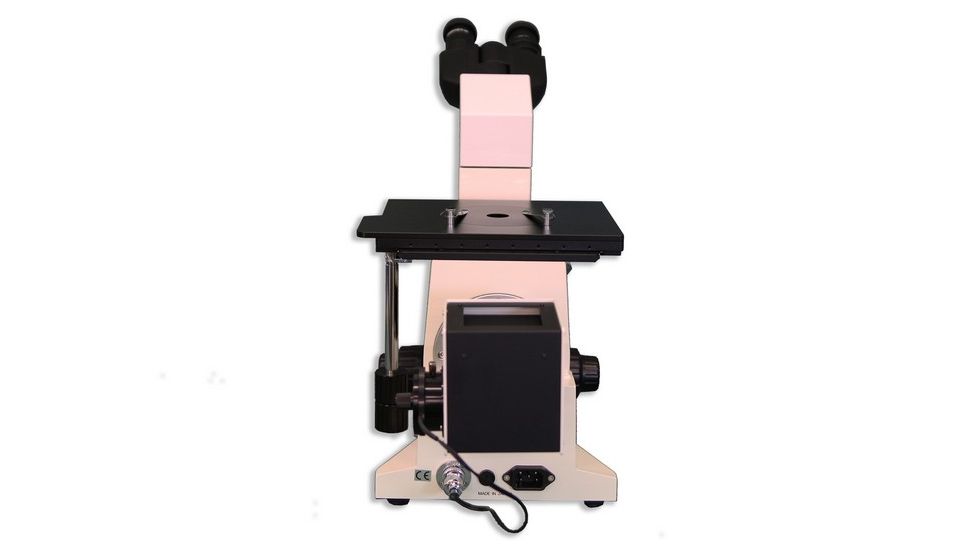

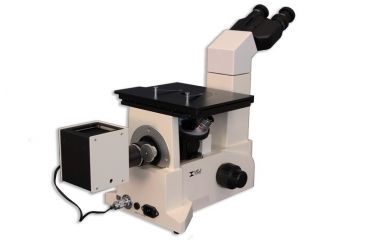

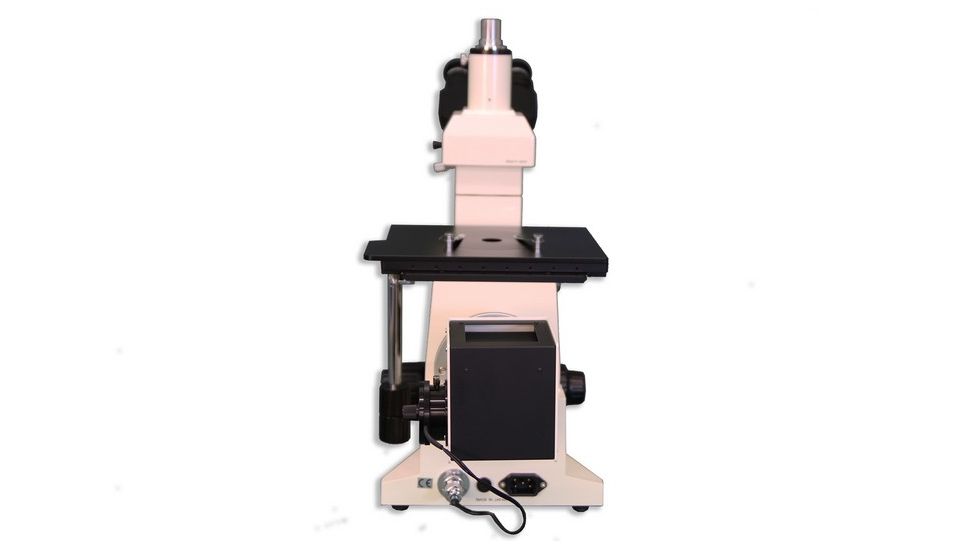

Meiji Techno Inverted Brightfield/Darkfield Metallurgical Microscope Up to 15% Off w/ Free S&H — 3 models

Specifications for Meiji Techno Inverted Brightfield/Darkfield Metallurgical Microscope:

Features of Meiji Techno Inverted Brightfield/Darkfield Metallurgical Microscope:

• All models come standard with ∞ Infinity Corrected Optical objectives (F=200) delivers bright, clear, high resolution images with superior contrast.

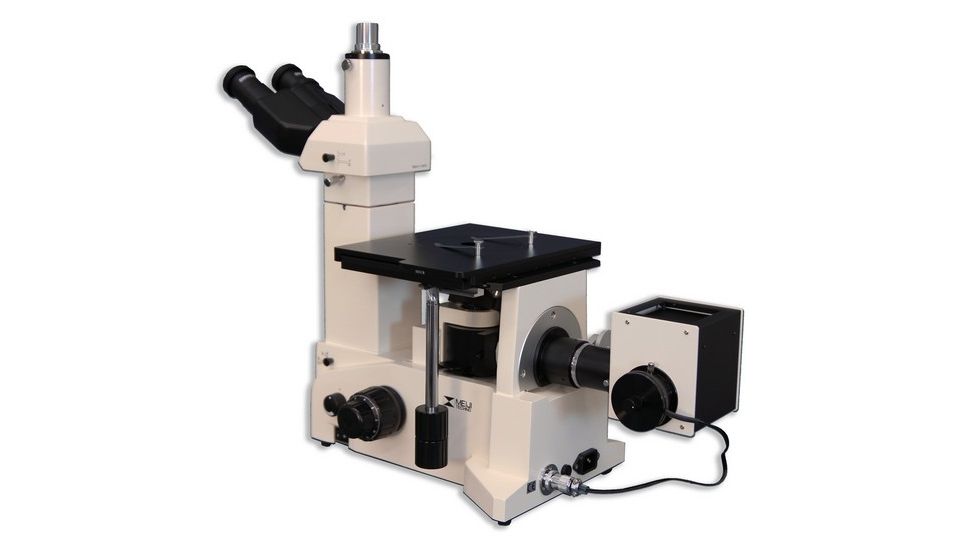

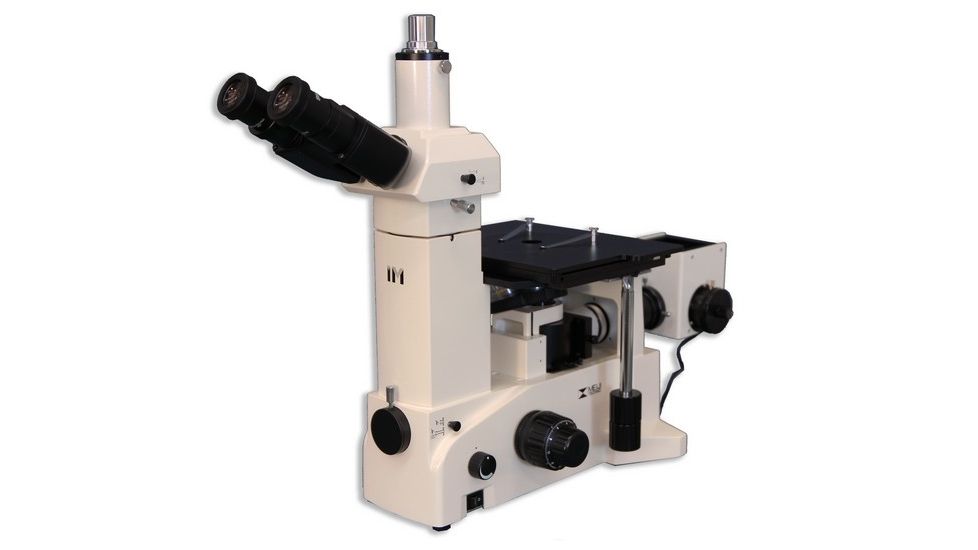

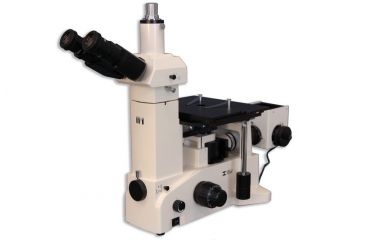

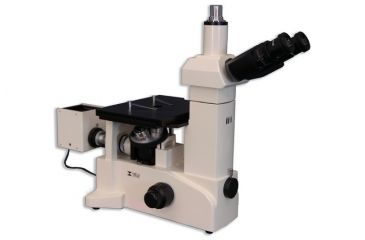

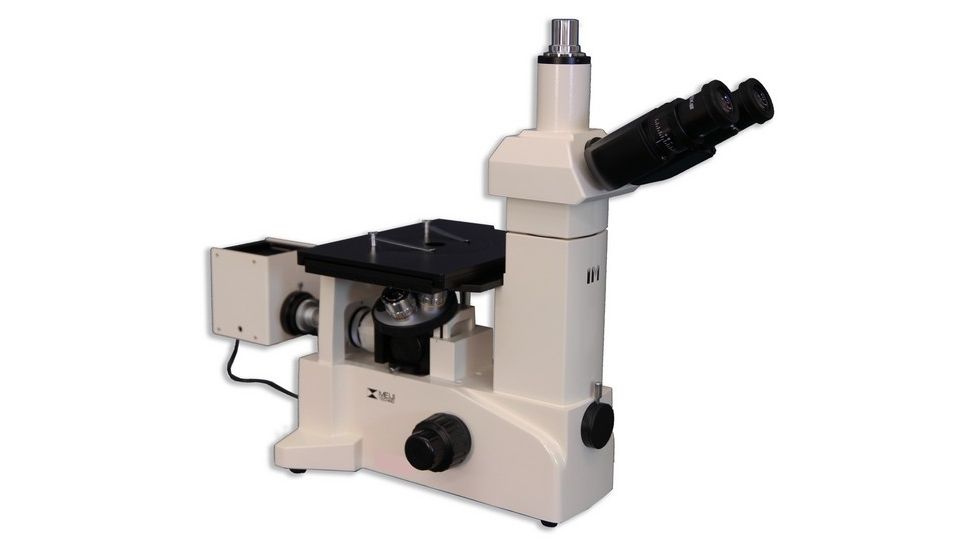

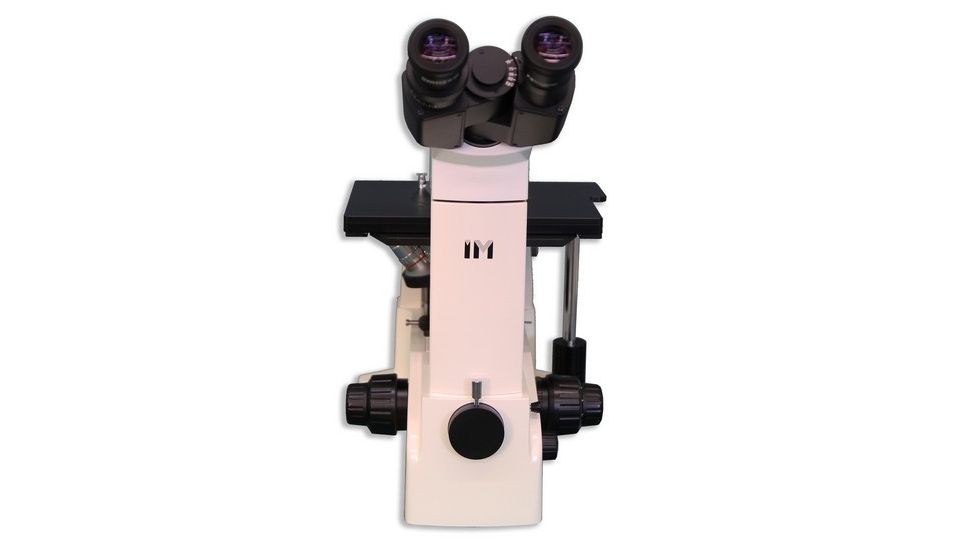

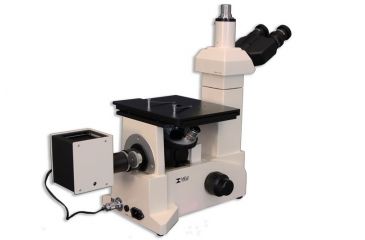

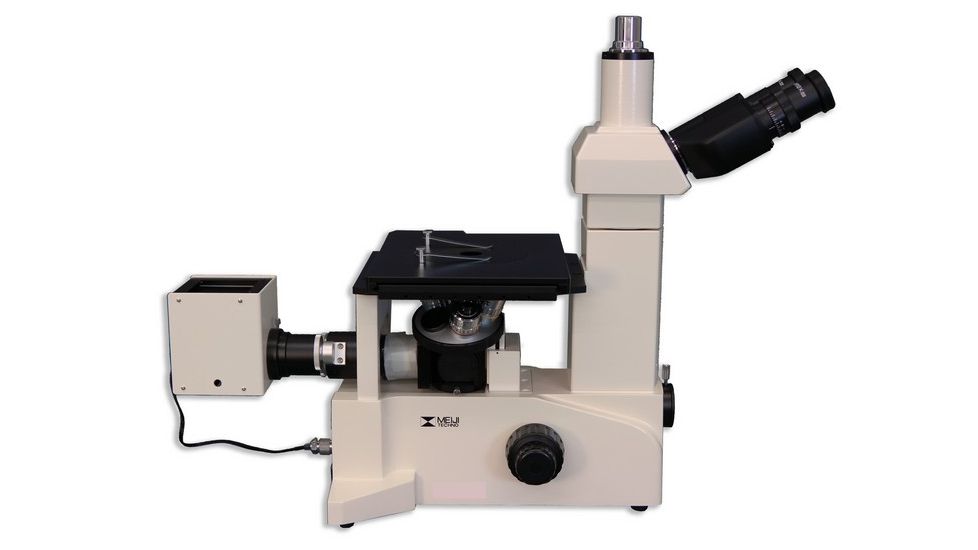

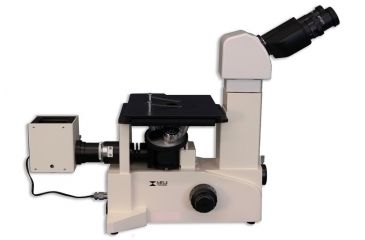

• Viewing heads are supplied with a Siedentopf type binocular head, inclined at 30° or a trinocular Siedentopf head inclined at 45°, interpupillary distance is adjustable from 53mm to 75mm and a graduated diopter adjustment is provided as a standard feature on the left eyetube of all units.
• Eyepieces are SWH10X, widefield, high eye point eyepieces, F.N. 22, with a 25mm reticle mount, SWH15X, SWH20X and SWH10X-F focusing eyepieces are available as an option, all are anti-reflection coated, manufactured with a large diameter lens with more optical elements and high eyepoint to reduce eye fatigue and accommodate eyeglass wearers, and come equipped with a fold-down rubber eye-guards, the newly designed eyepieces allow for a wide field of view observation, making it possible to see the whole image of an embedded resin sample.
• Infinity Corrected Brightfield/Darkfield Plan Semi Apo BD 5X, 10X, 20X and LWD 50X objectives are standard in all units, objectives are made with extra-low-dispersion glass and utilize new advanced multilayer anti-reflection coatings, the advanced technology used in designing and creating objectives result in an objective with a higher resolving power, higher image contrast, wider field of view, improved flatness of field, and a sharp image with a minimum of flare and ghosting, all objectives are color corrected for chromatic aberration in the red and blue regions of the spectrum and offer and exceptional flat field of view.
• Quintuple Nosepiece, side facing, with positive precision detent, click stops.
• Mechanical Stage with 240mm (X) x 184mm (Y) dimensions with 50mm (X) x 40mm (Y) movement and drop down coaxial X-Y controls.
• Circular Round 110mm diameter, 2mm thick metal stage plate insert with 22mm opening.
• Focus travel, 9mm total, 1.0mm up and 8mm down, Rotation of fine focus: 0.2mm per revolution.
• Vertical Koehler illuminator equipped with 12V 50W Halogen bulb, Variable rheostat and automatic voltage sensing power supply are incorporated as standard.
• Cast aluminum alloy body for rigidity and exceptional stability.

Package Contents:

• MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
• MA923: Plan Epi Objective BD5X, ∞ Infinity Corrected objective N.A. 0.10, W.D. 17.0mm, F.L. 40.0
• MA924: Plan Epi Objective BD10X, ∞ Infinity Corrected objective N.A. 0.25,W.D. 7.48mm, F.L. 20.0
• MA925: Plan Epi Objective BD20X, ∞ Infinity Corrected objective N.A. 0.40, W.D. 5.20mm, F.L. 10.0
• MA995: Plan Epi Objective BD50X, ∞ Infinity Corrected objective N.A. 0.50, W.D. 5.00mm, F.L. 4.0
• Nosepiece: Quintuple Nosepiece, side facing, with positive precision detent, click stops (Factory Installed)
• MA1011: Vertical Koehler illuminator, including filters and polarizer in sliding mount(without lamphouse)
• MALH50: Lamphouse for use with 12V/50W Halogen Lamp (Included in 50w models)
• MA275/25: Blue clear filter, 19.5mm diameter filter in metal mount, fits 30mmfilter slot
• MA275/30: Green clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
• MA275/50: N.D.50 neutral density filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
• MA959: Polarizing filter, 19.5mm diameter filter in metal mount. Fits 30mm filter slot
• MA1016: Round 110mm diameter, 2mm thick metal stage plate insert with 22mm opening for specimen
• Stage: Mechanical Stage with 240mm (X) x 184mm (Y) dimensions with 50mm (X) x 40mm (Y) movement and drop down coaxial X-Y controls (Factory Installed)
• Front Photo Port: Integrated photo port on the front of the body makes image documentation quick and easy with the proper C" mount or digital camera and SLR adapters
• MA593: Stainless Steel Stage Clips, 4mm pin diameter, 75mm long (paired)
• MA275/05: Halogen bulb, 12V/50W (Included in 50W models)(Factory Installed)
• MA327: Fuse 3 Amp replacement (Included in 50W models)(Factory Installed)
• MA809/10: Removable AC Electric cord with plug for 115V models or
• MA809/20: Removable AC Electric cord with plug for 220 models
• MA1014: Dust cover for IM7500
• Manual: IM7500 Meiji Techno Instruction Manual
• Warranty: Limited Lifetime Warranty Card
