Meiji Techno Inverted Brightfield Biological Microscope Up to 15% Off w/ Free Shipping — 3 models
1 of 24 images

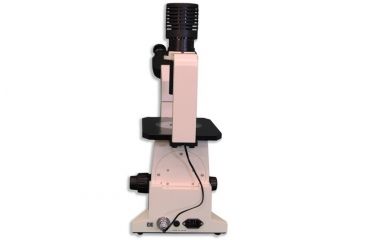

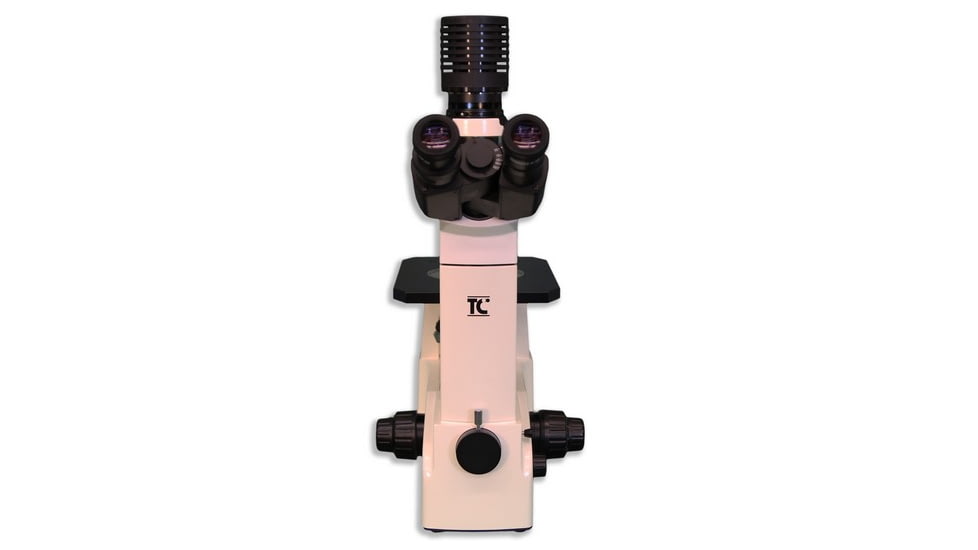

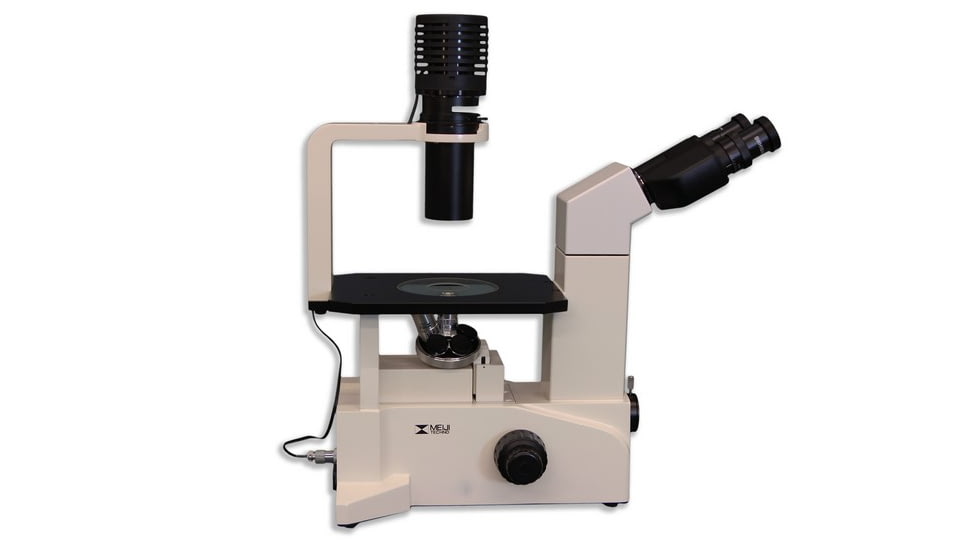

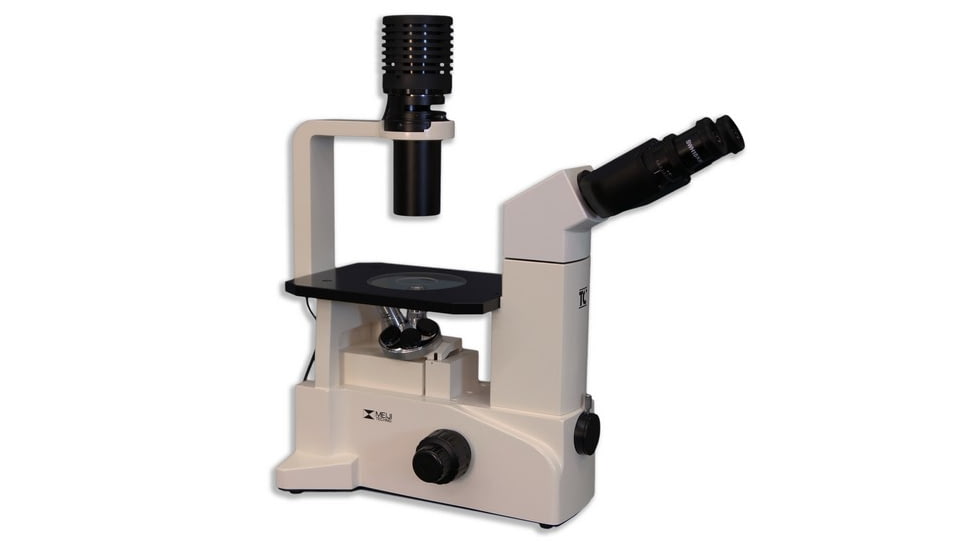

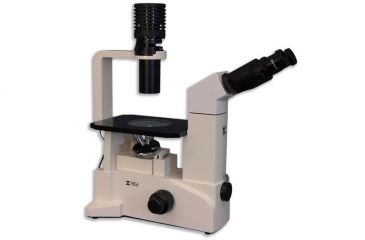

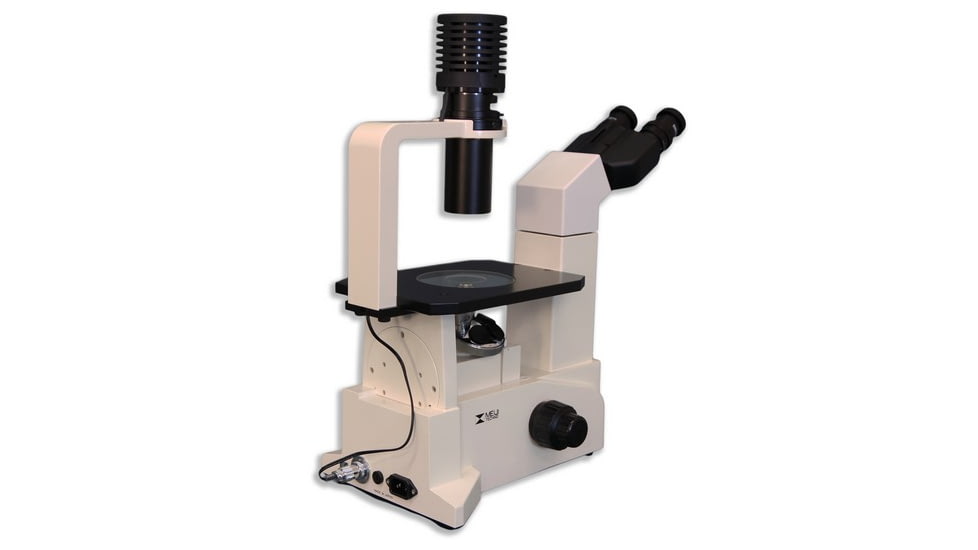

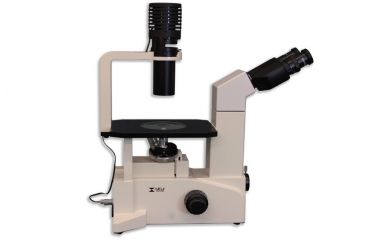

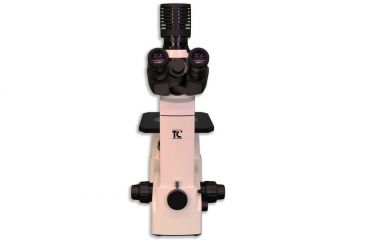

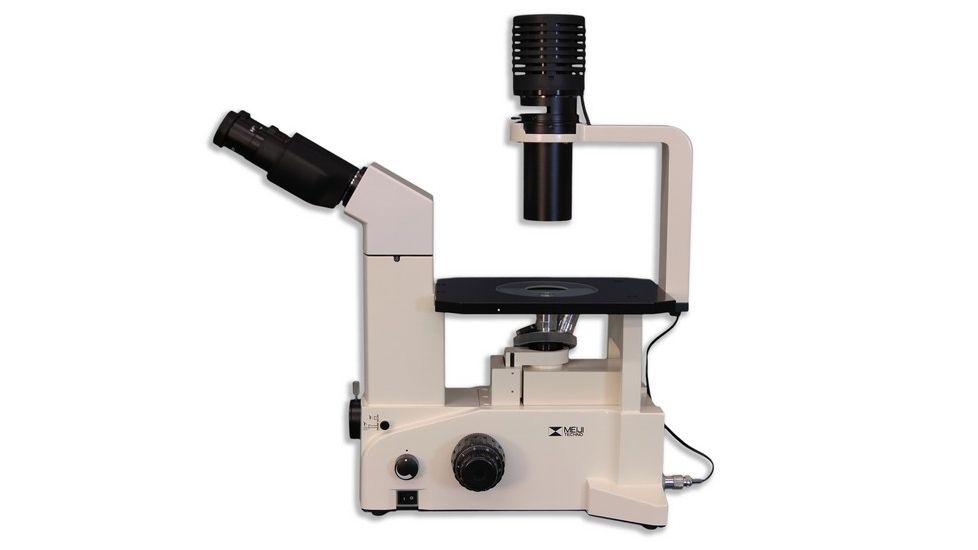

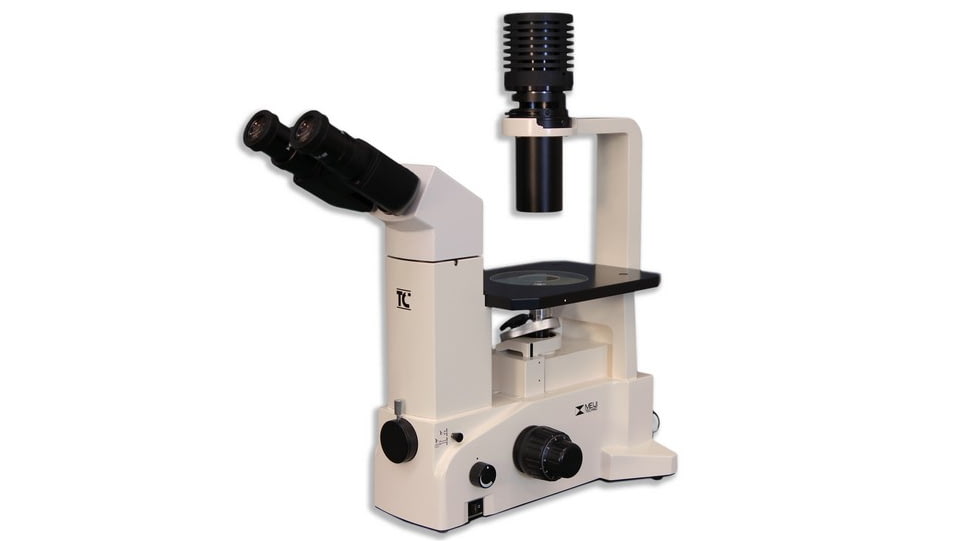

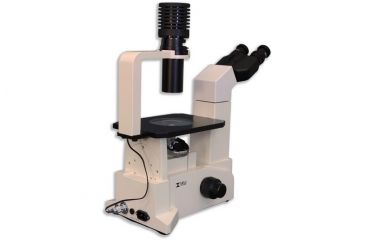

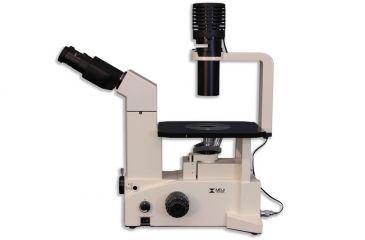

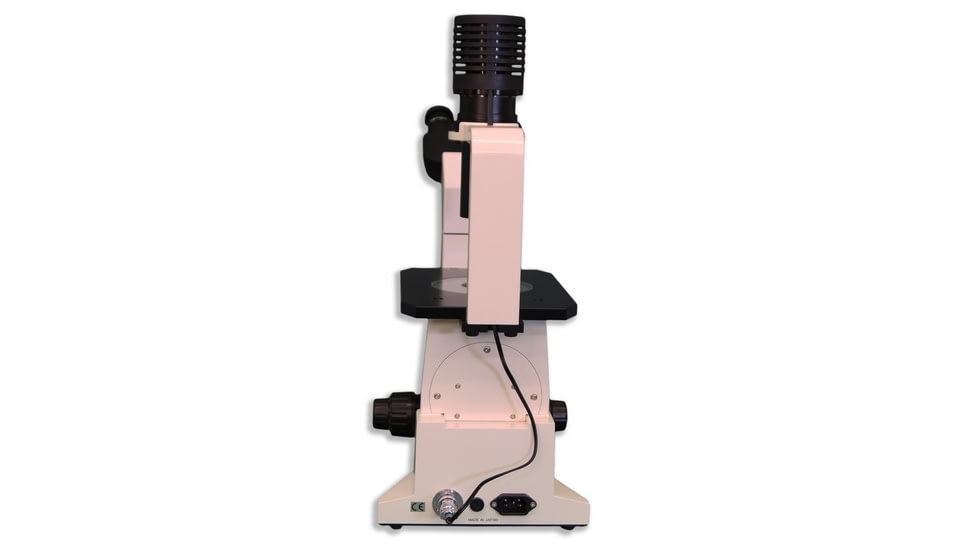

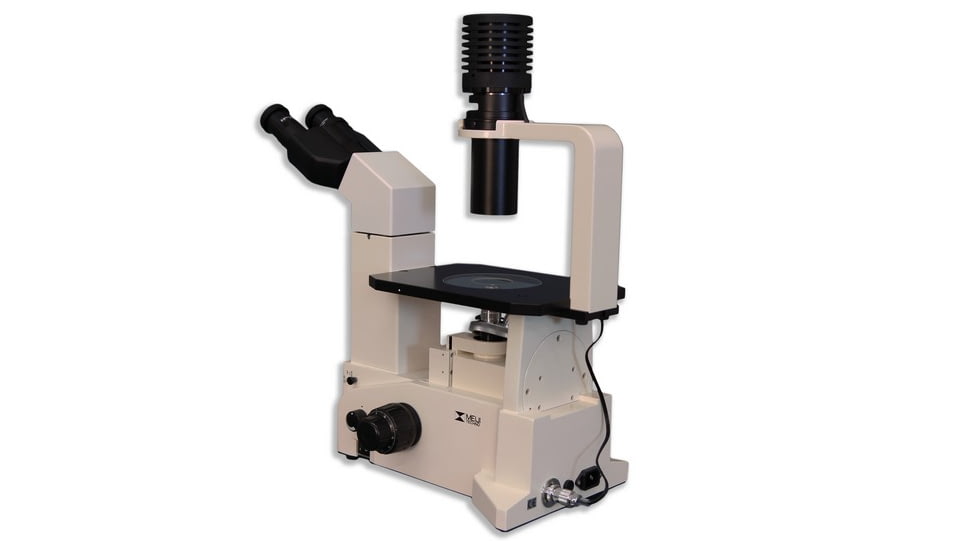

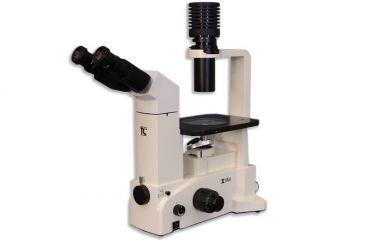

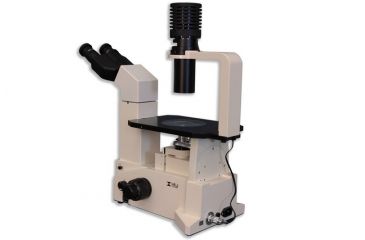

Meiji Techno Binocular Inverted Brightfield Biological Microscope, TC-5100
2 of 24 images

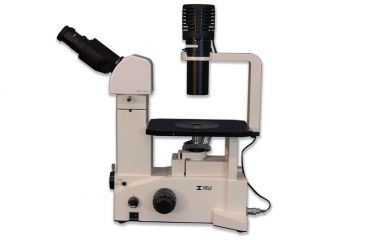

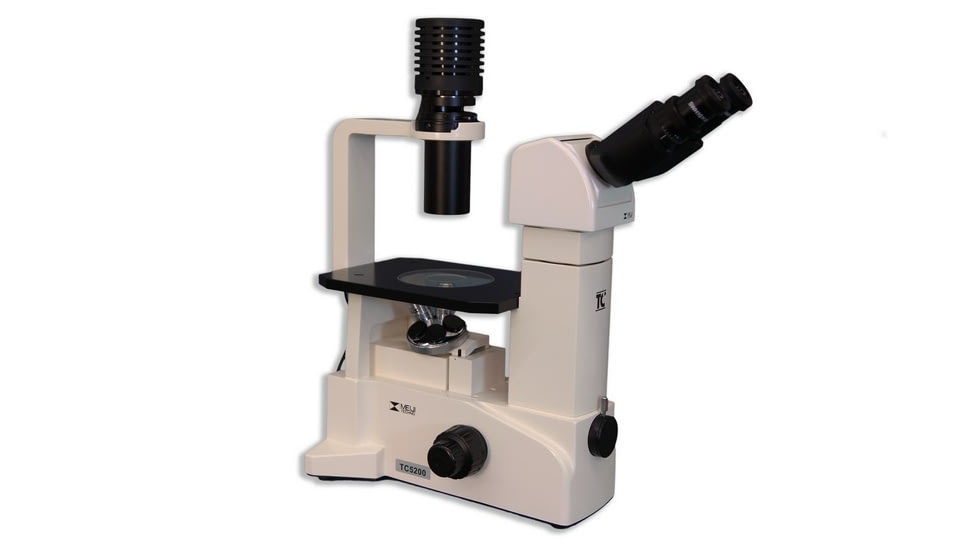

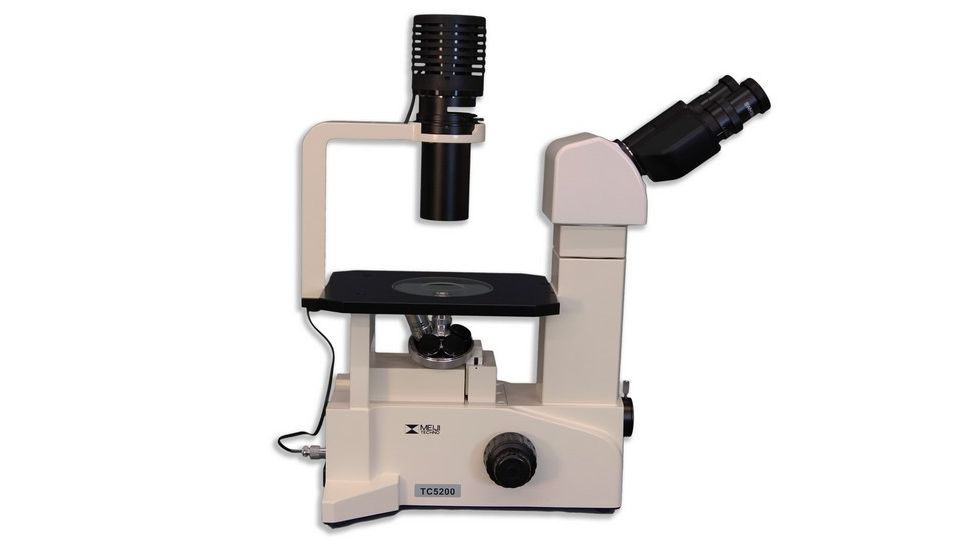

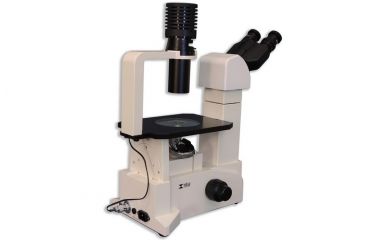

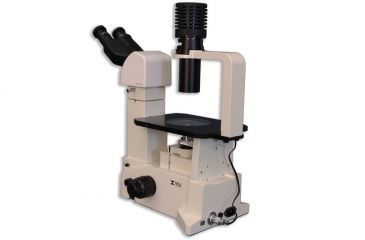

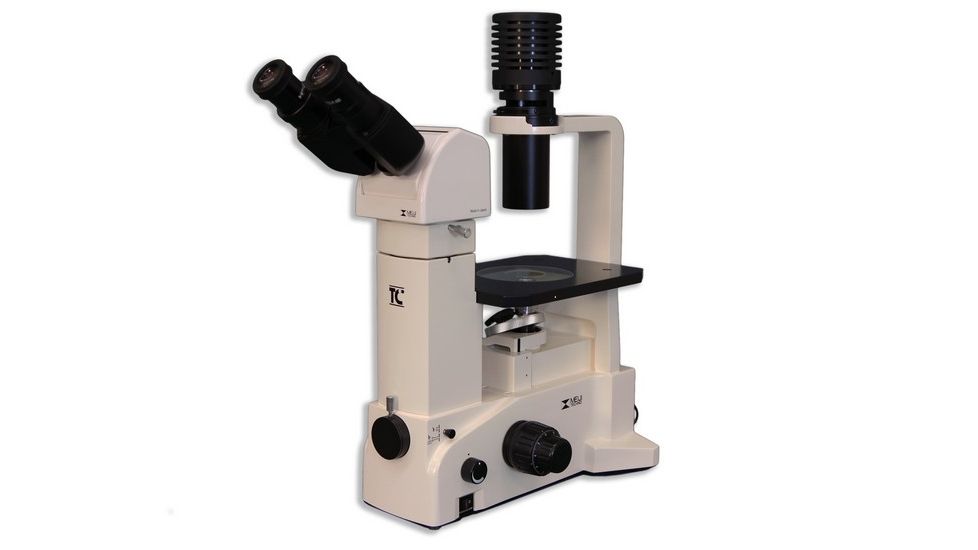

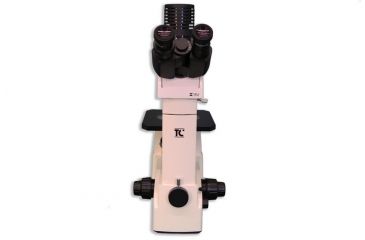

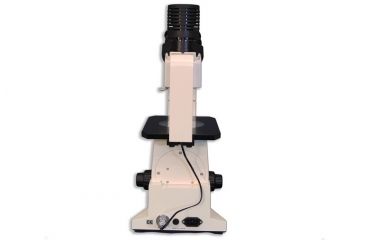

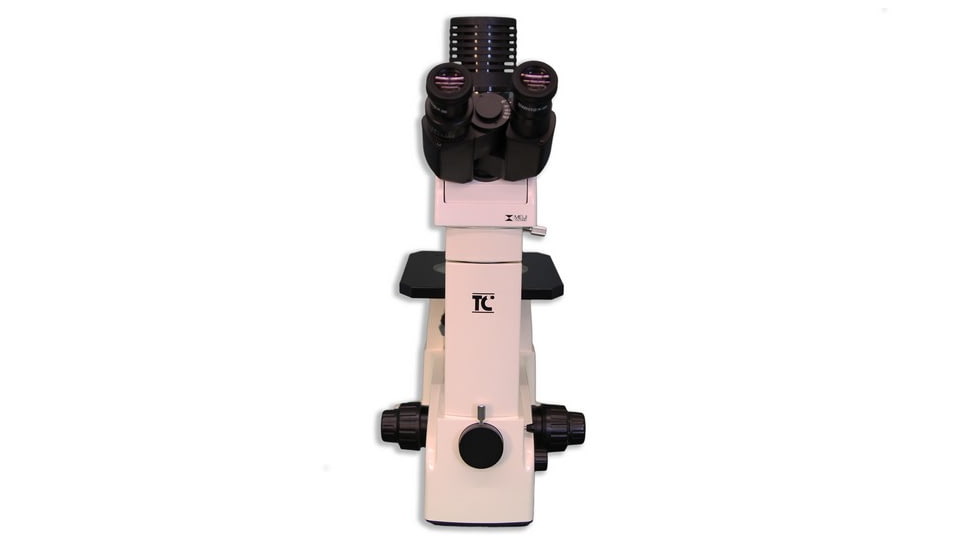

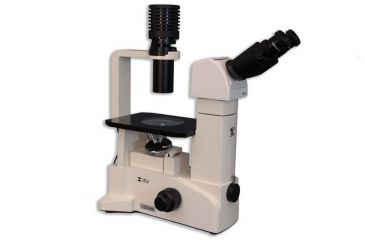

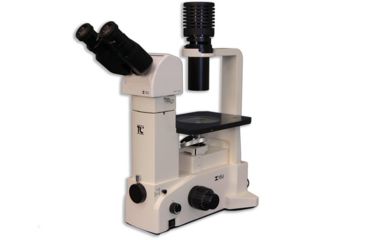

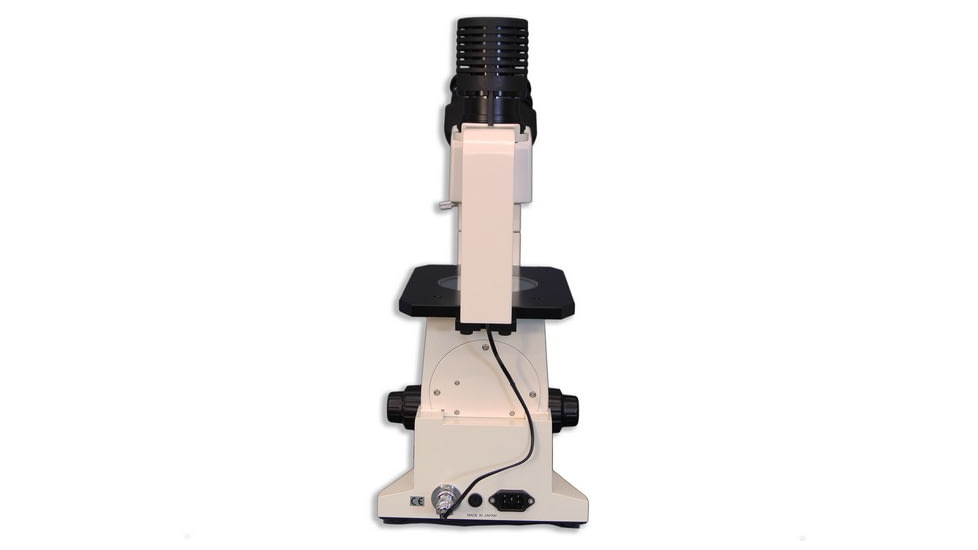

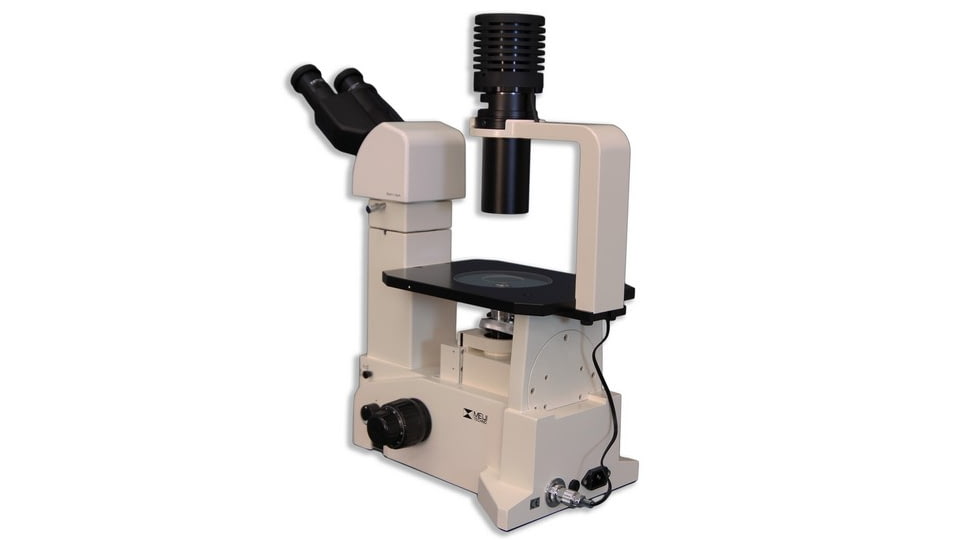

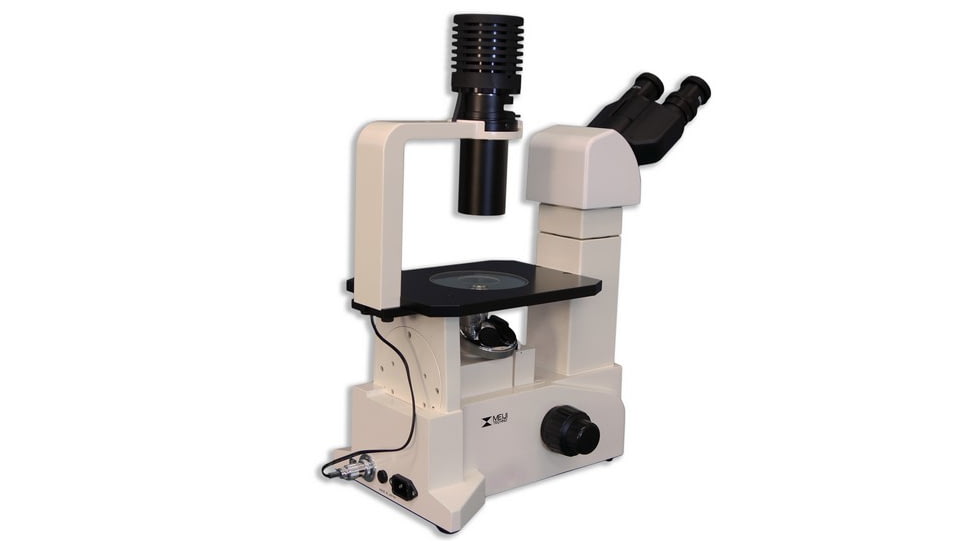

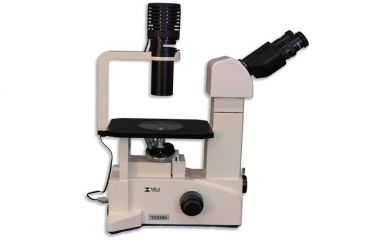

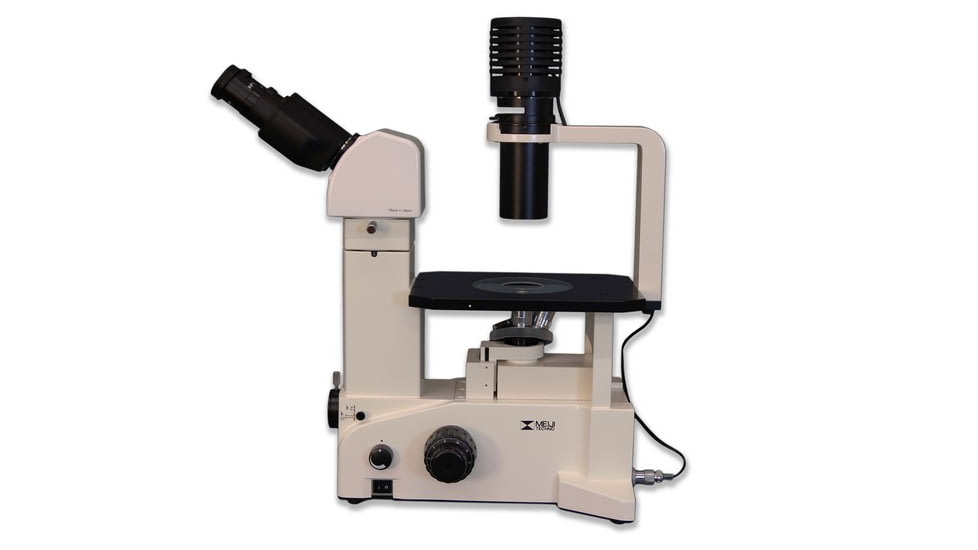

Meiji Techno Ergonomic Binocular Inverted Brightfield Biological Microscope, TC-5100E
3 of 24 images

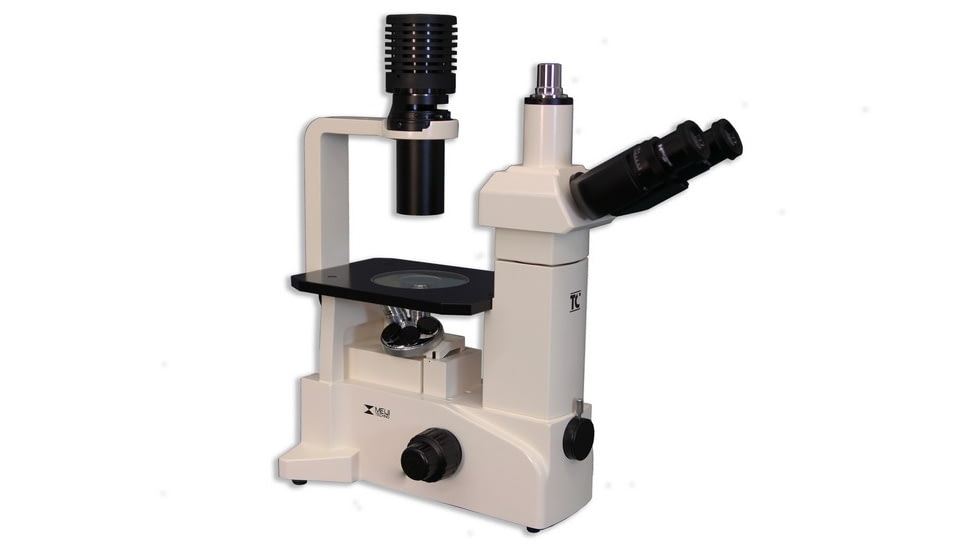

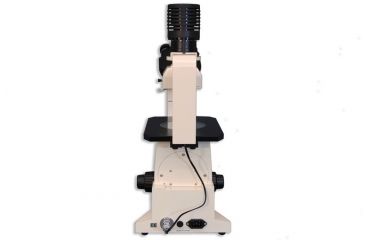

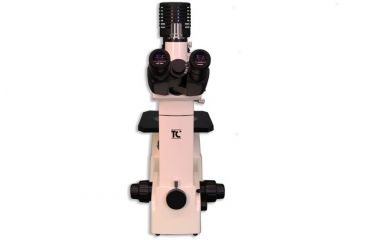

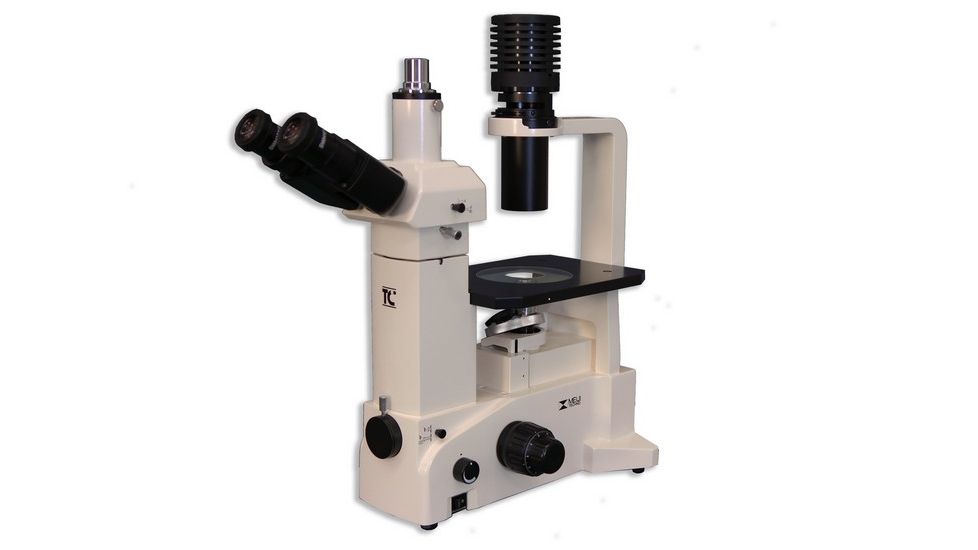

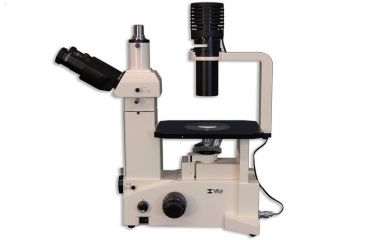

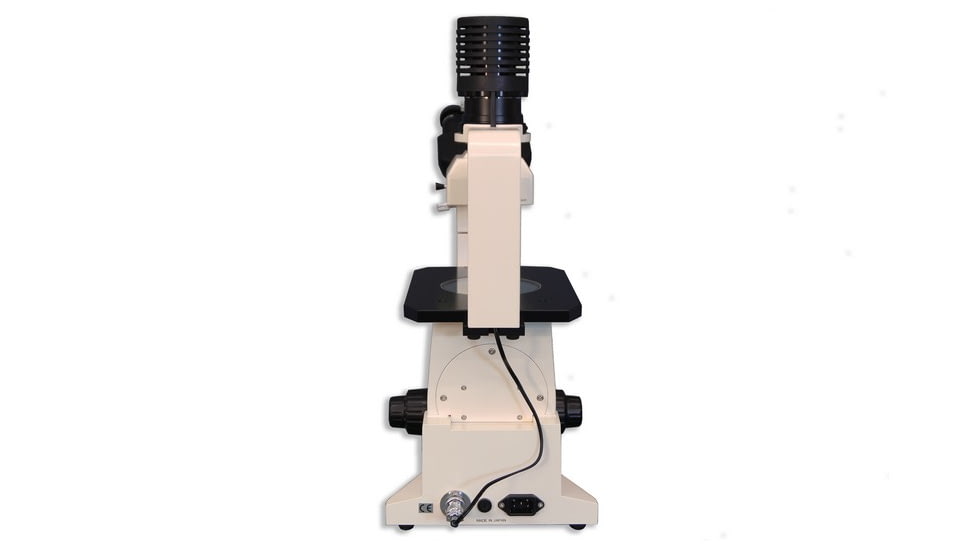

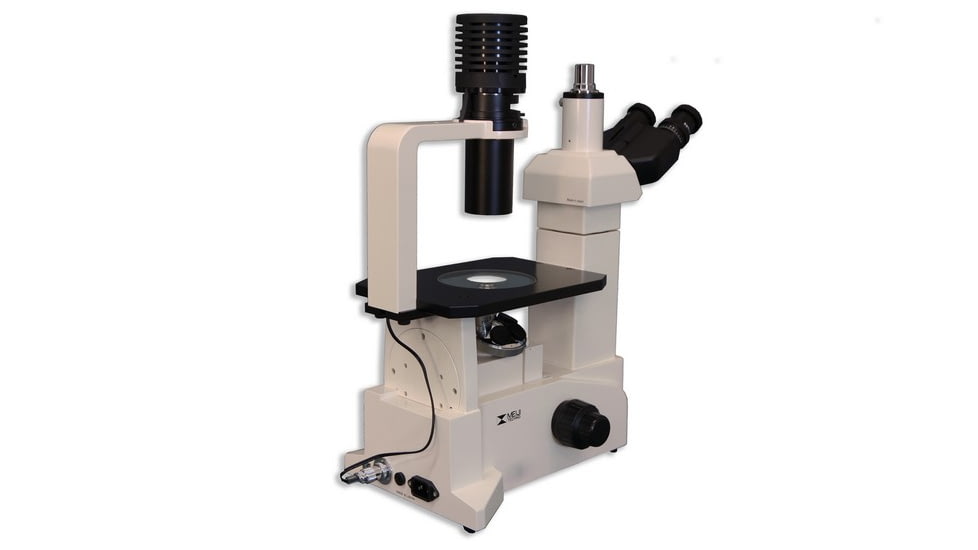

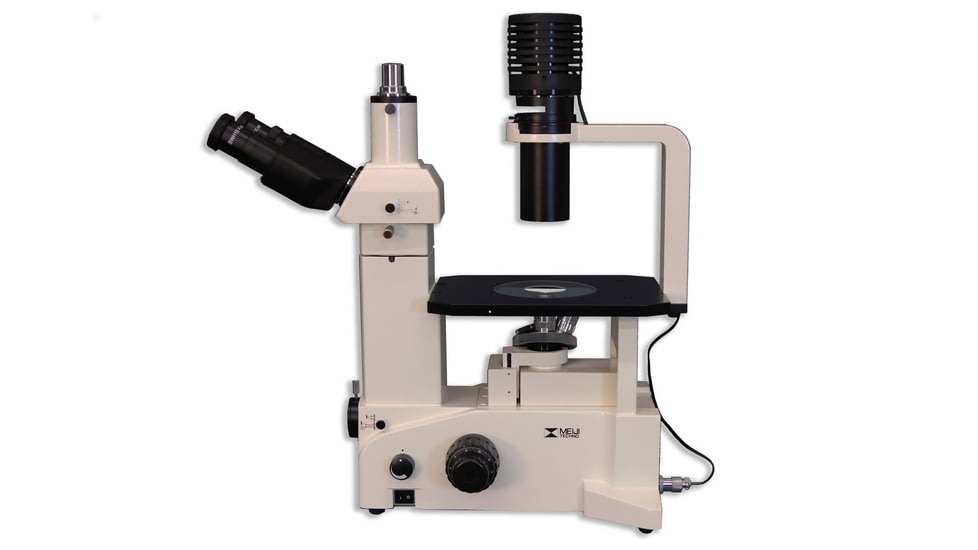

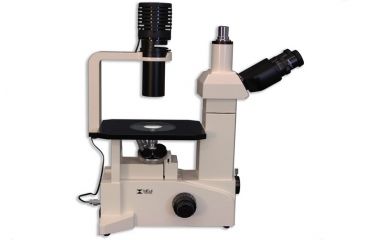

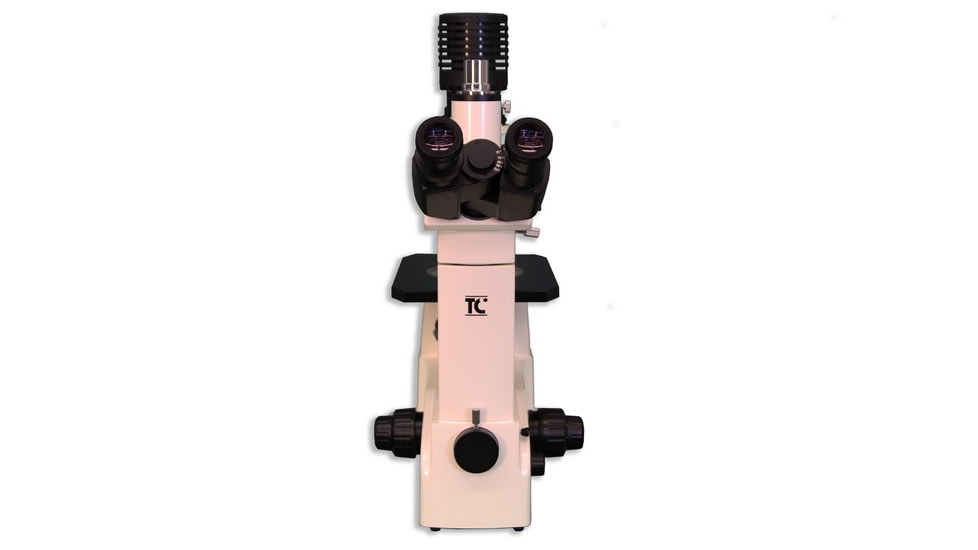

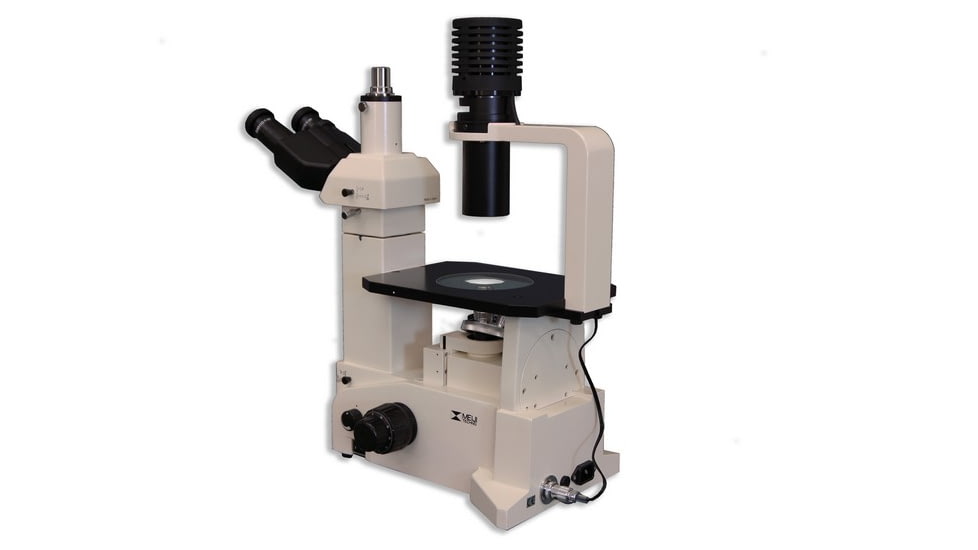

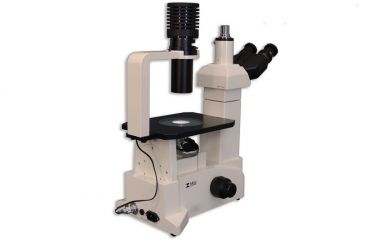

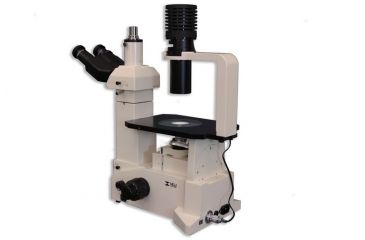

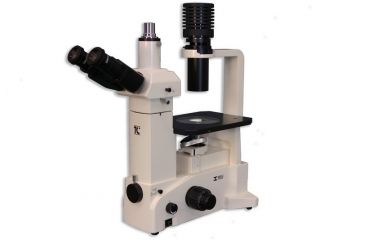

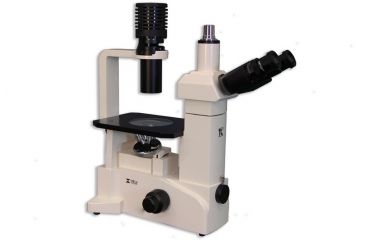

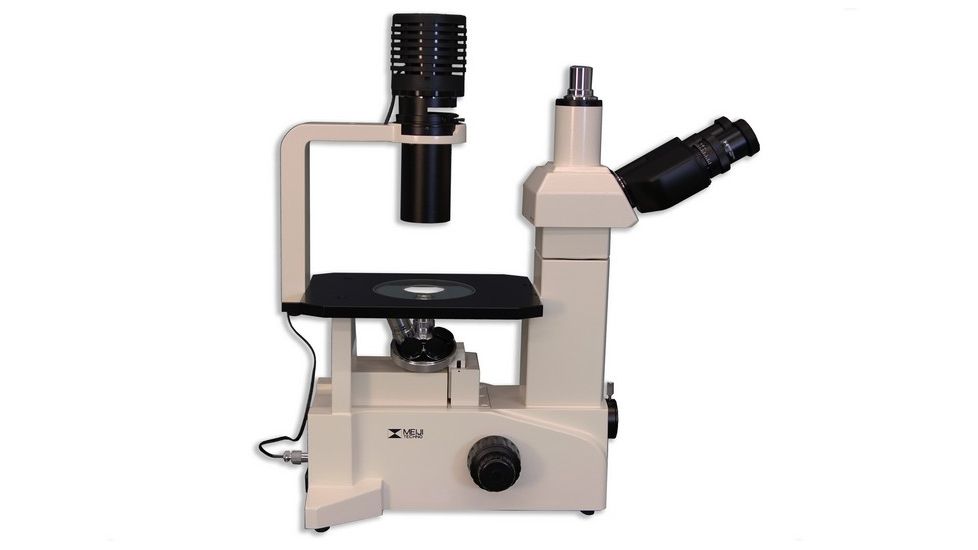

Meiji Techno Trinocular Inverted Brightfield Biological Microscope, TC-5200
4 of 24 images
Meiji Techno Binocular Inverted Brightfield Biological Microscope, TC-5100
5 of 24 images
Meiji Techno Binocular Inverted Brightfield Biological Microscope, TC-5100
6 of 24 images
Meiji Techno Binocular Inverted Brightfield Biological Microscope, TC-5100
7 of 24 images
Meiji Techno Binocular Inverted Brightfield Biological Microscope, TC-5100
8 of 24 images
Meiji Techno Binocular Inverted Brightfield Biological Microscope, TC-5100
9 of 24 images
Meiji Techno Binocular Inverted Brightfield Biological Microscope, TC-5100
10 of 24 images
Meiji Techno Binocular Inverted Brightfield Biological Microscope, TC-5100
11 of 24 images
Meiji Techno Trinocular Inverted Brightfield Biological Microscope, TC-5200
12 of 24 images
Meiji Techno Ergonomic Binocular Inverted Brightfield Biological Microscope, TC-5100E
13 of 24 images
Meiji Techno Ergonomic Binocular Inverted Brightfield Biological Microscope, TC-5100E
14 of 24 images
Meiji Techno Trinocular Inverted Brightfield Biological Microscope, TC-5200
15 of 24 images
Meiji Techno Ergonomic Binocular Inverted Brightfield Biological Microscope, TC-5100E
16 of 24 images
Meiji Techno Trinocular Inverted Brightfield Biological Microscope, TC-5200
17 of 24 images
Meiji Techno Trinocular Inverted Brightfield Biological Microscope, TC-5200
18 of 24 images
Meiji Techno Ergonomic Binocular Inverted Brightfield Biological Microscope, TC-5100E
19 of 24 images
Meiji Techno Ergonomic Binocular Inverted Brightfield Biological Microscope, TC-5100E
20 of 24 images
Meiji Techno Trinocular Inverted Brightfield Biological Microscope, TC-5200
21 of 24 images
Meiji Techno Ergonomic Binocular Inverted Brightfield Biological Microscope, TC-5100E
22 of 24 images
Meiji Techno Trinocular Inverted Brightfield Biological Microscope, TC-5200
23 of 24 images
Meiji Techno Ergonomic Binocular Inverted Brightfield Biological Microscope, TC-5100E
24 of 24 images
Meiji Techno Trinocular Inverted Brightfield Biological Microscope, TC-5200
Tap Tap to Zoom
3 Models Available
Head
All
Search
List: $6,440.00Save 15%
$5,474.00
Receive $109.48 SP Bucks
List: $6,670.00Save 15%
$5,669.50
Receive $113.39 SP Bucks
List: $6,670.00Save 15%
$5,669.50
Receive $113.39 SP Bucks
Product Info for Meiji Techno Inverted Brightfield Biological Microscope
Meiji Techno Inverted Brightfield Biological Microscope is part of our larger selection of Meiji Techno Microscopes. Remember to have a look at the full collection of Microscopes from Meiji Techno that we offer at everyday discount prices. Browse our full product choice for the equipment and products you want to tackle the job at hand.
Specifications for Meiji Techno Inverted Brightfield Biological Microscope:
| Manufacturer: | Meiji Techno |
| Microscope Type: | Biological |
| Included Accessories: | Fuse 3 Amp, 6V 30W Halogen Bulb, Removable AC Electric cord w/ Plug |
| Magnification: | 10 - 20 x |
| Illumination Type: | Halogen |
| Nosepiece: | Quintuple |
| Magnification Type: | Variable |
Features of Meiji Techno Inverted Brightfield Biological Microscope:
- Seidentopf type binocular head inclined at 30° or trinocular at 45°
- Equipped with 6V, 30W Halogen lamp illuminator
- N.A. 0.30 condenser
- 180mm(X) X 245mm(Y) stage with replaceable glass insert with 45mm opening
- Exchangeable observation tubes
- Integrated Automatic Voltage Sensing Power Supply with localized power cord
- Compact wedge shaped cast aluminum alloy frame for exceptional stability and a small footprint
- Chemical resistant baked enamel finish
- Flexible and modular design for system expansion
- Transparent stage plate for easy objective identification
- Low profile coaxial and fine focus controls with tension adjustment
- Precentered 30W Halogen bulb
- Integrated Automatic Voltage Sensing Power Supply with localized power cord
- Optional mechanical stage with specimen holders
Package Contents:
- Inverted Biological Brightfield Compound microscope:
- Infinity Corrected Optical System: F-200MM with 6V 30W Halogen Koehler illumination with quintuple nosepiece and auto voltage sensing power supply.
- Head: Inclined at 30°, Interpupillary adjustment 53mm to 75mm graduated diopter on left eyetube (30mm I.D. eyetubes).
- MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm.
- MA821: TC Long Working Distance Objective WD 17.3mm, NA 0.25, Planachromat 10X, Infinity F=200mm ∞/1.0.
- MA822: TC Long Working Distance Objective WD 7.0mm, NA 0.40, Planachromat 20X, Infinity F=200mm, ∞/1.0,
- MA853: TC Condenser, N.A. 0.30, W.D. 73.mm.
- STAGE: Plain stage with 180mm(X) x 245mm(Y) plain stage with replaceable glass insert with 45mm opening.
- MA878: Glass Stage plate insert for plain stage (Round-109mm diameter, 1.5mm thick with 44.3mm central opening).
- MA863: Cobalt clear filter in mount in 51mm mount.
- MA809/10: Removable AC Electric cord with plug for 115V models.
- MA326: Bulb 6V 30W Halogen (Factory Installed).
- MA327: Fuse 3 Amp (Factory Installed).
- Manual: TC-5000 Meiji Techno Instruction Manual.
- Warranty: Limited Lifetime Warranty Card.
