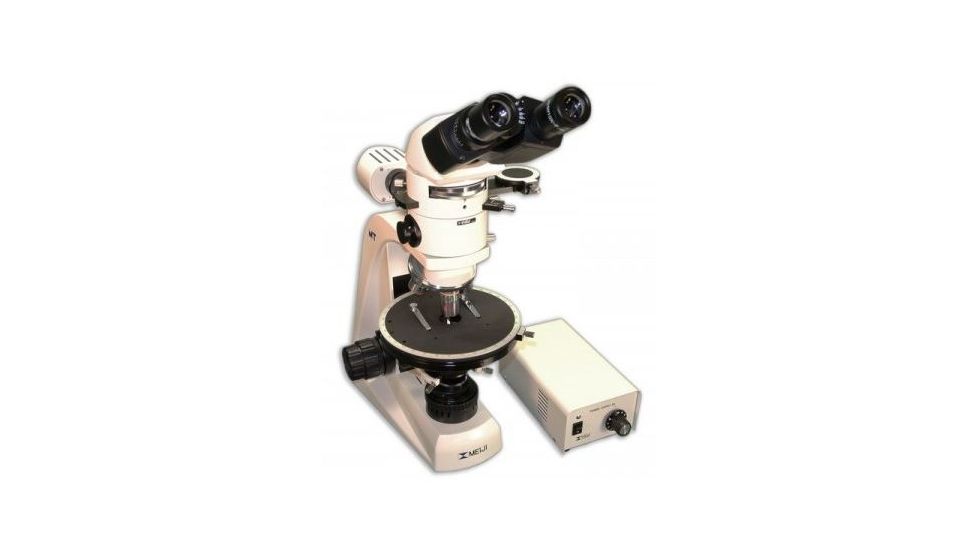

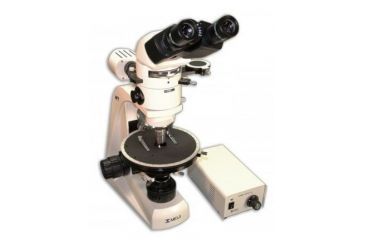

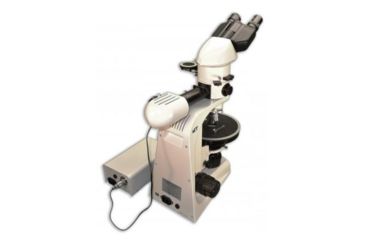

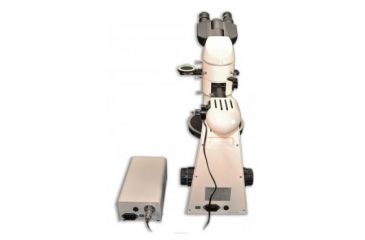

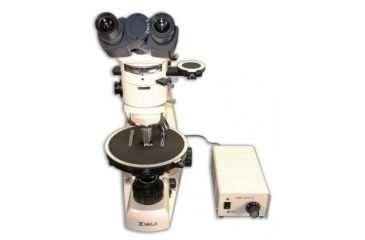

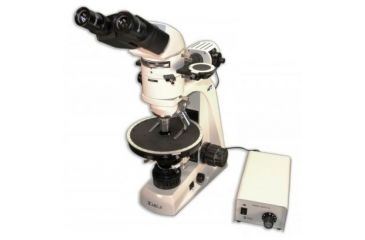

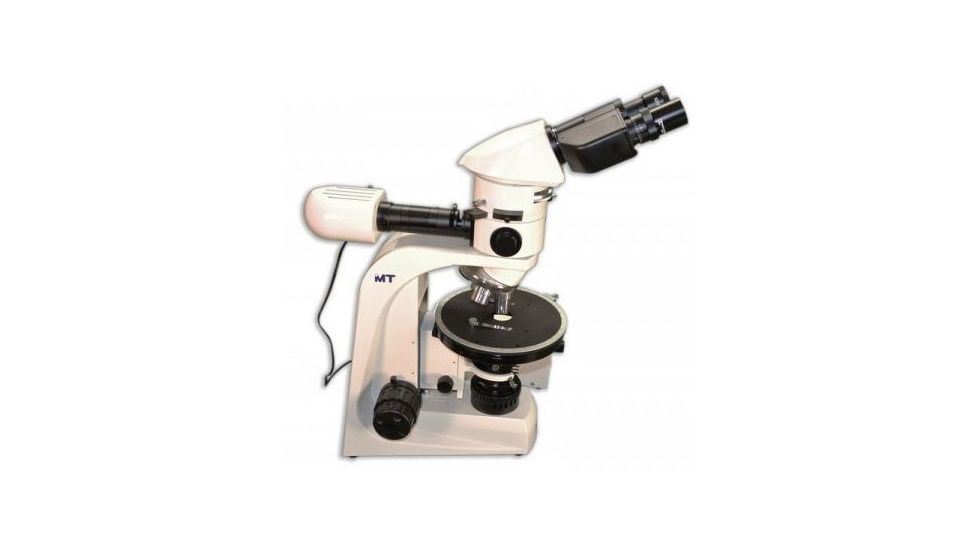

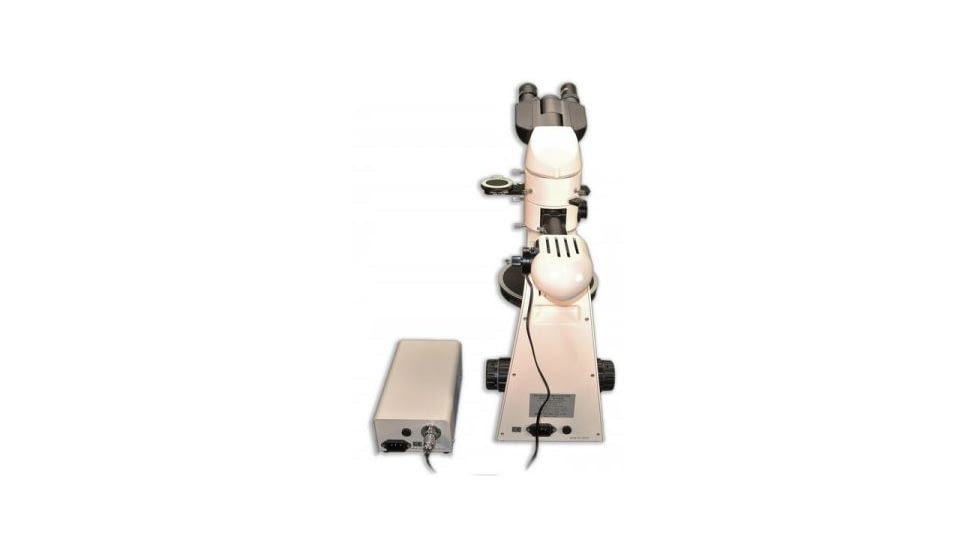

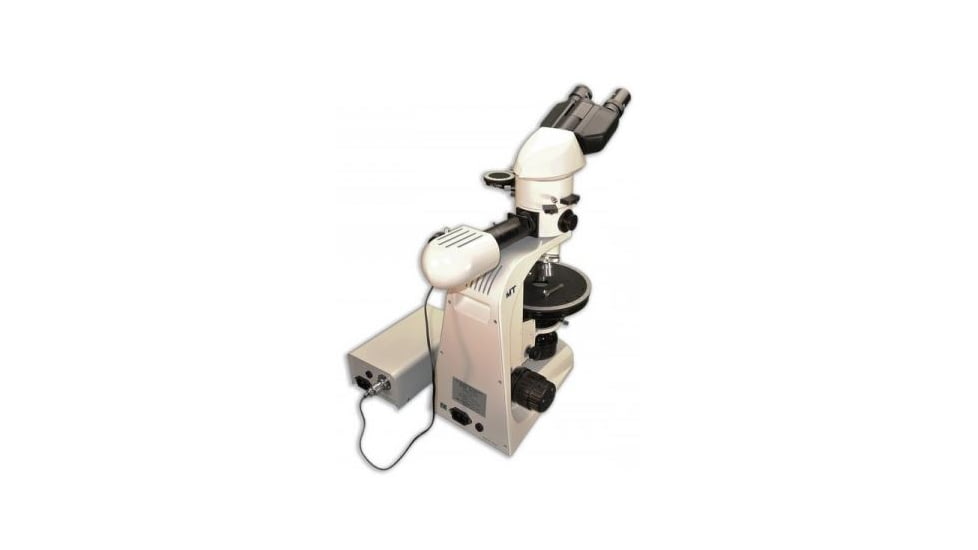

Meiji Techno Halogen Binocular Polarizing Microscope, BEIGE, LARGE MT9920
2 of 32 images

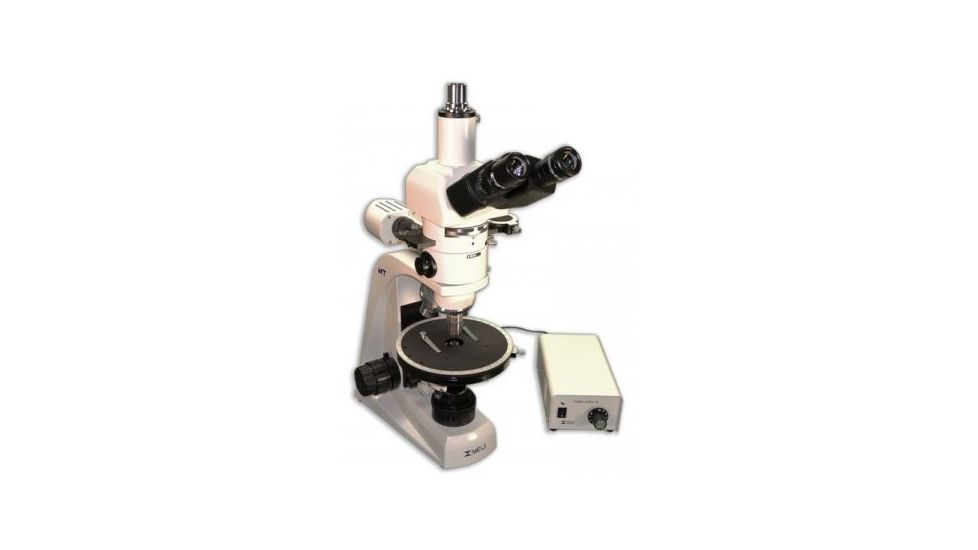

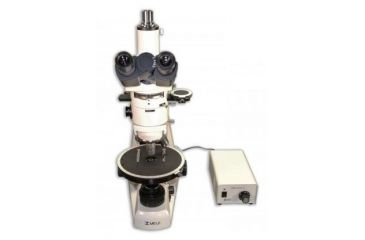

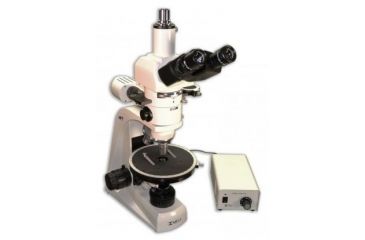

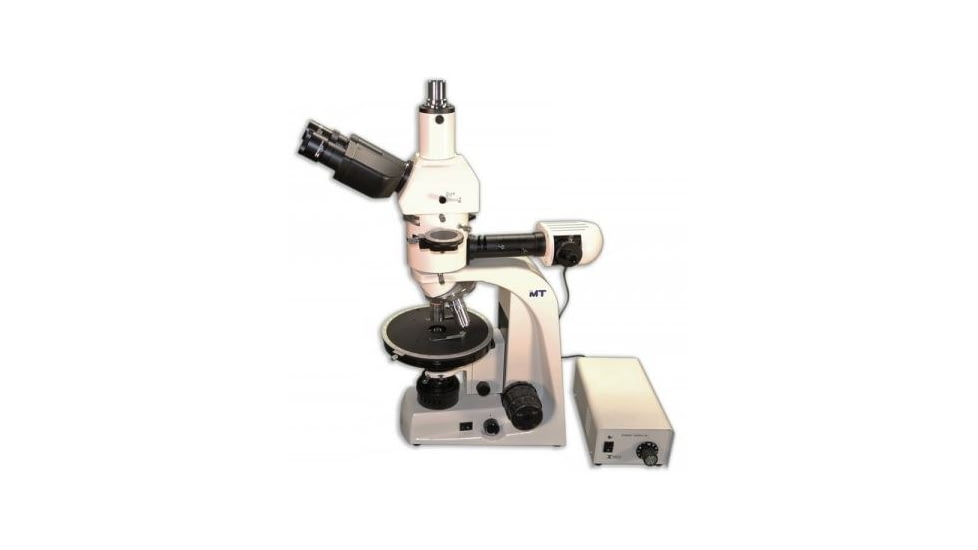

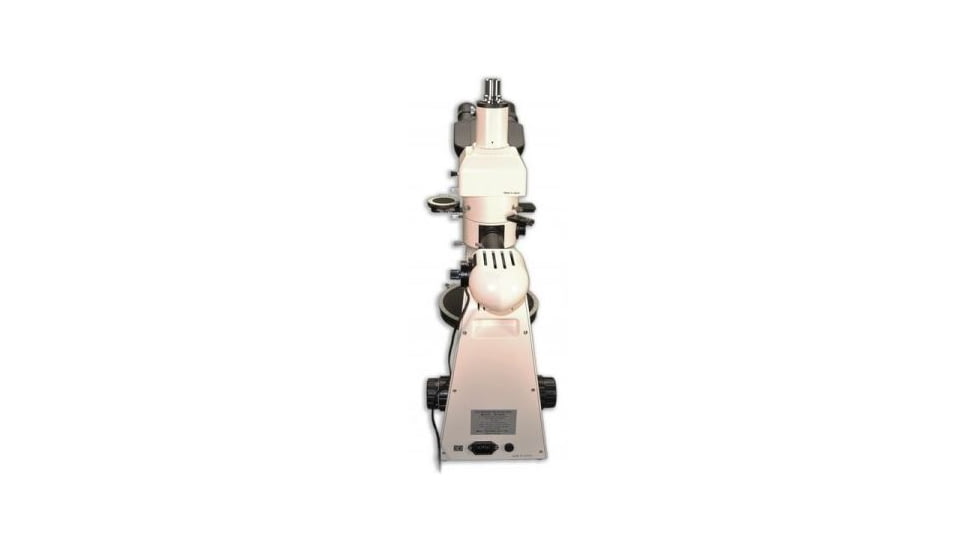

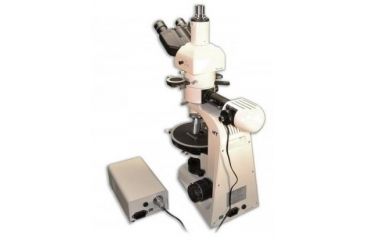

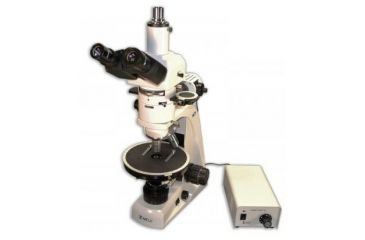

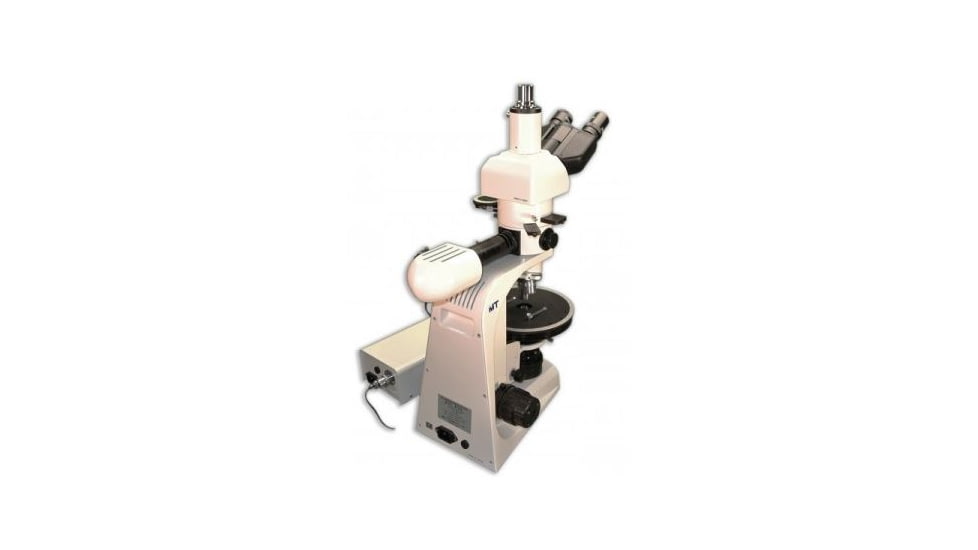

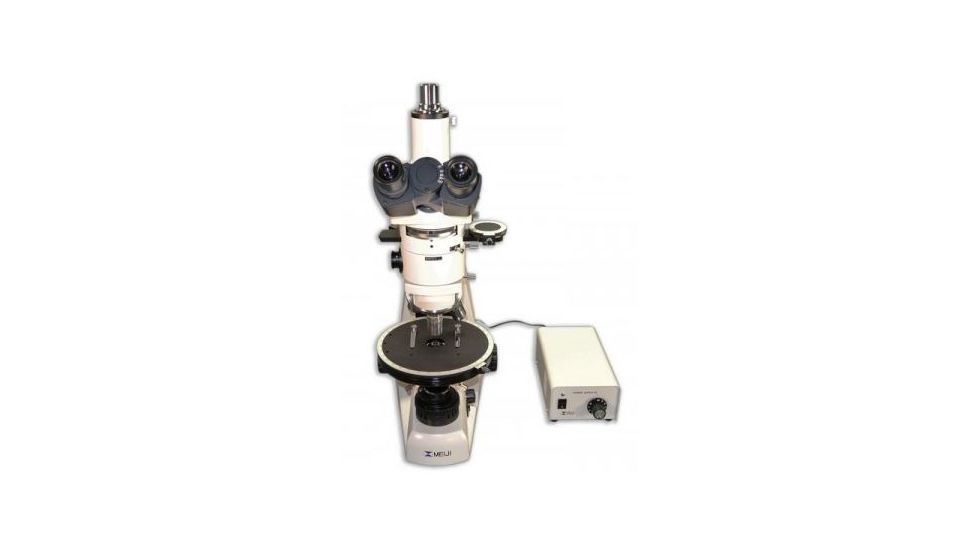

Meiji Techno Halogen Trinocular Polarizing Microscope, BEIGE, LARGE MT9930
3 of 32 images

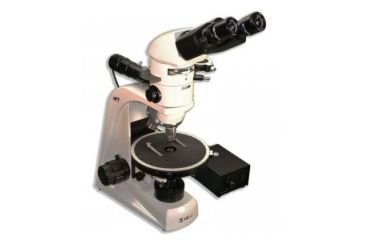

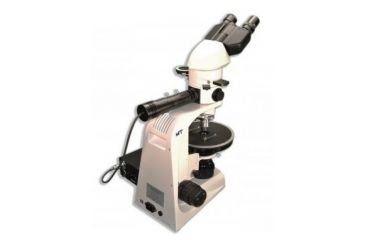

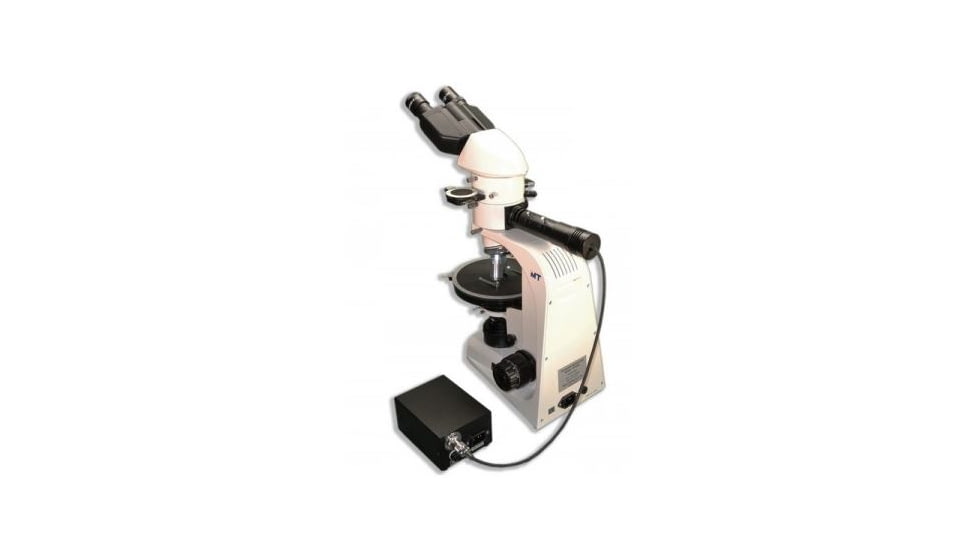

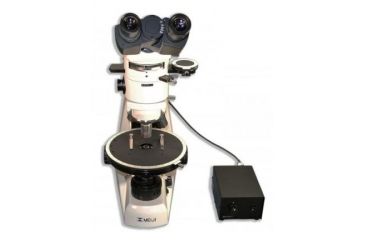

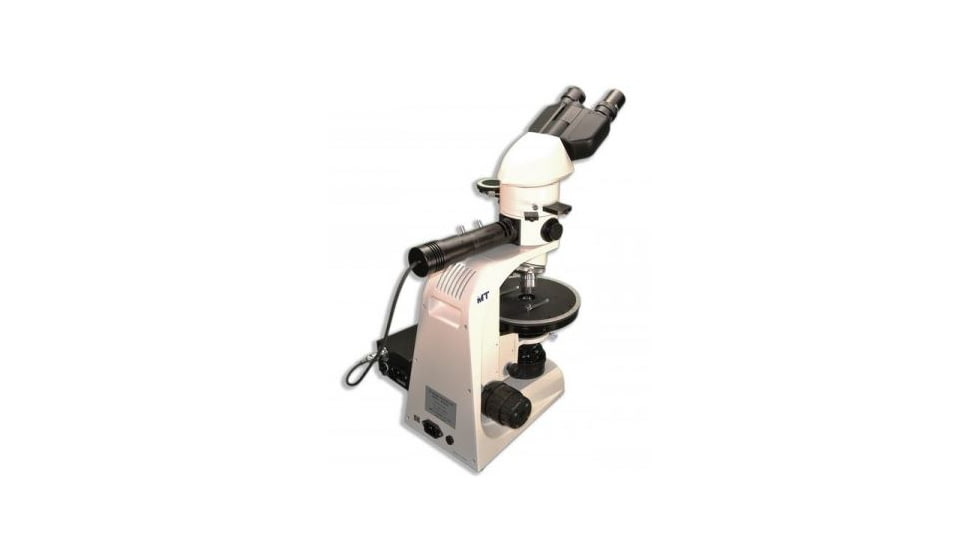

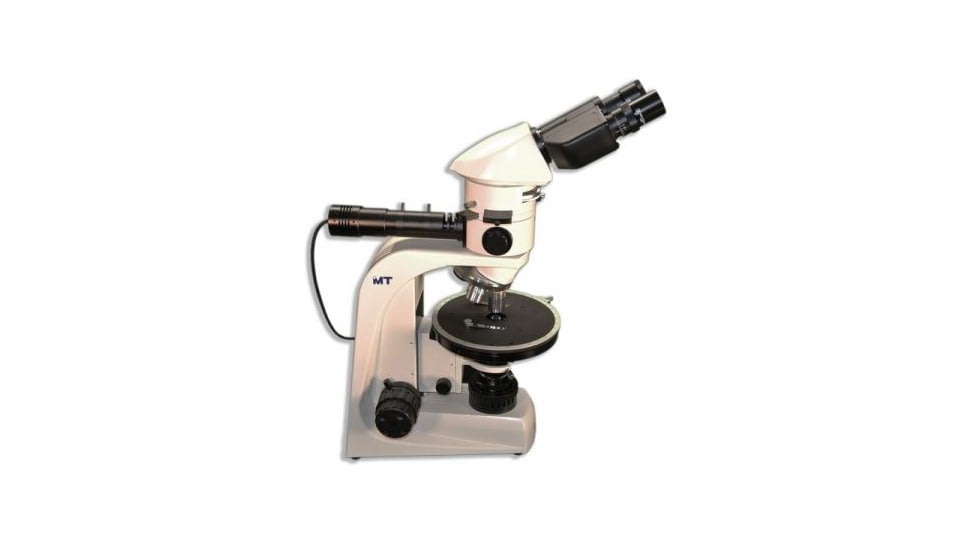

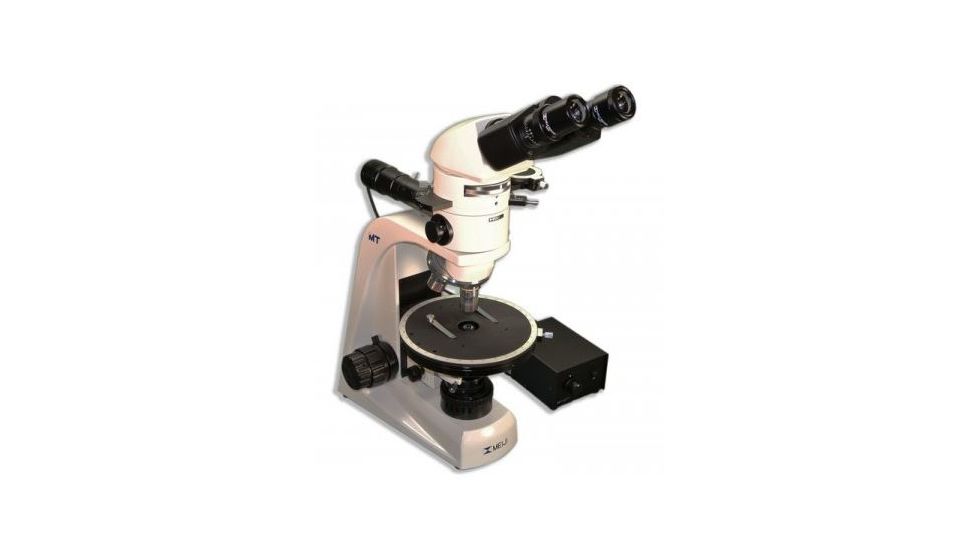

Meiji Techno LED Binocular Polarizing Microscope,MT9920L, BEIGE, LARGE MT9920L
4 of 32 images

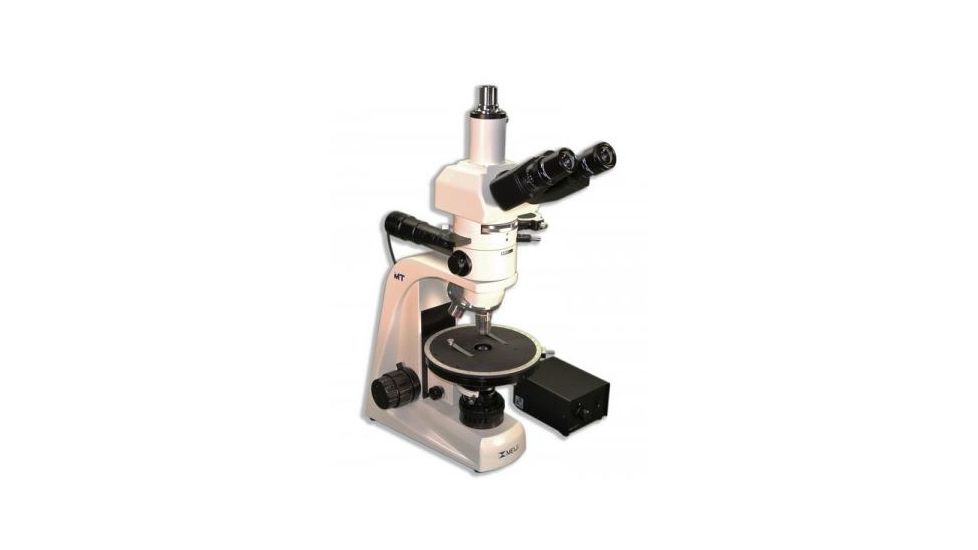

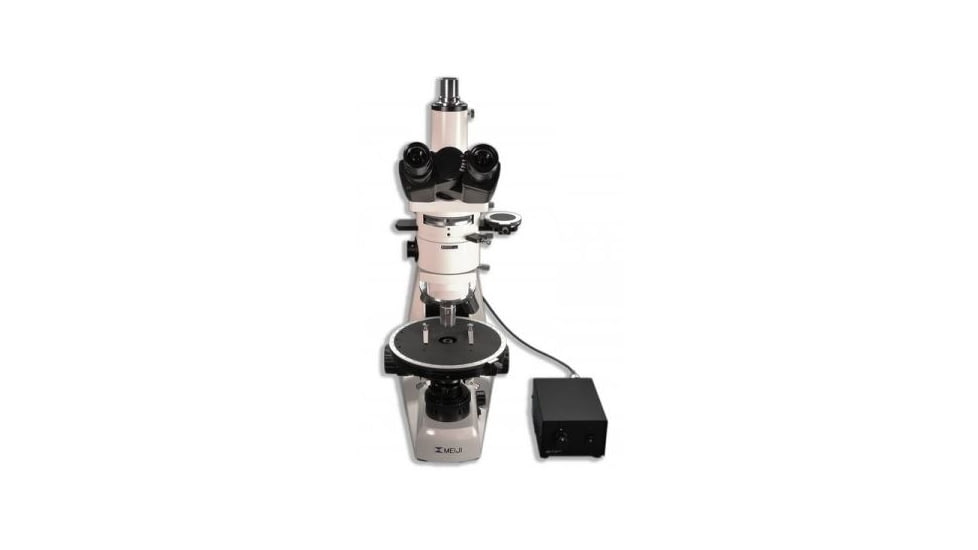

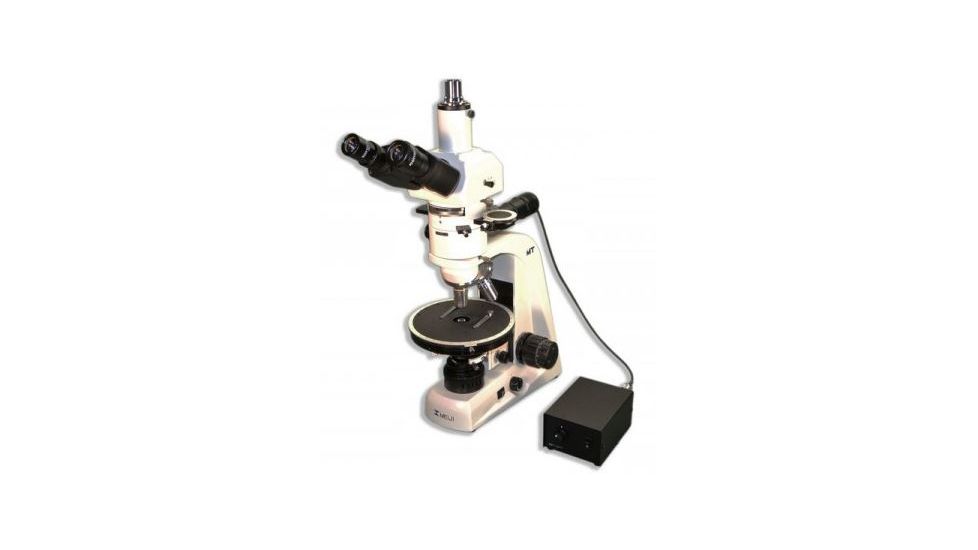

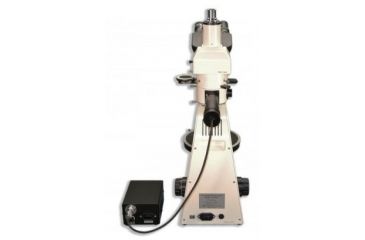

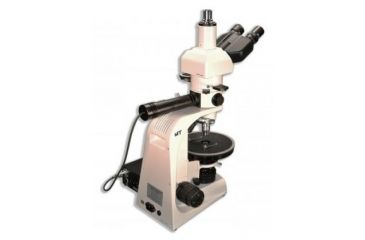

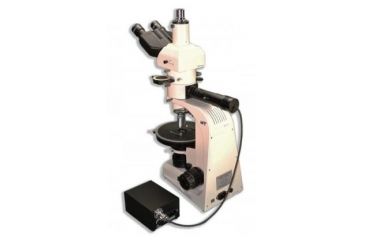

Meiji Techno LED Trinocular Polarizing Microscope,MT9930L, BEIGE, LARGE MT9930L
5 of 32 images

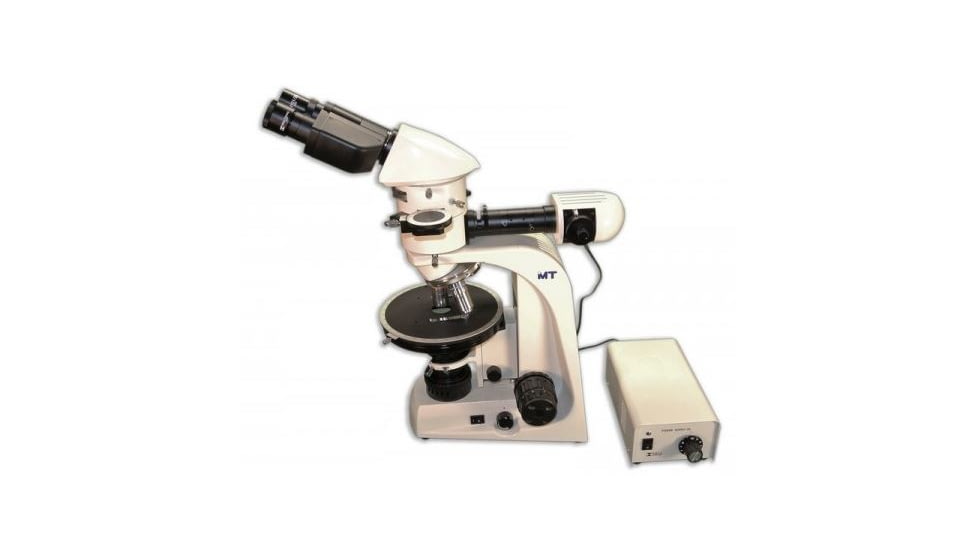

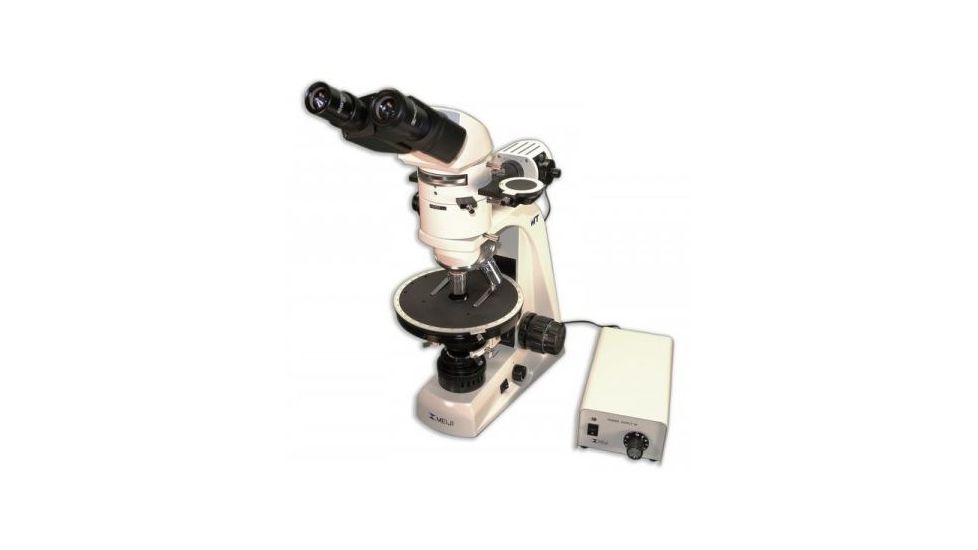

Meiji Techno Halogen Binocular Polarizing Microscope, BEIGE, LARGE MT9920
6 of 32 images

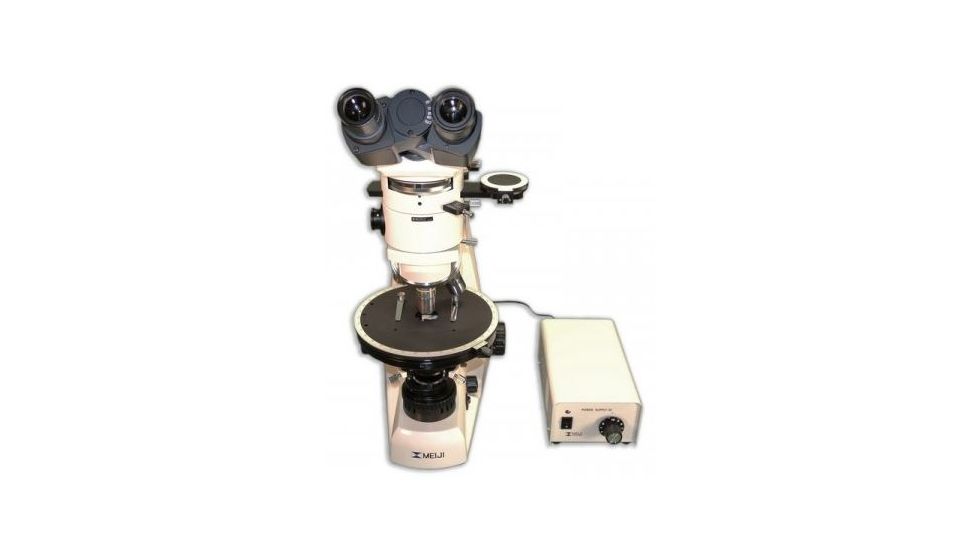

Meiji Techno Halogen Binocular Polarizing Microscope, BEIGE, LARGE MT9920
7 of 32 images

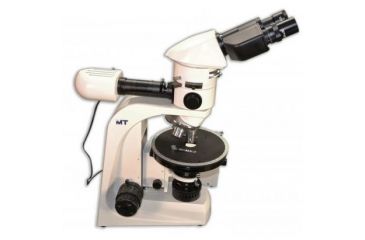

Meiji Techno Halogen Binocular Polarizing Microscope, BEIGE, LARGE MT9920
8 of 32 images
Meiji Techno Halogen Binocular Polarizing Microscope, BEIGE, LARGE MT9920
9 of 32 images
Meiji Techno Halogen Binocular Polarizing Microscope, BEIGE, LARGE MT9920
10 of 32 images
Meiji Techno Halogen Binocular Polarizing Microscope, BEIGE, LARGE MT9920
11 of 32 images

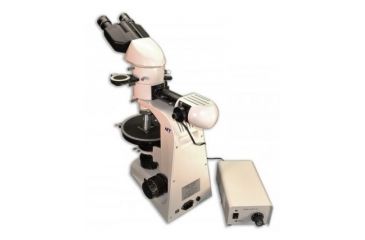

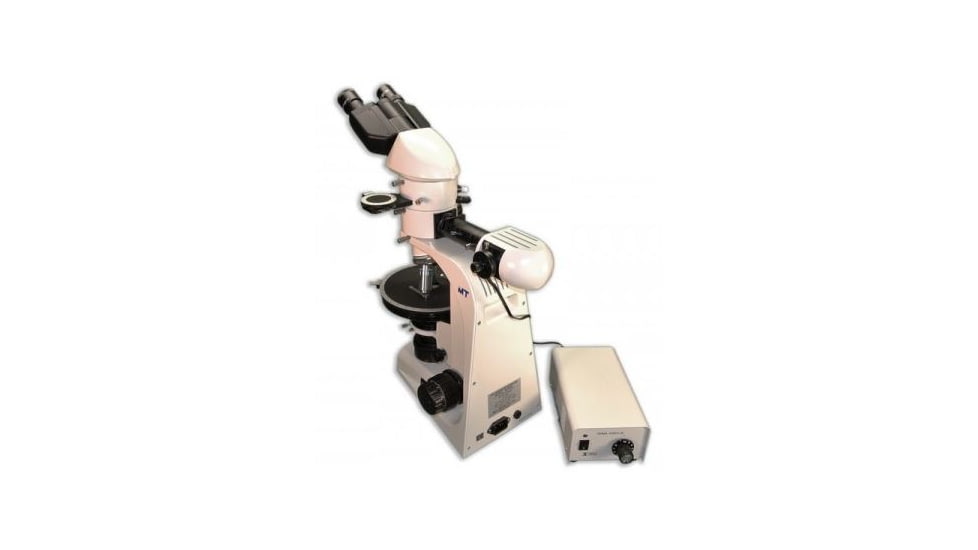

Meiji Techno Halogen Binocular Polarizing Microscope, BEIGE, LARGE MT9920
12 of 32 images

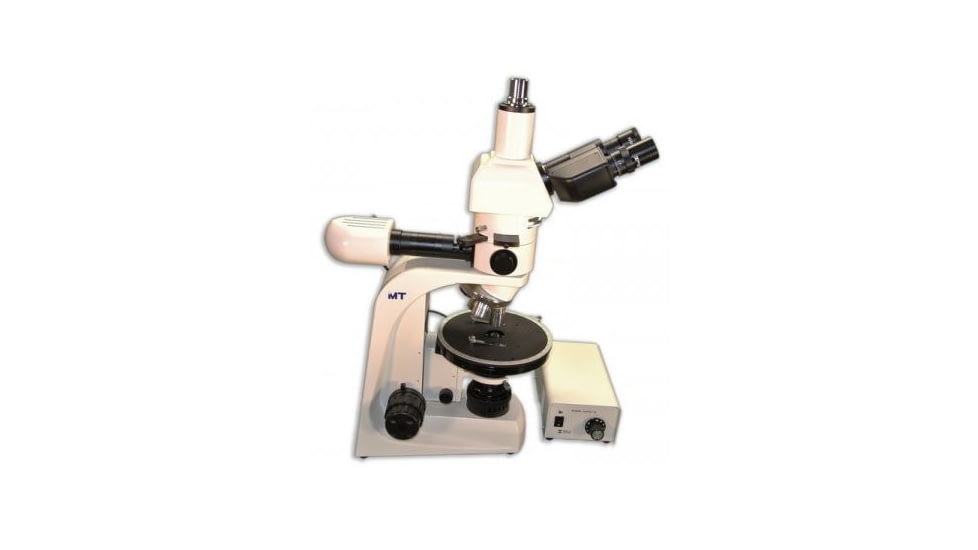

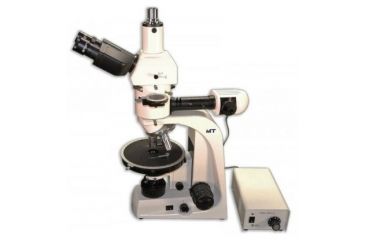

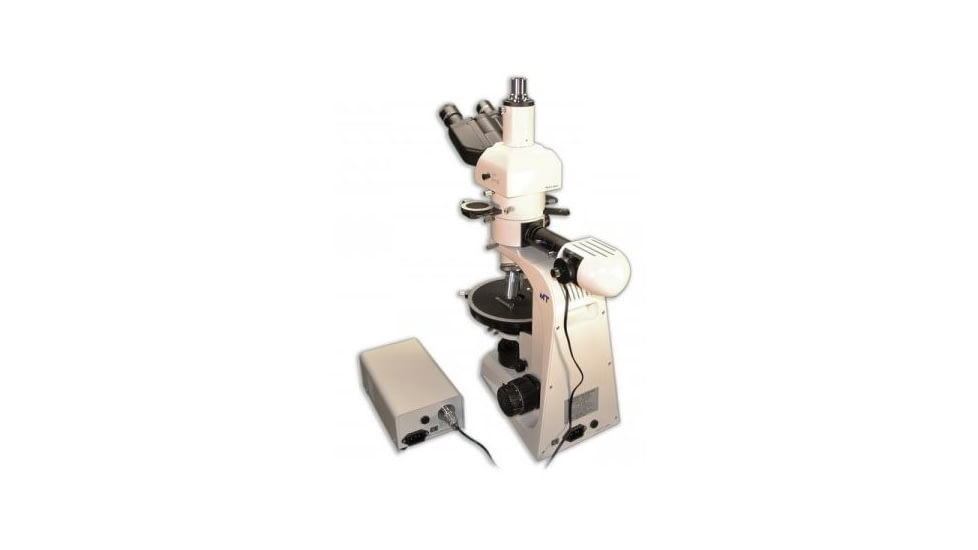

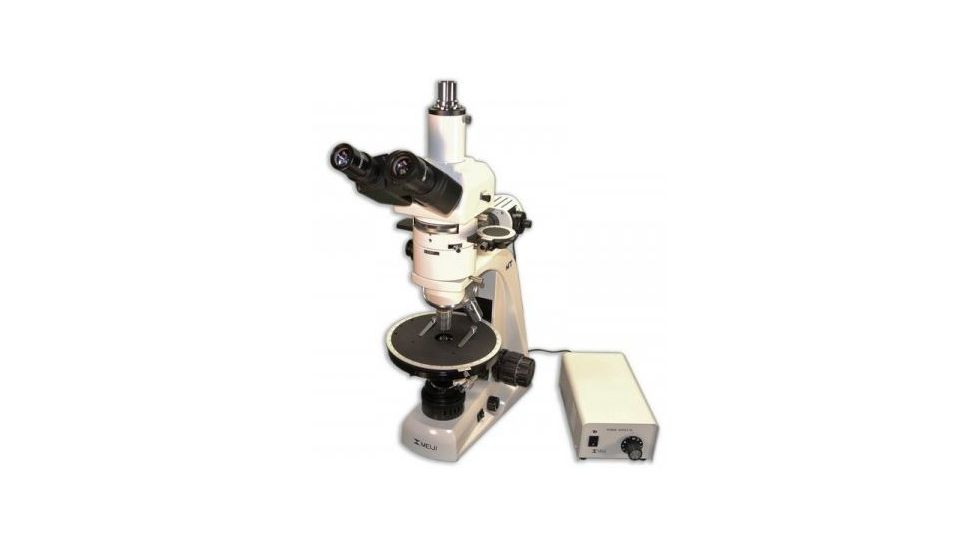

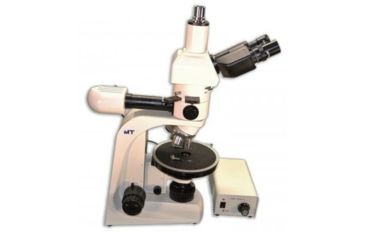

Meiji Techno Halogen Trinocular Polarizing Microscope, BEIGE, LARGE MT9930
13 of 32 images
Meiji Techno Halogen Trinocular Polarizing Microscope, BEIGE, LARGE MT9930
14 of 32 images
Meiji Techno Halogen Trinocular Polarizing Microscope, BEIGE, LARGE MT9930
15 of 32 images
Meiji Techno Halogen Trinocular Polarizing Microscope, BEIGE, LARGE MT9930
16 of 32 images
Meiji Techno Halogen Trinocular Polarizing Microscope, BEIGE, LARGE MT9930
17 of 32 images
Meiji Techno Halogen Trinocular Polarizing Microscope, BEIGE, LARGE MT9930
18 of 32 images

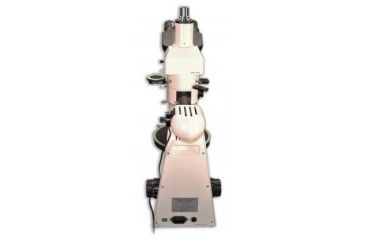

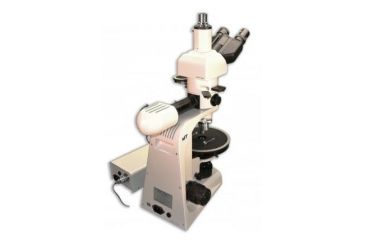

Meiji Techno Halogen Trinocular Polarizing Microscope, BEIGE, LARGE MT9930
19 of 32 images

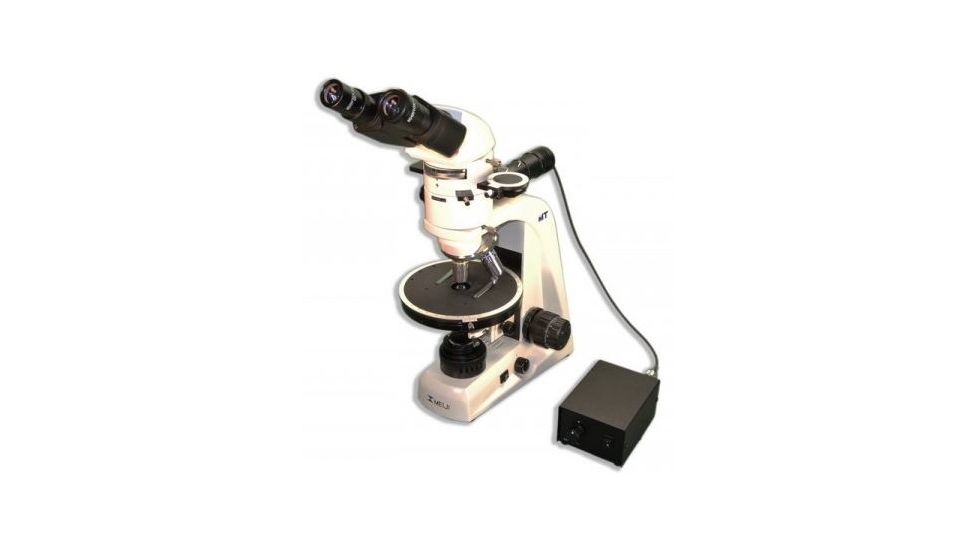

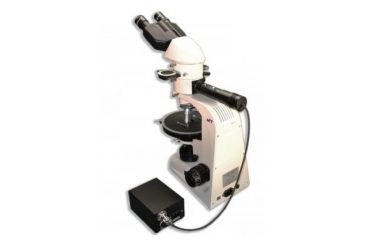

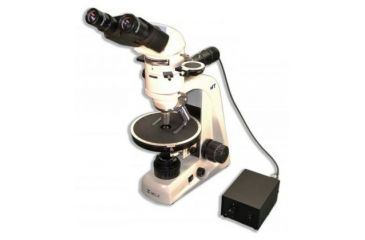

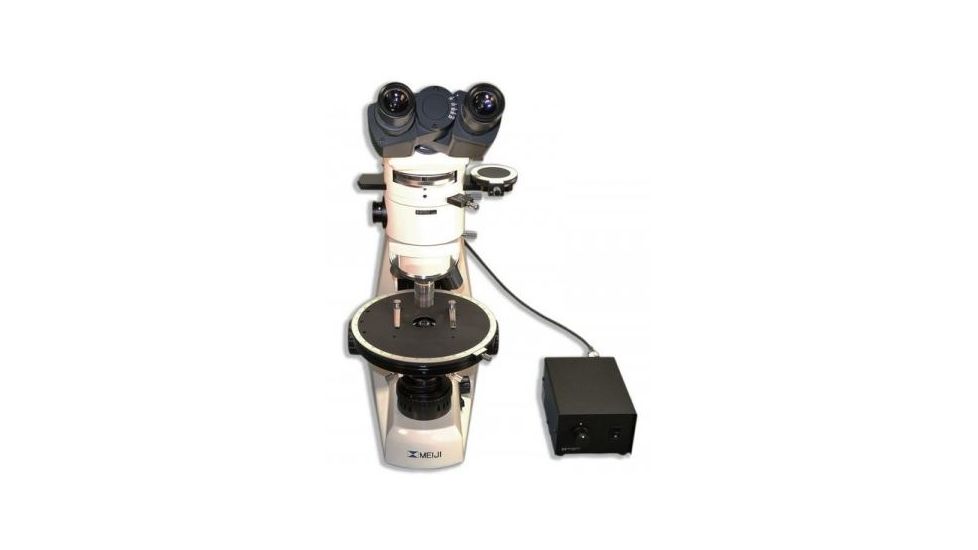

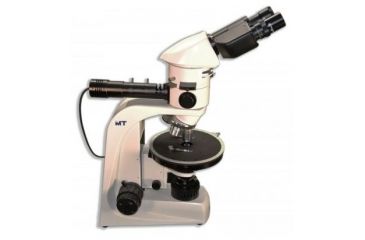

Meiji Techno LED Binocular Polarizing Microscope,MT9920L, BEIGE, LARGE MT9920L
20 of 32 images

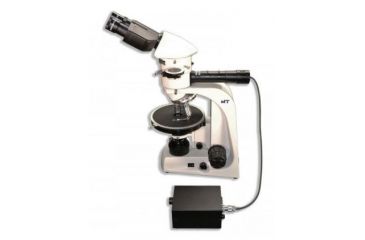

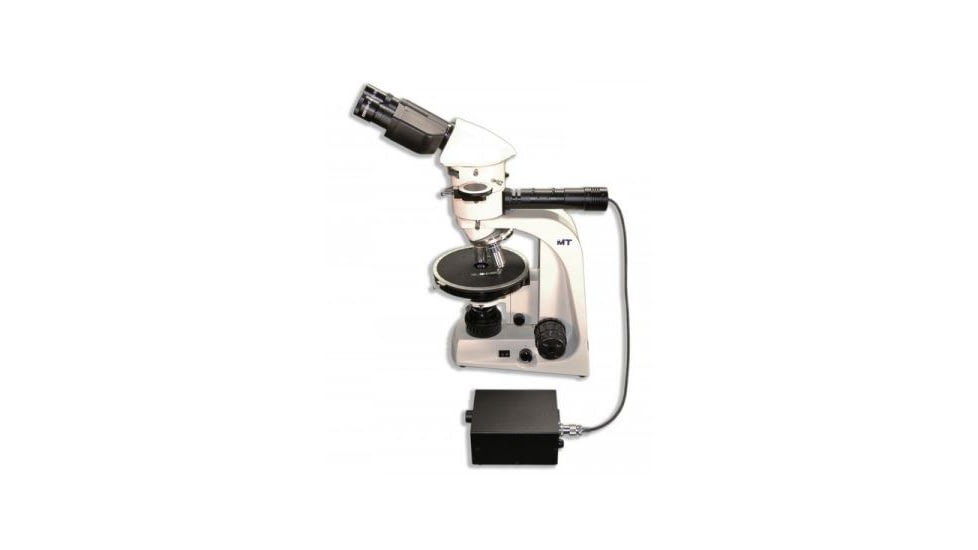

Meiji Techno LED Binocular Polarizing Microscope,MT9920L, BEIGE, LARGE MT9920L
21 of 32 images

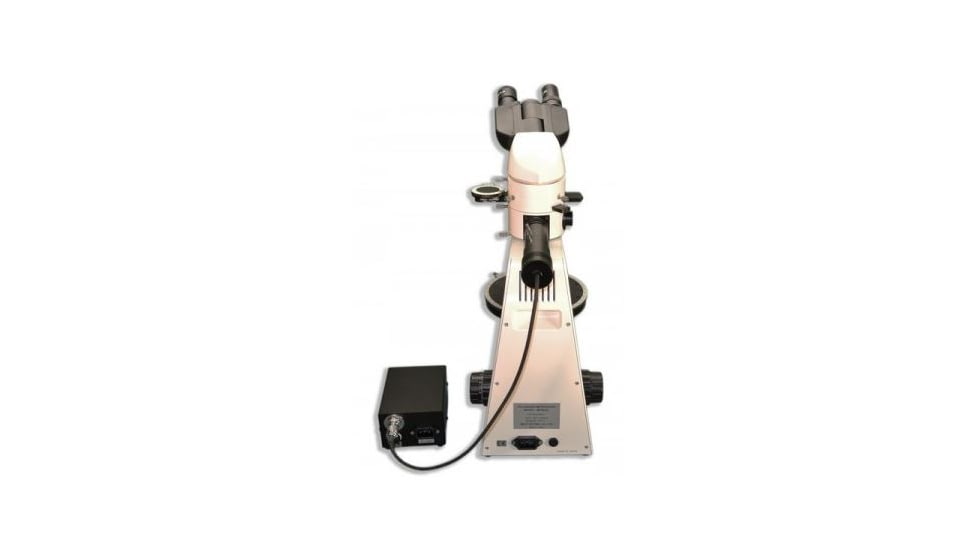

Meiji Techno LED Binocular Polarizing Microscope,MT9920L, BEIGE, LARGE MT9920L
22 of 32 images
Meiji Techno LED Binocular Polarizing Microscope,MT9920L, BEIGE, LARGE MT9920L
23 of 32 images
Meiji Techno LED Binocular Polarizing Microscope,MT9920L, BEIGE, LARGE MT9920L
24 of 32 images

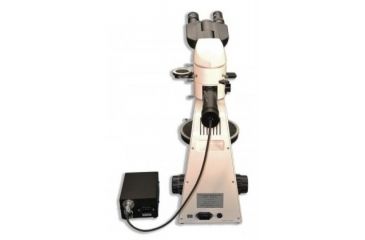

Meiji Techno LED Binocular Polarizing Microscope,MT9920L, BEIGE, LARGE MT9920L
25 of 32 images
Meiji Techno LED Binocular Polarizing Microscope,MT9920L, BEIGE, LARGE MT9920L
26 of 32 images

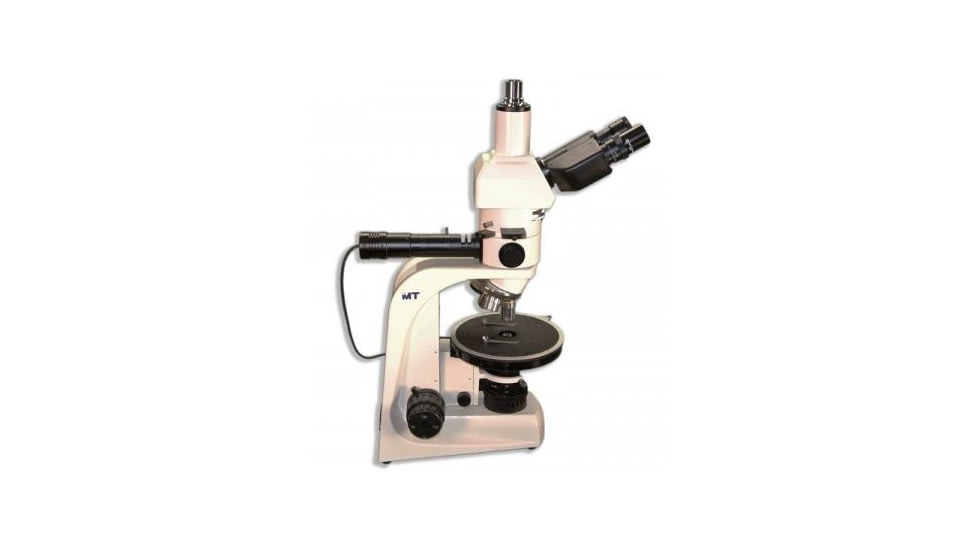

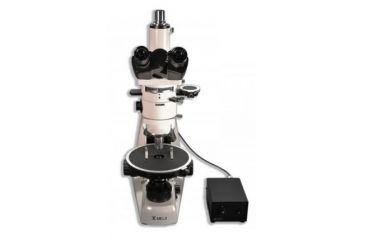

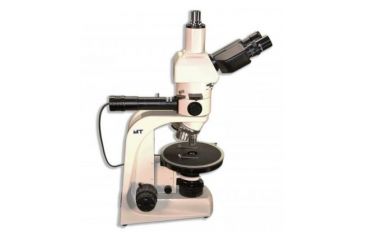

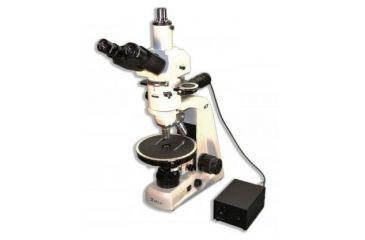

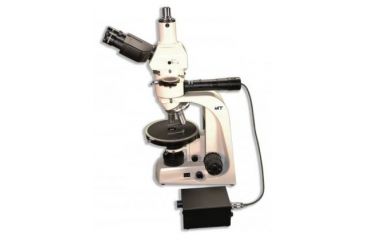

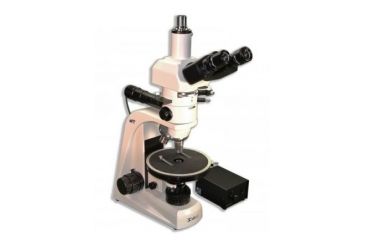

Meiji Techno LED Trinocular Polarizing Microscope,MT9930L, BEIGE, LARGE MT9930L
27 of 32 images

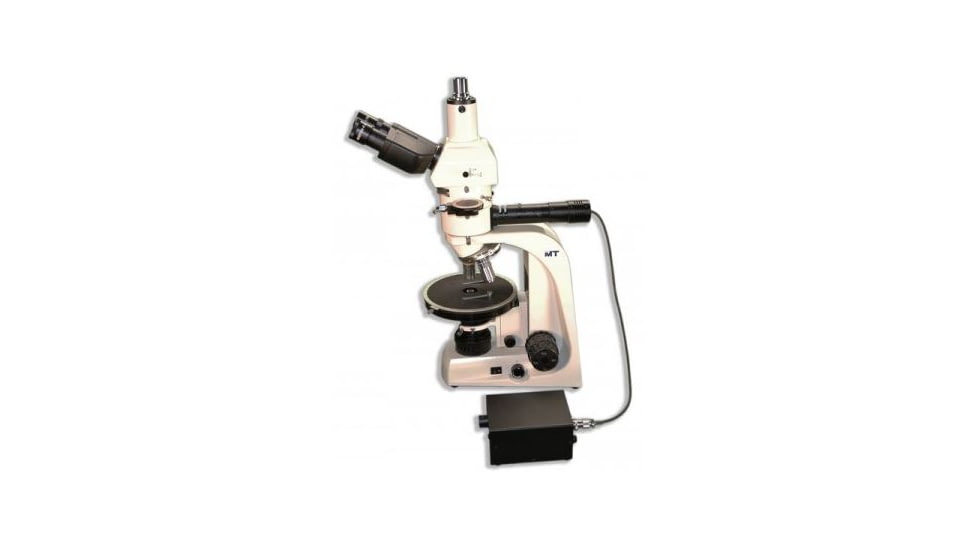

Meiji Techno LED Trinocular Polarizing Microscope,MT9930L, BEIGE, LARGE MT9930L
28 of 32 images
Meiji Techno LED Trinocular Polarizing Microscope,MT9930L, BEIGE, LARGE MT9930L
29 of 32 images
Meiji Techno LED Trinocular Polarizing Microscope,MT9930L, BEIGE, LARGE MT9930L
30 of 32 images
Meiji Techno LED Trinocular Polarizing Microscope,MT9930L, BEIGE, LARGE MT9930L
31 of 32 images

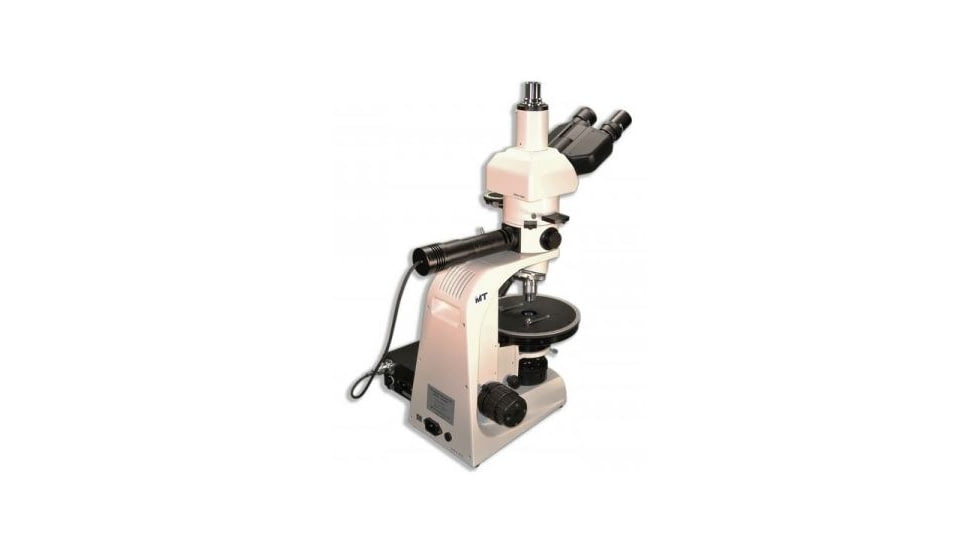

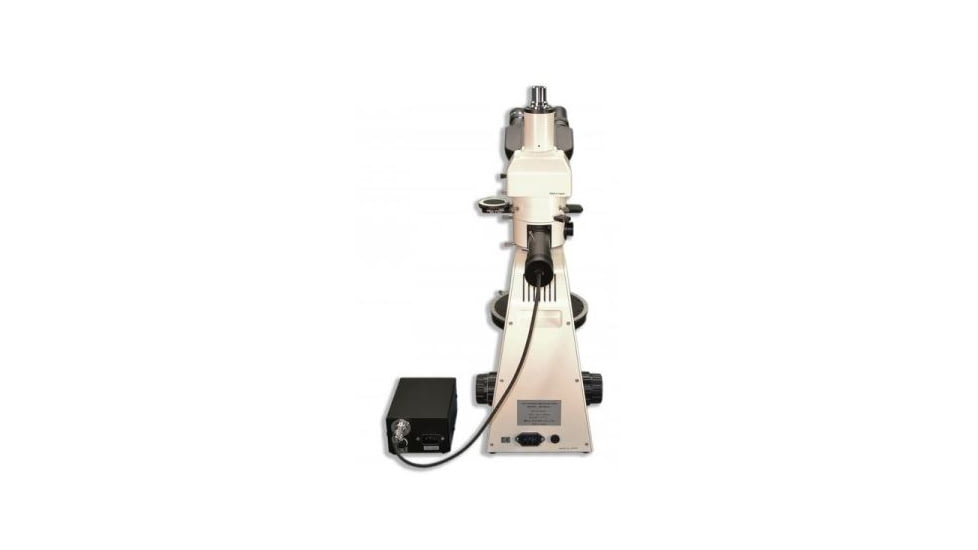

Meiji Techno LED Trinocular Polarizing Microscope,MT9930L, BEIGE, LARGE MT9930L
32 of 32 images
Meiji Techno LED Trinocular Polarizing Microscope,MT9930L, BEIGE, LARGE MT9930L
Tap Tap to Zoom
4 Models Available
Head
All
Illumination Type
All
Search
List: $9,160.00Save 15%
$7,786.00
Receive $155.72 SP Bucks
List: $9,280.00Save 15%
$7,888.00
Receive $157.76 SP Bucks
List: $9,330.00Save 15%
$7,930.50
Receive $158.61 SP Bucks
List: $9,450.00Save 15%
$8,032.50
Receive $160.65 SP Bucks
Product Info for Meiji Techno Polarizing Microscope Incident and Transmitted Light
Meiji Techno Polarizing Microscope Incident and Transmitted Light belongs to our big collection of Meiji Techno Microscopes. Make sure to look into the complete variety of Microscopes from Meiji Techno which we have at everyday discount prices. Browse our full product choice for the gear and merchandise you want to tackle the job at hand.
Specifications for Meiji Techno Polarizing Modular Microscope, Incident and Transmitted Light:
| Weight: | 29 lbs (8kg) |
| Footprint: | 263mm deep, 176mm wide |
| Color: | Beige |
Features of Meiji Techno Polarizing Versatile Microscope, Incident and Transmitted Light:
- Focusable Bertrand lens ( Factory installed)
- Rotatable Analyzer with 180 degree graduations
- Combination First order red compensating plate and 1/4 Wave-length test plate and Brightfield spot with a slider locking pin standard in all models
- Newly designed Strain free Abbe Condenser 1.25 N.A. with a swing out top lens and built in iris in a dovetail mount is easy to change and operates and tracks very smoothly and predictably facilitating accurate iris control with improved usability
- Polarizer in a Swing in-out click/clamp mount, fully rotatable 360 degrees with click stop at 0 degrees and 90 degrees
- Super Widefield compensating KHW10X, focusing eyepiece with cross-line and guide pin, F.N. 20 are standard with 21mm reticle mount
- Ergonomic Siedentopf type binocular or Trinocular viewing heads are standard
- Smooth operating ball bearing centerable nosepiece provides effortless objective changes
- Clear Observation Images with Newly improved Infinity Corrected Objectives System (ICOS)
- Available accessories suited for high-level Polarization Observation
- Intermediate tube with built in analyzer and compensator slot and rotatable polarizer in a swing-out mount
- Ceramic coated, 175mm diameter, ball bearing, circular rotating stage graduated 360 degrees, with 1 degree increments and vernier reading to 0.1 degrees. Stage equipped with easy to maintain ceramic coating allows for smooth exchange of specimens while offering maximum protection to the stage surface from abrasions and wear over time. The super hard coating is durable and rugged enough to provide years of demanding use.
- Focus tension adjustment and safety Auto-focus stage stop lever
- Choice of Bright Lambertian designed LED illumination or 30 watt Koehler Halogen illumination allowing observation of clear images of polarization with automatic voltage sensing power supply 110V-240V.
- Trinocular models compatible with Digital, CCD, CMOS, Analog Meiji Techno adapters for photomicrography
- Cast Aluminum Alloy construction with chemical resistant finish
- Triangular designed frame for maximum ergonomics greatly lessens user fatigue during hours of extended observation
- Ideal tool for isotropic and anisotropic materials in advanced laboratory applications
- Limited Lifetime Warranty
Package Contents:
- Meiji Techno Polarizing Microscope, Incident and Transmitted Light
- AC electric cord
- Dust cover
- Manual
