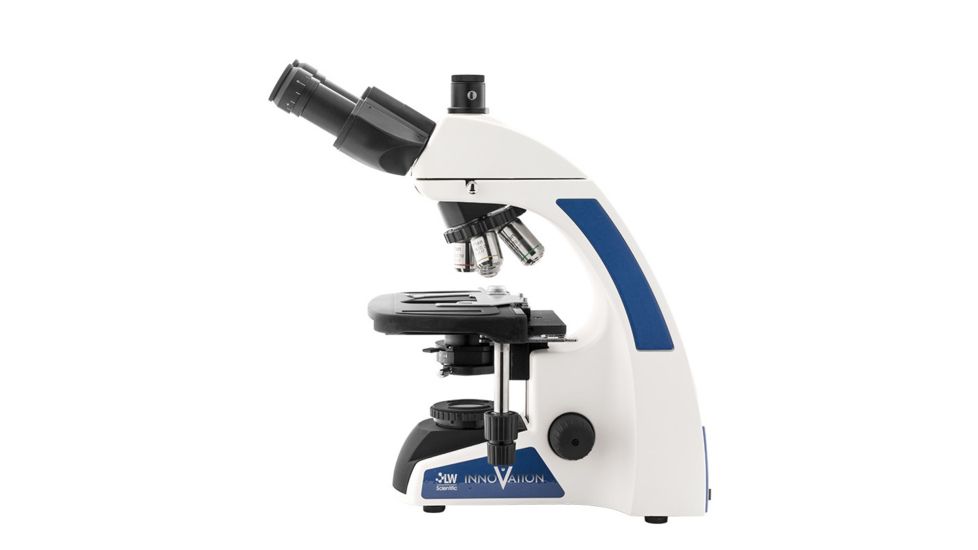

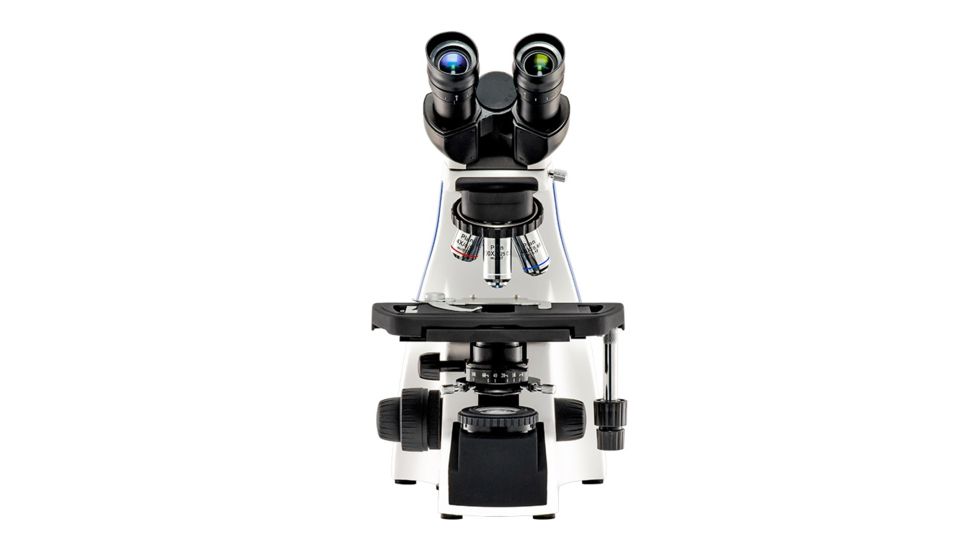

LW Scientific Innovation Infinity Biological Microscope, Plan, Binocular, 4 Objectives 4x-10x-40x-100x, INM-B04A-IPL3
2 of 6 images
LW Scientific Innovation Infinity Biological Microscope, Plan, Binocular, 4 Objectives 4x-10x-40x-100x, INM-B04A-IPL3
3 of 6 images
LW Scientific Innovation Infinity Biological Microscope, Plan, Binocular, 4 Objectives 4x-10x-40x-100x, INM-B04A-IPL3
4 of 6 images
LW Scientific Innovation Infinity Biological Microscope, Plan, Binocular, 4 Objectives 4x-10x-40x-100x, INM-B04A-IPL3
5 of 6 images
LW Scientific Innovation Infinity Biological Microscope, Plan, Binocular, 4 Objectives 4x-10x-40x-100x, INM-B04A-IPL3
6 of 6 images
LW Scientific Innovation Infinity Biological Microscope, Plan, Binocular, 4 Objectives 4x-10x-40x-100x, INM-B04A-IPL3
Tap Tap to Zoom
4 Models Available
Magnification
All
Head
All
Search
List: $2,550.00Save 22%
$1,999.00
SP Bucks$39.98
List: $2,850.00Save 24%
$2,169.00
SP Bucks$43.38
List: $2,900.00Save 22%
$2,259.00
SP Bucks$45.18
List: $3,200.00Save 23%
$2,479.00
SP Bucks$49.58
Product Info for LW Scientific Innovation Biological Microscope w/ LED Illumination
LW Scientific Innovation Biological Microscope w/ LED Illumination is part of our larger variety of LW Scientific Microscopes. You should definitely browse the full selection of Microscopes from LW Scientific that we present at everyday discounted prices. Browse our full product choice for the tools and merchandise you need to tackle the job at hand.
Specifications for LW Scientific Innovation Biological Microscope w/ LED Illumination:
| Manufacturer: | LW Scientific |
| Microscope Type: | Biological |
| Included Accessories: | Power cord, Objectives, Microscope |
| Magnification: | 100 x, 40 x, 4 x, 10 x |
| Illumination Type: | LED |
| Magnification Type: | Fixed |
Features of LW Scientific Innovation Biological Infinity Microscope LED:
-
HEAD
- Binocular or Trinocular (Seidentopf)
- Digital cameras available
- Diopter adjustment +/-5 (built into each eyepieces)
- Inclined 30°, rotates 360°
- 10X/22 Super Widefield High Eyepoint eyepieces
- (15X/16 eyepieces available)
- 30mm eyetube
- Interpupillary distance range 48-75mm
-
NOSE PIECE
- Reverse quadruple or quintuple nosepiece
- Multiple ball bearing mounted
-

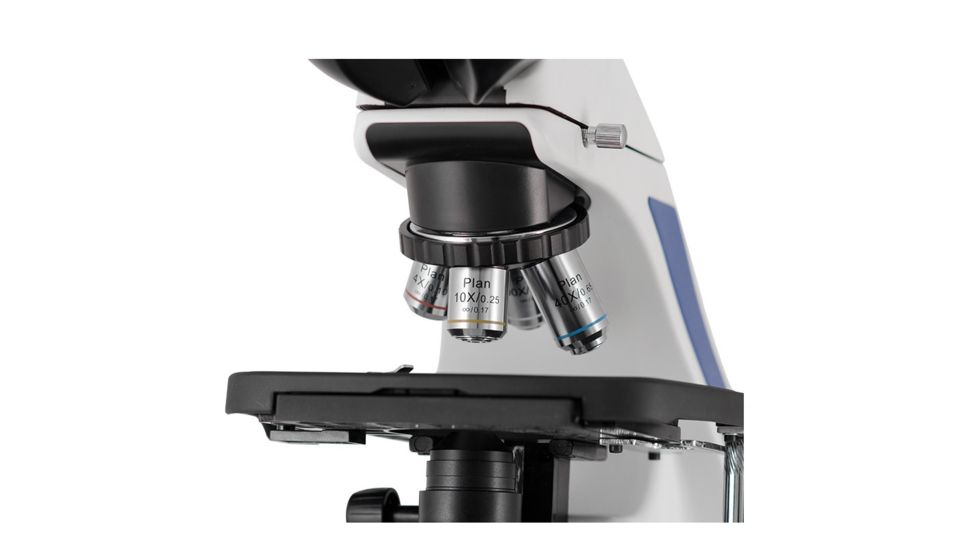

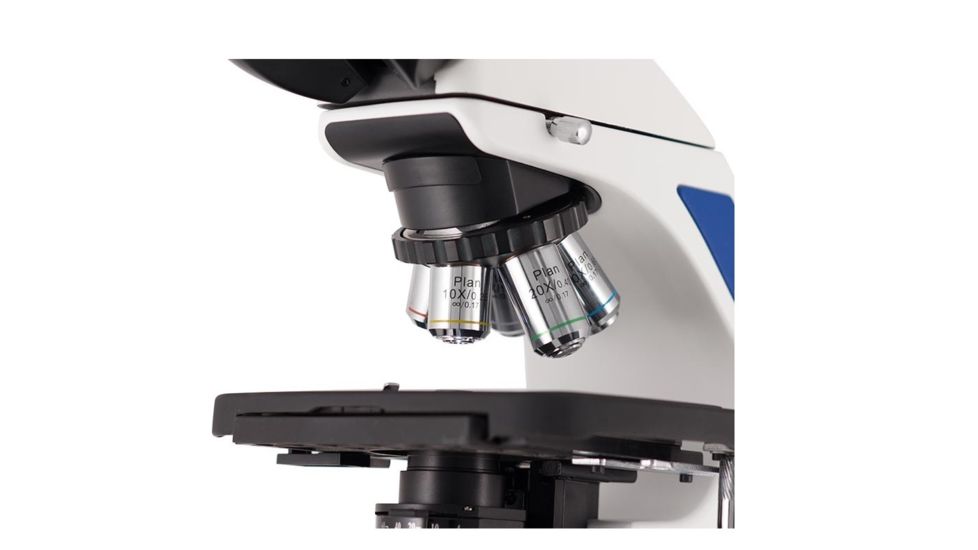

OBJECTIVES
- Infinity High Contrast Plan objectives
- 4X, 10X, 40XR, 100XR (oil) with the quadruple nosepiece
- 4X, 10X, 20X, 40XR, 100XR (oil) with the quintuple nosepiece
- Anti-fungal, parfocal, parcentric, color-coded
-

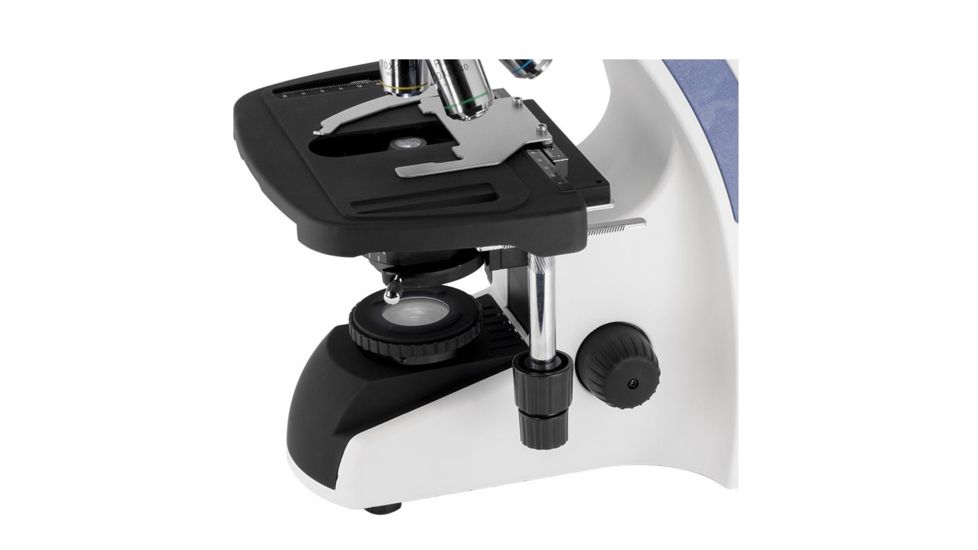

STAGE
- Double Layer Mechanical Stage (216mm X 150mm)
- Graphite-Coated Surface
- Coaxial drive controls, rackless
- Range of traverse: 75mm x 55mm
- Slow-close hydraulic slide finger
-
FOCUS
- Coarse adjustment: range of 18mm
- Fine adjustment: graduation of 0.001mm
- Tension control knob
-

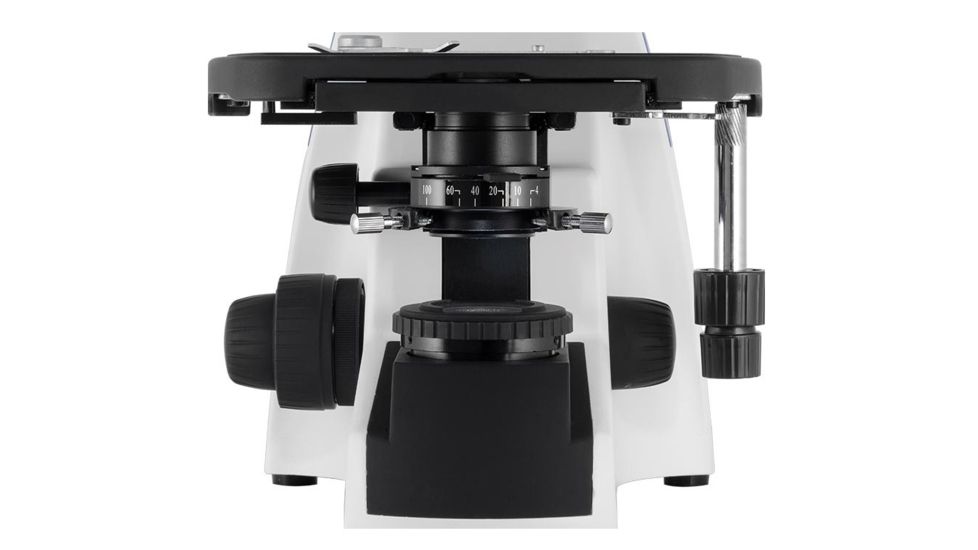

ILLUMINATION
- Movable Abbe condenser, NA 1.25
- Iris Diaphragm
- LED provides 50,000 hours of light and consistent even brightness
- Variable light adjustment
- Simple Kohler illumination
- 90-240V / 50-60Hz automatic-switching power input
-
OPTIONS
- 50x oil objective
- 60x dry objective
- Phase contrast
- Darkfield condenser (dry)
- Simple polarizer,
- WF 16X/15mm eyepieces
-
WEIGHT AND DIMENSIONS
- Height: 16 in (406 mm)
- Length: 15 in (381 mm)
- Width: 8.5 in (216 mm)
- Weight: 14.2 lbs (6.4 kg)
-
PACKAGE DIMENSIONS
- 21 lbs (9.5 kg)
- 21 in x 16 in 13 in (533 mm x 406 mm x 330mm)
-
OPTIONAL HARD CARRY CASE
- 15 lbs (6.8 kg)
- 22 in x 18 in 12 in (559 mm x 457 mm x 305mm)
Package Contents:
- LW Scientific Innovation Biological Microscope With LED Illumination
- Pair of Low Profile Eyeguard
- Pair of High Profile Eyeguards
- Dust Cover
- Manual
