Flir Systems AN/PVS-22 T105 Universal Night Sight 000411
1 of 2 images

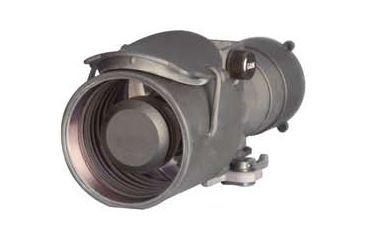

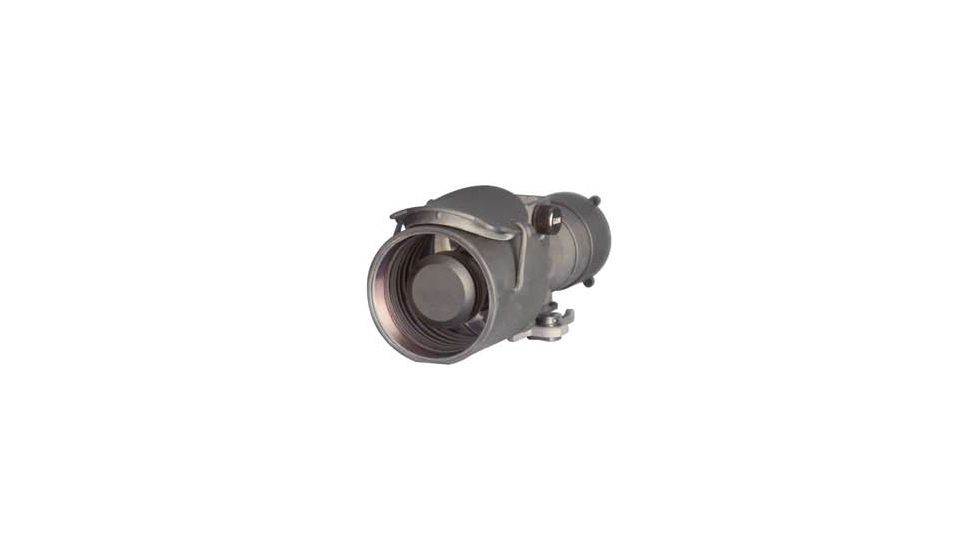

US Night Vision AN/PVS-22 UNS Universal Night Sight 000411
2 of 2 images

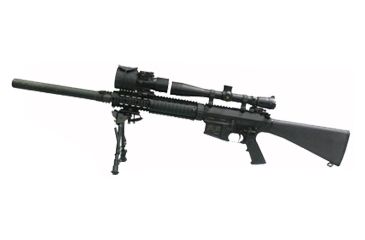

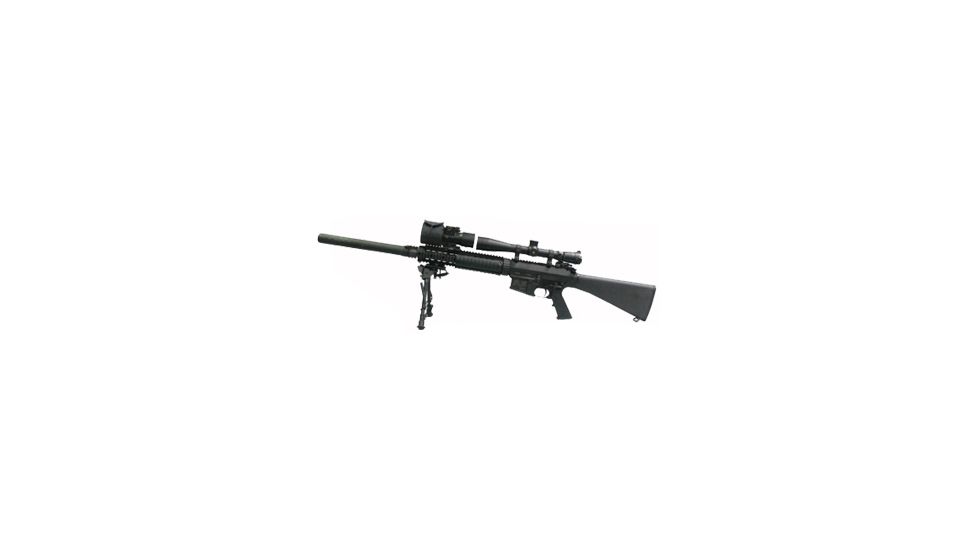

AN/PVS-22 mounts in front of any Daytime Optic
Tap Tap to Zoom
Product Discontinued by Manufacturer
Flir Systems AN/PVS-22 T105 Universal Night Sight 000411 has been discontinued by FLIR Systems and is no longer available. Our product experts have helped us select these available replacements below.
Product Info for Flir Systems AN/PVS-22 T105 Universal Night Sight 000411
Flir Systems AN/PVS-22 T105 Universal Night Sight 000411 is part of our massive collection of . Make sure you look at complete collection of from FLIR Systems which we present at everyday discount prices. Browse our full product selection for the tools and products you want to tackle the job at hand.
Specifications for Flir Systems AN/PVS-22 Universal Night Sight 000411:
| System Sensor: | Pinnacle |
| Intensifier Type: | Generation 3 Auto-Gated |
| Intensifier Gain: | 75,000 max |
| Accuracy: | Within 1 MOA |
| Retention: | Permanent |
| Repeatability: | Within 0.5 MOA |
| System Magnification: | Unity |
| Optimum Range: | 1X - 12X |
| Field of View: | 13 Degrees |
| Focus Range: | 10 meters - infinity |
| Focal Length: | 68 mm |
| f/number: | f/1.12 |
| Weight: | 31 oz. |
| Length: | 7.08" |
| Controls: | ON/OFF/GAIN |
| Focus: | Adjustable |
| Battery: | (2) AA Batteries |
| Battery Life: | 40 hours |
| Mount: | MIL-STD 1913 |
| Submersion: | 66 ft / 2 hrs |
Features of US NightVision AN/PVS-22 Universal Night Sight UNS:
- Much smaller and lighter than units of similar performance
- Uses Mil Spec Pinnacle image intensifiers
- Installs and removes without requiring boresight adjustment and without affecting boresight
- 1X design maintains boresight despite normal misalignments due to mount position errors
- Installs directly on front universal rail: Needs no additional mount on top of day scope
- Uses small, high-resolution optics to take full advantage of the image tube resolution
- Does not alter sighting centerline (parallax is unchanged from dayscope)
- Small enough to fit in front of any day optic
- Equivalent in performance to much larger units
- Factory aligned to permanently maintain boresight without adjustment
- Maintains boresight through focus
- No beam-splitter or folded optics to go out of alignment
- Could be used standalone at unity magnification with up to 8" eye relief at full field
- 40 mm exit pupil fills Rifle Scope aperture, maintaining full pupil diameter at the eye
- Fast f/1.15 catadioptric objective
Package Contents:
- US Night Vision AN/PVS-22 (UNS) Universal Night Sight 000411
- Carry Case
- Data Sheet
- Instruction Card
- 2 AA Batteries
