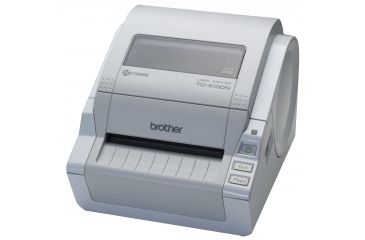

Brother Mobile Solutions TD-4100N Desktop Barcode Network Printer TD4100N
1 of 3 images

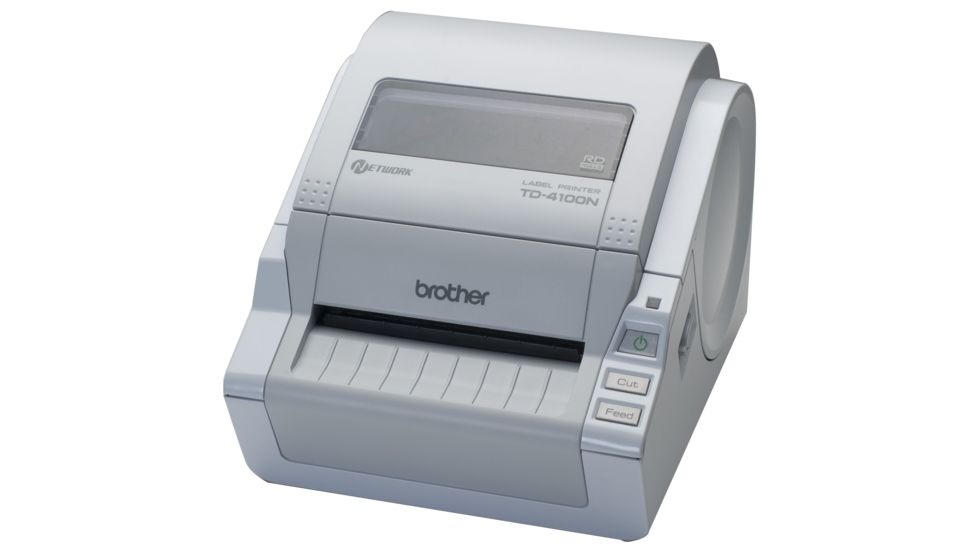

Brother Mobile Solutions TD-4100N Desktop Barcode Network Printer TD4100N
2 of 3 images

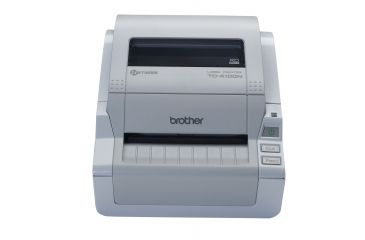

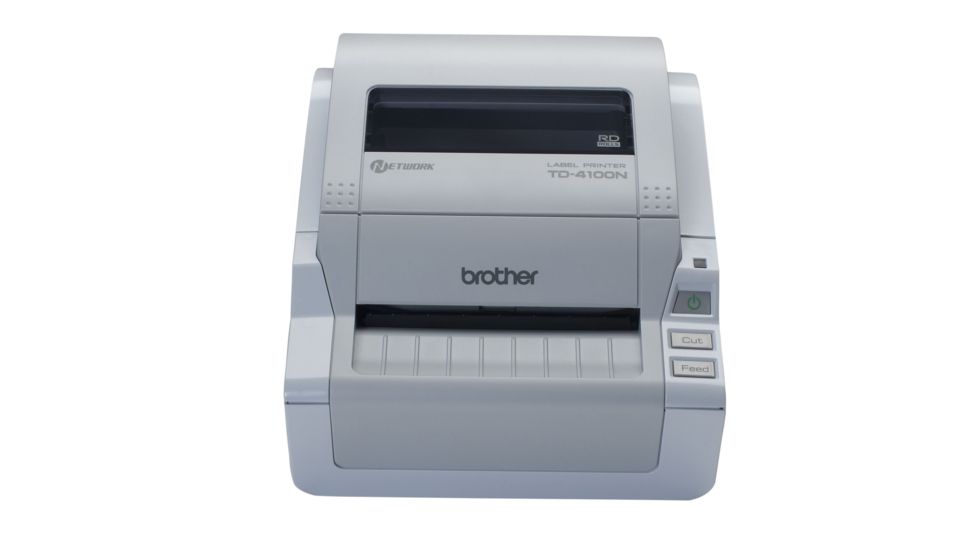

Brother Mobile Solutions TD-4100N Desktop Barcode Network Printer TD4100N Front View
3 of 3 images

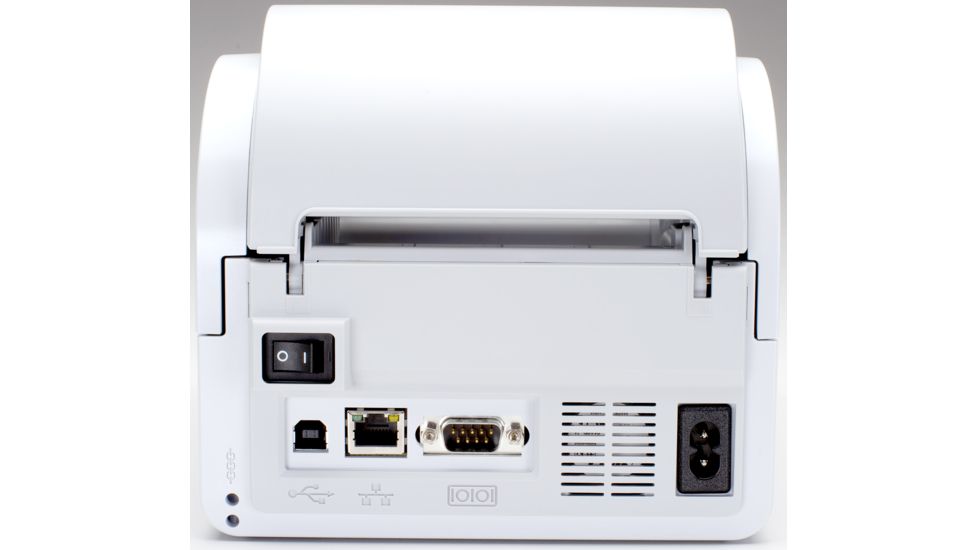

Brother Mobile Solutions TD-4100N Desktop Barcode Network Printer TD4100N Back View
Tap Tap to Zoom
Product Discontinued by Manufacturer
Brother Mobile Solutions TD-4100N Desktop Barcode Network Printer has been discontinued by Brother Mobile Solutions and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Printers & Scanners yourself to try and find the perfect replacement for you!
Product Info for Brother Mobile Solutions TD-4100N Desktop Barcode Network Printer
Brother Mobile Solutions TD-4100N Desktop Barcode Network Printer is part of our large collection of Brother Mobile Solutions Printers & Scanners. You should definitely have a look at the entire variety of Printers & Scanners from Brother Mobile Solutions that we offer at everyday low prices. Browse our full product selection for the gear and merchandise you need to tackle the task at hand.
Specifications for Brother Mobile Solution Desktop Barcode Network Printer TD41-00N:
| Model Type: | Industrial Desktop Network Printer |
| Housing Color: | Gray/White |
| Maximum Media Width: | 4.13" (105 mm) |
| Maximum Printing Speed: | 4.29 ips (109 mm/sec) |
| Maximum Print Resolution: | 300 x 300 dpi (12 x 12 dots/mm) |
| Printing Method: | Direct Thermal |
| Operation Modes: | PC Connected (Dumb Printer, Template), Connected to Host Peripheral (Serial Interface) |
| Cutter: | Automatic (Built-In) |
| Cutter Life: | Up to 300,000 cuts (liner only), Up to 150,000 cuts (label and liner) |
| Maximum Print Width (inches): | 3.88" (98.6 mm) |
| Minimum Print Length: | 1" (25.4 mm) |
| Media Sensor & Position: | Fixed Transmissive, Edge |
| Media Types: | Drop-In Roll or Fanfold (rear slot) Continuous Label or Paper, Die Cut Labels, Tag Stock |
| Maximum Roll Size (outside diameter): | 4" (101.6 mm) |
| Media Width: | 0.7" - 4.0" (19 mm - 101.6 mm) |
| Media Thickness - With Adhesive: | 0.003" - 0.007" (0.076mm-0.178mm) |
| Media Thickness - Without Adhesive: | 0.003" - 0.006" (0.076mm-0.153mm) |
| Control Panel: | On/Off, Feed, Cut |
| Status Indicator: | LED (3 Colors) |
| Printer Emulation: | Raster, ESC P, Template |
| Internal Fonts: | ESC P - Helsinki, Letter Gothic Template (Bitmap & Outline) - Helsinki, Brussels, Letter Gothic |
| Internal Font Sizes: | ESC P - 21, 28, 44, 56, 88, 120 dots Template (Bitmap) - 21, 28 dots Template (Outline) - 35 - 380 dots (20 sizes) |
| Internal Font Styles: | ESC P - Bold, Italic, Underline Template - Bold, Italic, Vertical, Outline, Shadow, Outline/Shadow |
| Memory: | 2 MB |
| Memory for Transferred Data (number): | Up to 99 Template Files |
| Symbols for Windows ( No. of Clip arts in P-touch Editor): | 1379 |
| Multiple Copies: | Up to 9,999 Copies (PT-Editor) |
| Mirror Printing: | Yes |
| Vertical Printing: | Yes |
| Rotate Printing: | Yes |
| Date/Time Stamp: | Through PC |
| Bar-codes Types: | Linear - Code39, ITF (I-2/5), UPC-A, UPC-E, EAN8, EAN13, Codabar (NW-7), Code128, UCC/EAN128, Postnet, Laser Bar Code, ISBN-2, ISBN-5, GS1 DataBar (RSS) 2-Dimensional - PDF417, QR Code, Micro QR Code, Data Matrix, Maxicode |
| Microsoft Add-ins: | Office 2000/2003/2007 |
| Database File Compatibility: | *.csv, *.txt, *.mdb, *.xls and Microsoft SQL Server |
| Software: | BRAdmin Light 1.14, P-touch PT-Editor 5.0, Transfer Manager 2.1, Transfer Express, Library 2.1 |
| Networking: | 10/100 Print Server Built-in |
| Interface: | USB (1.1 or 2.0), Serial (RS-232C), Ethernet (10/100 Base - TX) |
| Compatibility: | PC |
| Operating System: | Windows 2000 Professional/XP/7, Windows Vista ,Windows Server 2003/2008 |
| Carton Contents: | Printer, Power Cord, USB Cable, CD, RD Starter Roll - Continuous Length Label (7 m or 22.97'), RD Starter Roll - 2" x 1" Labels (250 labels), User Guide |
| Housing Dimensions: | 6.8" (173mm) x 9.0" (229mm) x 6.2" (158mm) |
| Weight: | 4.0 lbs (1.85 kg) Without RD Roll |
| Power Supply: | 120VAC 60 Hz 1.8A |
| Power Switch: | Mechanical |
| Energy Star: | Yes |
| Warranty: | 1 Year Limited Warranty |
Features of Brother Mobile Solution, Inc Network Desktop Bar Code Printer TD4100N:
- High performance, 4" wide desktop bar code printer
- Uses Genuine Brother or most medium/high sensitivity direct thermal label, receipt and tag media
- Fully compatible with Windows OS computers, including Windows 7
- Bundled with PT-Editor print application design software
- Prints high quality 300 dpi text, graphics and bar codes
- Fast, host based printing - up to 4.3 ips
- Reliable built-in automatic cutter
- 10/100 Base TX Ethernet, USB 2.0 and RS-232C serial interface connectivity
Package Contents:
- Brother Mobile Solutions TD-4100N Desktop Barcode Network Printer TD4100N
