Brother Mobile Solutions Compact 203dpi Powered Thermal Printer TD2120N
1 of 3 images

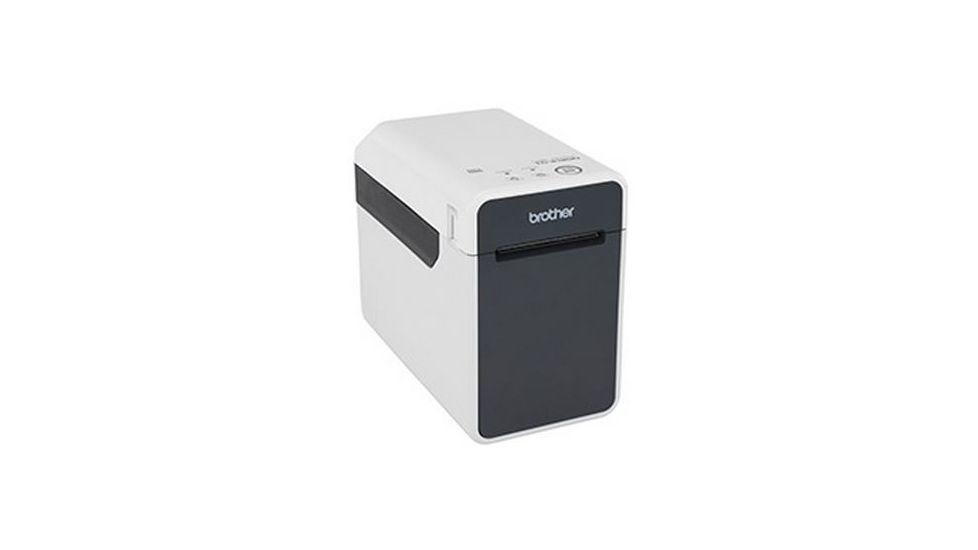

Brother Mobile Solutions Compact 2.2in Wide, 203dpi Powered Desktop/Network Thermal Printer TD2120N
2 of 3 images

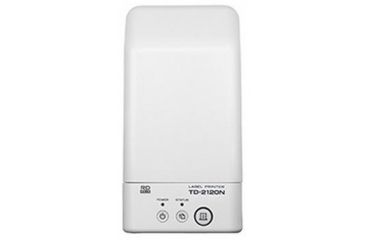

Brother Mobile Solutions Compact 2.2in Wide, 203dpi Powered Desktop/Network Thermal Printer TD2120N
3 of 3 images

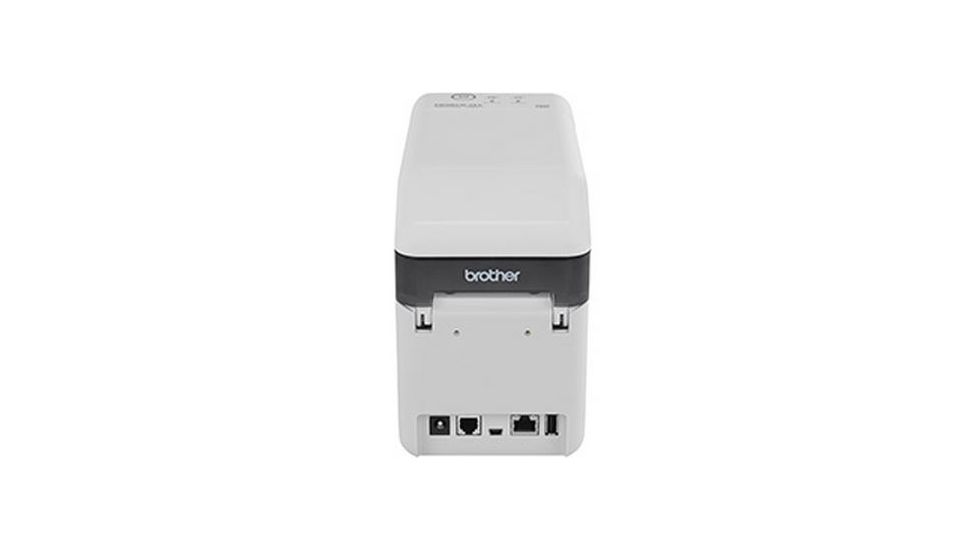

Brother Mobile Solutions Compact 2.2in Wide, 203dpi Powered Desktop/Network Thermal Printer TD2120N
Tap Tap to Zoom
Product Discontinued by Manufacturer
Brother Mobile Solutions Compact 203dpi Powered Thermal Printer has been discontinued by Brother Mobile Solutions and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Printers & Scanners yourself to try and find the perfect replacement for you!
Product Info for Brother Mobile Solutions Compact 203dpi Powered Thermal Printer
Brother Mobile Solutions Compact 203dpi Powered Thermal Printer is part of our larger collection of Brother Mobile Solutions Printers & Scanners. Make sure you have a look at the full line of Printers & Scanners from Brother Mobile Solutions which we feature at everyday low prices. Browse our full product selection for the tools and products you need to tackle the job at hand.
Specifications for Brother Mobile Solutions Receipt Printer - TD-2120N:
| Housing Color: | White with Gray Front Panel |
| Maximum Media Width: | 2.48" (63 mm) |
| Maximum Printing Speed: | Up to 6 ips (152.4 mm/sec) With AC Adapter |
| Maximum Print Resolution: | 203x203 dpi |
| Printing Method: | Raster, Text (Template), Command (ESC P) |
| Operation Modes: | Raster, Template 2.0, ESC P |
| Cutter: | None |
| Display: | Optional Touch Panel & LCD Display (PA-TDU-001) |
| Mobile Device Compatibility: | Windows CE 6.0, Windows Mobile 5.0/6.x, Android 2.2 or Later, iOS 4.3 or Later |
| Maximum Print Width (inches): | 2.2" (56 mm) |
| Minimum Print Length: | 0.5" (12.7 mm) |
| Maximum Label Length: | 39.37" (1K mm) |
| Maximum Resolution (dpi): | 203 |
| Media Sensor & Position: | Fixed Center Transmissive (Gap), Fully Adjustable (Left/Right) Reflective (Mark) |
| Media Types: | Direct Thermal Label, Tag or Receipt (Paper or Synthetic) |
| Maximum Roll Size (outside diameter): | 5" (127 mm) |
| Media Thickness - With Adhesive: | 7 mil (0.170 mm) |
| Media Thickness - Without Adhesive: | 5.3 mil (0.135 mm) |
| Control Panel: | 3 Push Button Keys & 2 LED's; Optional Touch Panel & LCD Display |
| Status Indicator: | LED, Optional Touch Panel & LCD Display |
| Printer Emulation: | ESC P |
| Internal Fonts: | Bitmap - Helsinki, Letter Gothic Bold, Gothic, Outline |
| Internal Font Sizes: | ESC P - 16, 24 & 32 dots Bitmap, 1-400 dots Outline |
| Internal Font Styles: | Bold, Italic, Underline, Outline, Shadow, Outline+Shadow, Vertical |
| Memory: | 32 MB RAM, 16 MB Flash |
| Memory for Transferred Data (number): | 6 MB Internal Flash |
| Symbols for Windows ( No. of Clip arts in P-touch Editor): | 1379 |
| Multiple Copies: | Through PC, Optional Touch Panel & LCD Display |
| Mirror Printing: | Through PC |
| Vertical Printing: | Through PC |
| Rotate Printing: | Yes |
| Date/Time Stamp: | Through PC; Optional Real Time Clock/Calendar With Touch Panel & LCD Display |
| Bar-codes Types: | Linear - Code39, Code 93, Code128, ITF, UPC-A/E, EAN-8/13, GS1-128 (UCC/EAN-128), GS1 DataBar (RSS), MSI, Codabar (NW-7), Postnet 2D - PDF417/MicroPDF417, Data Matrix, Maxicode, QR Code/Micro QR Code, Aztec |
| Microsoft Add-ins: | Office 2000/2003/2007 (Word, Excel & Outlook) |
| Database File Compatibility: | .csv, .txt, .mdb, .xls and Microsoft SQL Server |
| Software: | P-touch PT-Editor 5.0, Transfer Manager 2.1, Update Software, BRAdmin Light, Network Setting Tool |
| Networking: | Ethernet LAN (10/100Base-TX), Optional Wi-Fi WLAN (802.11b/g/n) |
| Interface: | Ethernet LAN (10/100Base-TX), USB 2.0 (Full Speed), Host USB, Serial (RS-232C), Optional Wi-Fi WLAN (802.11b/g/n), Optional Bluetooth v2 / EDR (Class 2) |
| Compatibility: | Windows Server 2012/2008R2/2008/2003, Windows 8/7/XP, Windows Vista |
| Operating System: | Windows Server 2012/2008R2/2008/2003, Windows 8/7/XP, Windows Vista |
| Carton Contents: | Printer, AC Adapter, Power Cord, USB (Mini) Cable, CD, Documentation |
| Housing Dimensions: | 4.33" (w) x 6.77" (h) x 8.46" (d) |
| Weight: | 2.96 lbs (1.34 kg), With Optional Rechargeable Battery - 4.15 lbs (1.88 kg) |
| Power Supply: | 100-240 VAC, 50/60 Hz, 1.2 A External AC Adapter (PA-AD-001) |
| Power Switch: | Digital |
| Energy Star: | Yes |
| Warranty: | 2 Years Limited Warranty |
Features of Brother TD2120N Desktop Receipt Printer:
- High Speed Printing - Prints up to 6ips in 203dpi print resolution
- Small Size, But Big on Performance - Although these printers are among the smallest desktop thermal printers in their class, they also lead in performance over many 203 dpi print resolution desktop thermal printers
- Ergonomic Design - Uses an innovative spindle-less design that accepts labels, tags or receipt media with virtually any core size for a true drop-in media roll loading experience on a desktop, cart or even mounted to a wall
- Complete Label Printing Solution - Comes with the full version of the Brother P-touch Editor software application with advanced design tools and printing features
- Print From a Database - Helps save time and increase accuracy by printing labels, tags and receipts linked directly to Microsoft SQL Server, Access or Excel database files
- Two Year, "At your side" Limited Warranty - As a commitment to reliability, the entire label printer is covered under a two year limited warranty, including the print head no matter the amount of media you print every day
- Adjustable Edge-to-Edge Media Sensor - Flexibility to detect and print on more types of existing thermal media to help avoid converting custom media
- Bridges The Gap Between Desktop and Mobile Printers - With the rechargeable battery, these printers become powered desktop thermal printers and operate like a mobile printer with higher media capacity and desktop printer options like a peeler and a touch panel LCD display for use off-line or as a standalone solution
- Cut the cords - With an optional Li-ion rechargeable battery and wireless Wi-Fi or Bluetooth interface, you can print from a desktop or network thermal printer from virtually any location in the retail store, regardless of having a power outlet and/or network interface port nearby
Package Contents:
- Brother Mobile TD2120N Thermal Desktop Printer
- Printer
- AC Adapter
- Power Cord
- USB (Mini) Cable
- CD
- Documentation
