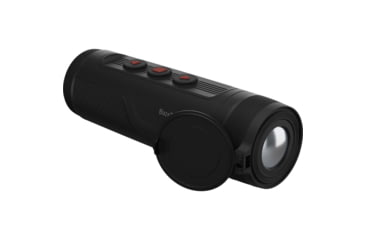

ATN BlazeTrek 325 Gen 6 2.8-22x, Thermal Monocular, 384x288 Sensor, 1214524
2 of 12 images

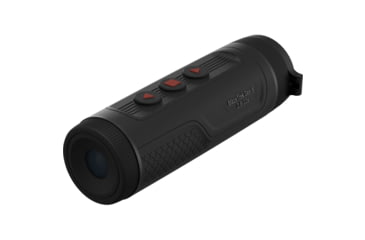

ATN BlazeTrek 325 Gen 6 2.8-22x, Thermal Monocular, 384x288 Sensor, 1214524
3 of 12 images

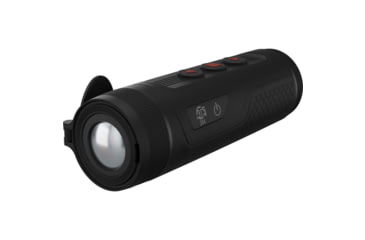

ATN BlazeTrek 325 Gen 6 2.8-22x, Thermal Monocular, 384x288 Sensor, 1214524
4 of 12 images
ATN BlazeTrek 325 Gen 6 2.8-22x, Thermal Monocular, 384x288 Sensor, 1214524
5 of 12 images
ATN BlazeTrek 325 Gen 6 Thermal Monocular
6 of 12 images

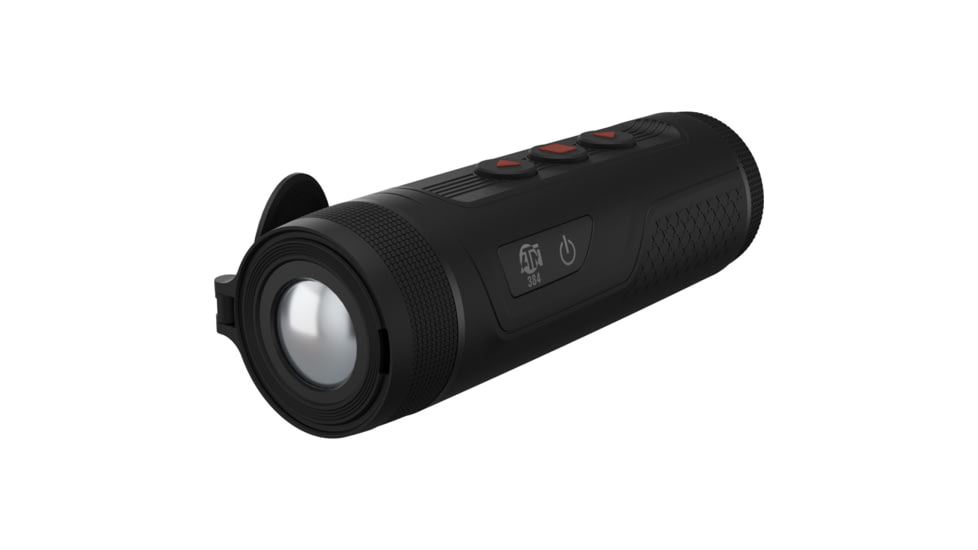

ATN BlazeTrek 325 Gen 6 Thermal Monocular
7 of 12 images

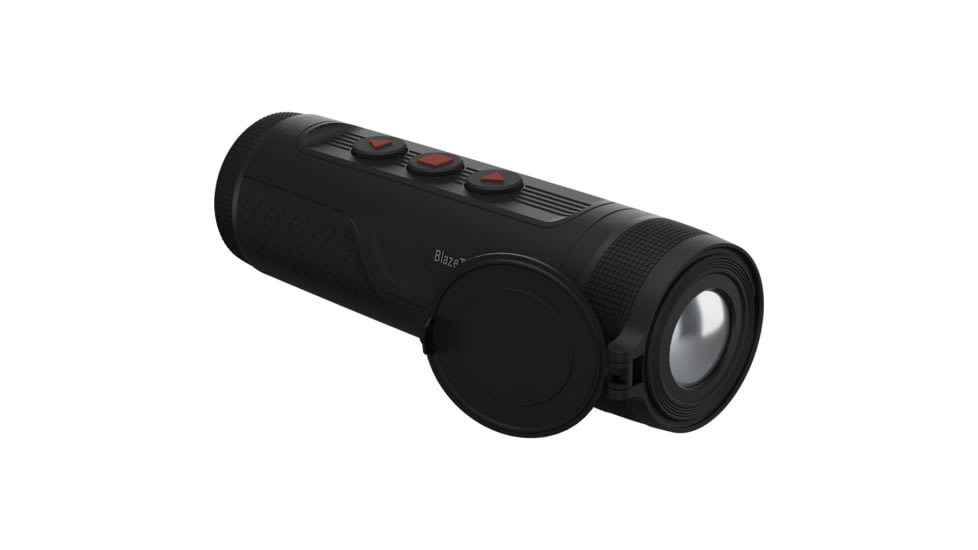

ATN BlazeTrek 325 Gen 6 Thermal Monocular
8 of 12 images
ATN BlazeTrek 325 Gen 6 Thermal Monocular
9 of 12 images
ATN BlazeTrek 325 Gen 6 Thermal Monocular
10 of 12 images
ATN BlazeTrek 325 Gen 6 Thermal Monocular
11 of 12 images
ATN BlazeTrek 325 Gen 6 Thermal Monocular
12 of 12 images
ATN BlazeTrek 325 Gen 6 Thermal Monocular
Tap Tap to Zoom
Documents
- Magnification:
- 2.8 - 22 x
- Color:
- Black
- Resolution:
- 384x288 pixels
- Refresh Rate:
- 50 Hz
Code: AT-THM-1214524-TIMNBLT325G6
MPN: TIMNBLT325G6
UPC: 658175479673
List: $1,315.00Save $120.00
$1,195.00
SP Bucks$23.90
Product Info for ATN BlazeTrek 325 Gen 6 2.8-22x25mm Thermal Monocular
ATN BlazeTrek 325 Gen 6 2.8-22x25mm Thermal Monocular belongs to our big variety of ATN Optics. Don't forget to take a look at the complete range of Thermal Imaging Optics from ATN which we provide at everyday low prices. Browse our full product choice for the tools and products you want to tackle the job at hand.
WARNING:
California`s Proposition 65
Specifications for ATN BlazeTrek 325 Gen 6 2.8-22x25mm Thermal Monocular:
| Manufacturer: | ATN |
| Magnification: | 2.8 - 22 x |
| Color: | Black |
| Resolution: | 384x288 pixels |
| Objective Lens Diameter: | 25 mm |
| Battery Life: | 8 hours |
| Eye Relief: | 15 mm |
| Battery Type: | Lithium Ion |
| Weight: | 0.7 lb |
| Refresh Rate: | 50 Hz |
Features of ATN BlazeTrek 325 Gen 6 2.8-22x25mm Thermal Monocular
- 6th Generation Thermal Engine
- 384x288 sensor with 12m pixel pitch and 18mK NETD sensitivity paired with a smooth 50 Hz refresh rate provides detailed and responsive thermal imagery.
- ATN SharpIR AI Technology
- Refines every frame in real time, enhancing edge definition and contrast for clearer target recognition at distance.
- High-Contrast OLED Display
- 800x600 OLED display delivers crisp visuals and smooth motion tracking for confident scanning.
- Multiple Color Palettes
- Six selectable color modes adapt easily to terrain and lighting variation.
- 25 mm Germanium Lens
- Narrower field lens (10.9 x 8.2) enhances reach and detail for distant targets.
- Maximum Detection Range
- Up to 1,300 meters of detection capability for extended observation across open terrain.
- Smooth and Step Digital Zoom
- 8x digital zoom enables precise magnification control.
- Manual Focus
- Focus range from 1 m to infinity allows detailed fine-tuning at all distances.
- Hot Point Tracking
- Instantly highlights the hottest object in view, aiding rapid location and tracking.
- Scene Modes
- Optimized performance across varied environments and lighting conditions.
- Video, Audio, and Image Recording
- Record and store thermal video, audio, and stills on 32 GB of internal memory.
- Built-In Wi-Fi Connectivity
- Wi-Fi hotspot allows pairing with the ATN Connect 6 app for streaming and sharing.
- USB Type-C Interface
- Supports charging, data transfer, and external power supply.
- Rugged and Portable
- 320 g IP67-rated housing built to withstand rain, dust, and rugged terrain.
- Efficient Power
- Internal rechargeable battery provides up to 8 hours with USB Type-C support for external power.
- Comfortable in Hand
- Balanced and compact design optimized for long observation sessions.
Package Contents:
- ATN BlazeTrek 325 Gen 6 2.8-22x25mm Thermal Monocular
- BlazeTrek Monocular
- Carrying Case
- USB Cable
- Lanyard
- Wristband
- Lens Tissue
- Quick Reference Guide
